Cat

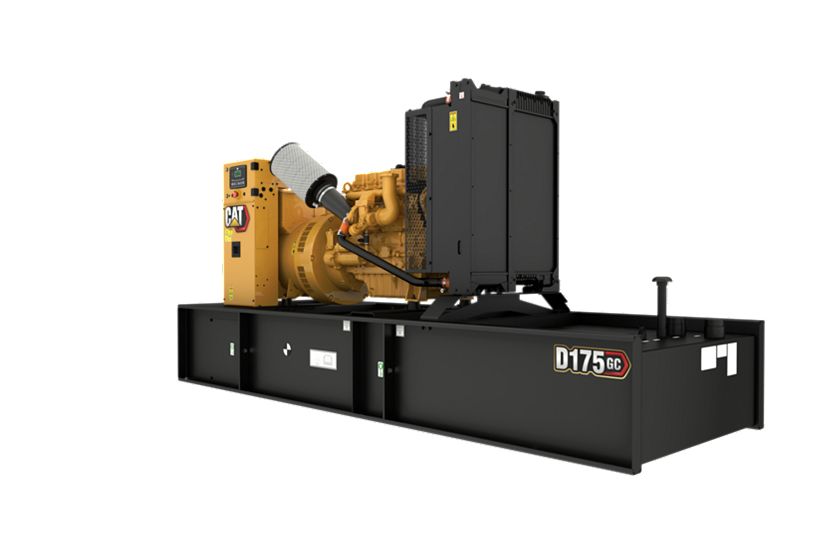

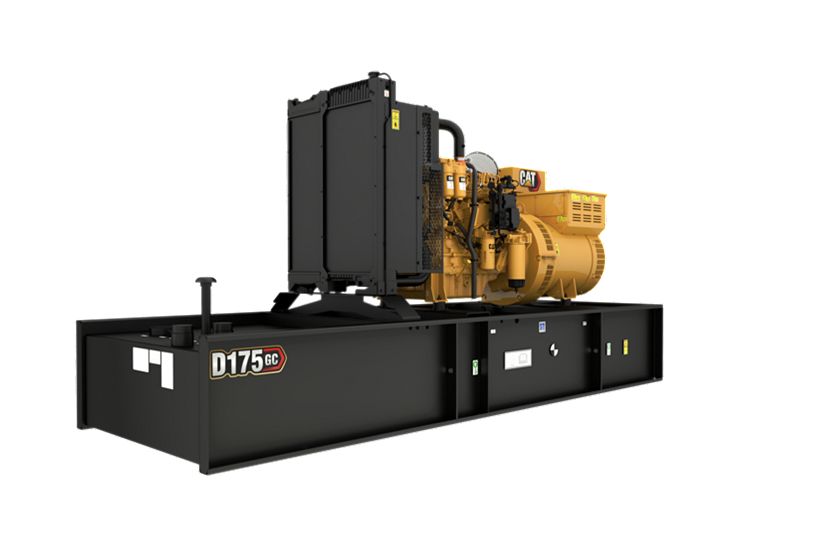

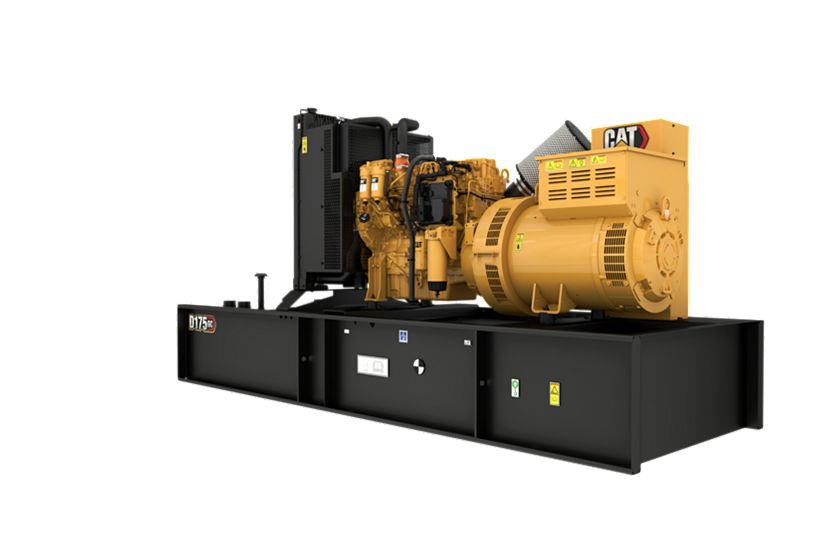

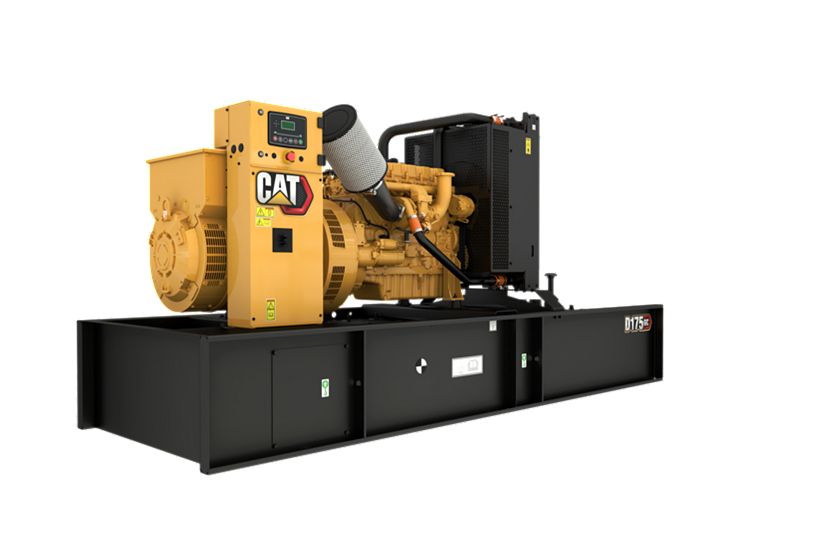

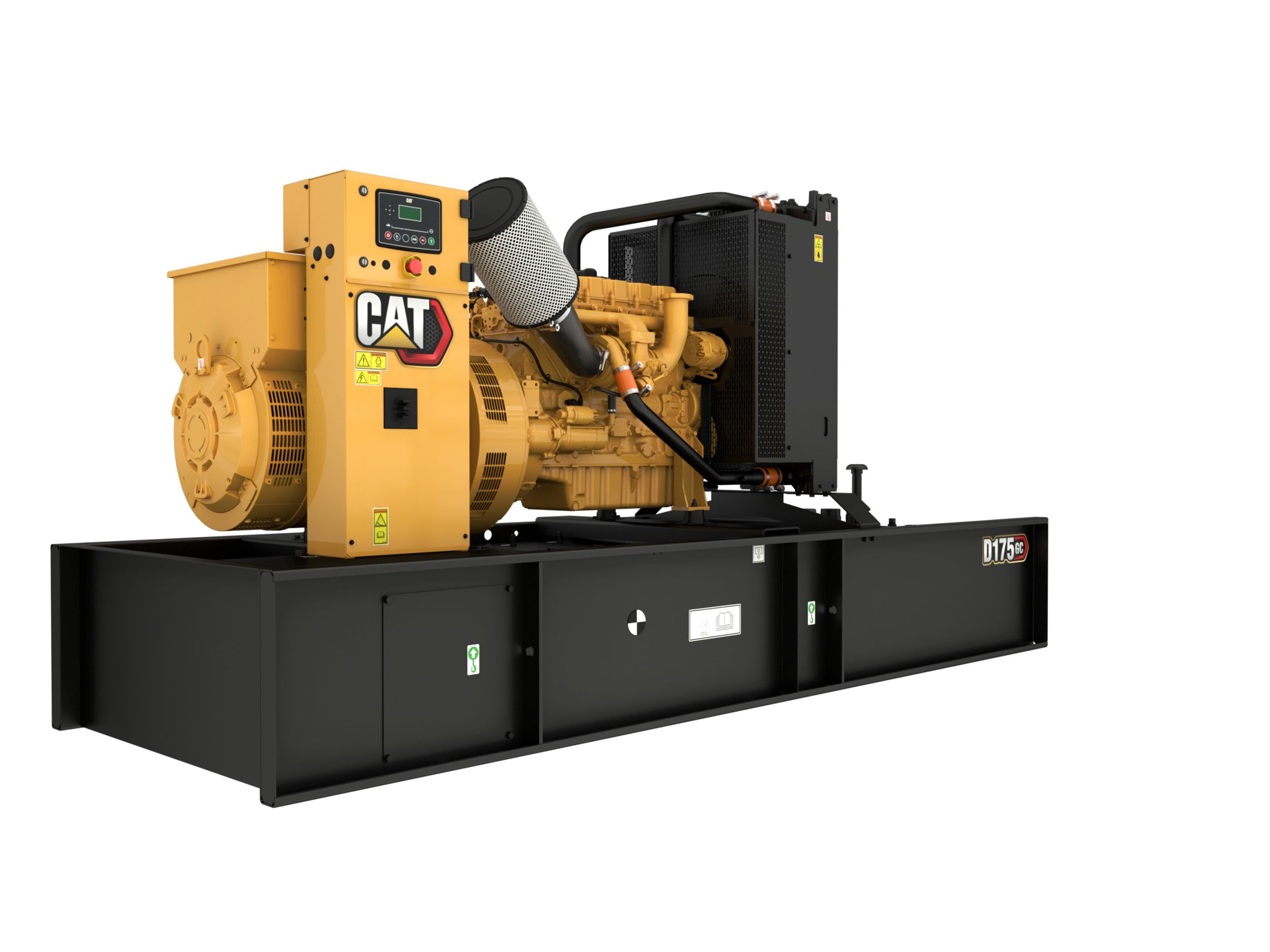

D175 GC Generator Set
Maximum Rating
175 ekW
175 ekW
Minimum Rating
175 ekW
175 ekW
Emissions/Fuel Strategy
U.S. EPA Cert., Tier 3
U.S. EPA Cert., Tier 3
Overview
Producing reliable power of 175 ekW at 60 Hz, our D175 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D175 GC generator sets are available with a choice of emissions levels.
Media
Photos
360° View
Exterior
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
M-Frame Alternator
GCCP 1.2 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 175 ekW 175 ekW |
| Minimum Rating | 175 ekW 175 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 U.S. EPA Cert., Tier 3 |
| Voltage | 208 to 600 Volts 208 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C7.1 I-6, 4-Cycle Diesel C7.1 I-6, 4-Cycle Diesel |
| Bore | 4.1 in 105 mm |
| Stroke | 5.31 in 135 mm |
| Displacement | 427.8 in³ 7.01 l |
| Compression Ratio | 16.7:1 16.7:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled Turbocharged, Air to Air Aftercooled |
| Fuel System | Electronic, Common Rail Electronic, Common Rail |
| Governor Type | ADEM™A4 ADEM™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 103.7 in 2634 mm |
| Width – Maximum | 51.2 in 1300 mm |
| Height – Maximum | 58.7 in 1492 mm |
| Dry Weight – Genset (maximum) | 3741 lb 1697 kg |
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable element
Control Panels
- GCCP 1.2 Control panel
Cooling System
- Coolant drain line with valves
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
- Radiator and cooling fan with guards
Generator and Generator Attachments
- Tower panel, IP22, bottom cable entry
- IP23 Protection
- 12 Leads
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- Segregated low voltage (AC/DC) wiring panel
- Voltage regulator (single phase sensing)
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use – shipped loose
Fuel System
- Base, formed steel with single wall integral 24-hour fuel tank
- Standard open set fuel tank/base supplied
Lube System
- Lubricating oil
- Oil drain line with valve
Mounting System
- Termination points for coolant and lube oil drain lines
- Includes lifting provision and drag points
- Captive linear vibration isolators between base and engine-generator
Starting / Charging System
- 24V battery with rack and cables
Governing System
- Mechanical and electrical governing system – model dependent
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Alternator System
- Permanent magnet excitation (PMG)
- Quatrature droop king
- Alternator removal
- 3 Phase sensing
- R Frame auxiliary winding: R2273L4 SE aux alt 07, aux alt 08 and aux alt 10
- Anti-condensation heater
- Optional LC Frame alternator with coastal insulation protection
Circuit breakers
- Padlockable breaker device
- 4 Pole 250A, 400A and 630A Circuit breakers
Control Panel Options
- Earth fault (2 wire only)
- Speed adjust contacts
- Panel mounted audible alarm
- Volt free contacts
- Earth leakage (2 wire only)
- Overload shutdown via breaker
- Control panel heater
- Speed adjust potentiometer
- Battery charger
- Emergency stop with key
Control System
- Static battery charger
- Volt free contacts for common alarm
- Volt free contacts for generator set running
- GCCP 1.2
Cooling System
- Low coolant temperature
- Coolant heater
- Low coolant level shutdown
Enclosures

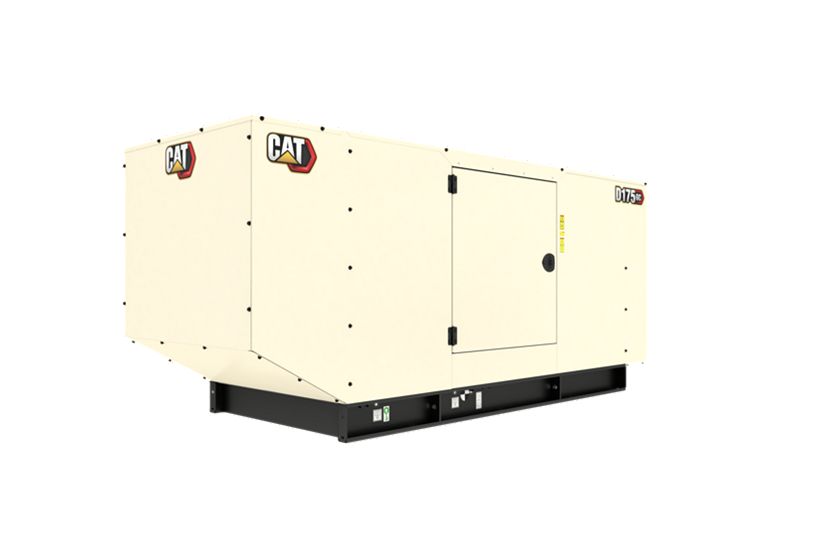

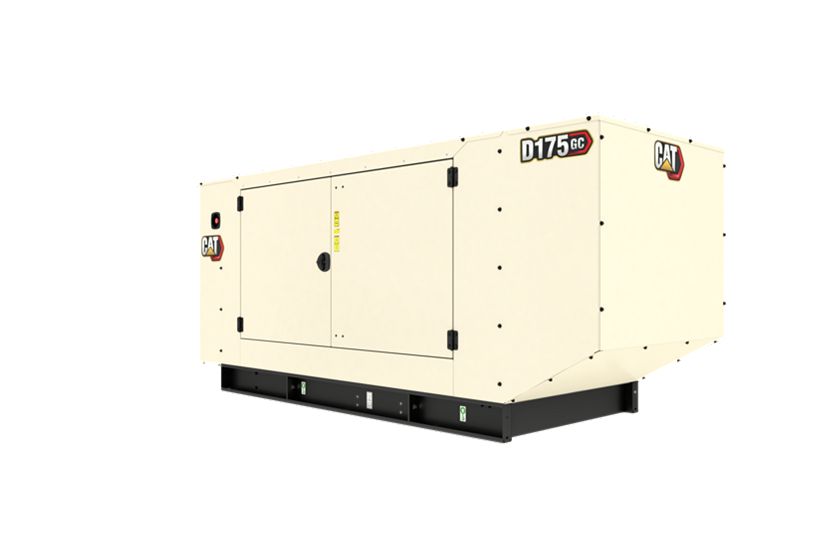

- Sound attenuated level 2 enclosure
Mounting Options
- Electronic governor
- Silencer installation kit
- Industrial silencer removal
- Battery removal
- Residential silencer
Fuel Systems
- Low fuel level alarm
- Compact skidbase for open sets
- DEFRA bunded fuel tank
- Open set narrow tankbase
- Low fuel level shutdown
- Skidbase for CALG enclosure sets
- High fuel level alarm
Test Reports
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8 power factor
General
- Stone guards/radiator trans flange
Global Certifications
- Certification for CIS
Power Termination
- Circuit breaker, IEC, 4 pole
Accessories / Miscellaneous
- Packing case – compact set
- Packing case – canopied set
