Cat
D350 GC (60 Hz) Generator Set
Maximum Rating
350 ekW
350 ekW
Minimum Rating
350 ekW
350 ekW
Emissions/Fuel Strategy
EPA Stationary Emergency
EPA Stationary Emergency
Overview
The D350 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 350 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D350 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
Media
Photos
360° View

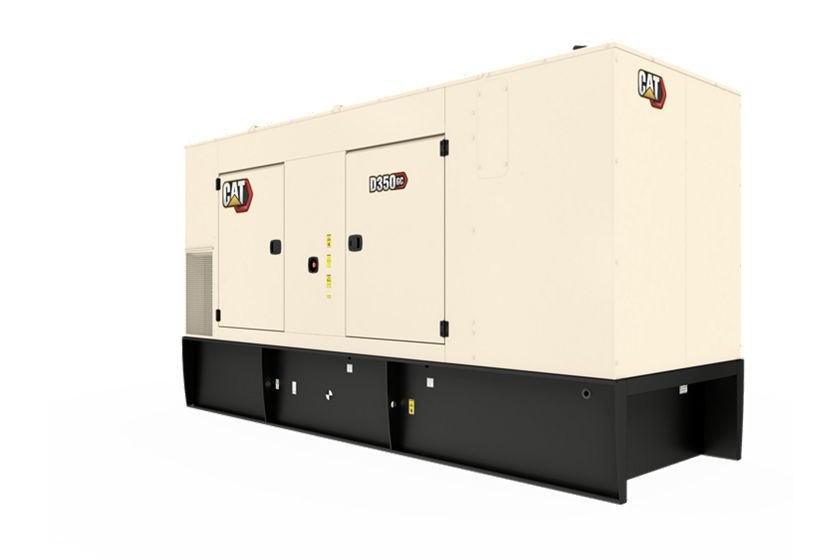

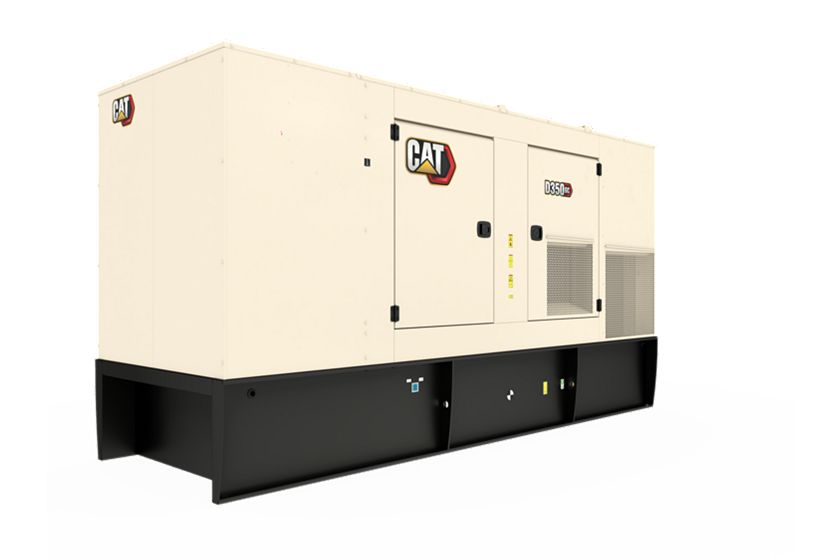

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.

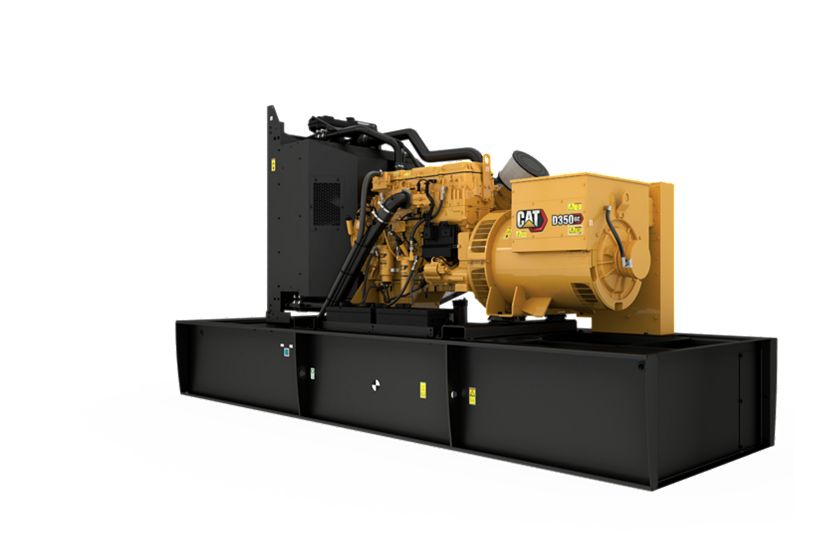

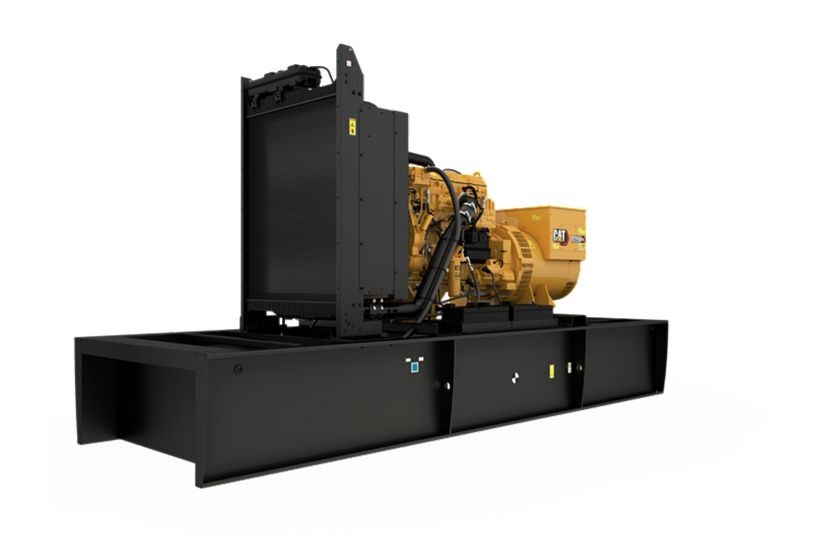

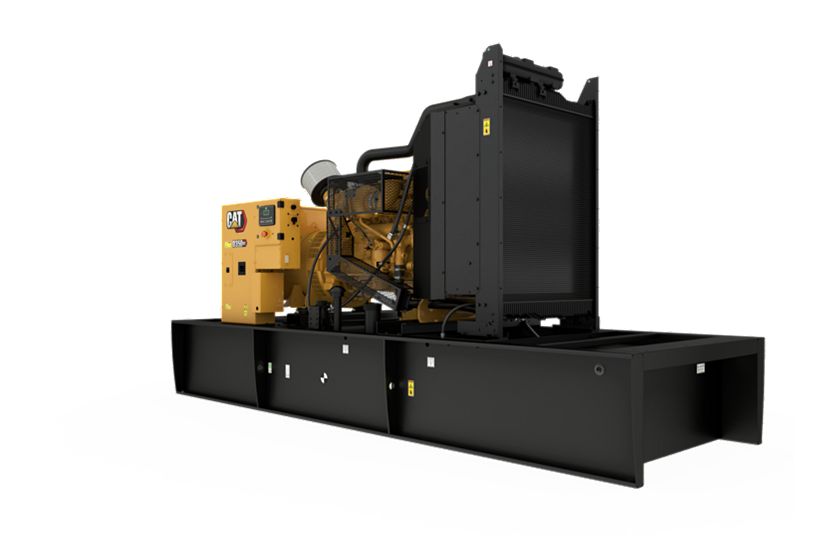

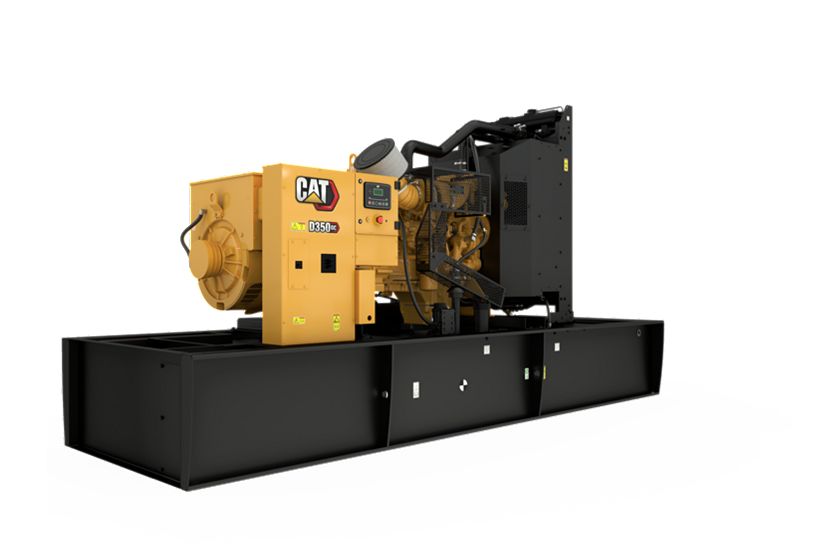

Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
M-Frame Alternator
GCCP 1.2 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 350 ekW 350 ekW |
| Minimum Rating | 350 ekW 350 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency EPA Stationary Emergency |
| Voltage | 480 to 600 Volts 480 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | Cat® C13 In-line 6, 4-cycle diesel Cat® C13 In-line 6, 4-cycle diesel |
| Bore | 5.1 in 130 mm |
| Stroke | 6.2 in 157 mm |
| Displacement | 763 in³ 12.5 B |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | ADEM™A4 ADEM™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 182.8 in 4625 mm |
| Width – Maximum | 64.2 in 1630 mm |
| Height – Minimum | 80.3 in 2039 mm |
| Height – Maximum | 96.7 in 2456 mm |
| Dry Weight – Genset (minimum) | 6929.1 lb 3143 kg |
| Dry Weight – Genset (maximum) | 7255.4 lb 3291 kg |
Standard Equipment
Air Inlet System
- Turbocharger
- Aftercooler core
- Air cleaner – Non canister, disposable
Control Panel
- GCCP 1.2
Cooling System
- Radiator sight gauge
- Blower fan and fan drive with guards
- Radiator, package mounted
- Coolant drain valve
- Thermostats and housing
- Jacket water pump, gear driven, centrifugal
Exhaust System
- Exhaust manifold – dry
Fuel System
- Integral tank base, 24 hours, UL142
- Engine fuel transfer pump
- Primary fuel filter w/integral water separator and secondary filter, spin on
- Fuel cooler
- Fuel priming pump
Generator Set
- Complete system designed & built at ISO 9001:2000 certified facilities
- All protective devices and control functions simulated and checked
- Factory tested to design specifications at full load conditions
Generators and Generator Attachments
- 6 Leads
- Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
- Terminal box, IP22 RHS facing, bottom cable entry
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- IP23 Protection
- Voltage regulator (single phase sensing)
- Easy access to AVR and terminals
- Insulation system, Class H
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Oil drain with valve
- Lubricating oil, CK-4 (10W-30)
- Oil filter, spin on
- Oil cooler
- Oil filler and dipstick
- Fumes disposal to front of radiator
- Shallow oil pan
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Protection
- Safety shutoff – High water temperature
- Safety shutoff – Low oil pressure
- Safety shutoff – Overspeed
Starting/Charging System
- 24-volt electric starting motor
- 24V, 45 Amp Charging alternator
General
- Vibration damper
- Parts book
- Lifting eyes
Optional Equipment
Air Inlet System
- Air cleaner (Non canister disposable)
Bases, Mounting & Fuel Tanks
- Wide Base – Skid
- Overfill prevention valve
- 5 Gallon Spill Containment
- Fuel tank pill pipe & lockable cap
- Integral tank base, 24 hours, UL142
- Audio & visual fuel alarm (@90% fuel level)
Circuit breaker
- 1200A LS/I
- 800A LSI
- 400A LS/I
- Auxiliary contacts
- 600A LS/I
- 600A LSI
- 1200A LSI
- 400A LSI
- 800A LS/I
Control System
- Volt free contacts
- Ground fault relay
- Audible alarm Gp
- Twist release, Red button emergency stop
- 20A GFCI (Ground Fault Circuit Interrupter)
- 100A Load center
- Product link remote monitoring hardware
- 16 -light NFPA 99/110 Annunciator
Enclosures
- E-Stop
- Sound attenuated Level 2 enclosure (White)
- AC & DC Source lights
Exhaust System
- Flexible exhaust connection
- 8″ Muffler – 25 dBA attenuation
- Manifold and turbocharger guards
Generator
- Space heater
- Permanent magnet excitation (PMG) generator
Starting System
- Battery charger (UL Certified)
- Jacket water heater
- Standard battery set: 1000 CCA, 90 amp/hr.
- Oversize battery set, 1400 CCA, 200 amp/hr
Circuit breakers
- Circuit breaker (IEC) Auxiliary contacts
- 4 Pole (IEC-100% rated) Circuit breaker – Motorised
- Shunt trip for IEC circuit breaker
General
- Extended Service Coverage
- UL2200 Certification
- CSA Certification
- Generator test report
starting / Charging System
- Jacket water heater
- Battery disconnect switch
