Cat

DE88 GC Generator Set (50 Hz)

Maximum Rating

88 kVA

88 kVA

Minimum Rating

88 kVA

88 kVA

Emissions/Fuel Strategy

Non Regulated

Non Regulated

Overview

Producing 88 kVA of reliable power at 50 Hz, our DE88 GC diesel generator sets designed to ISO 8528-5 transient response requirements.

Media

Photos

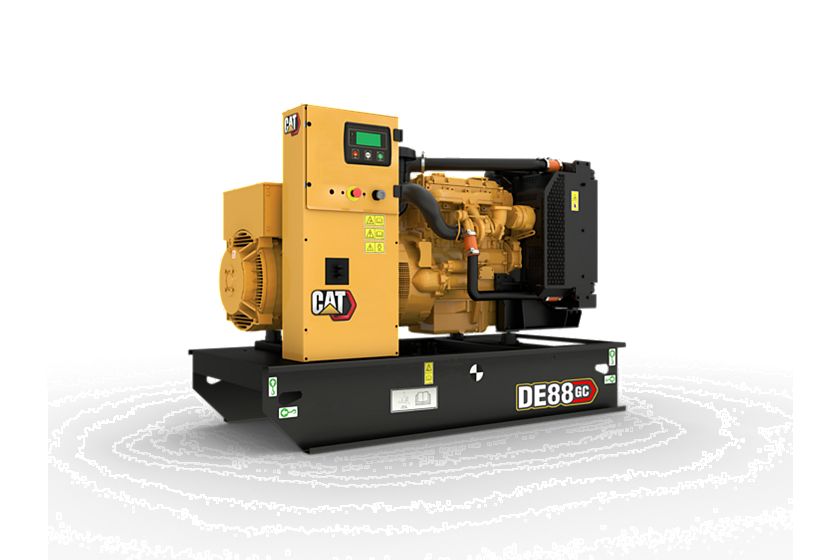

DE88GC

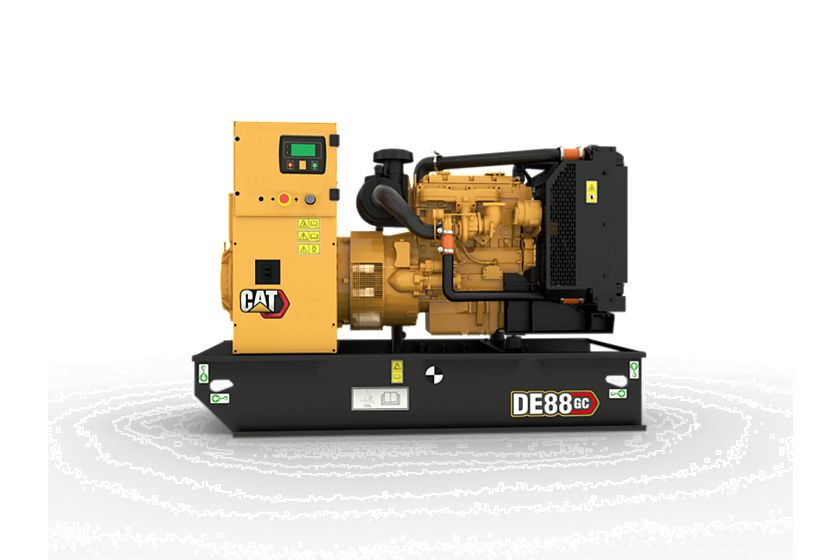

DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC
DE88GC

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any area of the product.

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

A-Frame Alternator

GCCP 1.1 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Maximum Rating 88 kVA 88 kVA
Minimum Rating 88 kVA 88 kVA
Emissions/Fuel Strategy Non Regulated Non Regulated
Voltage 380 to 415 Volts 380 to 415 Volts
Frequency 50 Hz 50 Hz
Speed 1500 rpm 1500 rpm
Duty Cycle Standby Standby
Spec Value
Engine Model C4.4, In-line 4, 4-cycle diesel C4.4, In-line 4, 4-cycle diesel
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in 4.4 l
Compression Ratio 17.25:1 17.25:1
Aspiration Turbocharged Turbocharged
Fuel System Inline Inline
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 89.6 in 2275 mm
Width – Maximum 43.3 in 1099 mm
Height – Maximum 57.7 in 1465 mm
Dry Weight – Genset (maximum) 1245 lb 2745 kg

Standard Equipment

Engine

  • C4.4, Inline 4 cylinder, 4 stroke diesel

Fuel Storage

  • Single wall 8 hour fuel tank

Governor

  • Mechanical governor

Alternator

  • A Frame standard alternator

Genset Control

  • GCCP 1.1

Enclosure

  • Cat GC enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Certification

  • Certificate of Conformance
  • Australia, CIS, Gulf Certification

Auxiliary Supply Voltage

  • 120V

Alternator Requirements

  • Space heater

Fuel Storage

  • Dual wall 8 hour fuel tank
  • Single wall tank with containment
  • Low fuel level shutdown
  • High fuel level alarm
  • Low fuel level alarm

Genset Control

  • Volt free contacts for genset running
  • Emergency stop with key
  • Earth leakage
  • Volt free contacts for common alarm
  • Battery charger
  • Earth fault
  • Panel mounted audible alarm
  • Coolant heater
  • Standby Pack (Smart Jacket water heater, Battery charger)
  • Battery
  • Low coolant level shutdown

Circuit breaker

  • 3 Pole Circuit breaker 160A
  • 3 Pole Circuit breaker 125A
  • 3 Pole Circuit breaker 200A
  • 4 Pole Circuit breaker 125A
  • 3 Pole Circuit breaker 400A
  • 4 Pole Circuit breaker 160A
  • 3 Pole Circuit breaker 250A
  • 4 Pole Circuit breaker 200A
  • 4 Pole Circuit breaker 250A
  • Circuit breaker padlock
  • 4 Pole Circuit breaker 400A
  • Neutral earth link
  • Overload via alarm switch on breaker

Testing & Packaging

  • PGS Test report @ 1.0 power factor
  • PGS Test report @ 0.8PF
