Cat
D300 GC (60 Hz) Generator Set
Maximum Rating
300 ekW
300 ekW
Minimum Rating
300 ekW
300 ekW
Emissions/Fuel Strategy
EPA Stationary Emergency
EPA Stationary Emergency
Overview
Producing reliable power of 300 ekW at 60 Hz, our D300 GC diesel generator set are designed to ISO 8528-5 transient response requirements. The D300 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
Media

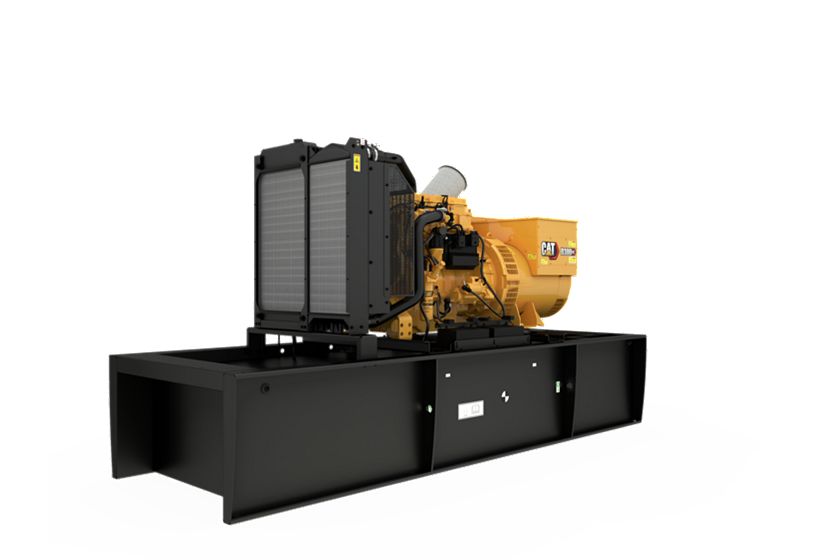

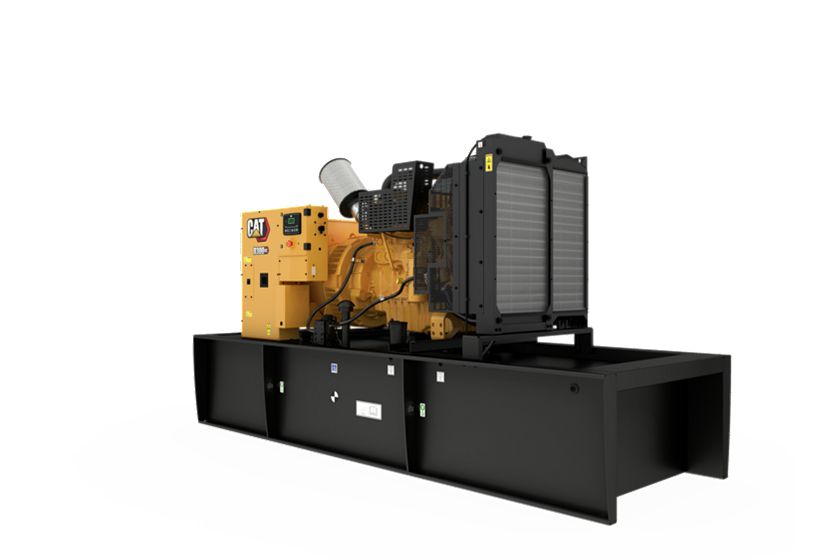

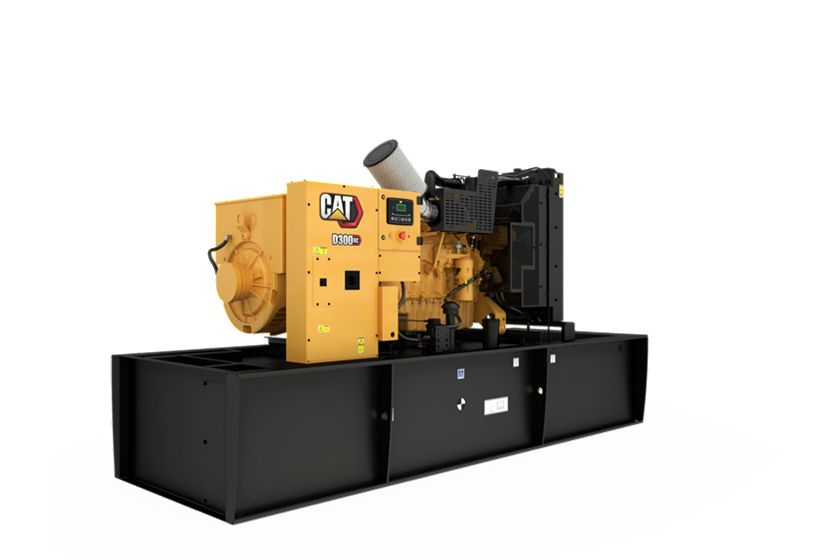

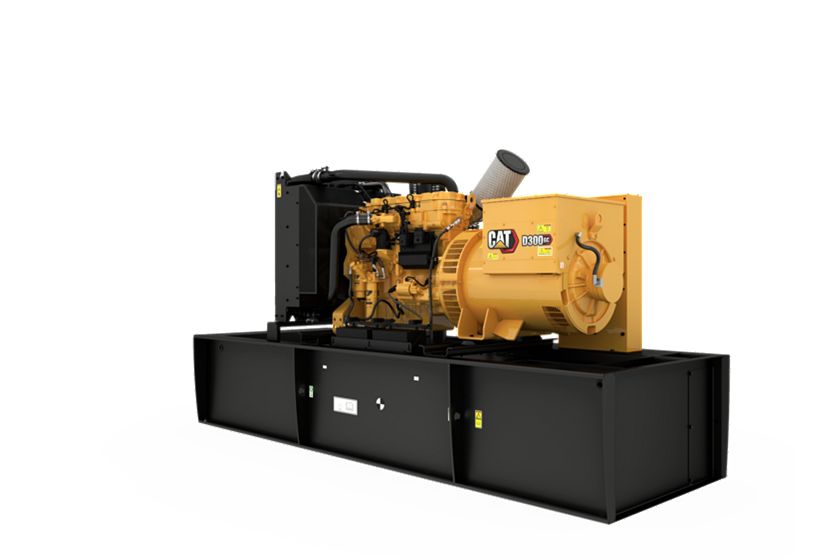

Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
M-Frame Alternator
GCCP 1.2 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 300 ekW 300 ekW |
| Minimum Rating | 300 ekW 300 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency EPA Stationary Emergency |
| Voltage | 208 to 600 Volts 208 to 600 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | Cat® C9 In-line 6, 4-cycle diesel Cat® C9 In-line 6, 4-cycle diesel |
| Bore | 4.4 in 112 mm |
| Stroke | 5.9 in 149 mm |
| Displacement | 538 in³ 8.8 l |
| Compression Ratio | 16.3:1 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled Turbocharged Air-to-Air Aftercooled |
| Fuel System | HEUI HEUI |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 155.5 in 3950 mm |
| Width – Minimum | 56.3 in 1430 mm |
| Width – Maximum | 56.7 in 1440 mm |
| Height – Minimum | 67.2 in 1706 mm |
| Height – Maximum | 86.7 in 2202 mm |
| Dry Weight – Genset (minimum) | 5518.2 lb 2503 kg |
| Dry Weight – Genset (maximum) | 6929.1 lb 3143 kg |
Standard Equipment
Air Inlet System
- Aftercooler core
- Turbocharger
- Air cleaner – Non canister, disposable
Control Panel
- GCCP 1.2
Cooling System
- Jacket water pump, gear driven, centrifugal
- Thermostats and housing
- Coolant drain valve
- Radiator sight gauge
- Blower fan and fan drive with guards
- Radiator, package mounted
Exhaust System
- Exhaust manifold – dry
Fuel System
- Integral tank base, 24 hours, UL142
- Fuel priming pump
- Engine fuel transfer pump
- Primary fuel filter w/integral water separator and secondary filter, spin on
Generator Set
- Complete system designed & built at ISO 9001:2000 certified facilities
- All protective devices and control functions simulated and checked
- Factory tested to design specifications at full load conditions
Generators and Generator Attachments
- IP23 Protection
- 12 Leads
- Insulation system, Class H
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- Voltage regulator (single phase sensing)
- Easy access to AVR and terminals
- Terminal box, IP22 RHS facing, bottom cable entry
- Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Shallow oil pan
- Oil cooler
- Fumes disposal to front of radiator
- Oil drain with valve
- Oil filler and dipstick
- Oil filter, spin on
- Lubricating oil, CK-4 (10W-30)
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Protection
- Safety shutoff – High water temperature
- Safety shutoff – Low oil pressure
- Safety shutoff – Overspeed
Starting/Charging System
- 24-volt electric starting motor
- 24V, 45 Amp Charging alternator
General
- Lifting eyes
- Vibration damper
- Parts book
Optional Equipment
Air Inlet System
- Air cleaner (Non canister disposable)
Bases, Mounting & Fuel Tanks
- Integral tank base, 24 hours, UL142
- Audio & visual fuel alarm (@90% fuel level)
- Wide Base – Skid
- Fuel tank pill pipe & lockable cap
Circuit breaker
- 400A LSI
- 600A LSI
- 1200A LSI
- 800A LS/I
- Auxiliary contacts
- 600A LS/I
- 1200A LS/I
- 400A LS/I
- 800A LSI
Control System
- Audible alarm Gp
- 16 -light NFPA 99/110 Annunciator
- Twist release, Red button emergency stop
- Ground fault relay
- 100A Load center
- Product link remote monitoring hardware
- 20A GFCI (Ground Fault Circuit Interrupter)
- Volt free contacts
Enclosures

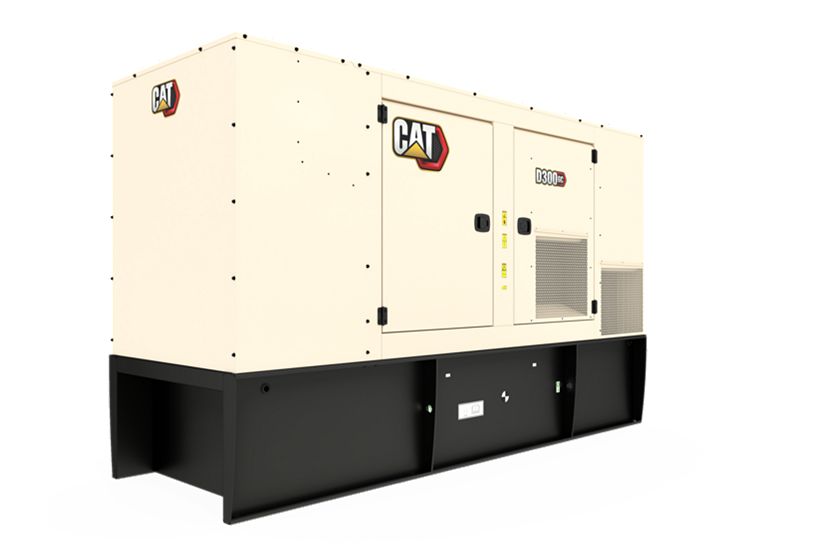

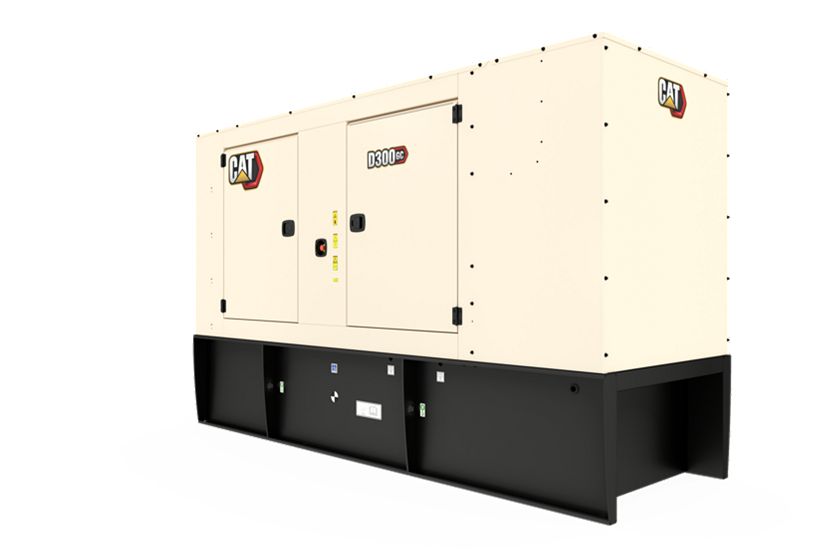

- Sound attenuated Level 2 enclosure (White)
- AC & DC Source lights
- E-Stop
Exhaust System
- 6″ Muffler – 25 dBA attenuation
- Manifold and turbocharger guards
- Flexible exhaust connection
Generator
- Space heater
- Permanent magnet excitation (PMG) generator
Starting System
- Battery charger (UL Certified)
- Jacket water heater
- Standard battery set: 1000 CCA, 90 amp/hr.
General
- CSA Certification
- Extended Service Coverage
- UL2200 Certification
- Generator test report
