Cat

DE110 GC Generator Set (50 Hz)

Standby Rating

110 kVA

110 kVA

Frequency

50 Hz

50 Hz

Emissions/Fuel Strategy

Low BSFC

Low BSFC

Overview

The Cat® C4.4 diesel generator sets have been developed for standby and prime power applications, delivering reliable power from 110 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements.

Media

Photos

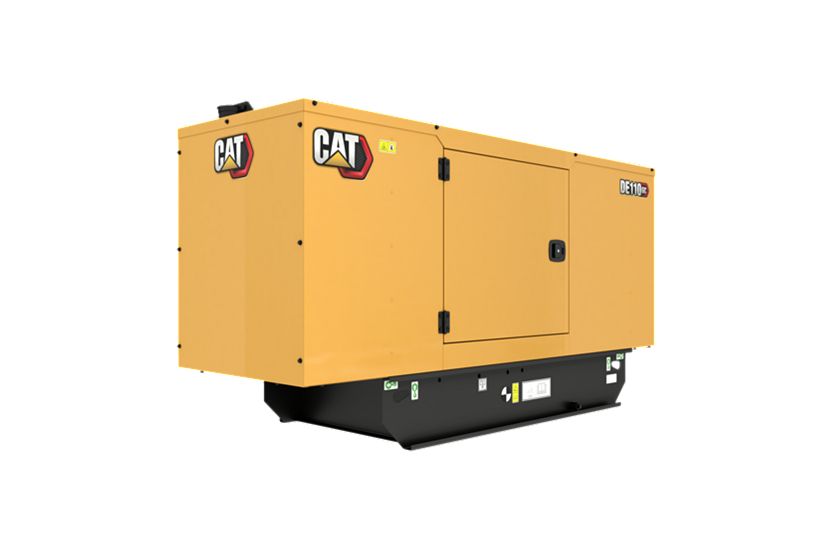

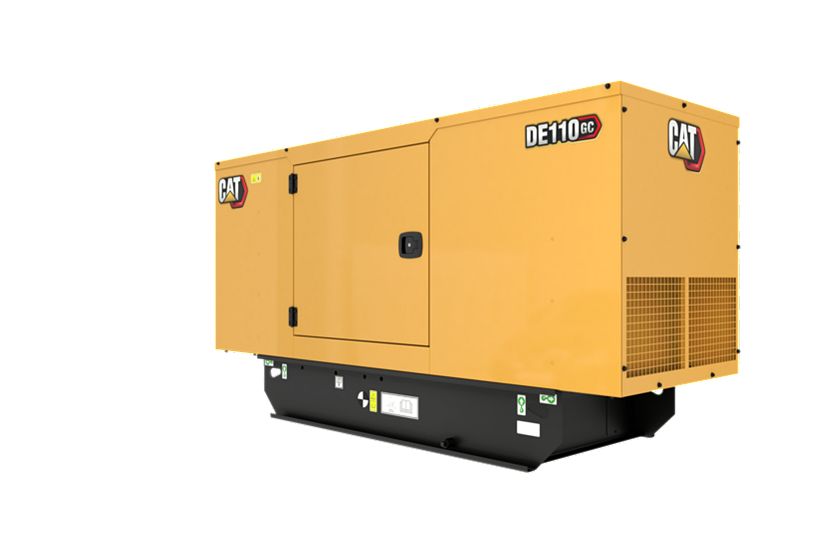

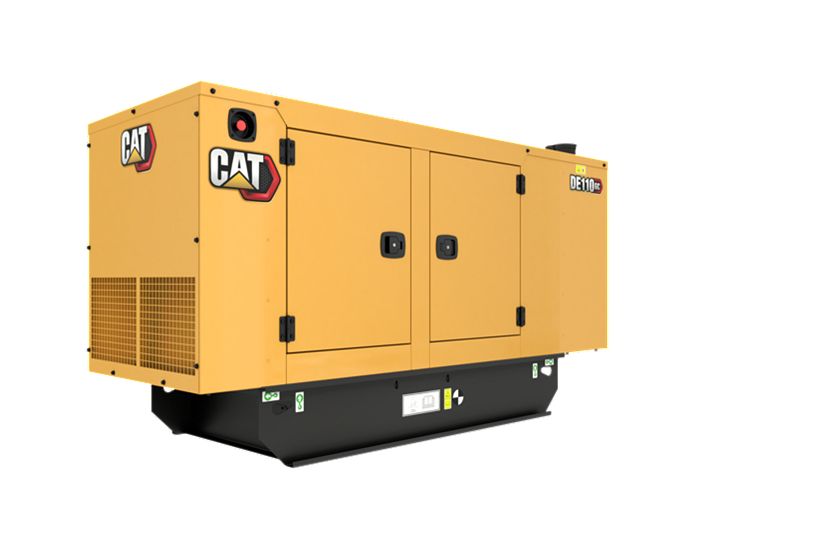

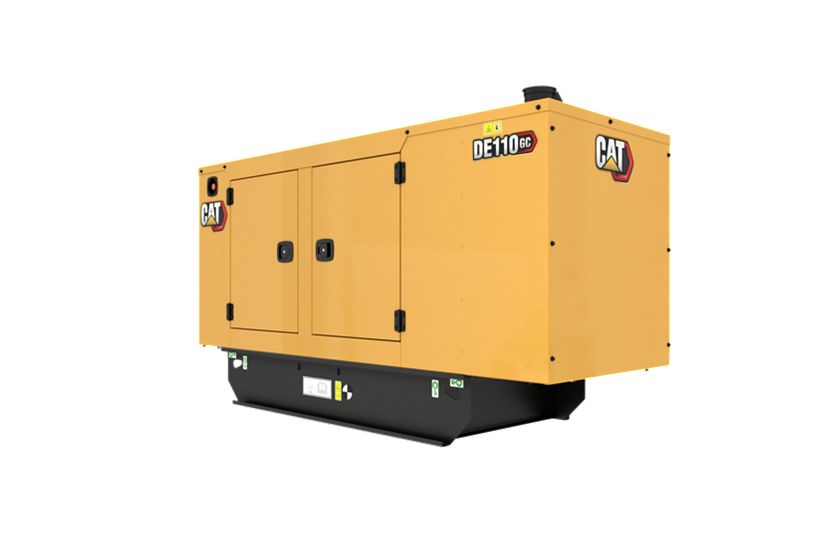

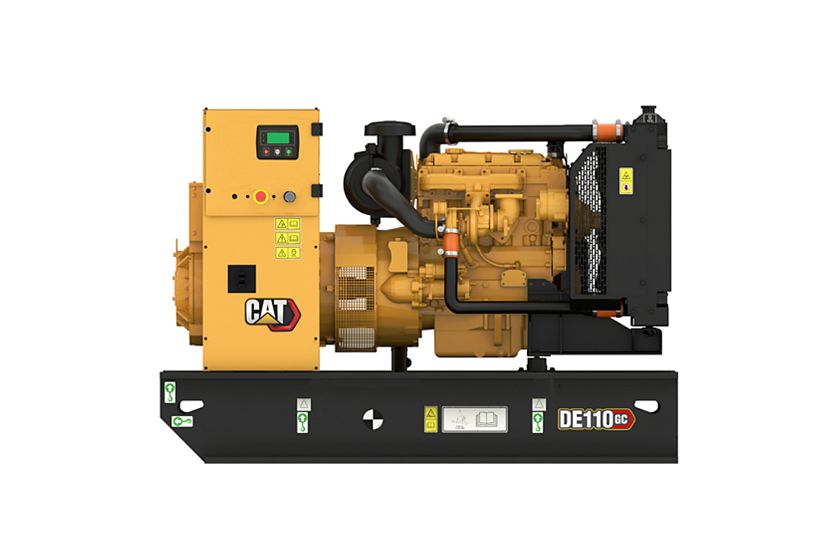

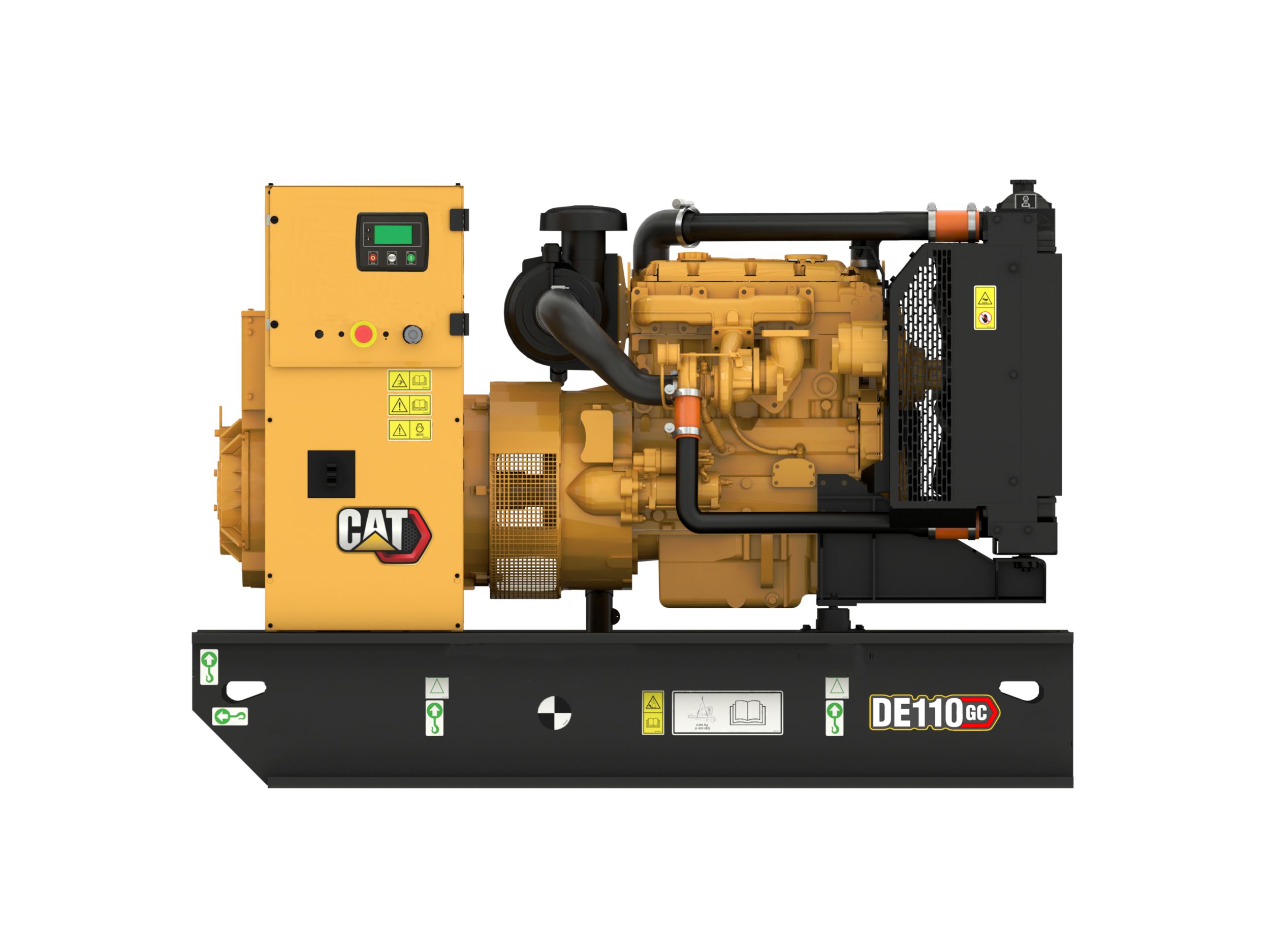

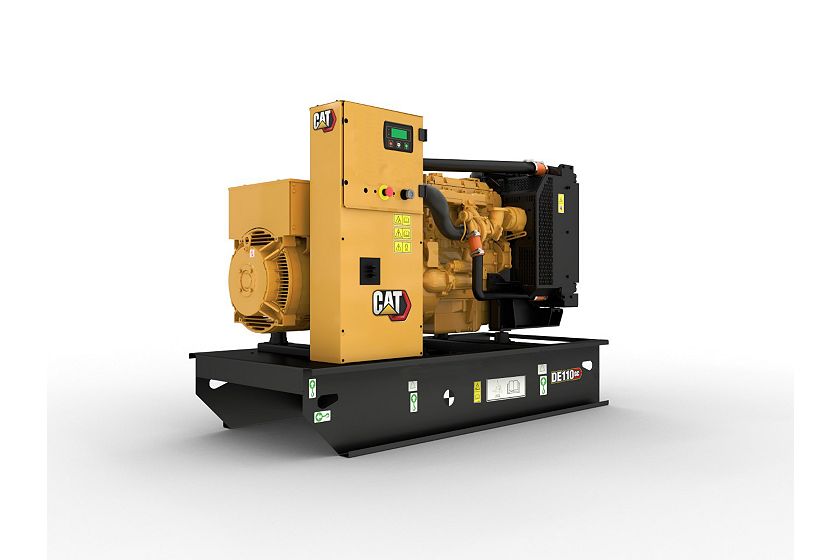

DE110GC
DE110GC
DE110GC
DE110GC
DE110GC
DE110GC
DE110GC
DE110GC
DE110GC
DE110GC
DE110GC
DE110GC

360° View

Exterior

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

A-Frame Alternator

GCCP 1.1 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Standby Rating 110 kVA 110 kVA
Frequency 50 Hz 50 Hz
Emissions/Fuel Strategy Low BSFC Low BSFC
Voltage 380 to 415 Volts 380 to 415 Volts
Speed 1500 rpm 1500 rpm
Duty Cycle Standby Standby
Spec Value
Engine Model C4.4, In-line 4, 4-cycle diesel C4.4, In-line 4, 4-cycle diesel
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in 4.4 l
Compression Ratio 18.23:1 18.23:1
Aspiration Turbocharged Air To Air Charge Cooled Turbocharged Air To Air Charge Cooled
Fuel System Inline Inline
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 108.1 in 2745 mm
Width – Maximum 39.3 in 999 mm
Height – Maximum 58.1 in 1476 mm
Dry Weight – Genset (maximum) 1330 lb 2932 kg

Standard Equipment

Engine

  • C4.4, Inline 4 cylinder, 4 stroke diesel

Genset Control

  • GCCP 1.1

Governor

  • Mechanical governor

Fuel Storage

  • Single wall 8 hour fuel tank

Alternator

  • A Frame standard alternator

Enclosure

  • Cat GC enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Certification

  • Certificate of Conformance 13
  • Australia, CIS, Gulf Certification

Auxiliary Supply Voltage

  • 120V

Alternator Requirements

  • Space heater

Fuel Storage

  • Dual wall 8 hour fuel tank
  • Single wall tank with containment
  • High fuel level alarm
  • Low fuel level alarm
  • Low fuel level shutdown

Genset Control

  • Volt free contacts for common alarm
  • Panel mounted audible alarm
  • Earth fault
  • Volt free contacts for genset running
  • Emergency stop with key
  • Earth leakage
  • Battery charger
  • USB to RS485 Communications device
  • Coolant heater
  • Standby Pack (Smart Jacket water heater, Battery charger)
  • Battery
  • Low coolant level shutdown

Circuit breaker

  • 3 Pole Circuit breaker 125A
  • 3 Pole Circuit breaker 160A
  • 3 Pole Circuit breaker 200A
  • 4 Pole Circuit breaker 125A
  • 3 Pole Circuit breaker 400A
  • 3 Pole Circuit breaker 250A
  • 4 Pole Circuit breaker 160A
  • 4 Pole Circuit breaker 250A
  • 4 Pole Circuit breaker 200A
  • Circuit breaker padlock
  • 4 Pole Circuit breaker 400A
  • Neutral earth link
  • Overload via alarm switch on breaker

Testing & Packaging

  • PGS Test report @ 1.0 power factor
  • PGS Test report @ 0.8PF
