Cat
DE65 GC Generator Set (60 Hz)
Maximum Rating
60 ekW
60 ekW
Minimum Rating
60 ekW
60 ekW
Emissions/Fuel Strategy
Non Regulated
Non Regulated
Overview
Producing reliable power of 60 ekW at 60 Hz, our DE65 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
Media
Photos
360° View
Exterior

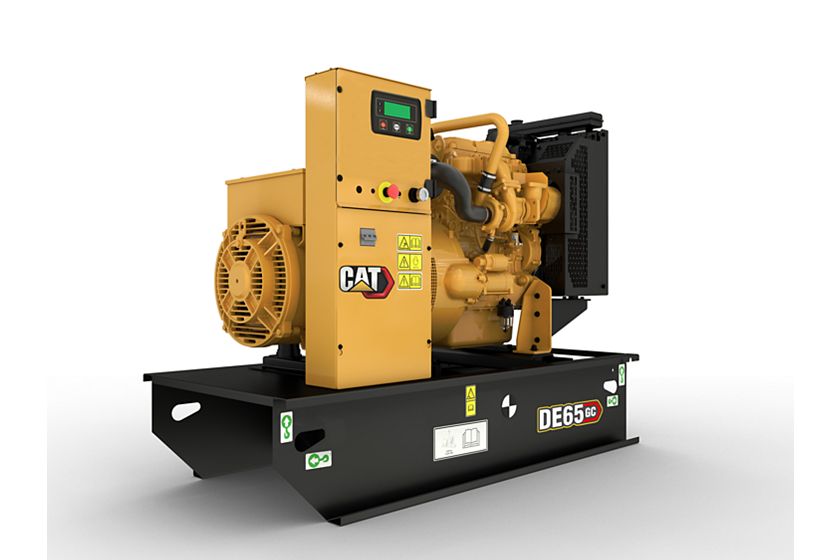

Open set
Features
Cat Diesel Engine
A-Frame Alternator
GCCP 1.1 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 60 ekW 60 ekW |
| Minimum Rating | 60 ekW 60 ekW |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | Cat® C3.3, In-line 3, 4-cycle diesel Cat® C3.3, In-line 3, 4-cycle diesel |
| Bore | 4.1 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 201.4 in³ 3.3 l |
| Compression Ratio | 17.25:1 17.25:1 |
| Aspiration | Turbocharged Turbocharged |
| Fuel System | Inline Inline |
| Governor Type | Mechanical Mechanical |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 89.7 in 2278 mm |
| Width – Maximum | 35.4 in 900 mm |
| Height – Maximum | 52 in 1322 mm |
| Dry Weight – Genset (maximum) | 1031 lb 2273 kg |
Standard Equipment
Engine
- C3.3, Inline 3 cylinder, 4 stroke diesel
Genset Control
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Cat GC enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Certification
- Australia, CIS, Gulf Certification
- Certificate of Conformance
Auxiliary Supply Voltage
- 120V
Alternator Requirements
- Space heater
Fuel Storage
- Dual wall 8 hour fuel tank
- Single wall tank with containment
- Low fuel level alarm
- Low fuel level shutdown
- High fuel level alarm
Genset Control
- Battery charger
- Volt free contacts for genset running
- Volt free contacts for common alarm
- Emergency stop with key
- USB to RS485 Communications device
- Earth leakage
- Earth fault
- Panel mounted audible alarm
- Coolant heater
- Battery
- Standby Pack (Smart Jacket water heater, Battery charger)
- Low coolant level shutdown
Circuit breaker
- 3 Pole Circuit breaker 80A
- 3 Pole Circuit breaker 63A
- 3 Pole Circuit breaker 100A
- 3 Pole Circuit breaker 125A
- 3 Pole Circuit breaker 160A
- 3 Pole Circuit breaker 200A
- 4 Pole Circuit breaker 63A
- 4 Pole Circuit breaker 80A
- 4 Pole Circuit breaker 100A
- 4 Pole Circuit breaker 125A
- 4 Pole Circuit breaker 160A
- 4 Pole Circuit breaker 200A
- Circuit breaker padlock
- Neutral earth link
- Overload via alarm switch on breaker
Testing & Packaging
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8PF
