Cat

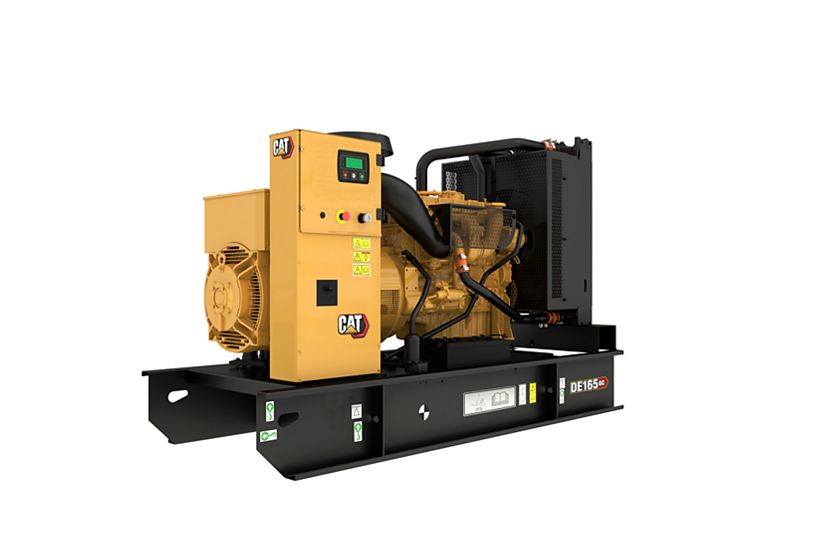

DE165 GC Generator Set (60 Hz)
Maximum Rating
150 ekW
150 ekW
Minimum Rating
150 ekW
150 ekW
Emissions/Fuel Strategy
Non Regulated
Non Regulated
Overview
Producing reliable power of 150 ekW at 60 Hz, our DE165 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
Media
Photos
360° View

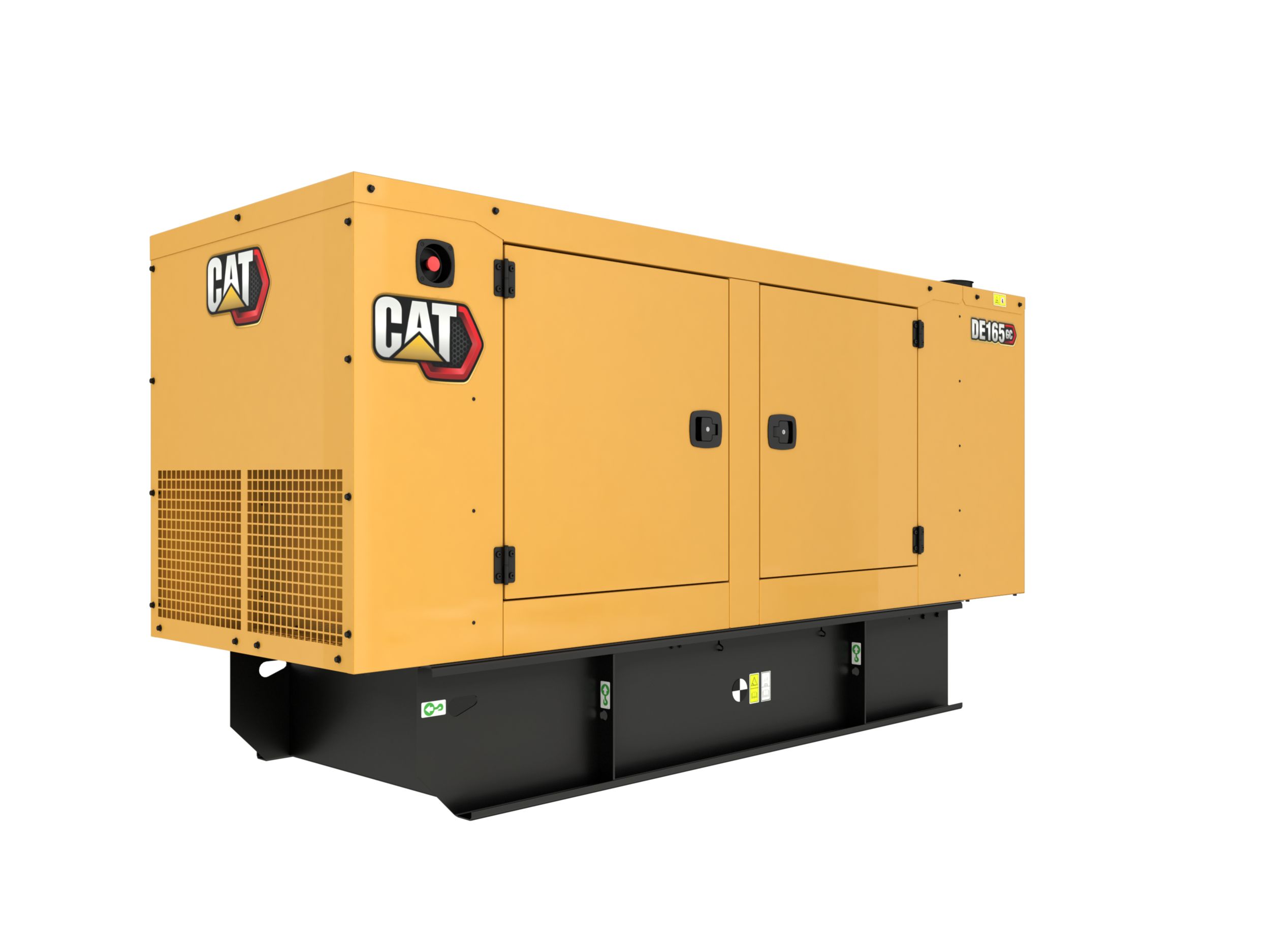

Exterior
Features
Cat Diesel Engine
A-Frame Alternator
GCCP 1.1 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 150 ekW 150 ekW |
| Minimum Rating | 150 ekW 150 ekW |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C7.1 I-6, 4-Cycle Diesel C7.1 I-6, 4-Cycle Diesel |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.8 in³ 7 l |
| Compression Ratio | 16.0:1 16.0:1 |
| Aspiration | Turbocharged Air To Air Charge Cooled Turbocharged Air To Air Charge Cooled |
| Fuel System | Inline Inline |
| Governor Type | Mechanical Mechanical |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 130.9 in 3325 mm |
| Width – Maximum | 44.6 in 1134 mm |
| Height – Maximum | 65.6 in 1666 mm |
| Dry Weight – Genset (maximum) | 4043 lb 1834 kg |
Standard Equipment
Engine
- C7.1, Inline 6 cylinder, 4 stroke diesel
Control Panels
- GCCP 1.1
Governor
- Mechanical governor
Enclosure
- Cat GC enclosure
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Auxiliary Supply Voltage
- 120V
Certification
- Australia, CIS, Gulf Certification
- Certificate of Conformance
Alternator Requirements
- Space heater
Fuel Storage
- Dual wall 8 hour fuel tank
- Single wall tank with containment
- Low fuel level alarm
- High fuel level alarm
- Low fuel level shutdown
Genset Control
- Battery charger
- Volt free contacts for common alarm
- Panel mounted audible alarm
- Volt free contacts for genset running
- Earth leakage
- USB to RS485 Communications device
- Earth fault
- Emergency stop with key
- Coolant heater
- Battery
- Low coolant level shutdown
- Standby Pack (Smart Jacket water heater, Battery charger)
Fuel Systems
- High fuel level alarm
Circuit breaker
- 3 Pole Circuit breaker 630A
- 4 Pole Circuit breaker 250A
- 4 Pole Circuit breaker 200A
- 3 Pole Circuit breaker 200A
- 4 Pole Circuit breaker 630A
- 4 Pole Circuit breaker 400A
- Circuit breaker padlock
- Neutral earth link
- Overload via alarm switch on breaker
- 3 Pole Circuit breaker 400A
Testing & Packaging
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8PF
