Cat

DE150 GC Generator Set (50 Hz)

Standby Rating

150 kVA

150 kVA

Frequency

50 Hz

50 Hz

Emissions/Fuel Strategy

Low BSFC

Low BSFC

Overview

The Cat® C7.1 diesel generator sets have been developed for standby applications, delivering reliable power from 150 kVA at 50 Hz, meeting ISO 8528-5 transient response requirements.

Media

Photos

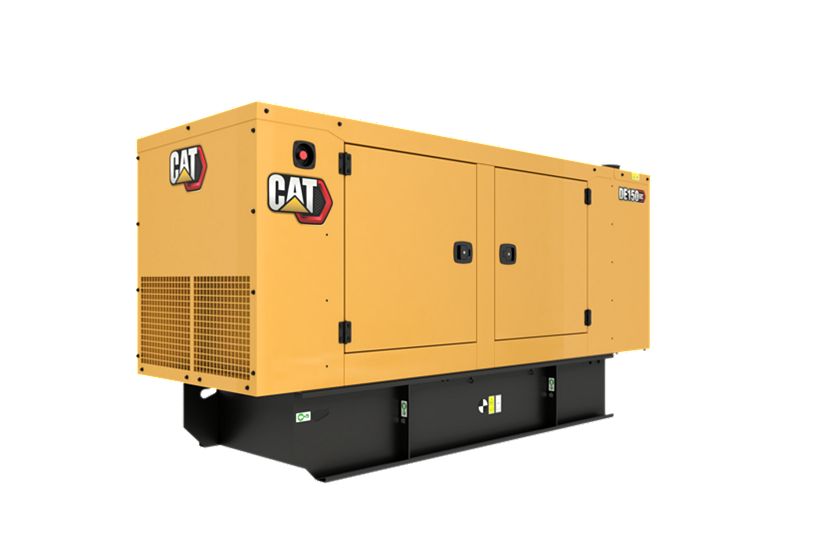

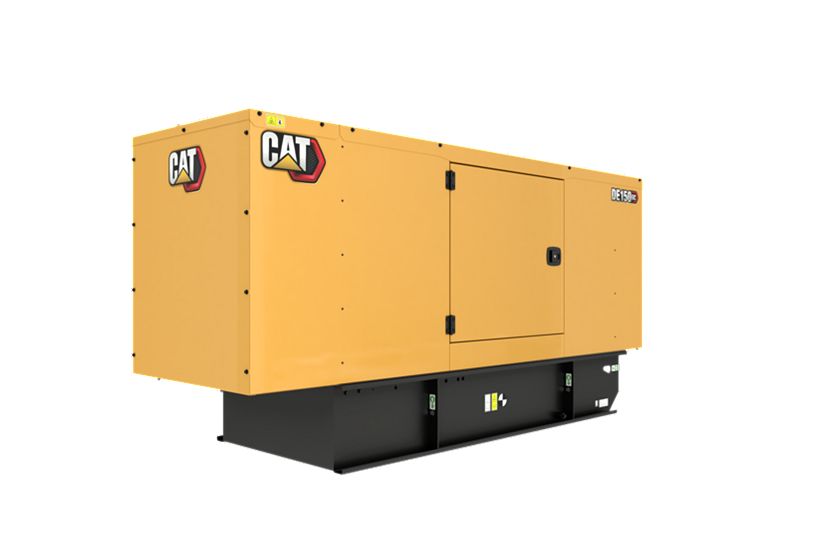

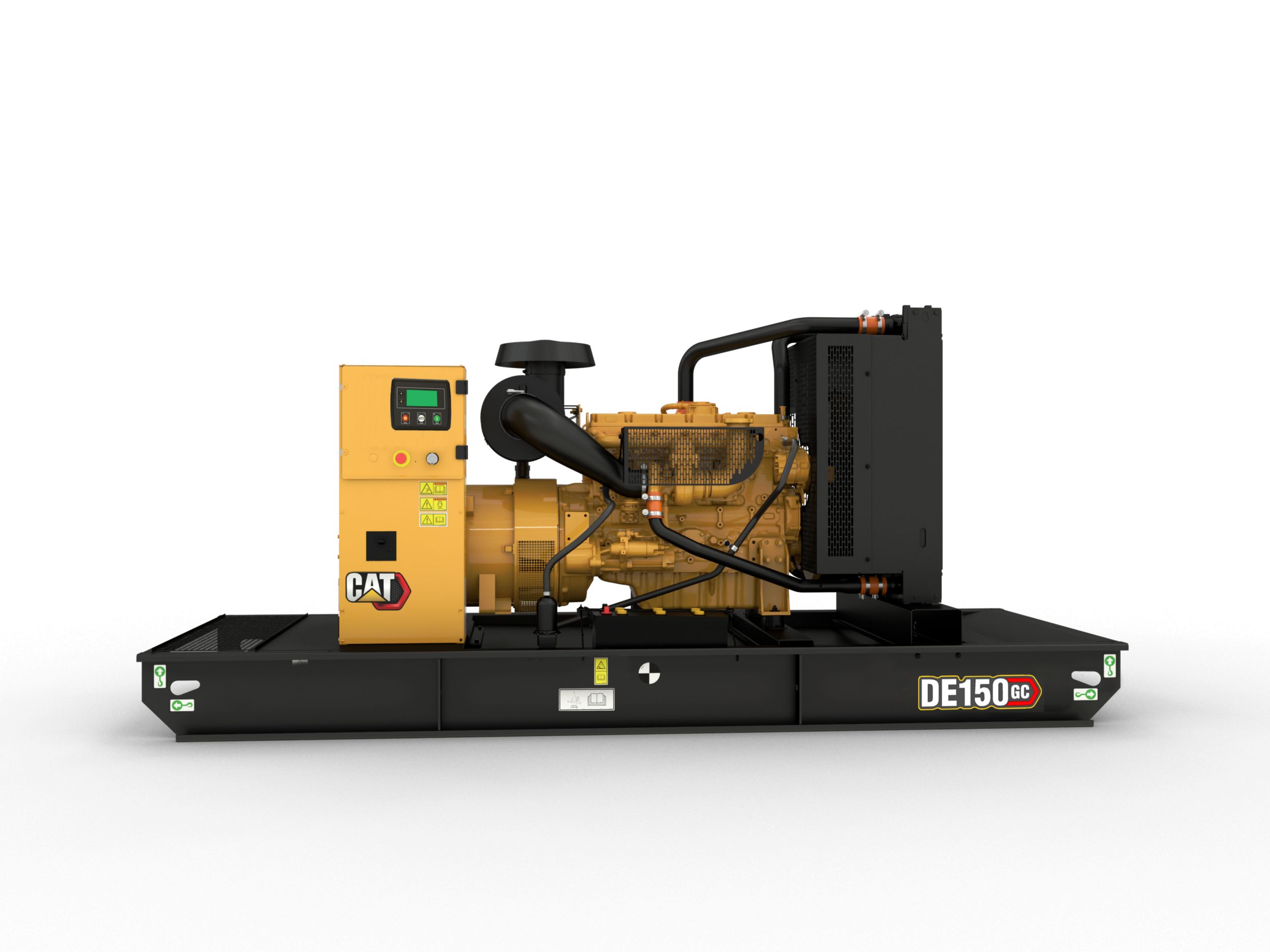

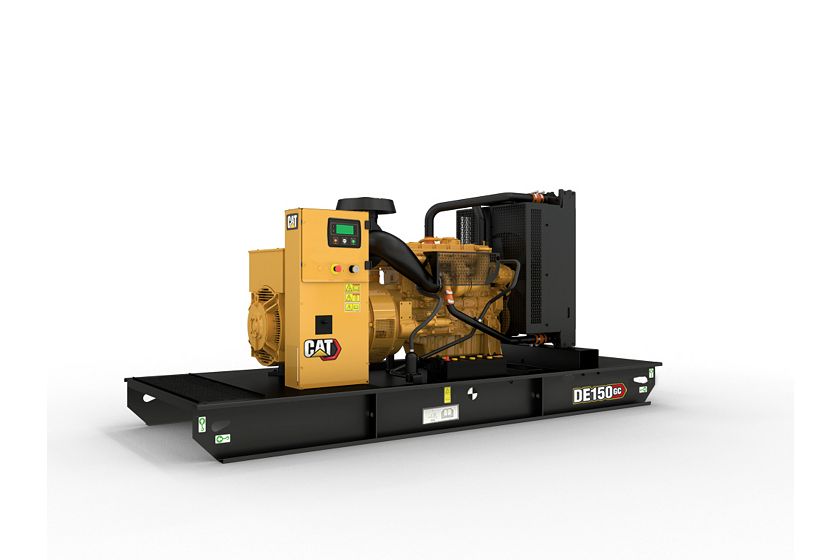

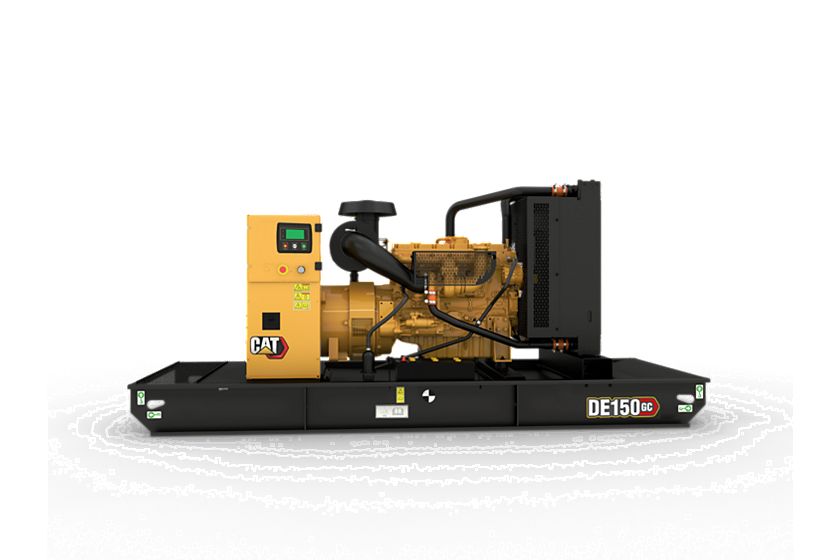

DE150GC
DE150GC
DE150GC
DE150GC
j
j
DE150GC
DE150GC
DE150GC
DE150GC
DE150GC
DE150GC

360° View

Exterior

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

A-Frame Alternator

GCCP 1.1 Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Standby Rating 150 kVA 150 kVA
Frequency 50 Hz 50 Hz
Emissions/Fuel Strategy Low BSFC Low BSFC
Voltage 380 to 415 Volts 380 to 415 Volts
Speed 1500 rpm 1500 rpm
Duty Cycle Standby Standby
Spec Value
Engine Model C7.1 I-6, 4-Cycle Diesel C7.1 I-6, 4-Cycle Diesel
Bore 4.1 in 105 mm
Stroke 5.3 in 135 mm
Displacement 427.8 in³ 7 l
Compression Ratio 18.2:1 18.2:1
Aspiration Turbocharged Turbocharged
Fuel System Inline Inline
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 130.9 in 3325 mm
Width – Maximum 44.6 in 1134 mm
Height – Maximum 65.6 in 1666 mm
Dry Weight – Genset (maximum) 4043 lb 1834 kg

Standard Equipment

Engine

  • C7.1, Inline 6 cylinder, 4 stroke diesel

Control Panels

  • GCCP 1.1

Enclosure

  • Cat GC enclosure

Governor

  • Mechanical governor

Fuel Storage

  • Single wall 8 hour fuel tank

Alternator

  • A Frame standard alternator

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow

Optional Equipment

Certification

  • Certificate of Conformance
  • Australia, CIS, Gulf Certification

Auxiliary Supply Voltage

  • 120V

Alternator Requirements

  • Space heater

Genset Control

  • Volt free contacts for common alarm
  • Battery charger
  • Panel mounted audible alarm
  • Volt free contacts for genset running
  • Earth leakage
  • Earth fault
  • Emergency stop with key
  • USB to RS485 Communications device
  • Coolant heater
  • Battery
  • Low coolant level shutdown

Fuel Storage

  • Dual wall 8 hour fuel tank
  • Low fuel level shutdown
  • Low fuel level alarm
  • Single wall tank with containment
  • High fuel level alarm

Circuit breaker

  • 3 Pole Circuit breaker 630A
  • 4 Pole Circuit breaker 250A
  • 4 Pole Circuit breaker 200A
  • 3 Pole Circuit breaker 200A
  • 3 Pole Circuit breaker 250A
  • 4 Pole Circuit breaker 400A
  • 4 Pole Circuit breaker 630A
  • Circuit breaker padlock
  • Neutral earth link
  • Overload via alarm switch on breaker
  • 3 Pole Circuit breaker 400A

Testing & Packaging

  • PGS Test report @ 1.0 power factor
  • PGS Test report @ 0.8PF

Package

  • Open Set
