Cat
DE350S GC Generator Set
Maximum Rating
350 ekW
350 ekW
Minimum Rating
350 ekW
350 ekW
Emissions/Fuel Strategy
Low Fuel, R96/EUIIIa
Low Fuel, R96/EUIIIa
Overview
The DE350S GC diesel generator sets have been developed for your standby applications. Producing reliable power of 350 ekW at 60 Hz, our C9.3 diesel-powered DE350S GC generator set is designed to ISO 8528-5 transient response requirements
Media
Photos
360° View
Exterior

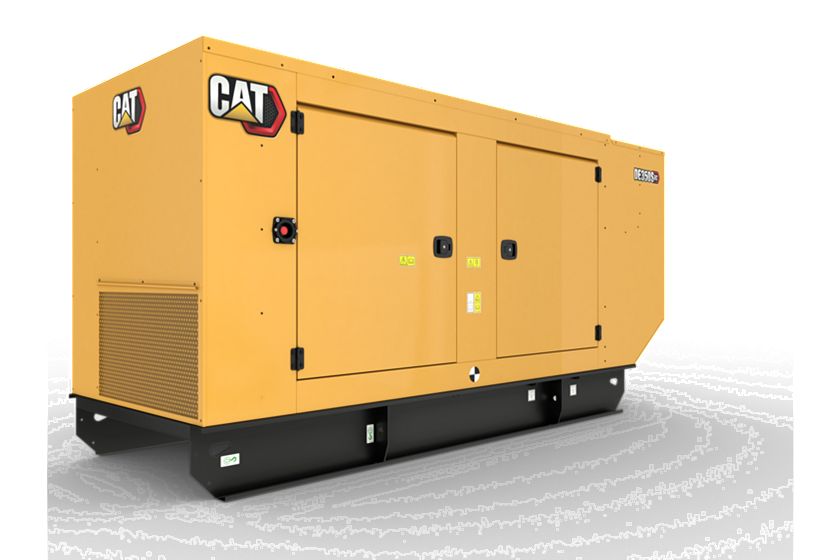

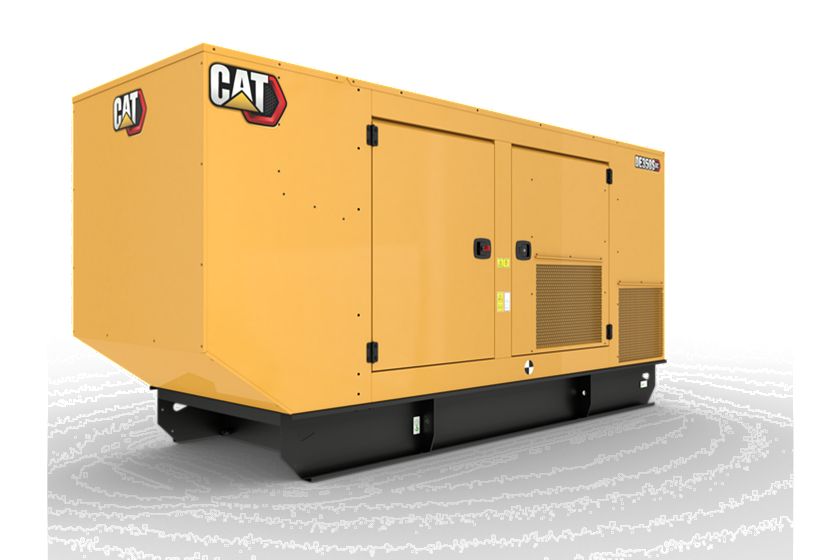

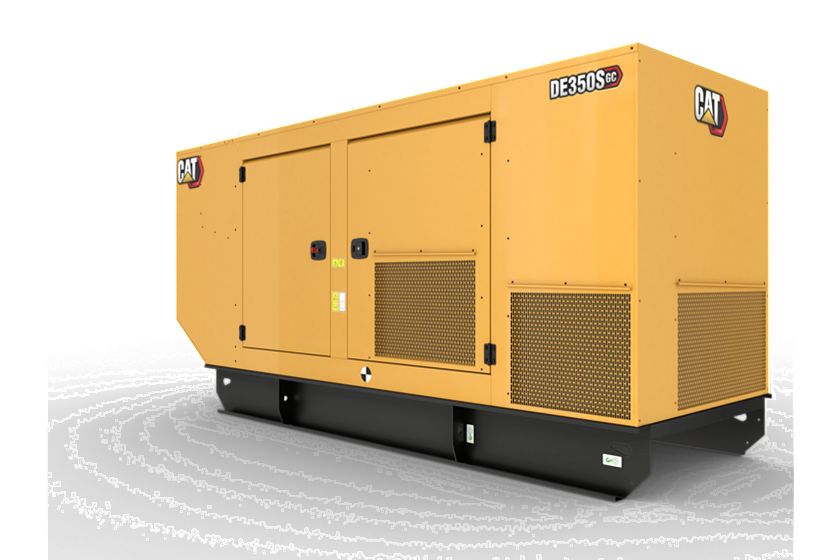

Enclosure
Interior

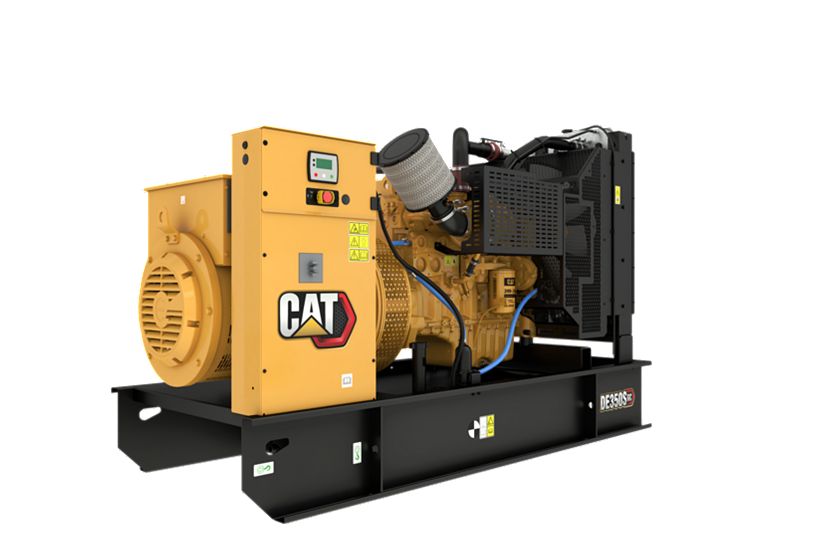

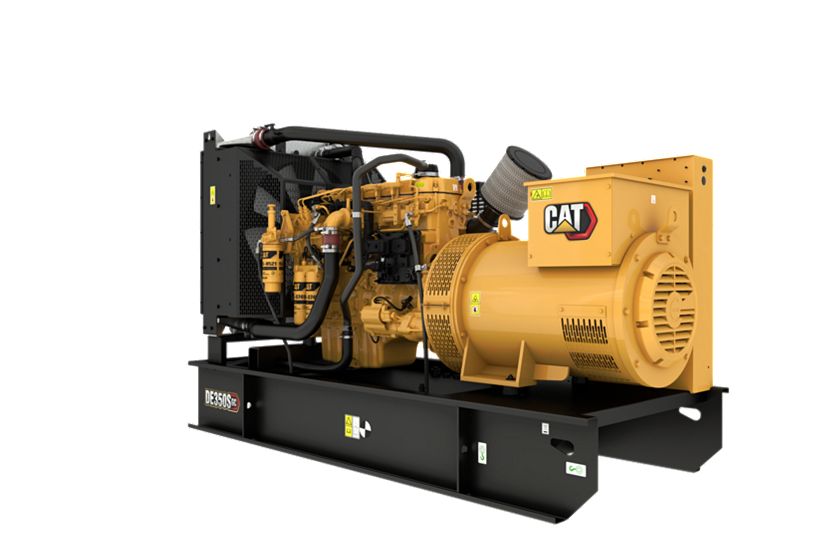

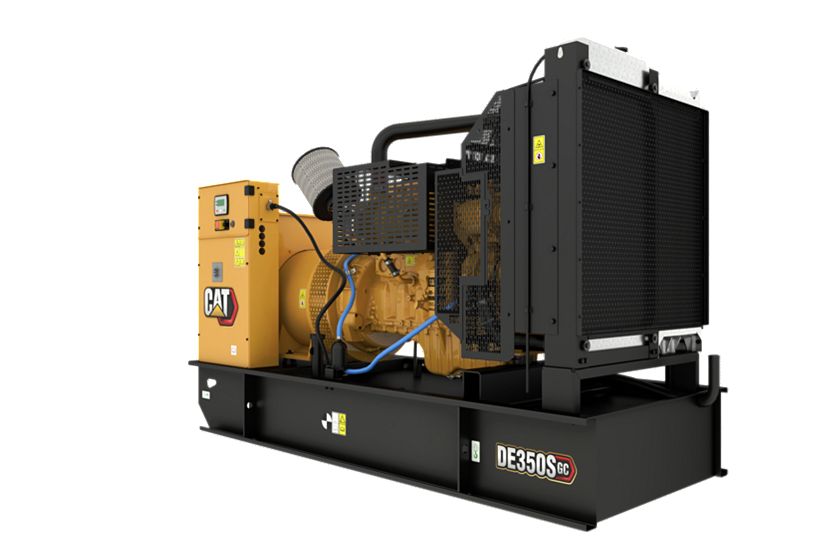

Open Set
Features
Cat Diesel Engine
A-Frame Alternator
GCCP 1.1 Control Panel
Cooling System
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 350 ekW 350 ekW |
| Minimum Rating | 350 ekW 350 ekW |
| Emissions/Fuel Strategy | Low Fuel, R96/EUIIIa Low Fuel, R96/EUIIIa |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C9.3B ATAAC, I-6, 4-Stroke Water-Cooled Diesel C9.3B ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 4.53 in 115 mm |
| Stroke | 5.87 in 149 mm |
| Displacement | 567.5 in³ 9.3 l |
| Compression Ratio | 16.5:1 16.5:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | Direct Injection Direct Injection |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 186.7 in 4743 mm |
| Width – Maximum | 79.3 in 2014 mm |
| Height – Maximum | 84 in 2133 mm |
Standard Equipment
Engine
- C9.3B, Inline 6 cylinder, 4 stroke diesel
Air, Cooling & Exhaust
- Standard air filter
Genset Control
- GCCP 1.1
Governor
- Adem A4
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Air, Cooling & Exhaust
- 6″ Elbow kit
- No muffler
- Single stage air filter
- 6″ Elbow kit
- 5″ Muffler – 10 dBA Attenuation
- 5-6″ Exhaust adapter
- Dual element air filter
- 6″ Muffler – 25 dBA attenuation
- 5″ Elbow kit
- Canopy silencer
Alternator Requirements
- IP Standard @ 21 FUW A-Frame
- Space heater
Auxiliary Supply Voltage
- 240V
Certification
- Australia, CIS, Gulf Certification
- Certificate of Conformance 13
Circuit breaker
- 4 Pole Circuit breaker 800A
- 4 Pole Circuit breaker 1250A
- Shunt Trip
- Neutral earth link
- 3 Pole Circuit breaker 630A
- 3 Pole Circuit breaker 800A
- Circuit breaker padlock
- 4 Pole Circuit breaker 630A
- 3 Pole Circuit breaker 1250A
- Overload via alarm switch on breaker
- Auxiliary contacts
Enclosure
- Cat GC enclosure
Fuel Storage
- Low fuel level alarm
- High fuel level alarm
- Fuel level sender
- Dual wall 8 hour fuel tank
- Low fuel level shutdown
- Single wall tank with containment 01
Genset Control
- Coolant heater
- PLG Cellular 4G E
- Battery charger
- PLG Ethernet
- Standby Pack (Smart Jacket water heater, Battery charger)
- Oil temperature displays
- Low coolant temperature alarm
- Voltage adjust potentiometer
- Speed adjust potentiometer
- PLG Cellular 4G U
- Battery
