Cat
DE165E0 (50 Hz) Generator Set
Minimum Rating
165 kVA
165 kVA
Maximum Rating
165 kVA
165 kVA
Emissions/Fuel Strategy
Non Regulated
Non Regulated
Overview

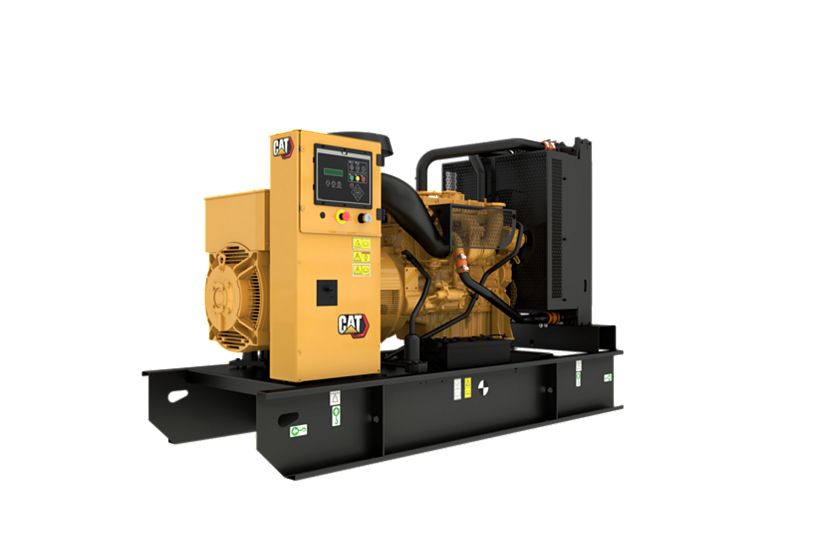

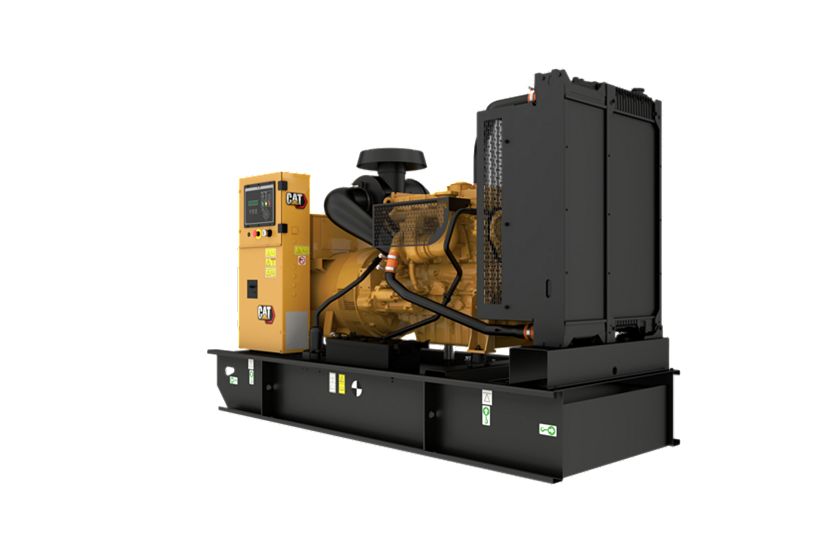

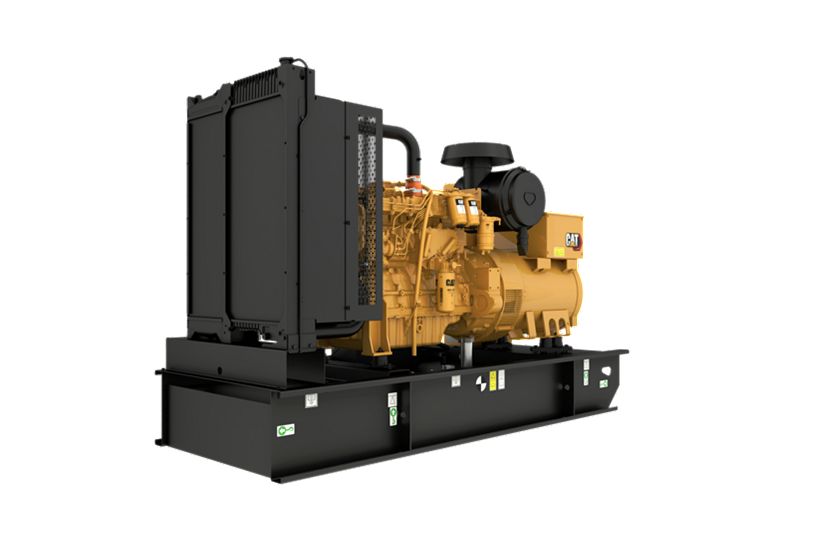

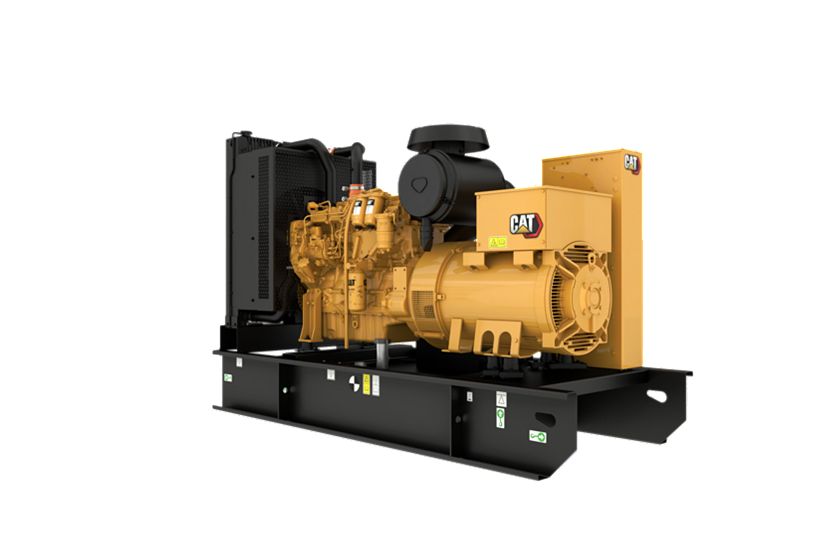

Producing reliable power 165 kVA at 50 Hz, our DE165E0 generator set powerd by C7.1 diesel engine designed to ISO 8528-5 transient response requirements.
Media
Photos
360° View
Exterior
Enclosure Spin Set
Documents
- Electric Power Ratings Guide
- DE165E0, 50 Hz 165.0 kVA, LC Frame, Low BSFC Compliant Spec Sheet
- DE165E0, 50 Hz 165.0 kVA, M Frame, Low BSFC Compliant Spec Sheet
- DE165E0, 50 Hz 165.0 kVA, R Frame, Low BSFC Compliant Spec Sheet
- Sound Attenuated Level 1 Enclosures 30 – 220 kVA (50 and 60 Hz)
- Sound Attenuated Level 2 Enclosures 24 – 220 kVA (50 and 60 Hz)
Features
Cat Diesel Engine
M-Frame Alternator
GCCP Control Panel
Cooling System
Certifications
One Safe Source
World Wide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Minimum Rating | 165 kVA 165 kVA |
| Maximum Rating | 165 kVA 165 kVA |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 220 to 415 Volts 220 to 415 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | Cat® C7.1 Cat® C7.1 |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.8 in³ 7 l |
| Compression Ratio | 16.0:1 16.0:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled Turbocharged, Air to Air Aftercooled |
| Fuel System | Inline Inline |
| Governor Type | Mechanical Mechanical |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 98.4 in 2500 mm |
| Width – Maximum | 44.1 in 1120 mm |
| Height – Maximum | 60.2 in 1528 mm |
| Dry Weight – Genset (maximum) | 3549 lb 1610 kg |
Standard Equipment
Control panel
- GCCP Control panel
Alternator and Alternator attachments
- 12 Leads
- IP23 Protection
- Voltage regulator (single phase sensing)
- Tower panel, IP22, bottom cable entry
- Segregated low voltage (AC/DC) wiring panel
- Circuit breaker, IEC, 3 Pole, mounted in tower panel
Governing system
- Mechanical or electrical governing system
Cooling system
- Radiator and cooling fan with guards
- Coolant drain line with valve
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
Air inlet system
- Air cleaner; light duty with disposable element
Exhaust system
- Stub pipe, gaskets, raincap & SAE exhaust flange
- Industrial silencer
Fuel system
- Standard open set fuel tank/base
Lube system
- Lubricating oil
- Oil drain line with valve
Mounting system
- Captive linear vibration isolators
- Lifting provision and drag points
- Termination points for coolant and lube oil drain lines
Starting/charging system
- 12V Battery with rack & cables
General
- Engine and alternator pre-paint, Caterpillar yellow
Optional Equipment
Control panel
- GCCP Control panel
- Earth fault and earth leakage
- Emergency E-Stop with security key
- 4 Pole Circuit breaker
- Voltage and speed adjust potentiometer
Alternator and Alternator Attachments
- LC Frame alternator
- LC/M Frame alternator
- Space heater
- Permanent magnet excitation (PMG)
- Automatic voltage regulator
- Quadrature droop kit
Enclosures

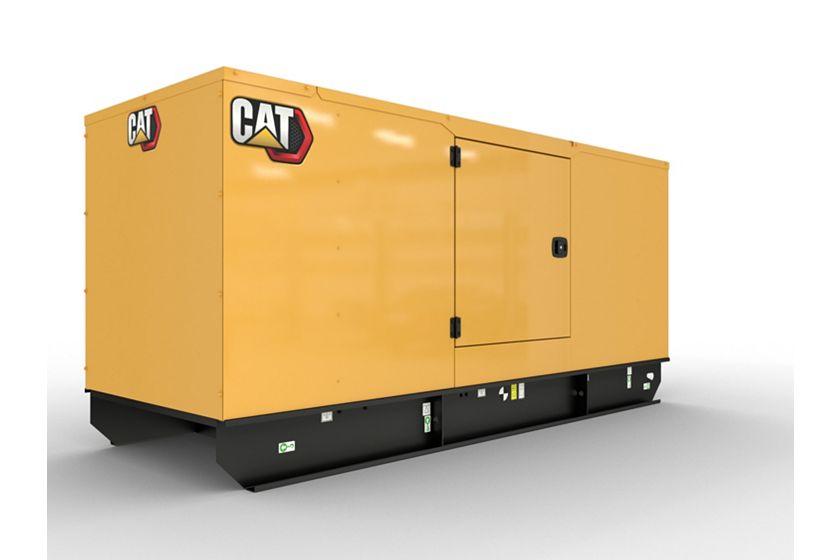

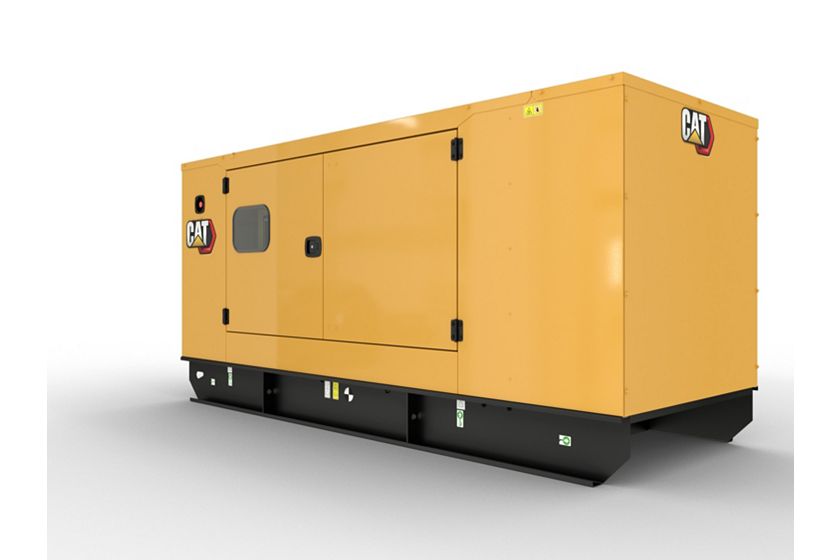

- Level 1 and Level 2 sound attenuated enclosures
- Single point lifting frame
- Rental pack
- SBOX – CEE form sockets
Alarms and Shutdowns
- Common alarm
- Overload shutdown
- Low coolant level shutdown
- Low coolant temperature alarm
- Low fuel level alarm and shutdown
- High fuel level alarm
Engine
- Electronic governor
- Jacket water heater
- Battery charger
Fuel system
- Bunded base tank sized for a minimum of 12 hours running with 110% spill protection
Exhaust system
- Residential silencer 25 dBA
Certification
- Certificate of Conformance
- EAC Certification
Extended service coverage
- 3, 4, 5 and 10 Years
