Cat
DE450S GC (60 Hz) Generator Set
Maximum Rating
450 ekW
450 ekW
Minimum Rating
450 ekW
450 ekW
Emissions/Fuel Strategy
Non Regulated
Non Regulated
Overview
Producing reliable power 450 ekW at 60 Hz, our DE450S GC generator set powerd by C13 diesel engine designed to ISO 8528-5 transient response requirements.
Media

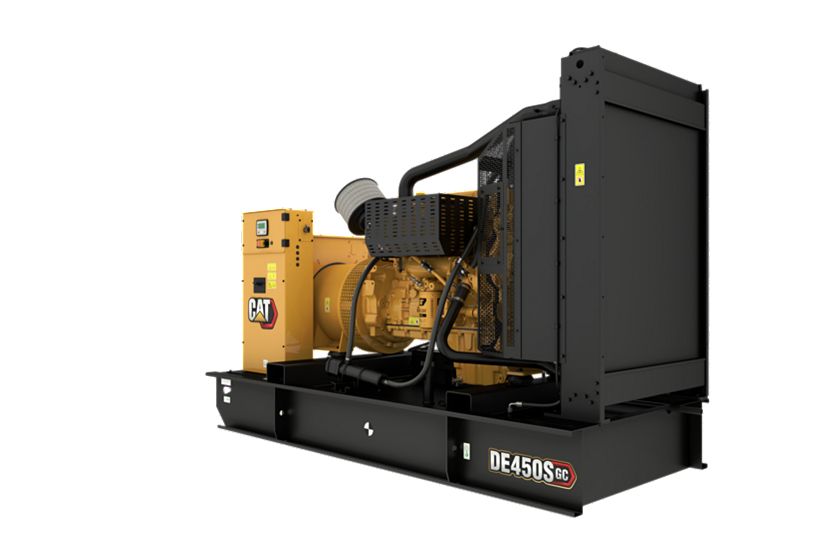

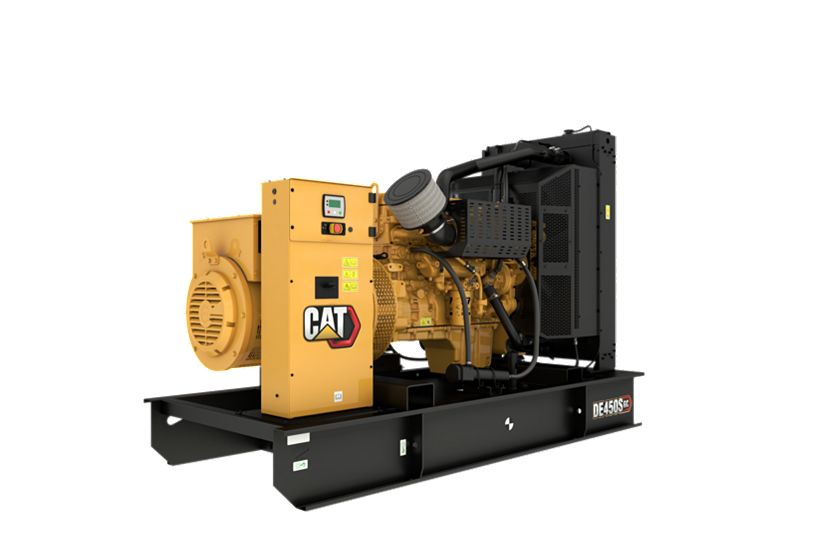

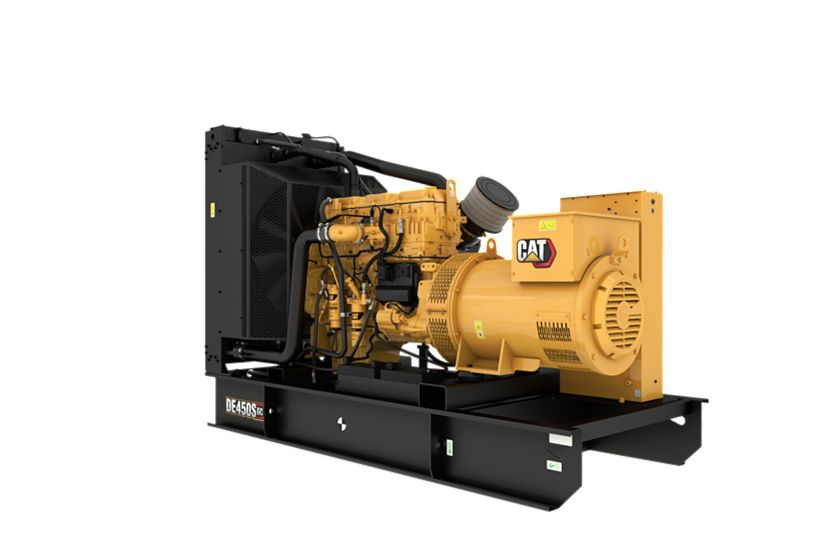

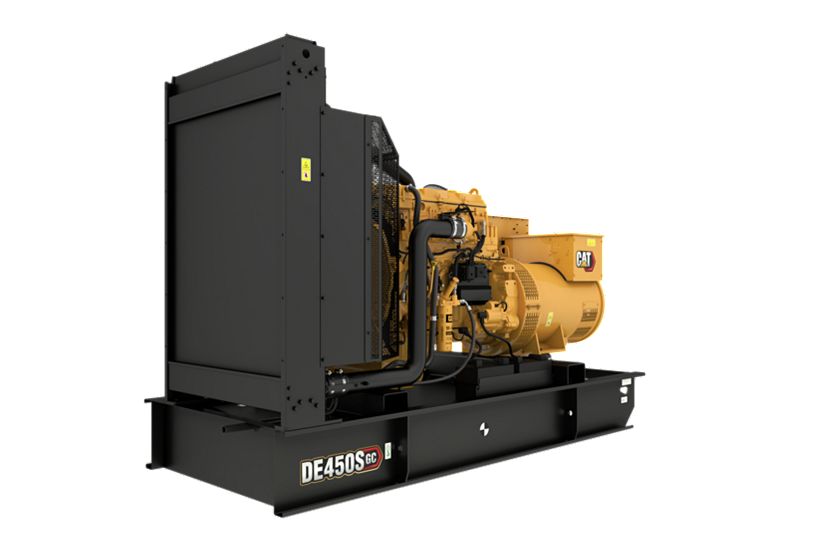

Photos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Interior
360° Interior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
A-Frame Alternator
GCCP 1.1 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 450 ekW 450 ekW |
| Minimum Rating | 450 ekW 450 ekW |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 RPM 1800 RPM |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C13 In-line 6, 4-cycle diesel C13 In-line 6, 4-cycle diesel |
| Bore | 5.1 in 130 mm |
| Stroke | 6.2 in 157 mm |
| Displacement | 763 in³ 12.5 l |
| Compression Ratio | 15.8:1 15.8:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled Turbocharged Air-to-Air Aftercooled |
| Fuel System | EUI EUI |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 122 in 3100 mm |
| Width – Maximum | 52.7 in 1338 mm |
| Height – Maximum | 85.4 in 2168 mm |
| Dry Weight – Genset (maximum) | 6446 lb 2924 kg |
Standard Equipment
Engine
- Cat® C13 Inline 6 cylinder, 4 stroke diesel
Control Panels
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
Electrical Options
- 3 Pole Circuit breaker
- Neutral earth link
- 24 Volt battery with rack and cables
Air inlet system
- Air cleaner; light duty with disposable element
Lube system
- Lubricating oil
- Oil drain line with valve
Mounting system
- Captive linear vibration isolators
- Lifting provision and drag points
General
- Engine and alternator pre paint, Caterpillar yellow
- Engine and alternator pre-paint, Caterpillar yellow
Lube System
- Oil drain valves
Mounting System
- Includes lifting provisions and termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
Starting / Charging System
- 24V battery with rack and cables
Optional Equipment
Control panel
- Speed and Voltage adjust potentiometers
- PLG 4G/3G/Ethernet
- Annunciator
- Emergency E-Stop
Enclosure

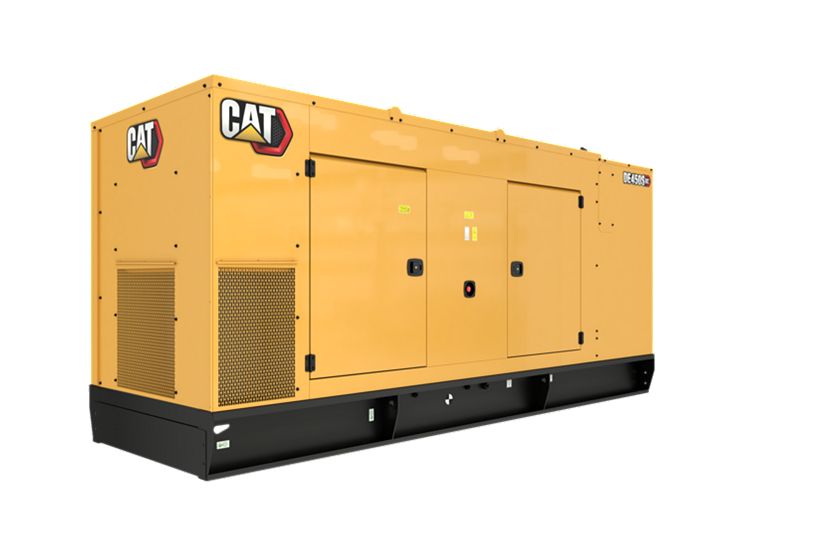

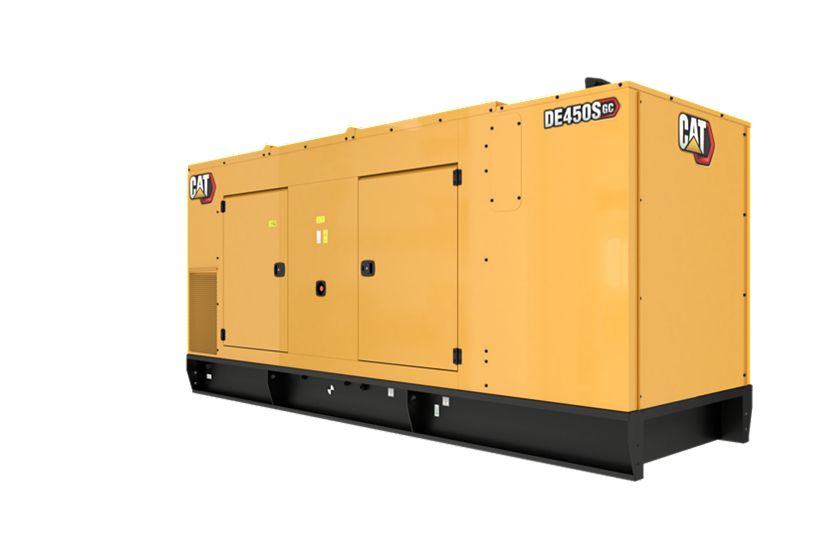

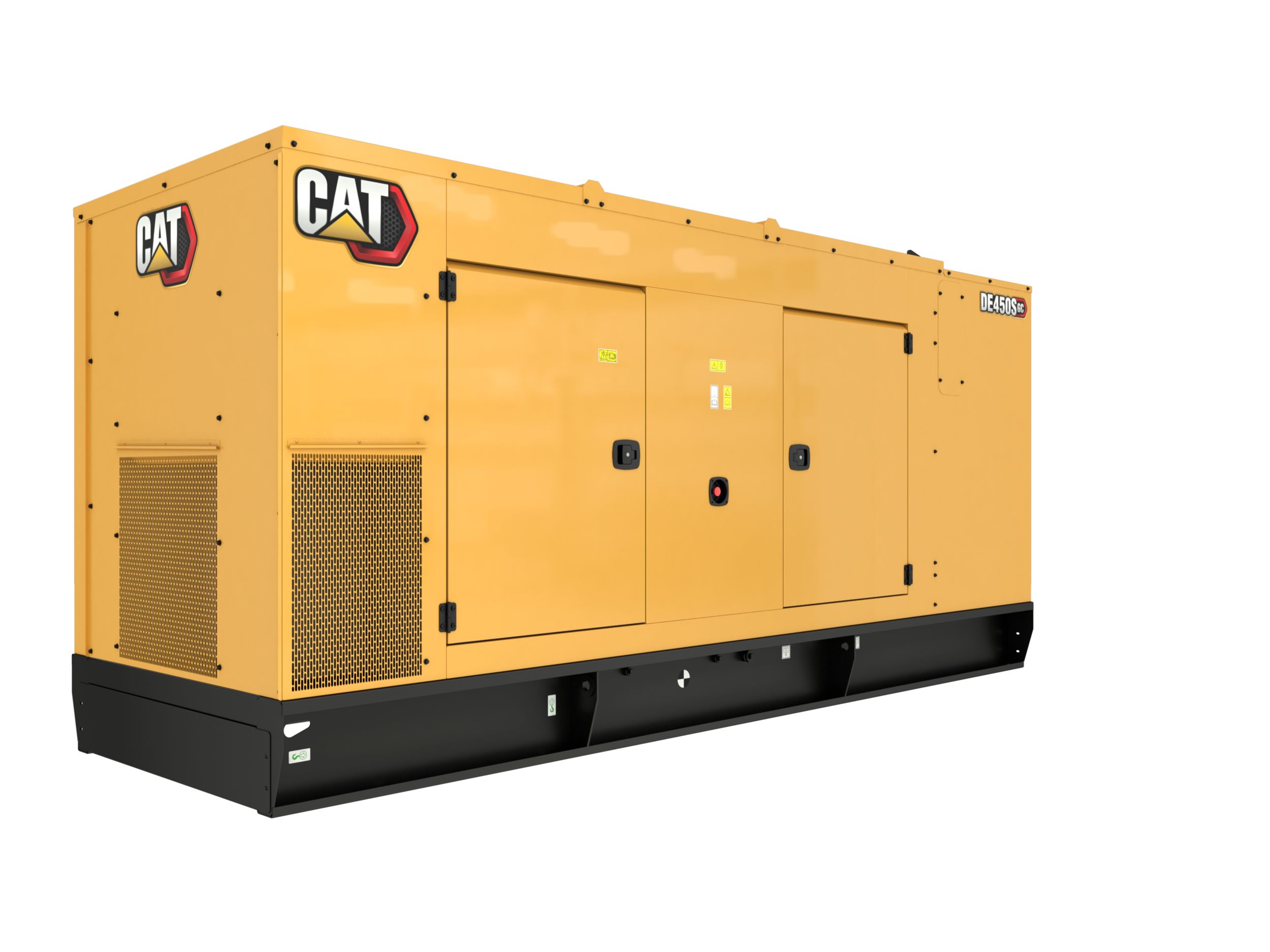

- Cat GC enclosure
Electrical Options
- 4 Pole Circuit breaker
- Auxiliary contacts
- Padlockable circuit breaker
- Battery charger
- Wet battery
Alternator
- Space heater
- AVR
Fuel System
- Dual wall 8 hour fuel tank
- Single wall 8 hour fuel tank with spill containment
- Low fuel level shutdown
- Low and high fuel level alarms
Exhaust System
- Industrial silencer
- 10 dBA Attenuation silencer
Air inlet system
- Single stage air filter
- Dual element air filter
Certifications
- EU Certificate of Conformance (CE)
- EAC Certification
Extended service coverage
- 3, 4, 5 and 10 Years
