Cat

DE56AE0 (50 Hz) Generator Set

Maximum Rating

49.2 kVA

49.2 kVA

Minimum Rating

45.0 kVA

45.0 kVA

Emissions/Fuel Strategy

Non-Certified Emissions

Non-Certified Emissions

Overview

The range Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.

Media

Photos

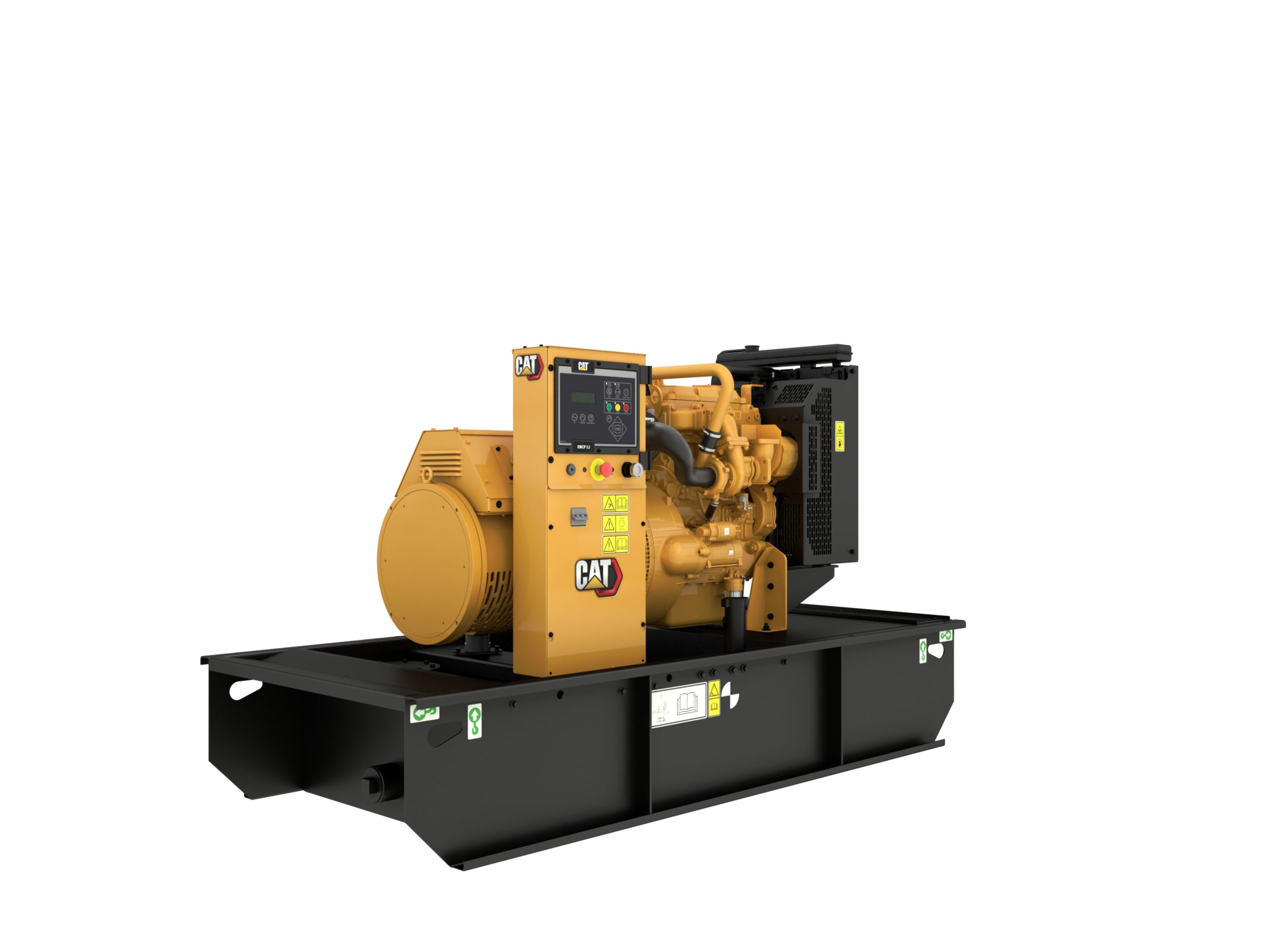

DE56AE0
DE56AE0
DE56AE0
DE56AE0
DE56AE0
DE56AE0
DE56AE0
DE56AE0
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure

360° View

Exterior

Enclosed

Interior

Open

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

GTA Frame Alternator

EMCP Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Maximum Rating 49.2 kVA 49.2 kVA
Minimum Rating 45.0 kVA 45.0 kVA
Emissions/Fuel Strategy Non-Certified Emissions Non-Certified Emissions
Voltage 220 to 380 Volts 220 to 380 Volts
Frequency 50 Hz 50 Hz
Speed 1500 rpm 1500 rpm
Duty Cycle Standby, Prime Standby, Prime
Spec Value
Engine Model Cat® C3.3 Cat® C3.3
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 201.4 in³ 3.3 l
Compression Ratio 17.25:1 17.25:1
Aspiration Turbocharged Turbocharged
Fuel System Common Rail Common Rail
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 66.1 in 1680 mm
Width – Maximum 760 mm 29.9 in
Height – Maximum 52.5 in 1333 mm
Dry Weight – Genset (maximum) 1795 lb 814 kg

Standard Equipment

Engine

  • C3.3, Inline 3 cylinder, 4 stroke diesel

Control panel

  • EMCP 4.1

Governing system

  • Mechanical governor

Alternator

  • GTA Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Enclosure

  • Modular easy access acoustic enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
