Cat

DE100AE0 (60 Hz) Generator Set

Maximum Rating

80.0 ekW

80.0 ekW

Minimum Rating

72.0 ekW

72.0 ekW

Emissions/Fuel Strategy

Non-Certified Emissions

Non-Certified Emissions

Overview

Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.

Media

Photos

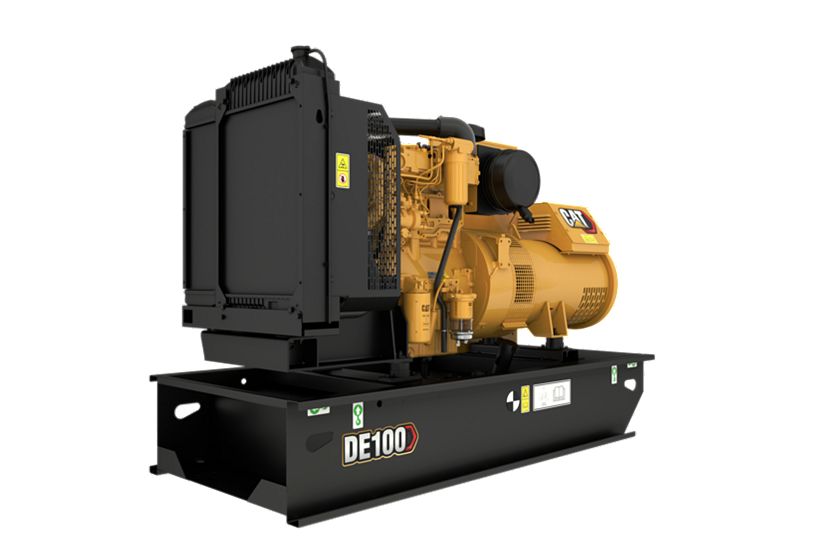

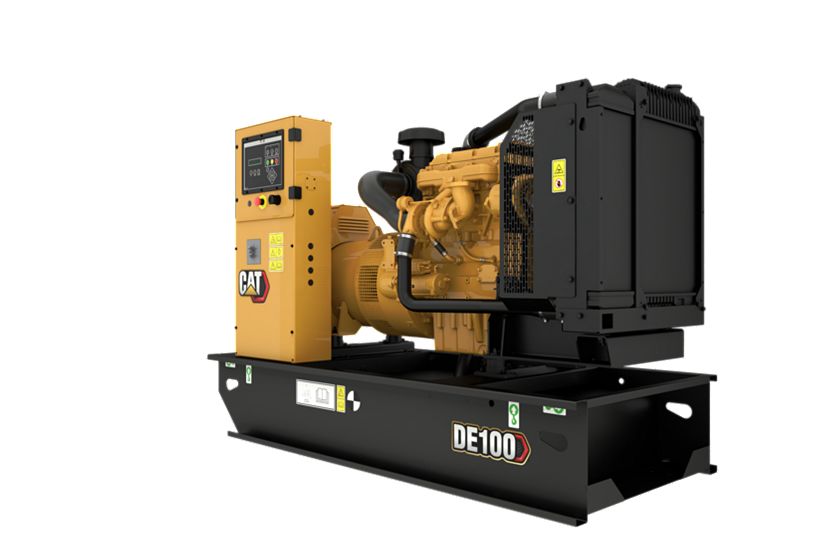

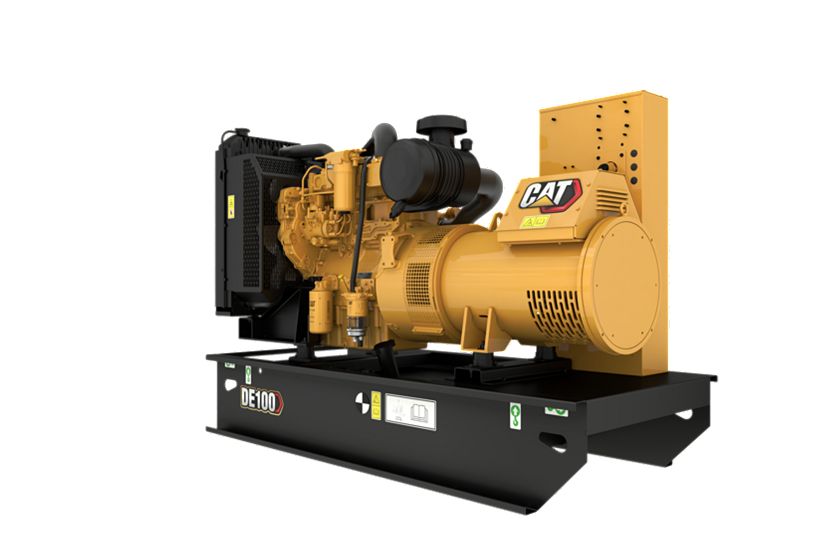

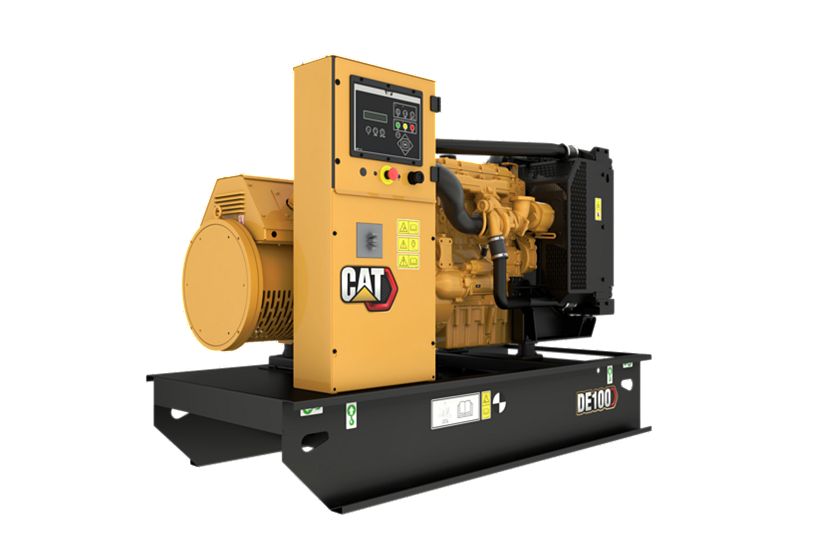

DE100AE0
DE100AE0
DE100AE0
DE100AE0
DE100AE0
DE100AE0
DE100AE0
DE100AE0

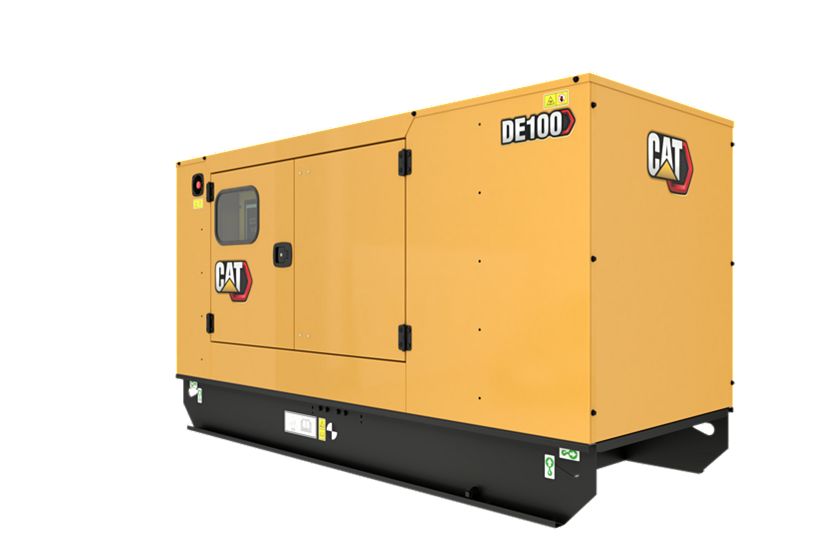

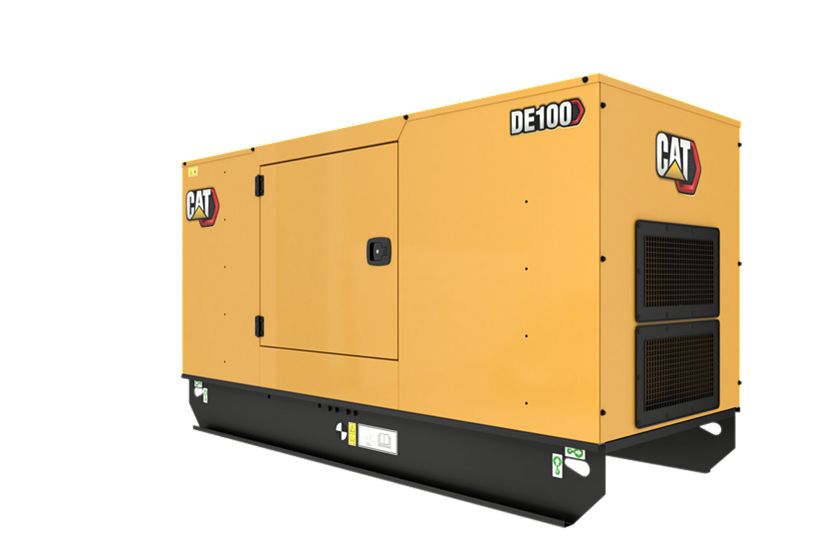

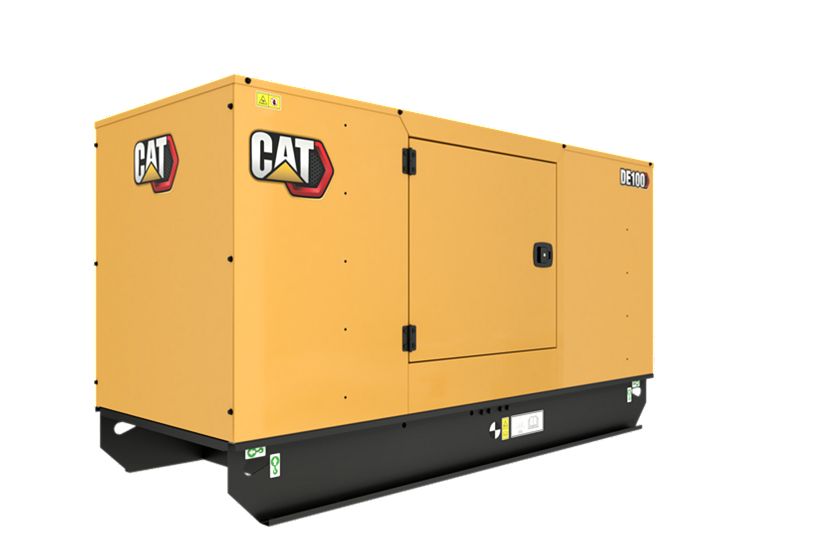

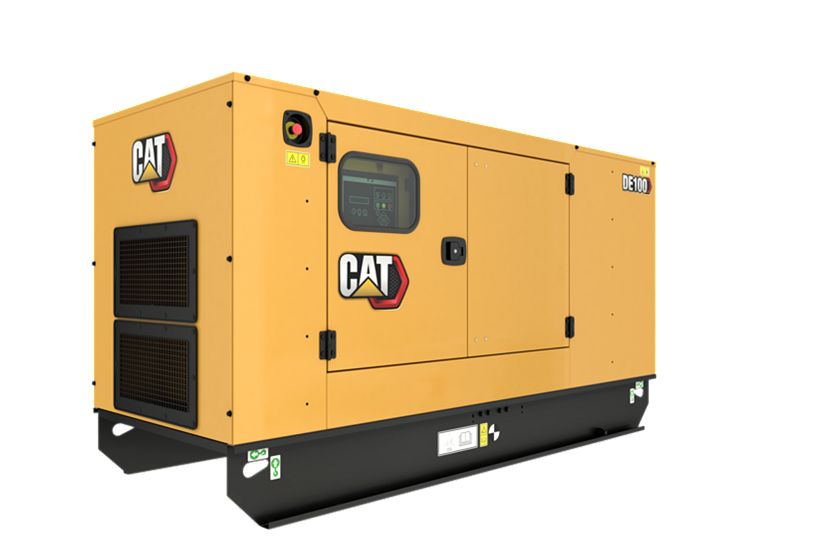

Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure

360° View

Exterior

Enclosed

Interior

Open

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

GTA Frame Alternator

EMCP Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Maximum Rating 80.0 ekW 80.0 ekW
Minimum Rating 72.0 ekW 72.0 ekW
Emissions/Fuel Strategy Non-Certified Emissions Non-Certified Emissions
Voltage 220 to 380 Volts 220 to 380 Volts
Frequency 60 Hz 60 Hz
Speed 1800 rpm 1800 rpm
Duty Cycle Standby, Prime Standby, Prime
Spec Value
Engine Model Cat® C4.4 Cat® C4.4
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in³ 4.4 l
Compression Ratio 17.25:1 17.25:1
Aspiration Turbocharged Turbocharged
Fuel System Direct Injection Direct Injection
Governor Type Mechanical Mechanical
Spec Value
Length – Maximum 73.6 in 1870 mm
Width – Maximum 33.1 in 840 mm
Height – Maximum 52.5 in 1333 mm
Dry Weight – Genset (maximum) 2247 lb 1019 kg

Standard Equipment

Engine

  • C4.4, Inline 4 cylinder, 4 stroke diesel

Control panel

  • EMCP 4.1 Control panel

Governing system

  • Mechanical governor

Alternator

  • GTA Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Enclosure

  • Modular easy access acoustic enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
