Cat

DE125AE0 (50 Hz) Generator Set

Maximum Rating

110.0 kVA

110.0 kVA

Minimum Rating

100.0 kVA

100.0 kVA

Emissions/Fuel Strategy

Non-Certified Emissions

Non-Certified Emissions

Overview

Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.

Media

Photos

DE125AE0
DE125AE0
DE125AE0
DE125AE0
DE125AE0
DE125AE0
DE125AE0
DE125AE0

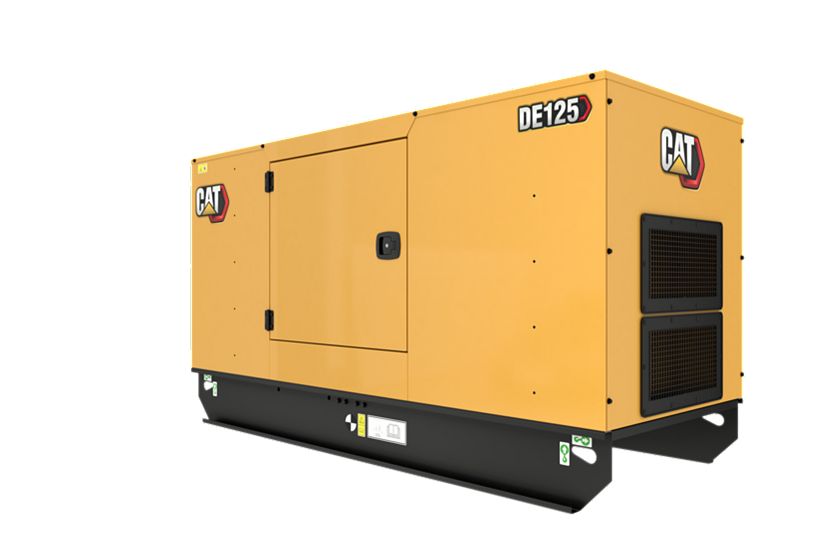

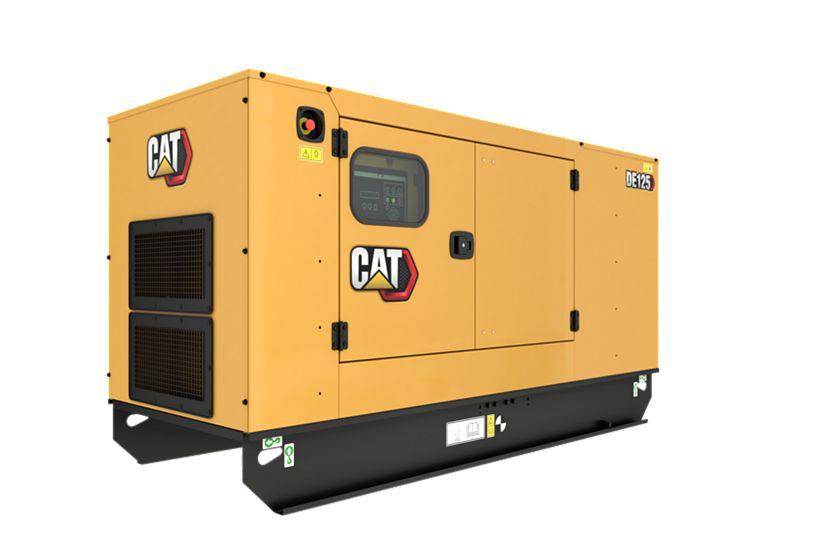

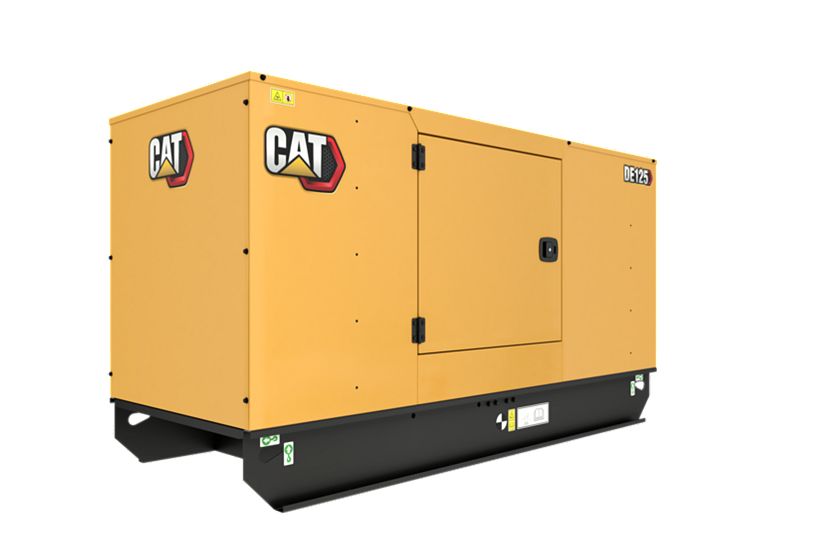

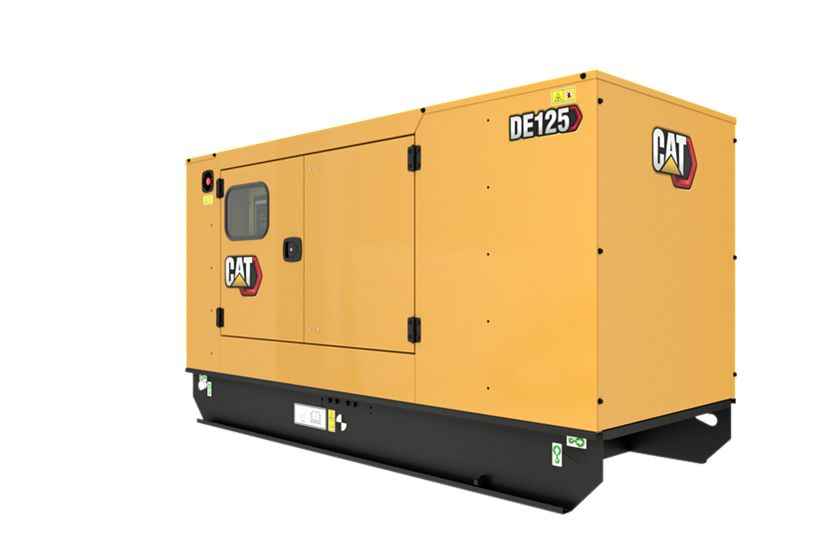

Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure
Enclosure

360° View

Exterior

Enclosed

Interior

Open

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

GTA Frame Alternator

EMCP Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Maximum Rating 110.0 kVA 110.0 kVA
Minimum Rating 100.0 kVA 100.0 kVA
Emissions/Fuel Strategy Non-Certified Emissions Non-Certified Emissions
Voltage 220 to 380 Volts 220 to 380 Volts
Frequency 50 Hz 50 Hz
Speed 1500 rpm 1500 rpm
Duty Cycle Standby, Prime Standby, Prime
Spec Value
Engine Model Cat® C4.4 Cat® C4.4
Bore 4.1 in 105 mm
Stroke 5 in 127 mm
Displacement 268.5 in³ 4.4 l
Compression Ratio 18.23:1 18.23:1
Aspiration Turbocharged Turbocharged
Fuel System Direct Injection Direct Injection
Governor Type Electronic Electronic
Spec Value
Length – Maximum 78 in 1980 mm
Width – Maximum 890 mm 35 in
Height – Maximum 54.2 in 1376 mm
Dry Weight – Genset (maximum) 2348 lb 1065 kg

Standard Equipment

Engine

  • C4.4, Inline 4 cylinder, 4 stroke diesel

Control panel

  • EMCP 4.1 Control panel

Governing system

  • Electronic Governor

Alternator

  • GTA Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Enclosure

  • Modular easy access acoustic enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
