Cat
DE169AE0 (60 Hz) Generator Set
Maximum Rating
120.0 ekW
120.0 ekW
Minimum Rating
120.0 ekW
120.0 ekW
Emissions/Fuel Strategy
Non-Certified Emissions
Non-Certified Emissions
Overview
Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.
Media
Photos
360° View
Exterior

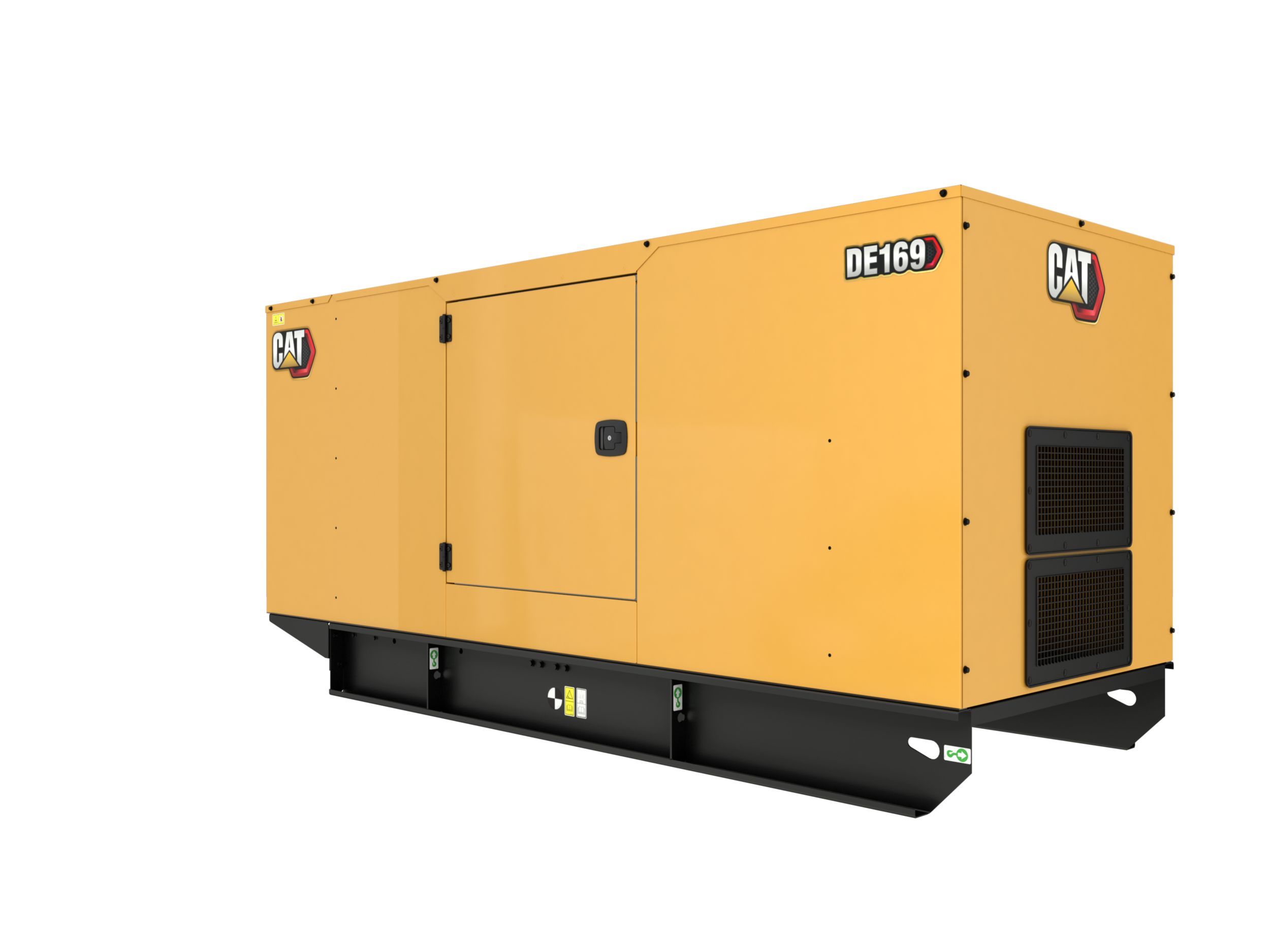

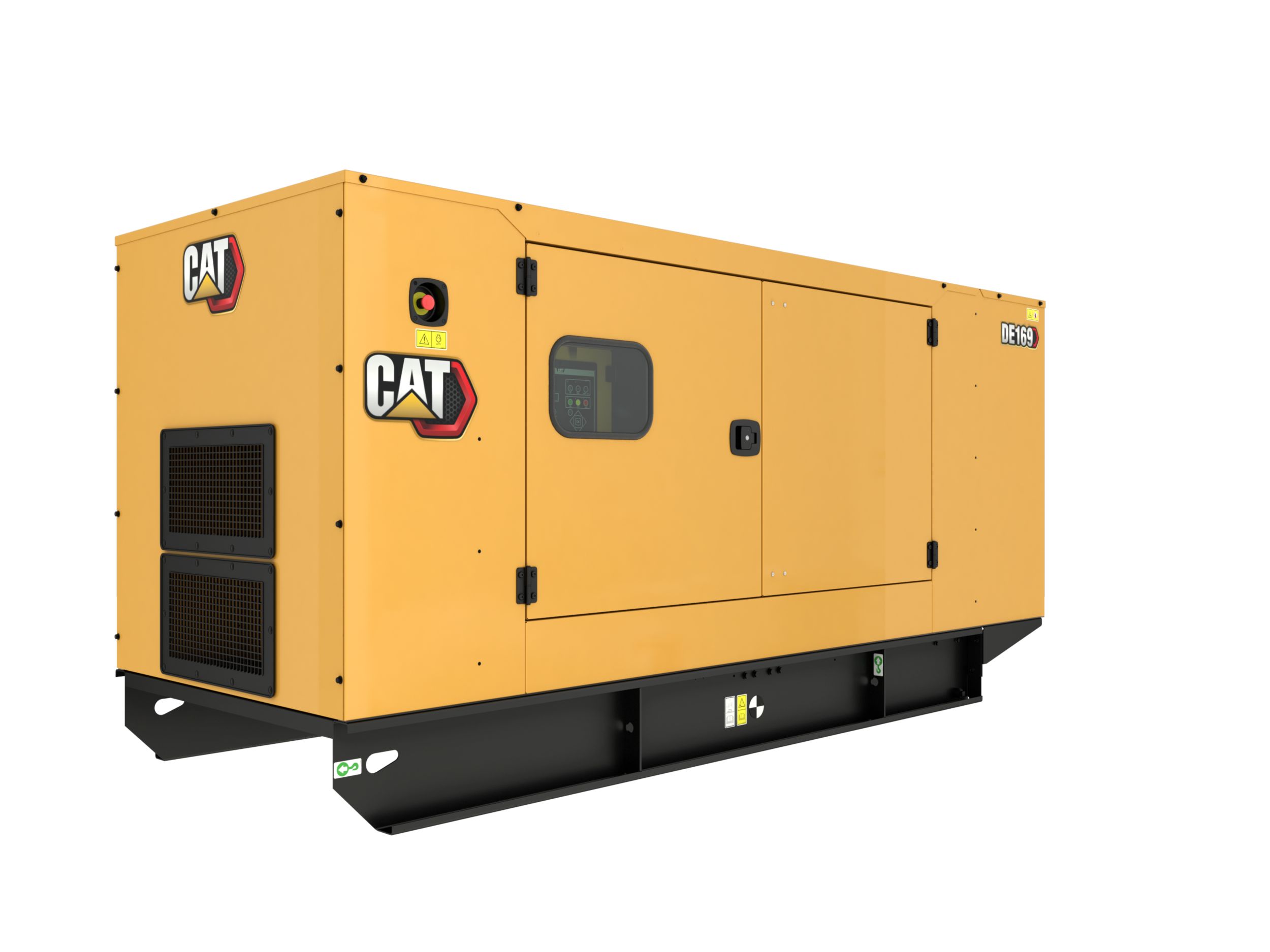

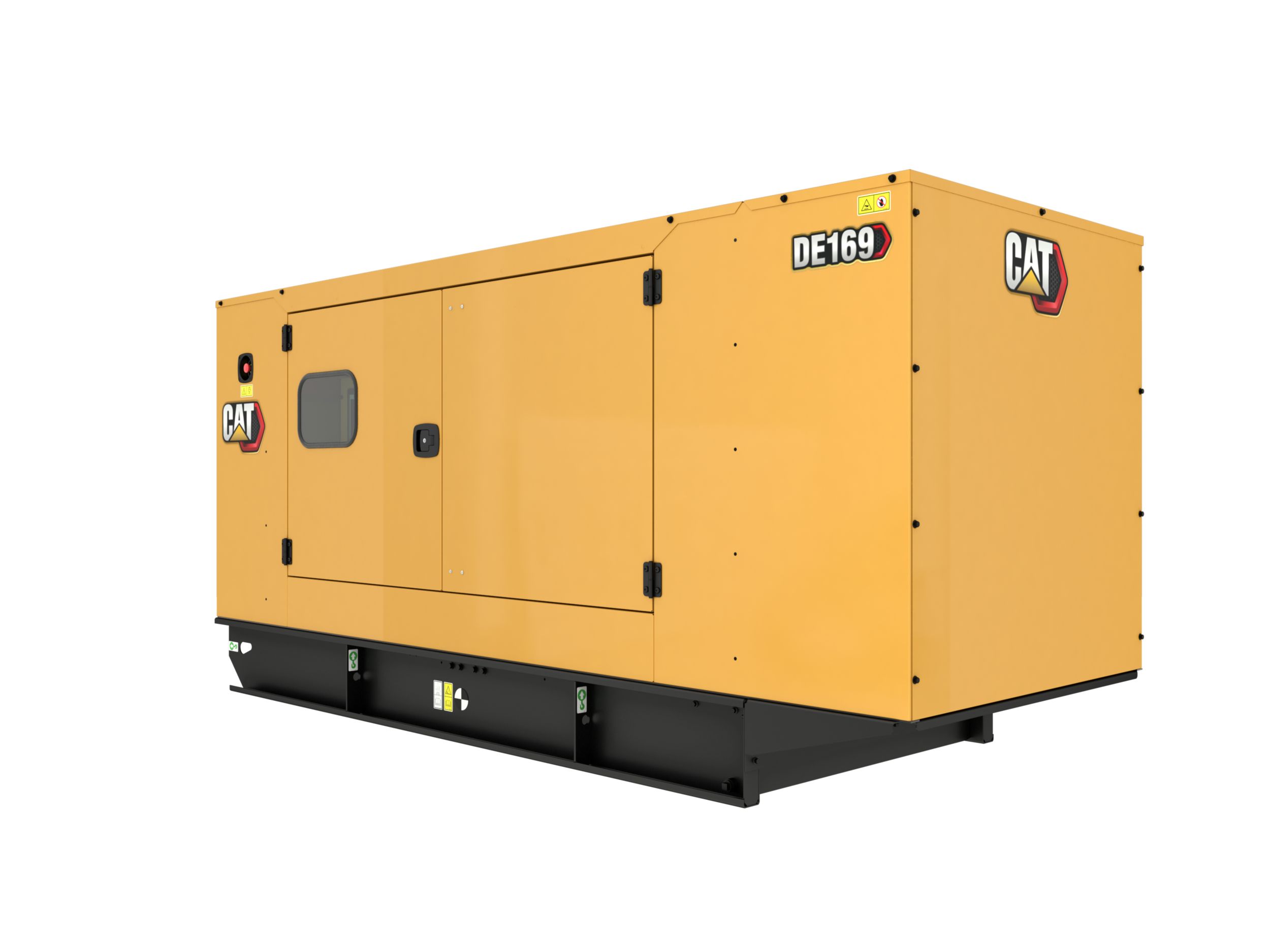

Enclosed
Interior

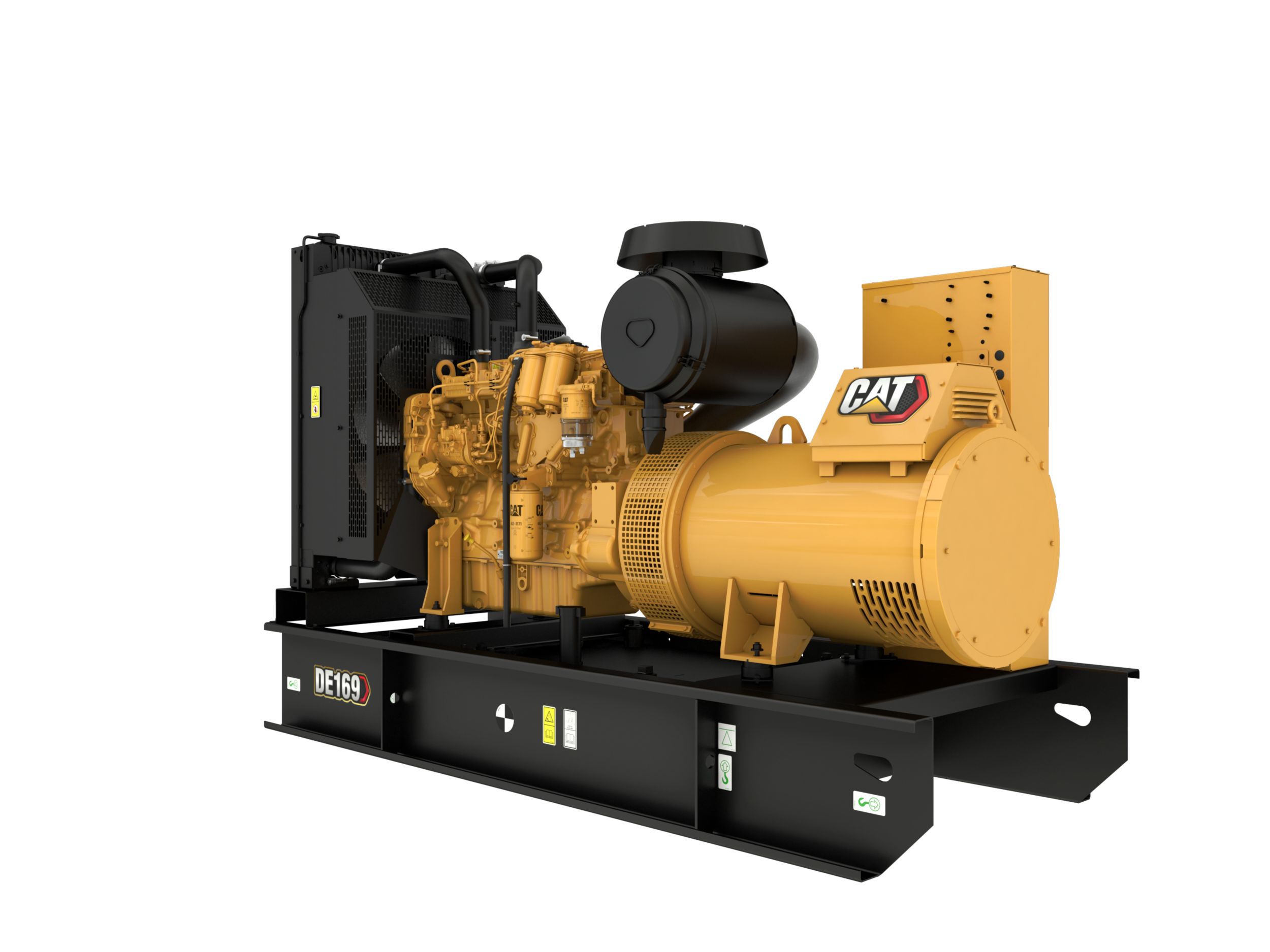

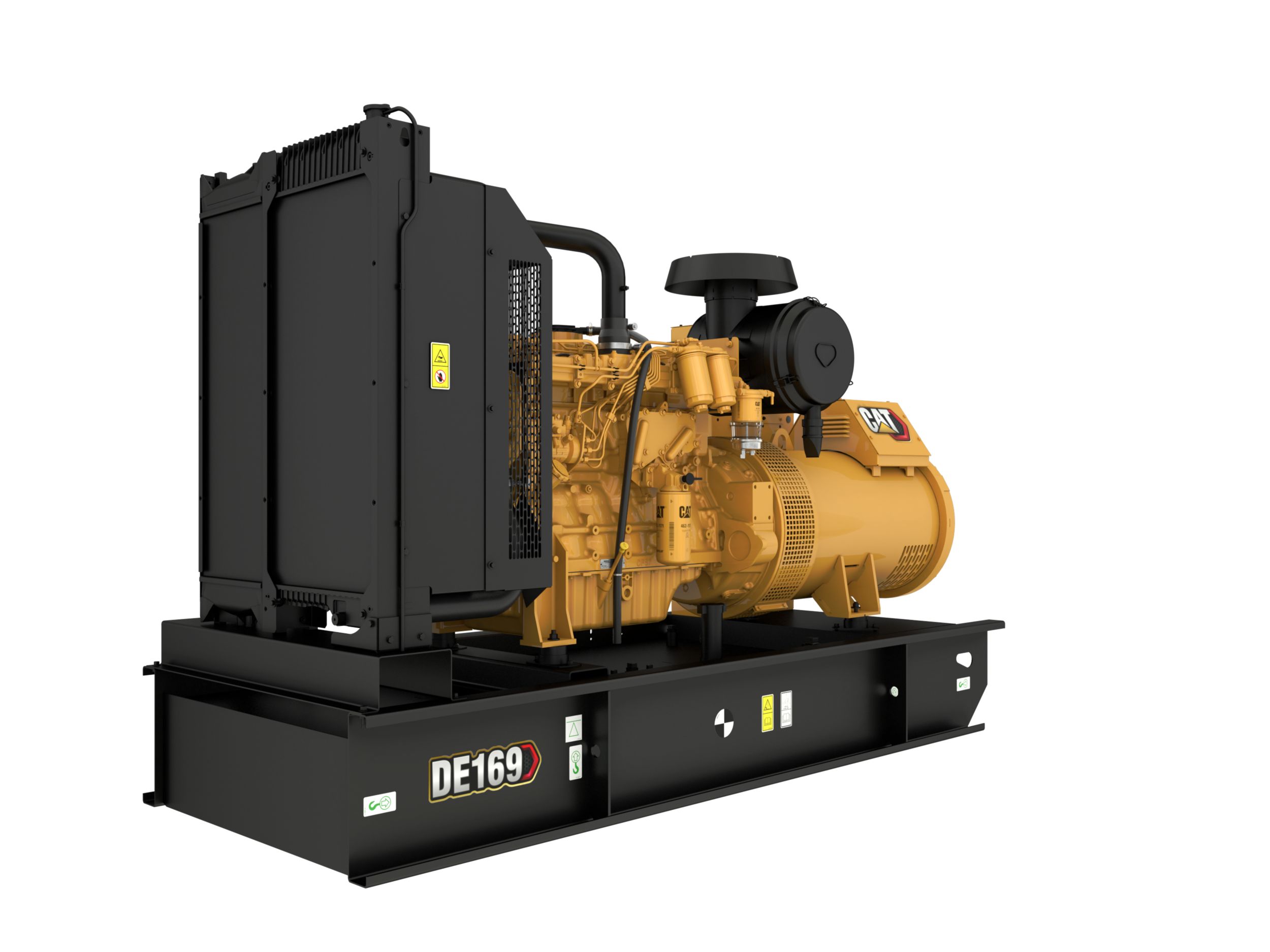

Open
Features
Cat Diesel Engine
GTA Frame Alternator
EMCP Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 120.0 ekW 120.0 ekW |
| Minimum Rating | 120.0 ekW 120.0 ekW |
| Emissions/Fuel Strategy | Non-Certified Emissions Non-Certified Emissions |
| Voltage | 220 to 380 Volts 220 to 380 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | Cat® C7.1 Cat® C7.1 |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.8 in³ 7 l |
| Compression Ratio | 18.2:1 18.2:1 |
| Aspiration | Turbocharged Turbocharged |
| Fuel System | Direct Injection Direct Injection |
| Governor Type | Mechanical Mechanical |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 96.5 in 2450 mm |
| Width – Maximum | 1010 mm 39.8 in |
| Height – Maximum | 60.8 in 1544 mm |
| Dry Weight – Genset (maximum) | 3135 lb 1422 kg |
Standard Equipment
Engine
- C7.1, Inline 4 Cylinder, 4 Stroke Diesel
Control panel
- EMCP 4.1 Control panel
Governing system
- Mechanical governor
Alternator
- GTA Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Modular easy access acoustic enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
