Cat
DE218AE0 (50 Hz) Generator Set
Standby Rating
200 kVA
200 kVA
Prime Power Rating
196 kVA
196 kVA
Emissions/Fuel Strategy
Non-Certified Emissions
Non-Certified Emissions
Overview
Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.
Media
Photos
360° View
Exterior

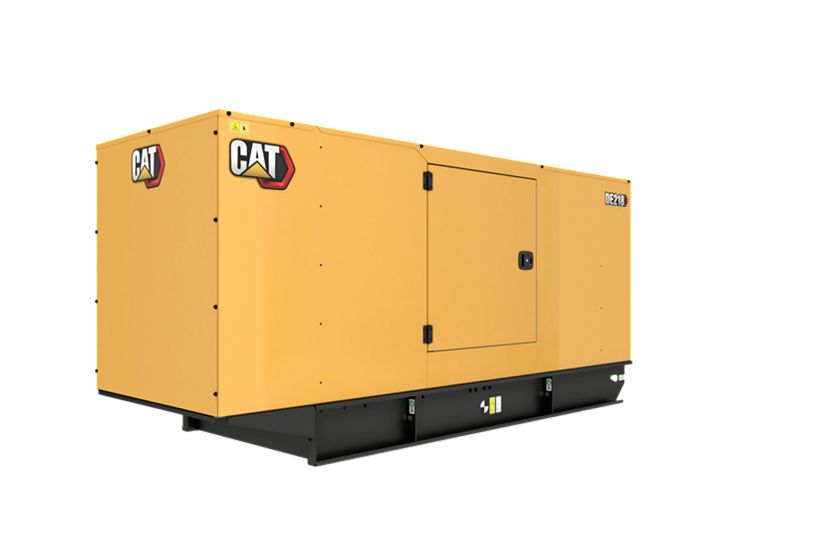

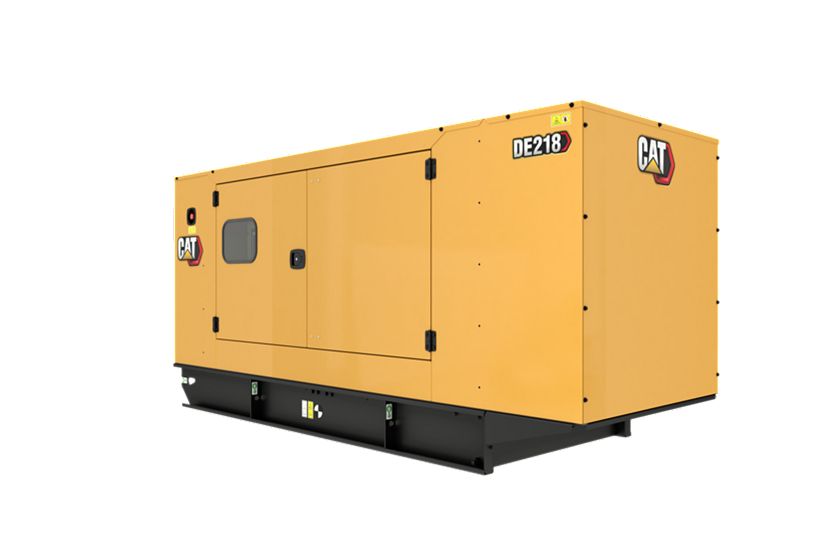

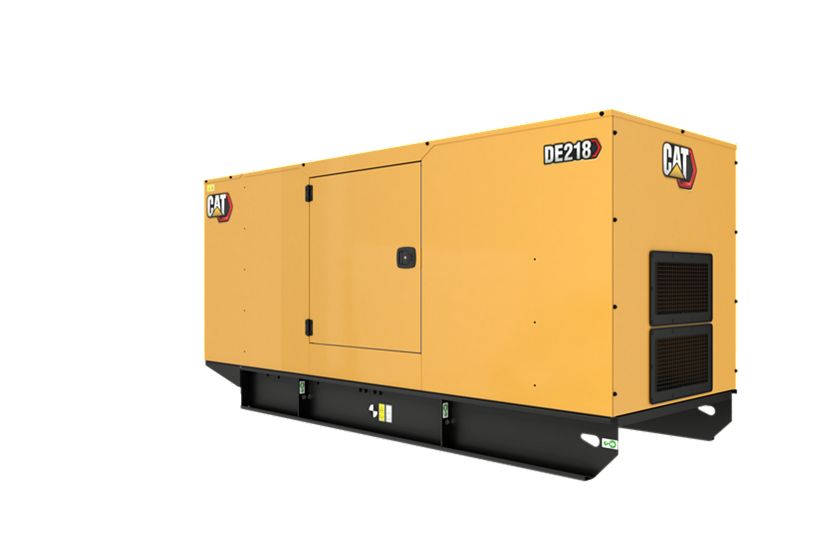

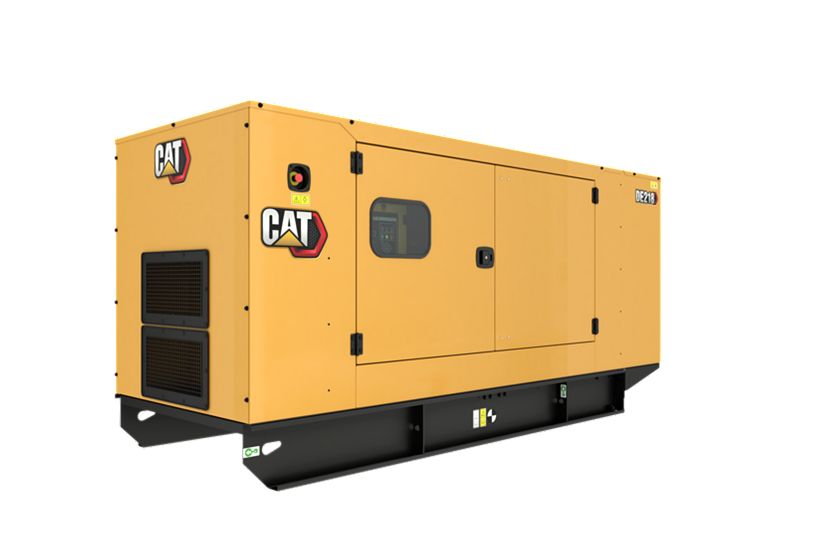

Enclosed
Interior

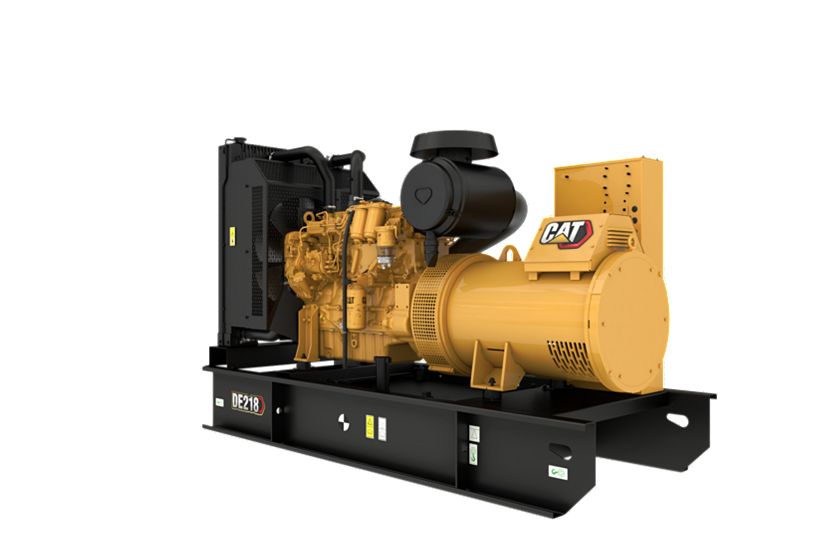

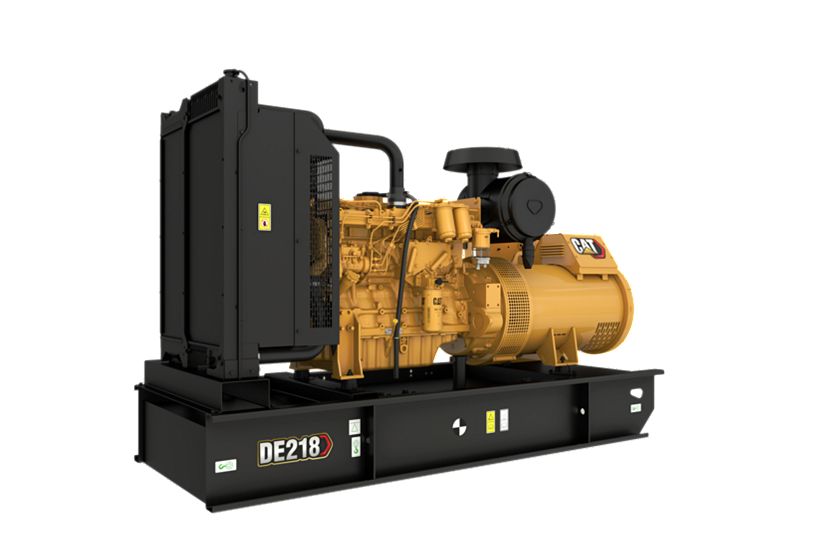

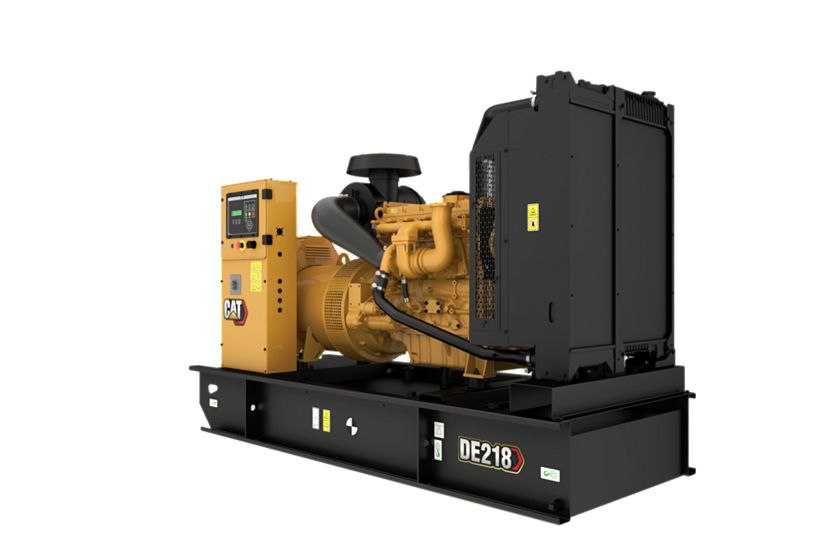

Open
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Standby Rating | 200 kVA 200 kVA |
| Prime Power Rating | 196 kVA 196 kVA |
| Emissions/Fuel Strategy | Non-Certified Emissions Non-Certified Emissions |
| Voltage | 220 to 380 Volts 220 to 380 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | Cat® C7.1 Cat® C7.1 |
| Bore | 4.1 in 105 mm |
| Stroke | 5.3 in 135 mm |
| Displacement | 427.8 in³ 7 l |
| Compression Ratio | 16.0:1 16.0:1 |
| Aspiration | Turbocharged Turbocharged |
| Fuel System | Direct Injection Direct Injection |
| Governor Type | Mechanical Mechanical |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 98.8 in 2510 mm |
| Width – Maximum | 1010 mm 39.8 in |
| Height – Maximum | 64.6 in 1640 mm |
| Dry Weight – Genset (maximum) | 3446 lb 1563 kg |
Standard Equipment
Engine
- C7.1, Inline 4 Cylinder, 4 Stroke Diesel
Control panel
- EMCP 4.1 Control panel
Governing system
- Mechanical governor
Alternator
- GTA Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Modular easy access acoustic enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
