Cat

DE800S GC

Name: DE800S GC
Brand: Cat

Minimum Rating

800 eKW

Maximum Rating

800 eKW

Emissions/Fuel Strategy

Low Fuel Consumption

Overview

Producing reliable power at 800 ekW, 60 Hz, our DE800S GC diesel generator set is made to meet your needs in standby applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100 per cent rated load in one step. This generator set is a low fuel consumption system.

Media

Interior

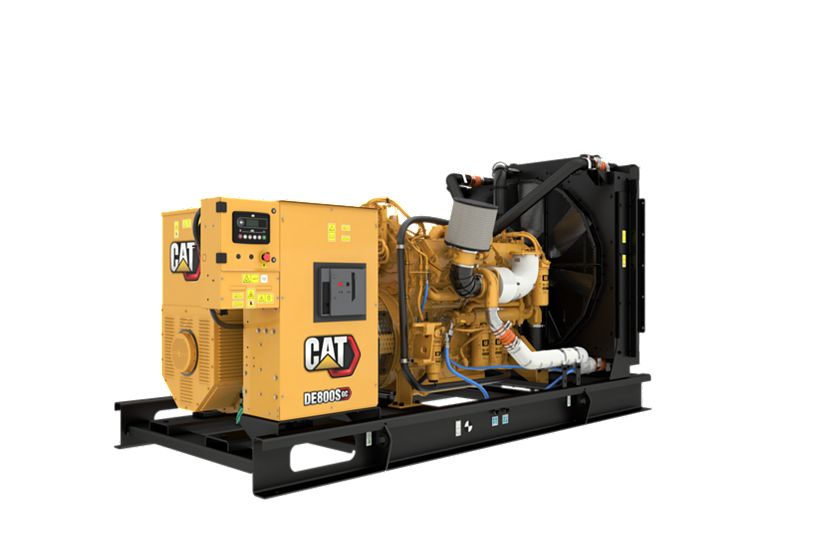

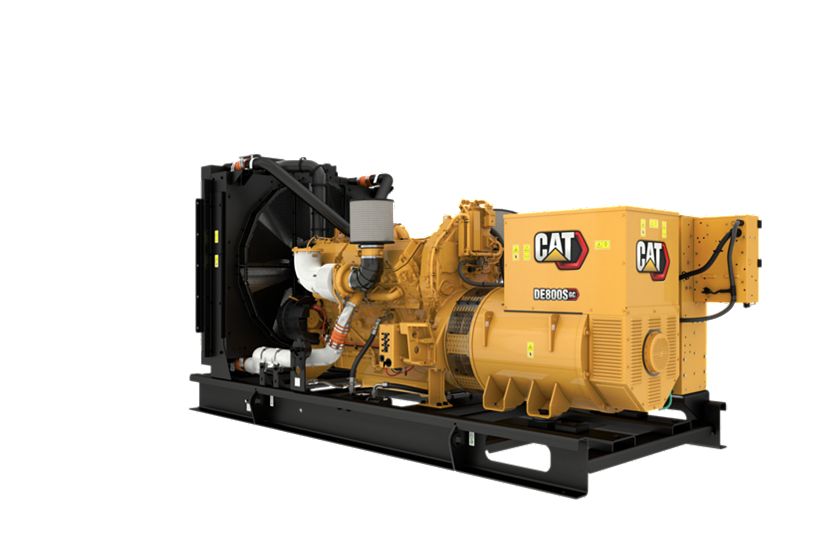

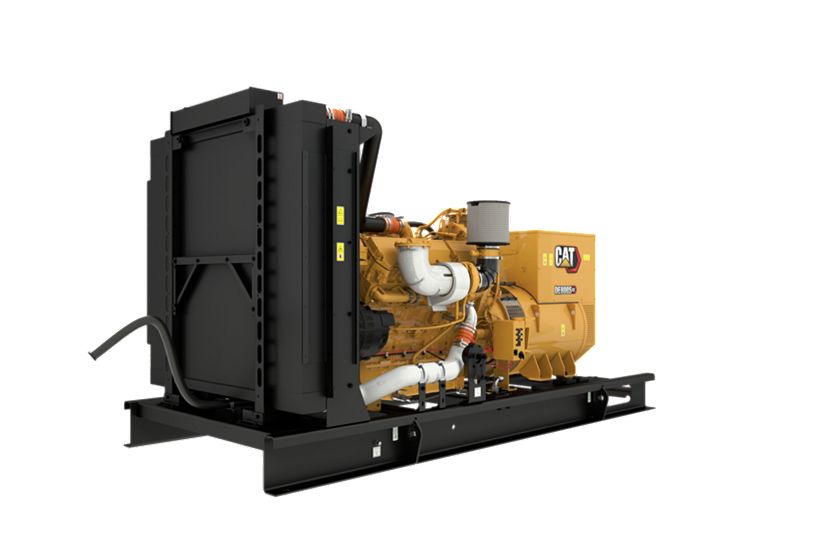

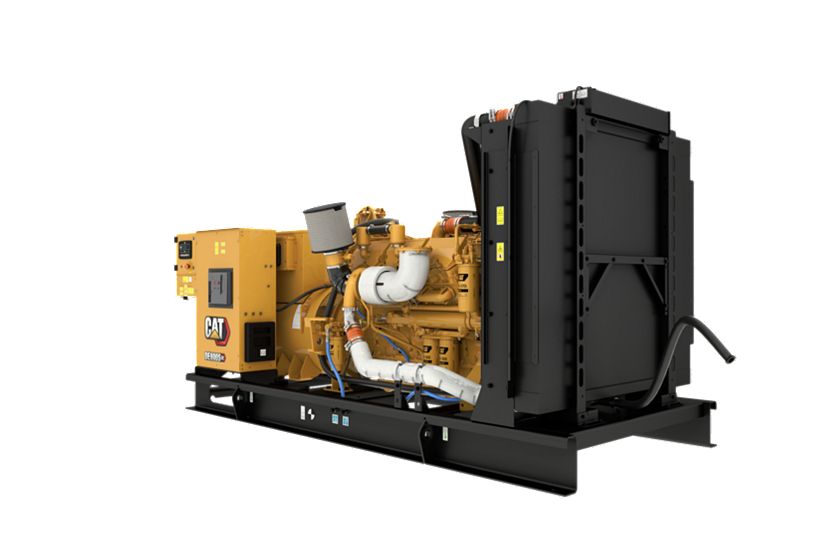

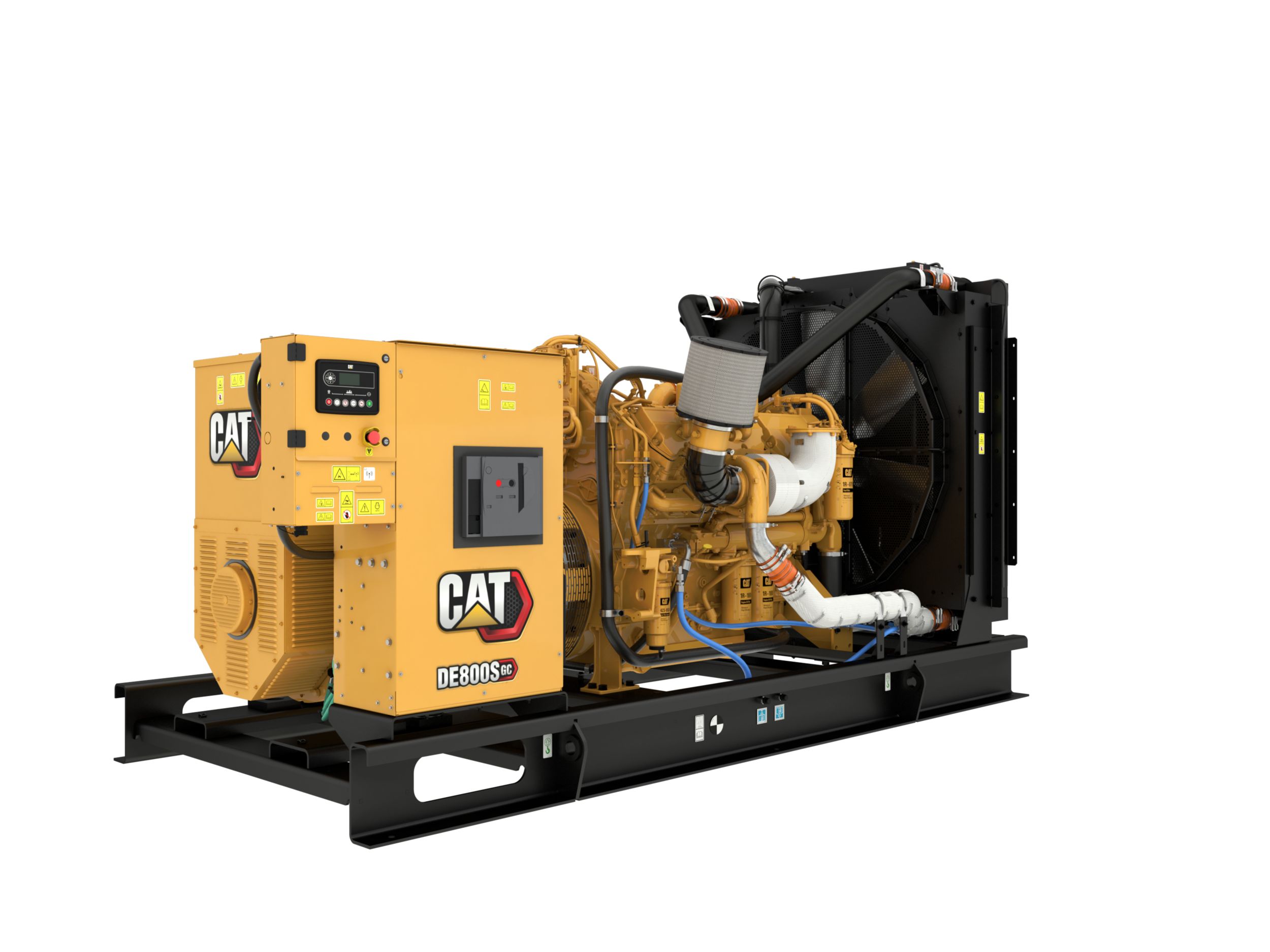

Open Set

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Phone
This field is for validation purposes and should be left unchanged.

Features

World Wide Product Support

Cat Diesel Engine

SR500 Alternator

GCCP1.3 Control Panel

Cooling System

Certifications

One Safe Source

Specifications

US Metric

Generator Set Specifications

Spec	Value
Minimum Rating	800 eKW 800 eKW
Maximum Rating	800 eKW 800 eKW
Emissions/Fuel Strategy	Low Fuel Consumption Low Fuel Consumption
Voltage	380 - 480 Volts 380 - 480 Volts
Frequency	60 Hz 60 Hz
Speed	1800 rpm 1800 rpm
Duty Cycle	Standby Standby

Engine Specifications

Spec	Value
Engine Model	C27 TA, V-12, 4-Stroke Water-Cooled Diesel C27 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	5.4 in 137.2 mm
Stroke	6 in 152.4 mm
Displacement	1649.47 in³ 27.03 l
Compression Ratio	16.5:1 16.5:1
Aspiration	TA TA
Fuel System	MEUI MEUI
Governor Type	Adem™A4 Adem™A4

Generator Set Dimensions

Spec	Value
Length – Minimum	164.3 in 4175 mm
Length – Maximum	164.3 in 4175 mm
Width – Minimum	73.1 in 1856 mm
Width – Maximum	73.1 in 1856 mm
Height – Minimum	87.3 in 2217.5 mm
Height – Maximum	87.3 in 2217.5 mm
Dry Weight – Genset (minimum)	13695 lb 6212 kg
Dry Weight – Genset (maximum)	13695 lb 6212 kg
