Cat

DE1250S GC

Name: DE1250S GC
Brand: Cat

Minimum Rating

1250 eKW

Maximum Rating

1250 eKW

Emissions/Fuel Strategy

Low Fuel Consumption

Overview

Producing reliable power at 1250 ekW, 60 Hz, our DE1250S GC diesel generator set is made to meet your needs in standby applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. This generator set offers a low fuel consumption system.

Media

Interior

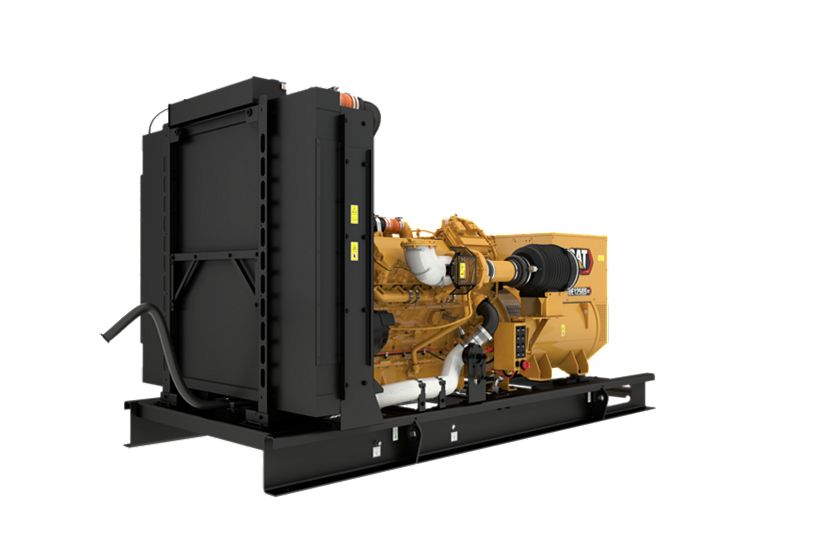

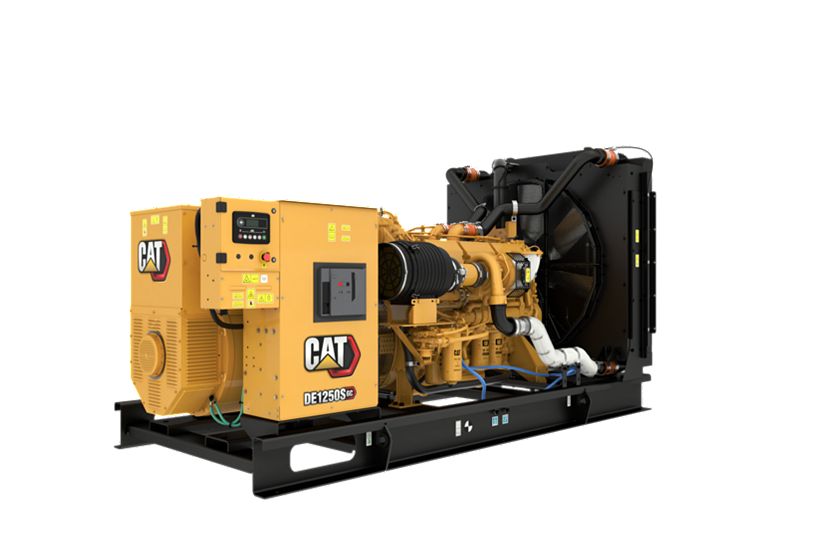

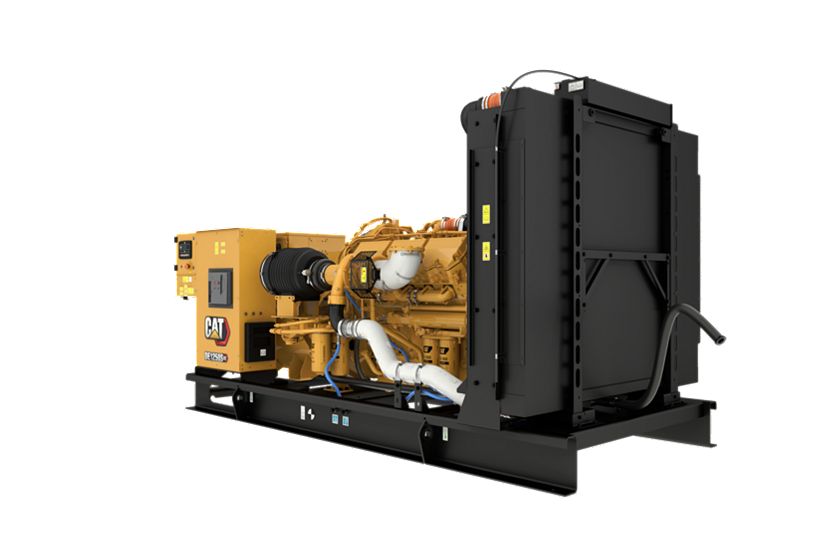

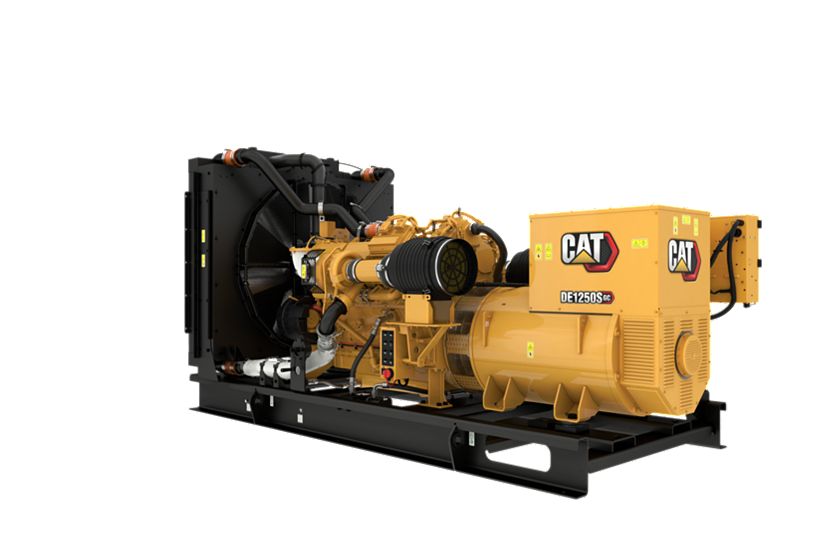

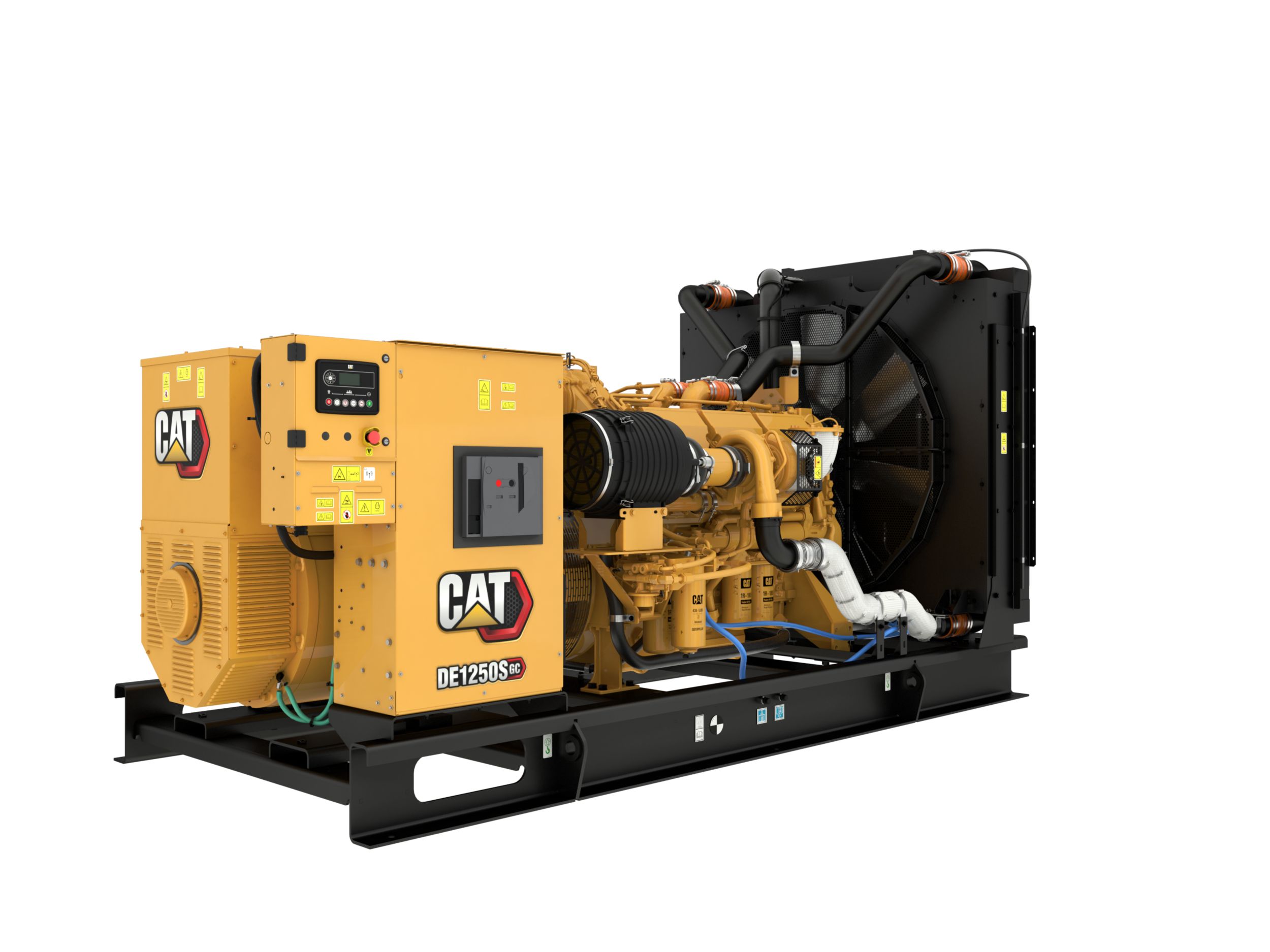

Open Set

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Worldwide Product Support

Cat Diesel Engine

SR500 Alternator

GCCP1.3 Control Panel

Cooling System

Certifications

One Safe Source

Specifications

US Metric

Generator Set Specifications

Spec	Value
Minimum Rating	1250 eKW 1250 eKW
Maximum Rating	1250 eKW 1250 eKW
Emissions/Fuel Strategy	Low Fuel Consumption Low Fuel Consumption
Voltage	380 - 480 Volts 380 - 480 Volts
Frequency	60 Hz 60 Hz
Speed	1800 rpm 1800 rpm
Duty Cycle	Standby Standby

Engine Specifications

Spec	Value
Engine Model	C32 TA, V-12, 4-Stroke Water-Cooled Diesel C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	5.71 in 145 mm
Stroke	6.38 in 162 mm
Displacement	1958.86 in³ 32.1 l
Compression Ratio	15.0:1 15.0:1
Aspiration	TA TA
Fuel System	EUI EUI
Governor Type	Adem™A4 Adem™A4

Generator Set Dimensions

Spec	Value
Length – Minimum	164.3 in 4175 mm
Length – Maximum	164.3 in 4175 mm
Width – Minimum	82.3 in 2090.5 mm
Width – Maximum	82.3 in 2090.5 mm
Height – Minimum	89.3 in 2268 mm
Height – Maximum	89.3 in 2268 mm
Dry Weight – Genset (minimum)	15606 lb 7079 kg
Dry Weight – Genset (maximum)	15606 lb 7079 kg
