Cat
DE1500 GC
Minimum Rating
1500 kVA
1500 kVA
Maximum Rating
1500 kVA
1500 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption
Overview

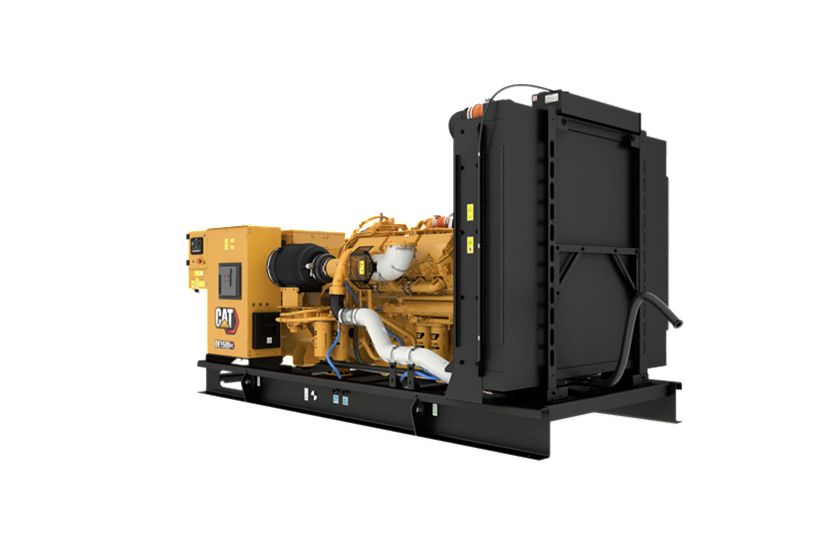

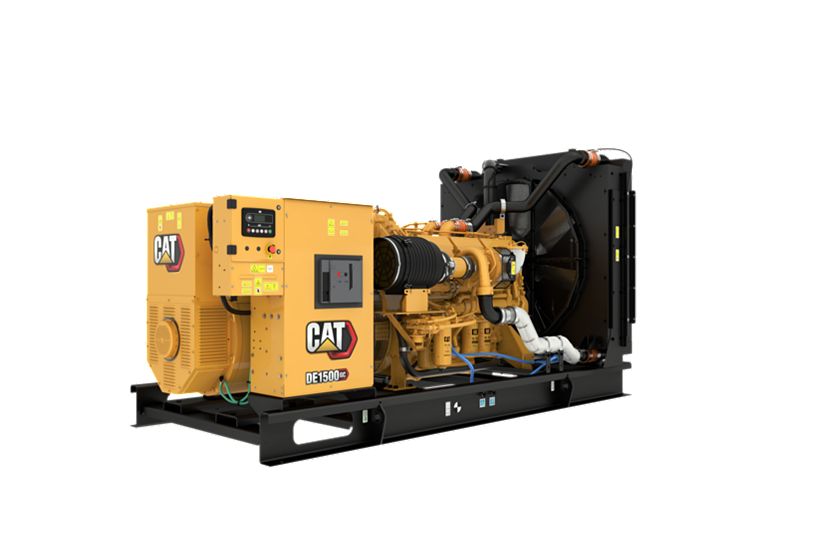

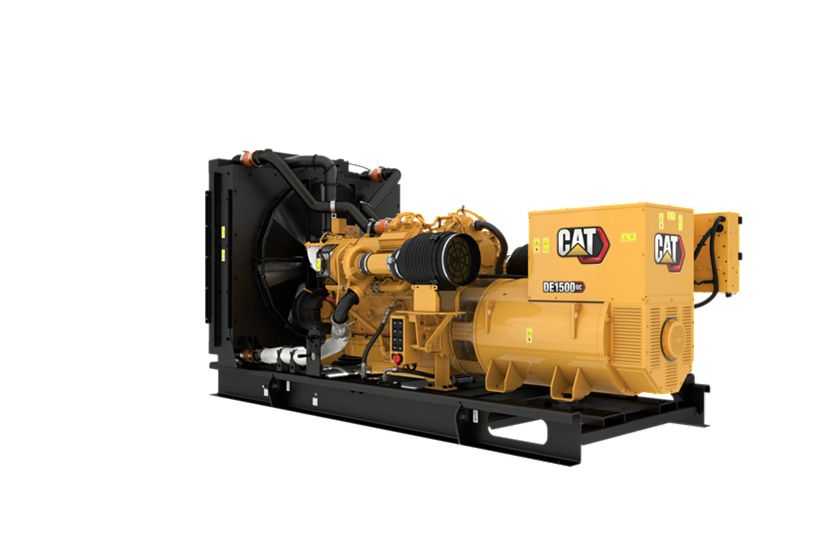

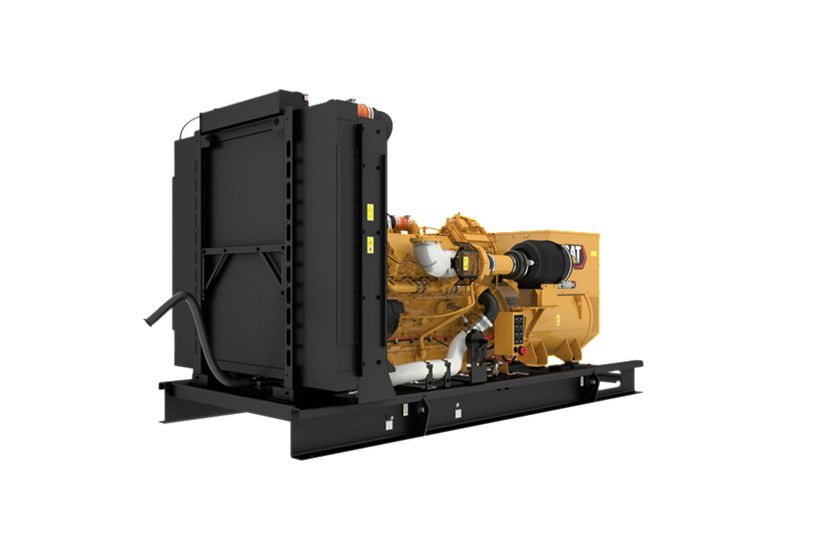

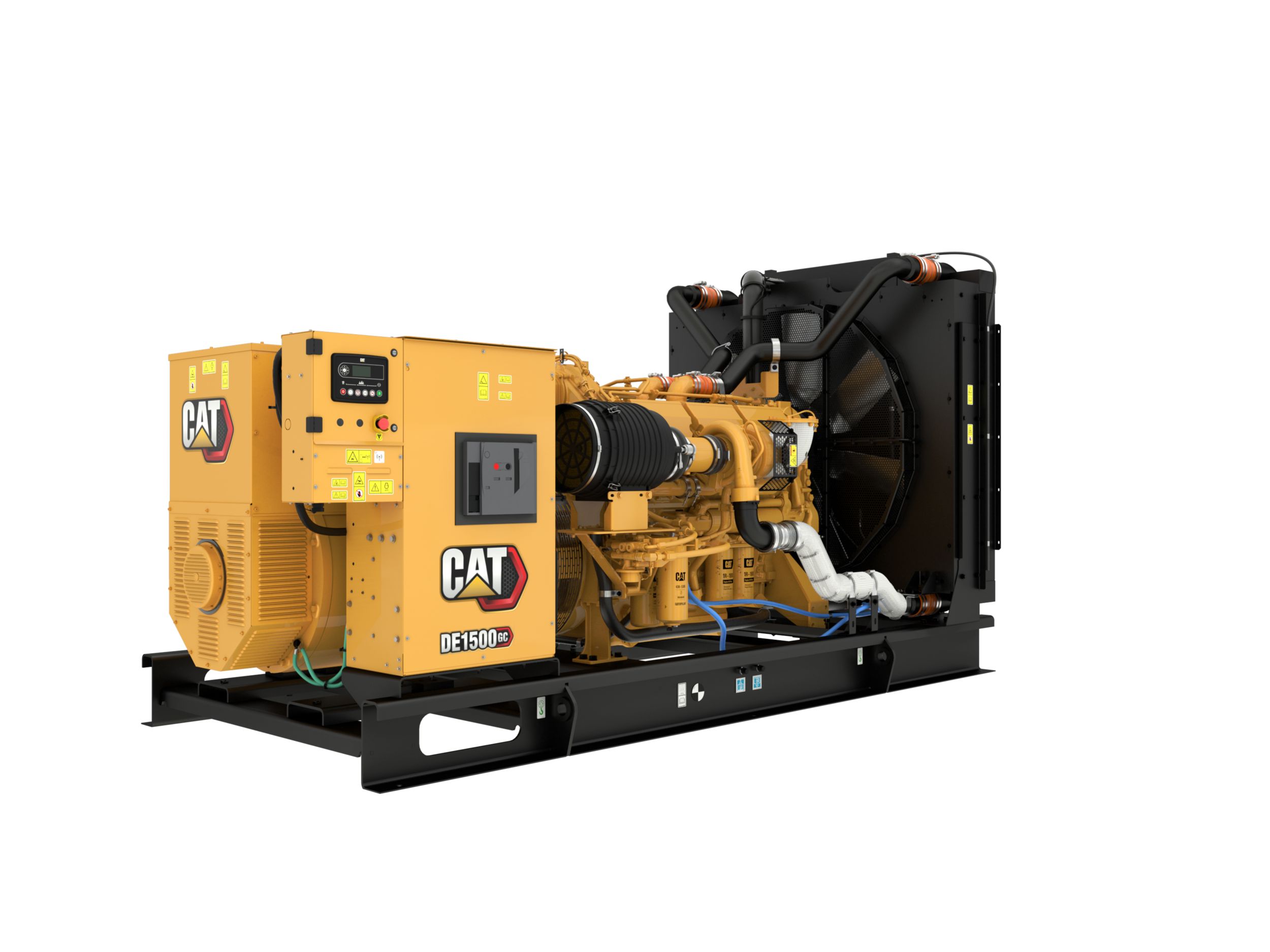

Producing reliable power at 1500 kVA, 50 Hz, our DE1500 GC diesel generator set is made to meet your standby application requirements. The design comply with ISO 8528-5 transient response load requirements.
Media
Photos
360° View
Interior
Open Set
Features
Cat Diesel Engine
SR500 Alternator
GCCP1.3 Control Panel
Cooling System
Certifications
One Safe Source
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Minimum Rating | 1500 kVA 1500 kVA |
| Maximum Rating | 1500 kVA 1500 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Voltage | 400 - 415 Volts 400 - 415 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 5.71 in 145 mm |
| Stroke | 6.38 in 162 mm |
| Displacement | 1958.86 in³ 32.1 l |
| Compression Ratio | 14.0:1 14.0:1 |
| Aspiration | TA TA |
| Fuel System | EUI EUI |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Minimum | 164.3 in 4175 mm |
| Length – Maximum | 164.3 in 4175 mm |
| Width – Minimum | 82.3 in 2090.5 mm |
| Width – Maximum | 82.3 in 2090.5 mm |
| Height – Minimum | 89.3 in 2268 mm |
| Height – Maximum | 89.3 in 2268 mm |
| Dry Weight – Genset (minimum) | 16393 lb 7436 kg |
| Dry Weight – Genset (maximum) | 16393 lb 7436 kg |
Standard Equipment
Control Panel
- GCCP1.3
Cooling System
- Radiator
Optional Equipment
Control Panels
- Remote monitoring software
Starting/Charging
- Jacket water heater
General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
