Cat

D1000 GC

Name: D1000 GC
Brand: Cat

Maximum Rating

1000 ekW

Minimum Rating

1000 ekW

Emissions/Fuel Strategy

U.S. EPA Tier 2

Overview

Producing reliable power at 1000 ekW, 60 Hz, our D1000 GC diesel generator set is made to meet your needs in standby applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is US EPA Stationary Emergency Use Only (Tier 2) certified.

Media

Interior

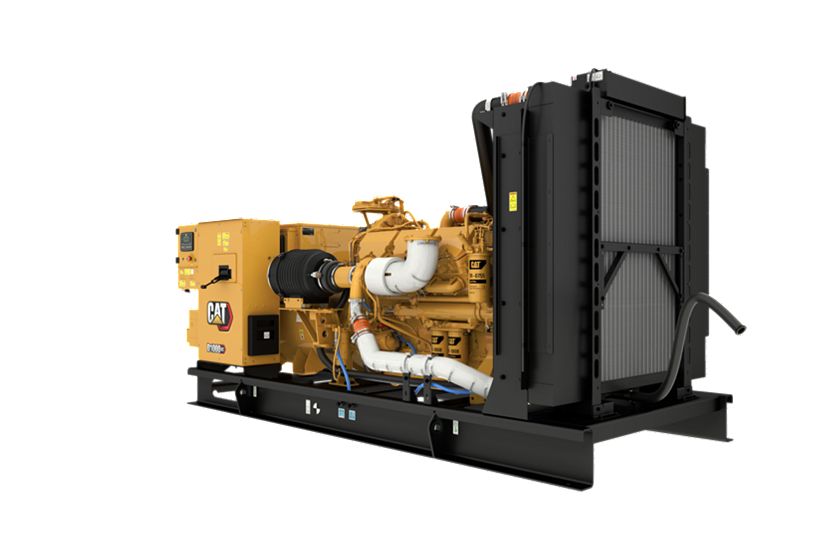

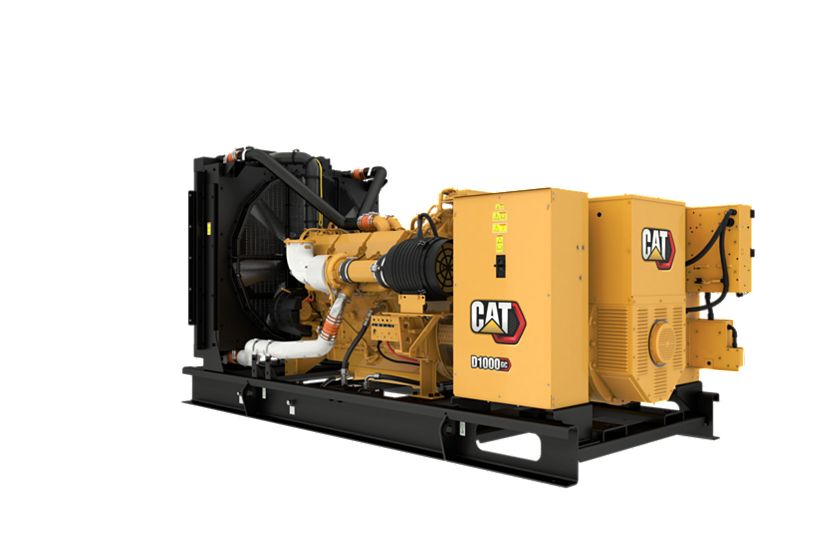

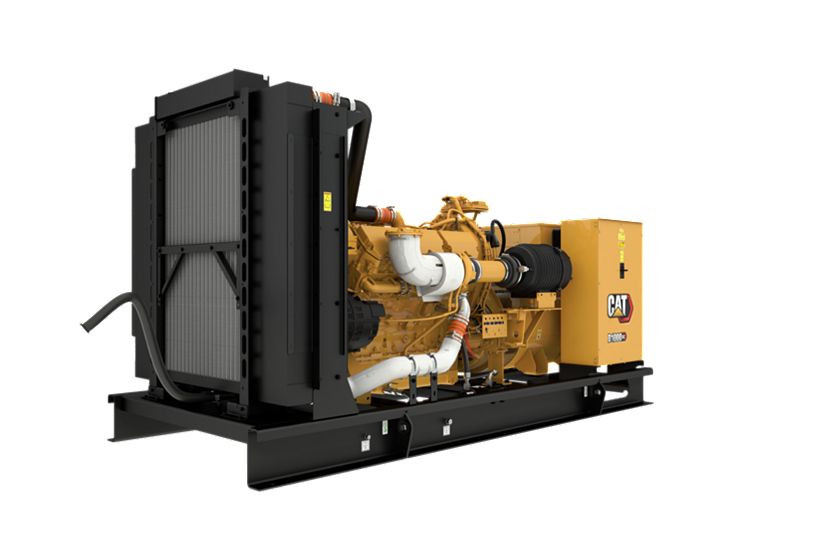

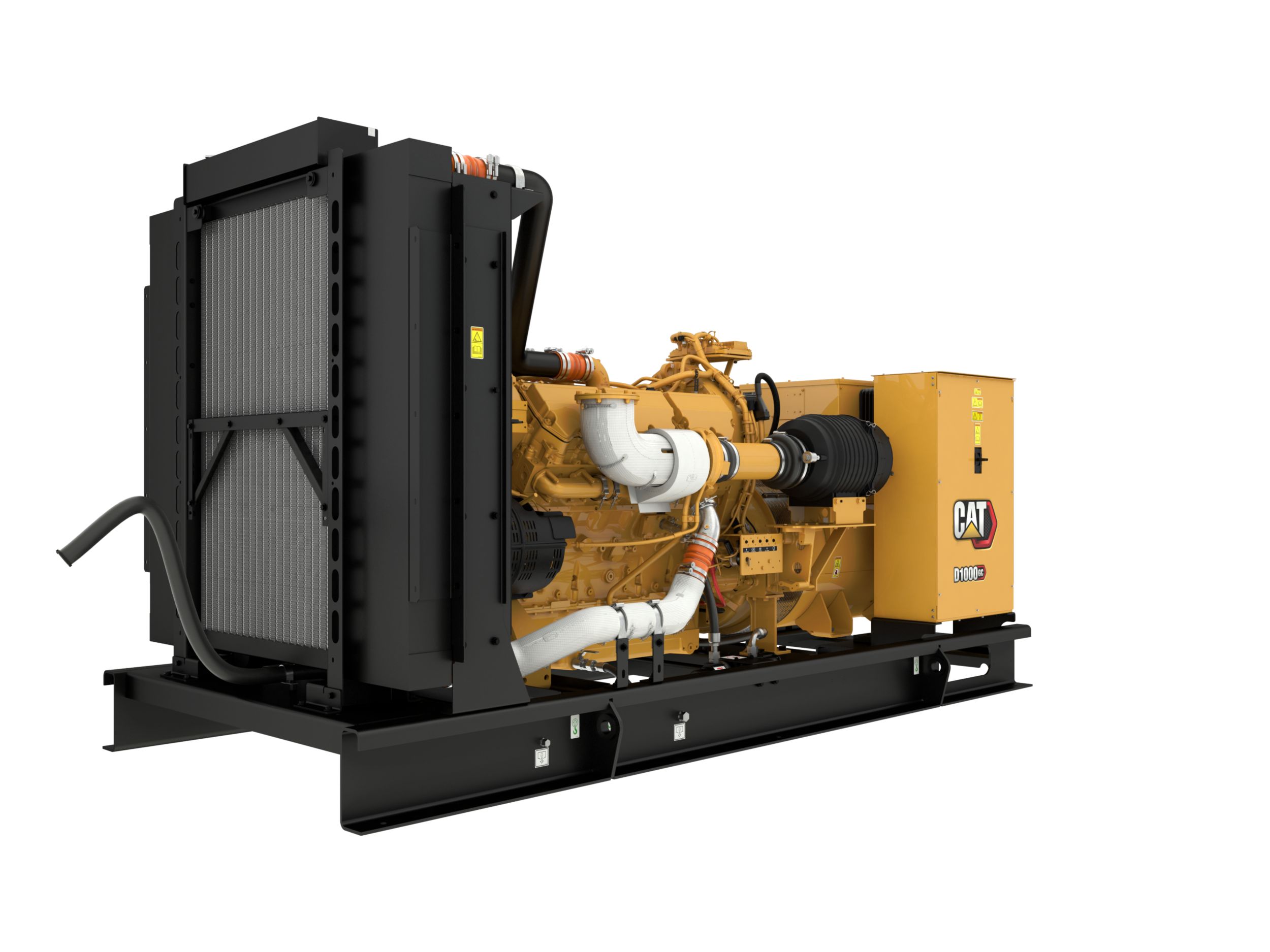

Open Set

Documents

Get more info

First Name*
Last Name*
Company
Address 1*
Address 2
City*
County*
State*
Zip code*
Phone*
Email*
Referral
Message or additional info
CAPTCHA
How did you hear about us?*
*If you chose Other, please explain below.
Comments
This field is for validation purposes and should be left unchanged.

Features

Worldwide Product Support

Cat Diesel Engine

SR500 Alternator

GCCP1.3 Control Panel

Cooling System

Certifications

One Safe Source

Specifications

US Metric

Generator Set Specifications

Spec	Value
Maximum Rating	1000 ekW 1000 ekW
Minimum Rating	1000 ekW 1000 ekW
Emissions/Fuel Strategy	U.S. EPA Tier 2 U.S. EPA Tier 2
Voltage	380 - 480 Volts 380 - 480 Volts
Frequency	60 Hz 60 Hz
Speed	1800 rpm 1800 rpm
Duty Cycle	Standby Standby

Engine Specifications

Spec	Value
Engine Model	C32 TA, V-12, 4-Stroke Water-Cooled Diesel C32 TA, V-12, 4-Stroke Water-Cooled Diesel
Bore	5.71 in 145 mm
Stroke	6.38 in 162 mm
Displacement	1958.86 in³ 32.1 l
Compression Ratio	15.0:1 15.0:1
Aspiration	TA TA
Fuel System	EUI EUI
Governor Type	Adem™A4 Adem™A4

Generator Set Dimensions

Spec	Value
Length – Minimum	164.3 in 4175 mm
Length – Maximum	164.3 in 4175 mm
Width – Minimum	73.1 in 1856 mm
Width – Maximum	73.1 in 1856 mm
Height – Minimum	87.3 in 2217.5 mm
Height – Maximum	87.3 in 2217.5 mm
Dry Weight – Genset (minimum)	14669 lb 6654 kg
Dry Weight – Genset (maximum)	14669 lb 6654 kg
