Cat

C1.5 | DE13.5E3 50Hz R96/ EUIIIA Equivalent

Standby Rating

13.5 kVA

13.5 kVA

Prime Power Rating

12.5 kVA

12.5 kVA

Emissions/Fuel Strategy

EU Stage IIIA

EU Stage IIIA

Overview

Producing reliable power 13.5 kVA at 50 Hz, our C1.5 diesel generator set designed to ISO 8528-5 transient response requirements. DE13.5E3 generator set is R96/ EUIIIA Equivalent emissions compliant.

Media

Photos

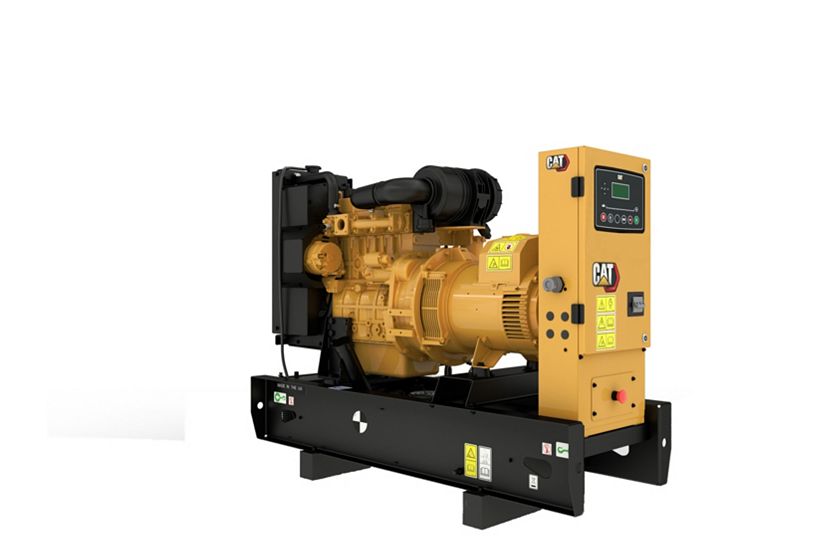

Open Genset
Open Genset
C1.5 Generator Set Rear Left
C1.5 Generator Set Rear Left

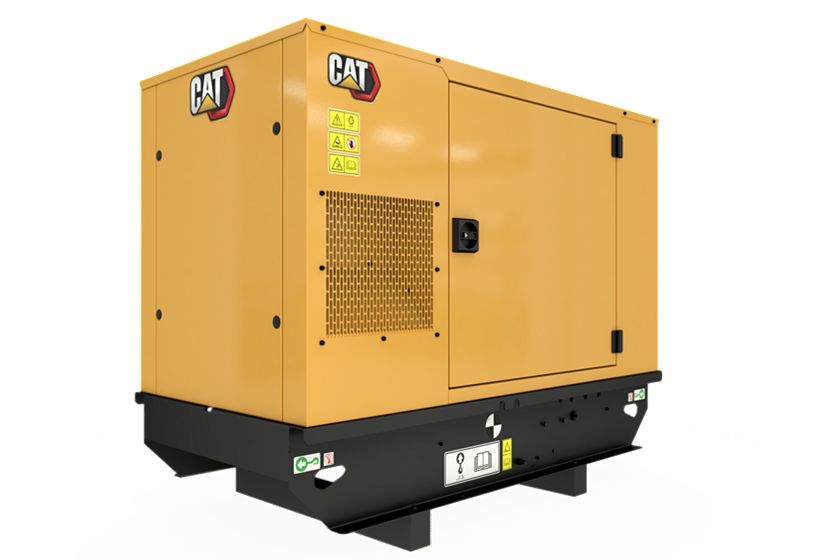

Enclosure
Enclosure

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

SR500 Alternator

GCCP Control Panel

Cooling System

Certifications

One Safe Source

World Wide Product Support

Details

Specifications

Spec Value
Standby Rating 13.5 kVA 13.5 kVA
Prime Power Rating 12.5 kVA 12.5 kVA
Emissions/Fuel Strategy EU Stage IIIA EU Stage IIIA
Voltage 200 to 400 Volts 200 to 400 Volts
Frequency 50 Hz 50 Hz
Duty Cycle Standby, Prime Standby, Prime

Standard Equipment

Air Inlet System

  • Air cleaner; light duty with disposable element

Control Panel

  • GCCP1.3 Control panel

Cooling System

  • Radiator and cooling fan with guards

Optional Equipment

Alternator Options

  • Coastal insulation protection

Certificates

  • European upgrade to STD set for CE certificate
  • Global certification for CIS

Enclosures

  • Aluminium
  • Steel
