Cat

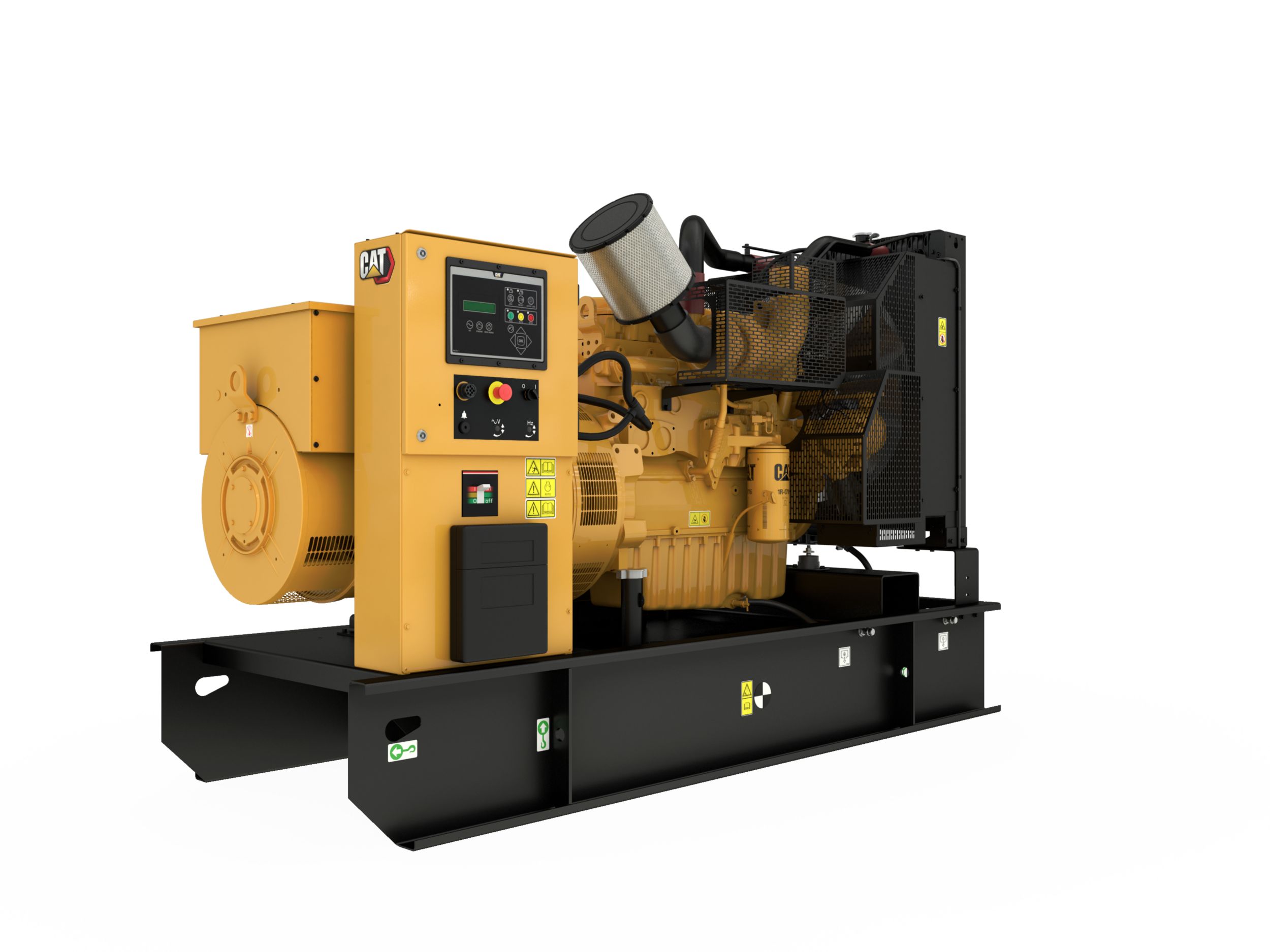

C9 | DE330E0 50Hz NON CERTIFIED EMISSIONS
Maximum Rating
330 kVA
330 kVA
Minimum Rating
330 kVA
330 kVA
Emissions/Fuel Strategy
Non-Certified
Non-Certified
Overview
Producing reliable power of 330 kVA at 50 Hz, our DE330E0 diesel generator set designed to ISO 8528-5 transient response requirements.
Media
Photos
Features
Cat Diesel Engine
A-Frame Alternator
GCCP1.3 Control Panel
Generator Features
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 330 kVA 330 kVA |
| Minimum Rating | 330 kVA 330 kVA |
| Emissions/Fuel Strategy | Non-Certified Non-Certified |
| Voltage | 200 to 400 Volts 200 to 400 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel C9 ATAAC, I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 4.41 in 112 mm |
| Stroke | 5.87 in 149 mm |
| Displacement | 537.01 in³ 8.8 l |
| Compression Ratio | 16.1:1 16.1:1 |
| Aspiration | Air to Air Aftercooled Air to Air Aftercooled |
| Fuel System | Hydraulic electronic unit injection Hydraulic electronic unit injection |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 157 in 3988 mm |
| Width – Maximum | 47.5 in 1207 mm |
| Height – Maximum | 73.5 in 1867 mm |
Standard Equipment
Air Inlet System
- Air cleaner, light duty with disposable paper filter
Control Panels
- GCCP 1.3
Cooling System
- Coolant drain line with valve
- Radiator and cooling fan with guard
- Fan drive, battery charging alternator drive
- Caterpillar extended life coolant
Exhaust System
- Stainless steel exhaust flex, gaskets, rain cap & SAE exhaust flange for customer use – shipped loose
Fuel System
- Base, formed steel with single wall integral 8-hour fuel tank
- Standard open set fuel tank/base supplied
Generators and Generator Attachments
- Power centre, IP22
- Voltage regulator (single phase sensing)
- Segregated low voltage (AC/DC) wiring panel
- IP23 Protection
- 12 Leads
- Mandatory option circuit breaker, IEC, 3 pole mounted in power centre
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Oil cooler
- Oil drain valves
- Lubricating oil
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Starting / Charging System
- 24V battery with rack and cables
General
- Engine and alternator re-paint, Caterpillar yellow
Optional Equipment
Certifications
- Global Certification for CIS
- European Certificate for Conformance
Air inlet system
- Single element air cleaner
Circuit breakers
- 4 Pole (IEC-100% rated) Circuit breaker upgrades: 400, 630, 800 and 100 amps
Control Panels
- Control panel Options: Volt free contacts ; Local alarm horn ; Oil temperature displays
- Control panel protective devices: Earth fault relay ; Earth leakage ground fault ; overload shutdown via breaker ; Low fuel level shutdown ; Low fuel level alarm ; Fuel level sensor
Cooling System
- Low coolant temperature alarm
- Radiator duct flange
Enclosures
- Sound attenuated enclosure
- High ambient sound attenuated enclosure
Exhaust System
- 5 – 6 inch flange adaptor
- Mufflers – End in/end out; 10 dBA or 25 dBA attenuation
- 6 inch flange
- 5 and 6 inch elbow kits
Fuel System
- Integral dual wall fuel tank base
Generators and Attachments
- Permanent magnet excitation (PMG) generator
- Oversize, AREP, CIP generators
Mounting System
- Narrow skid base
Starting / Charging System
- 5 Amp single Battery charger
- Jacket water heater
- Battery disconnet switch
