Cat
C13 | DE400E0 50Hz NON CERTIFIED EMISSIONS
Minimum Rating
400 kVA
400 kVA
Maximum Rating
400 kVA
400 kVA
Emissions/Fuel Strategy
Non Regulated
Non Regulated
Overview

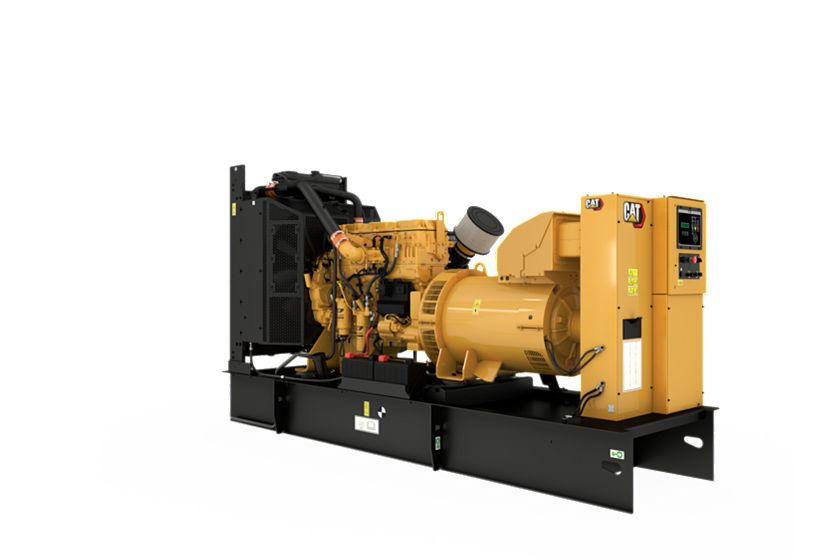

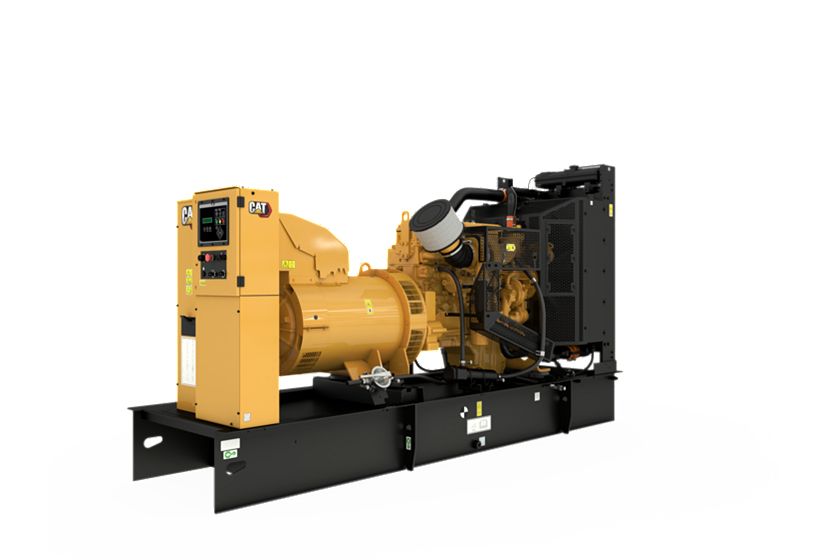

The DE400E0 diesel generator set has been developed for your mission critical, standby and prime applications. Producing reliable power 400 kVA at 50 Hz, our DE400E0 diesel generator set designed to ISO 8528-5 transient response requirements.
Media
Photos
Features
Cat Diesel Engine
A-Frame Alternator
GCCP Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Minimum Rating | 400 kVA 400 kVA |
| Maximum Rating | 400 kVA 400 kVA |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 200 to 400 Volts 200 to 400 Volts |
| Frequency | 50 Hz 50 Hz |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Aspiration | Turbocharged, Air to Air Aftercooled Turbocharged, Air to Air Aftercooled |
Standard Equipment
Control panel
- GCCP Control panel
Alternator and Alternator attachments
- 12 Leads
- IP23 Protection
- Voltage regulator (single phase sensing)
Optional Equipment
Control panel
- GCCP Control panel
- Earth fault and earth leakage
