Cat
C32 | 1500 kVA 50Hz Generator Set
Maximum Rating
1500 kVA
1500 kVA
Minimum Rating
910 kVA
910 kVA
Emissions/Fuel Strategy
Low Fuel, Low Emissions
Low Fuel, Low Emissions
Overview
Producing reliable power from 910 kVA to 1500 kVA at 50 Hz, our C32 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100 percent rated load in one step. Our C32 generator sets are made for demands, so you can make yours.
Media

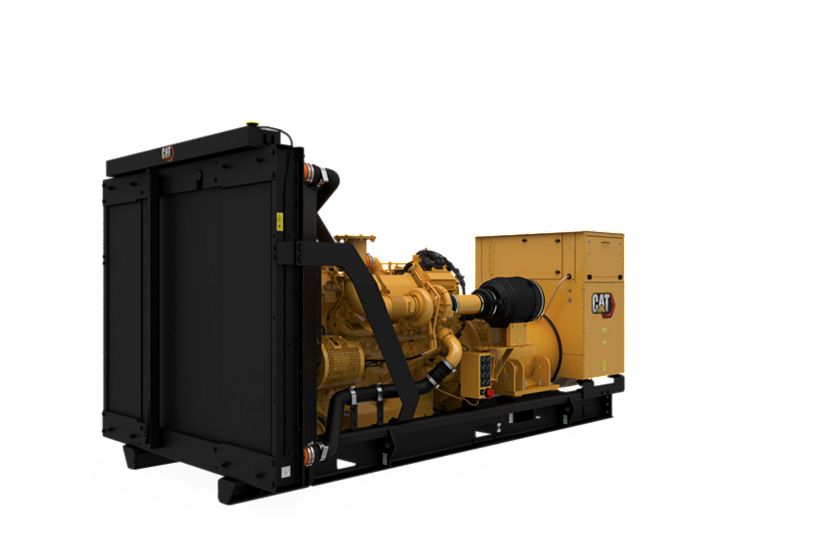

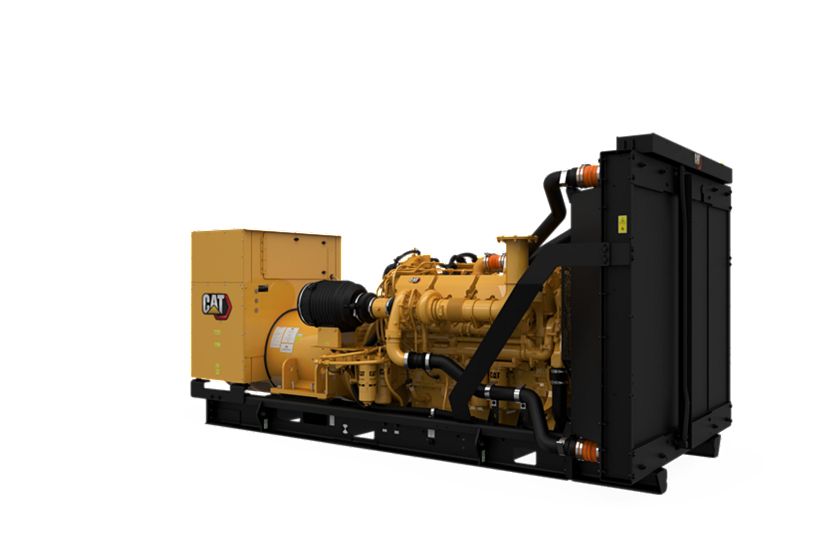

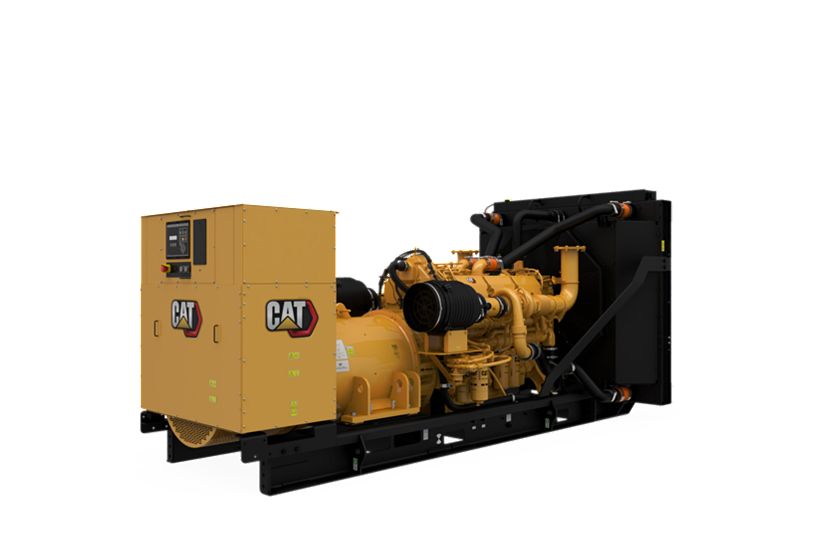

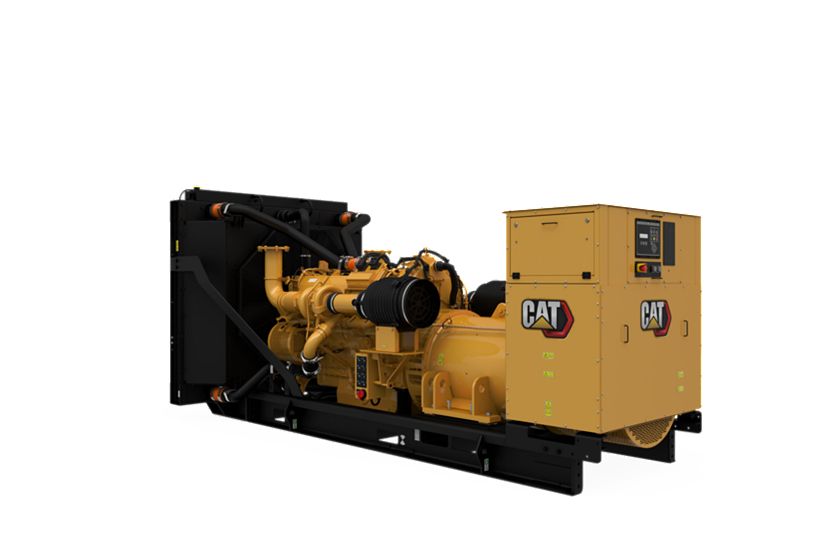

Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
SR500 Alternator
EMCP 4 Control Panel
Cooling System
Certifications
One Safe Source
World Wide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 1500 kVA 1500 kVA |
| Minimum Rating | 910 kVA 910 kVA |
| Emissions/Fuel Strategy | Low Fuel, Low Emissions Low Fuel, Low Emissions |
| Voltage | 400 to 3300 Volts 400 to 3300 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Standby, Mission Critical, Prime, Continuous Standby, Mission Critical, Prime, Continuous |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C32 TA, V-12, 4-Stroke Water-Cooled Diesel C32 TA, V-12, 4-Stroke Water-Cooled Diesel |
| Bore | 5.71 in 145 mm |
| Stroke | 6.38 in 162 mm |
| Displacement | 1958.86 in³ 32.1 l |
| Compression Ratio | 15.0:1 15.0:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled Turbocharged, Air to Air Aftercooled |
| Fuel System | MEUI MEUI |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Minimum | 164 in 4165 mm |
| Length – Maximum | 176.6 in 4485 mm |
| Width – Minimum | 66.3 in 1684 mm |
| Width – Maximum | 87.8 in 2228 mm |
| Height – Minimum | 85.1 in 2162 mm |
| Height – Maximum | 86.4 in 2194 mm |
| Dry Weight – Genset (minimum) | 14700 lb 6668 kg |
| Dry Weight – Genset (maximum) | 17855 lb 8099 kg |
Standard Equipment
Air Inlet System
- Single element canister type with service indicator
Control Panel
- GCCP Control panel
- Warning shutdowns
- Programmable protective relaying functions
- Communications
- Digital indicators
- Control features
Cooling System
- Radiator fan and fan drive
- Coolant drain line with valve
- ATAAC
- Caterpillar extended life coolant
- Fan and belt guards
- Low coolant level sensor
Exhaust
- 203 mm (8 in) ID round flanged outlet
- Exhaust manifold – dry
Fuel System
- Fuel cooler
- Secondary fuel filters
- Primary fuel filter with water separator
- Fuel priming pump
Generators and Attachments
- Permanent magnet excitation (PMG)
- Reactive droop
- Integrated voltage regulator (IVR)
- 6 Lead
- Salient pole
- Class H temperature rise at 40C ambient
- Busbar connections, top center mounted, top cable entry
- Internal excitation (IE)
- 3 Phase brushless
- Winding temperature detectors
- IEC standard hole pattern
- NEMA Class H insulation
Governing System
- ADEM(tm) A4
Mounting System
- Rails – engine/generator/radiator mounting
- Rubber anti-vibration mounts
Lube System
- Fumes disposal
- Integral lube Oil cooler
- Oil filter, filler and dipstick
- Gear type lube oil pump
- Lubricating oil
- Oil drain lines and valve
Power Termination
- Busbar
Starting / Charging System
- Battery disconnect switch
- 45 Amp Charging alternator
- 24 Volt electric starting motor
- Battery, rack and cables
General
- SAE standard rotation
- RH service
- Flywheel and flywheel housing-SAE
- Caterpillar yellow with high gloss black rails & radiator
Optional Equipment
Air Inlet System
- Standard air cleaners
- Dual element air cleaner
- Heavy duty air cleaner
Circuit breakers
- Shrouds
- Enclosures – Control packaging
- 1600, 2000, 2500 and 3200 Amp, 3 Pole, IEC-Rated Circuit breakers
- Cable supports
- Circuit breaker wiring groups
- Power connection covers
- Center posts busbars
- 800, 1600, 2000, 2500 and 3200 Amp, 4 Pole, IEC rated Circuit breakers
- 400, 800, 1200, 1600, 2000, 2500 and 3000 Amp, 3 Pole, UL-100% Rated Circuit breakers
Control Panels
- GCCP Control panel
Cooling System
- High ambient radiator
- Extended life coolant
- Radiator duct flange
- Standard radiator
- Certified radiator
Enclosures
- AC Panel, outlets and lights
- Premium sound attenuated enclosure
- Enclosure louvres – fixed and motorized
- Enclosure fuel tank options
- Color options
- Panel bracket
- Sound attenuated enclosure
- DC lighting package
- Cold weather bundle
Exhaust System
- All C32 engines have 203 mm (8 in) exhaust outlets
- Mufflers
- Elbow mounting kit
- Flange and exhaust expanders
- Flexible fittings
- Guard and shield system
- Flanges
- Exhaust through the wall kit
Generator and Attachments
- Medium voltage generators
- Low voltage generators
Lube System
- Oil pan
- Prelube manual sump pump
- Oil level regulator
Mounting System
- IBC vibration isolators
- Spring type vibration isolators
- Standard package isolators
- Mounting base types
Power Termination
- Circuit breakers, IEC compliant
- Circuit breakers, UL listed
Power Connections
- Center post busbars
- Neutral grounding connection
- Low voltage connection cables
Starting / Charging System
- Electric starting motor – Standard/heavy duty
- Space heater
- Standard 24 volt open package battery set – Dry
- 10 Amp Battery charger
- 20 Amp Battery charger
- Jacket water heater
- 10 Amp enclosure Battery charger
- 35 Amp Battery charger
Special Tests / Reports
- Standard engine test
- OSHPD seismic Certifications
- Generator test report
- Custom generator TVA report
- Standard genset Torsional Vibration Analysis (TVA) report
- IBC seismic Certifications
- PGS Test report @ 0.8 power factor
- PGS Test report @ 1.0 power factor
- CSA test and certification
General
- Special paint
- US aid emblem
