Caterpillar

C32B DE1500S Diesel Generator Set

Mission Critical

1500 ekW

1500 ekW

Standby Rating

1500 ekW

1500 ekW

Emissions/Fuel Strategy

Low BSFC

Low BSFC

Overview

Producing reliable power at 1500 ekW at 60 Hz, the Caterpillar DE1500S diesel generator set is made to meet the needs of your standby and mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.

Media

Photos

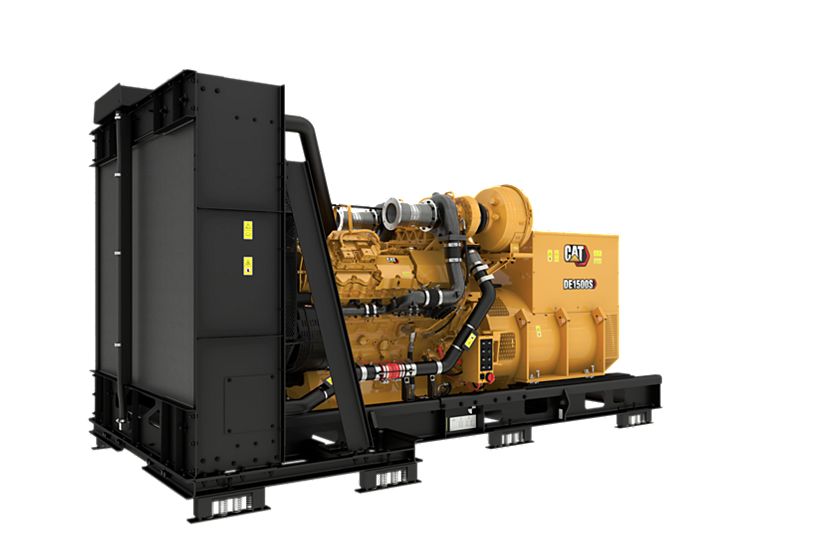

C32B DE1500S
C32B DE1500S
C32B DE1500S
C32B DE1500S
C32B DE1500S
C32B DE1500S
C32B DE1500S
C32B DE1500S

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Cat Generator Set Package

Cat Diesel Engine

SR5 Alternator

GCCP Control Panel

Cooling System

Certifications

One Safe Source

Worldwide Product Support

Details

Specifications

Spec Value
Standby Rating 1500 ekW 1500 ekW
Emissions/Fuel Strategy Low BSFC Low BSFC
Voltage 400 to 415 Volts 400 to 415 Volts
Frequency 60 Hz 60 Hz
Speed 1800 rpm 1800 rpm
Duty Cycle Standby, Mission Critical Standby, Mission Critical
Maximum Rating 1500 ekW 1500 ekW
Minimum Rating 1500 ekW 1500 ekW
Spec Value
Mission Critical 1500 ekW 1500 ekW
Spec Value
Engine Model C32B TA, V12, 4-Stroke Diesel C32B TA, V12, 4-Stroke Diesel
Bore 5.7 in 145 mm
Stroke 6.4 in 163 mm
Displacement 1959 in³ 32 l
Compression Ratio 14:1 14:1
Aspiration TA TA
Fuel System EUI EUI
Governor Type ADEM™ A5 ADEM™ A5
Spec Value
Length – Minimum 185.43 in 4710 mm
Length – Maximum 185.43 in 4710 mm
Width – Minimum 89.72 in 2279 mm
Width – Maximum 89.72 in 2279 mm
Height – Minimum 100.43 in 2551 mm
Height – Maximum 105.71 in 2685 mm
Dry Weight – Genset (minimum) 18832 lb 8542 kg
Dry Weight – Genset (maximum) 20155 lb 9142 kg

Standard Equipment

Air Cleaner

  • Single Element

Starting

  • Standard Batteries and Electric Starter

Cooling System

  • Standard Radiator:

Alternator

  • 380 V
  • 480 V

Alternator Temperature Rise

  • 80°C
  • 105°C
  • 125°C
  • 150°C

Excitation

  • PM
  • IE

Control Panel

  • GCCP 1.3

Connectivity

  • Cat® Product Link™ PL444 cellular

Optional Equipment

Starting

  • Oversize Batteries and Heavy Duty Electric Starter

Air Cleaner

  • Dual Element

Control Panel

  • GCCP 1.4

Cooling System

  • High Ambient Radiator

Attachments

  • Anti-condensation Heater

Mufflers

  • 15 dBA Industrial Grade

Battery Chargers

  • 20A
  • 10A
