Cat

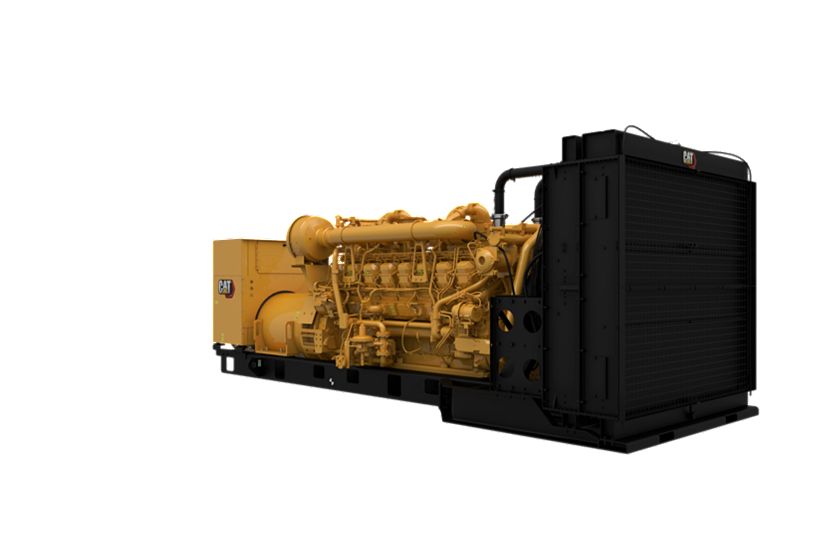

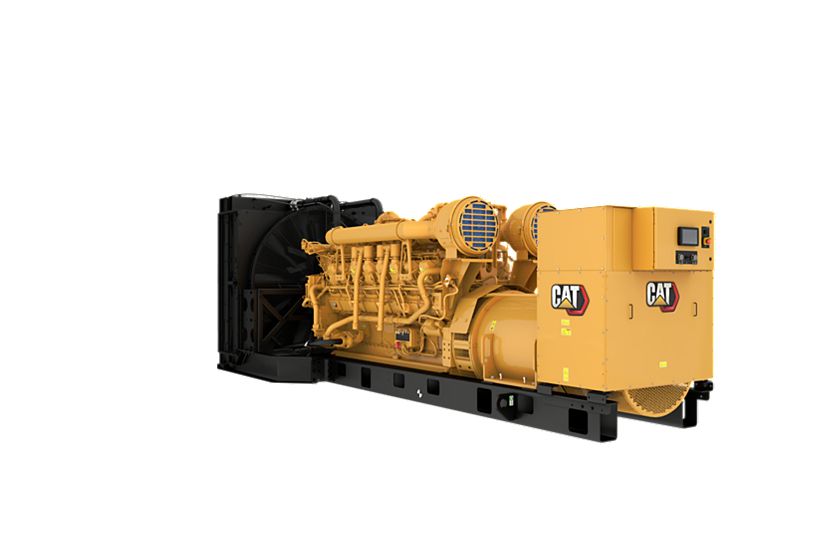

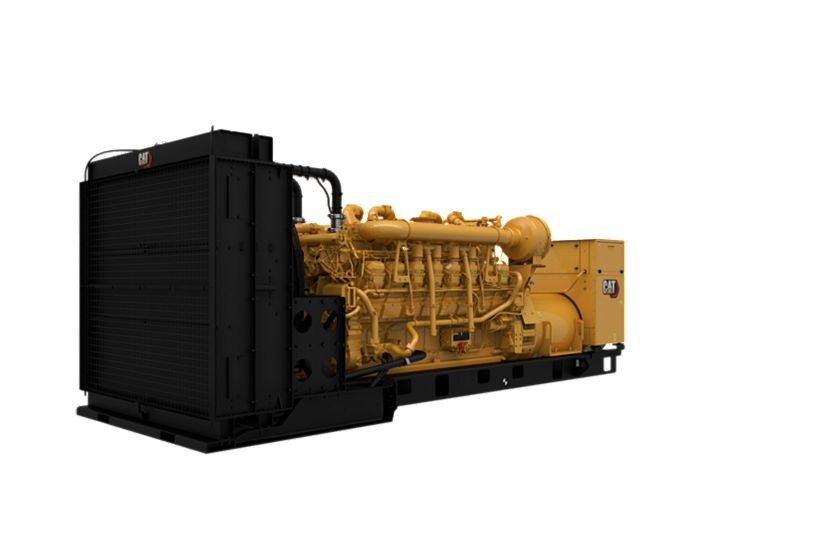

3516B Generator Set
Prime Power Rating
2275/2000 kVA
2275/2000 kVA
Continuous Rating
2000/1750 kVA
2000/1750 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption
Overview
The 3516B DGB (Dynamic Gas Blending) generator sets are made to match your continuous and prime applications. Producing reliable power from 1750 to 2275 kVA at 50 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and accepts 100 % rated load in one step. Our 3516B DGB generator sets have been developed for low fuel consumption.
Media
Photos
Videos
360° View
Exterior
360� Exterior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
SR5 Alternator
Cat ECS Control Panel
Cooling System
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Prime Power Rating | 2275/2000 kVA 2275/2000 kVA |
| Continuous Rating | 2000/1750 kVA 2000/1750 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Voltage | 380 to 11000 Volts 380 to 11000 Volts |
| Frequency | 50 Hz 50 Hz |
| Speed | 1500 rpm 1500 rpm |
| Duty Cycle | Prime, Continuous Prime, Continuous |
| Maximum Rating | 2275 kVA 2275 kVA |
| Minimum Rating | 1750 kVA 1750 kVA |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | 3516B TA, V-16, 4-Stroke Water-Cooled Diesel 3516B TA, V-16, 4-Stroke Water-Cooled Diesel |
| Bore | 6.69 in 170 mm |
| Stroke | 7.48 in 190 mm |
| Stroke – HD | 8.46 in 215 mm |
| Displacement | 4210.64 in 69 l |
| Displacement – HD | 4764.73 in³ 78.08 l |
| Compression Ratio | 14.0:1 Std 15.5:1 HD 14.0:1 Std 15.5:1 HD |
| Aspiration | TA TA |
| Fuel System | Electronic unit injection Electronic unit injection |
| Governor Type | Adem™4 Adem™4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Minimum | 278.2 in 7066 mm |
| Length – Maximum | 292 in 7416 mm |
| Width – Maximum | 90 in 2286 mm |
| Height – Maximum | 92.9 in 2360 mm |
| Dry Weight – Genset (minimum) | 33300 lb 15135 kg |
| Dry Weight – Genset (maximum) | 36280 lb 16490 kg |
Standard Equipment
Air Inlet System
- Air cleaner, single element canister type
Control System
- Low oil pressure
- Over/under frequency (81 o/u)
- Alarm acknowledge
- Oil pressure (psi, kPa or bar)
- Reverse reactive power (kVAr) (32RV)
- 3 Analog inputs
- Programmable protective relaying functions:
- 4 Programmable relay outputs (Form A)
- Overspeed
- Reverse power (kW) (32)
- Customer data link (Modbus RTU)
- Text alarm/event descriptions
- Low coolant temperature
- Number of I/O varies on options selected
- Emergency stop
- Operating hours
- Limiter and exciter diode monitor
- Environmental sealed front face
- kW (per phase, average & percent)
- Digital indication for:
- Auto/start/stop control
- Cat connect
- Low coolant level
- Controls:
- Serial annunciator module data link
- Regulator (IVR) – IVR includes reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, min/max exciter
- RPM
- Volts (L-L & L-N), frequency (Hz)
- Coolant temperature
- 1 Programmable digital outputs
- Speed adjust
- Engine cycle crank
- Over/under voltage (27/59)
- kW-hr (total)
- 6 Customer programmable digital inputs
- Generator phase sequence
- 1 Programmable relay outputs (Form C)
- PLC functionality
- kVAr-hr (total)
- DC volts
- Engine cool-down timer
- 24 Volt DC operation
- Generator mounted – rear facing
- High coolant temperature
- Amps (per phase & average)
- Load histogram feature
- Emergency stop pushbutton
- Warning/shutdown with common LED indication of shutdowns for:
- kVAr (per phase, average & percent)
- Customizable screens
- True RMS AC metering, 3-phase, +/-2% accuracy
- Overcurrent (50/51)
- Communications:
- kVA (per phase, average & percent)
- Power factor (per phase & average)
- Failure to start (overcrank)
- Accessory module data link
- Lamp test
- Generator set packages include Caterpillars voltage regulator
Exhaust
- Exhaust flange outlet
Fuel
- Primary fuel filter with integral water separator
Generator
- IP23 Protection
Power Termination
- Busbar
Control Panel
- Cat ECS Genset controller
Cooling System
- Package mounted radiator
Exhaust System
- Dry exhaust manifold
- Flanged faced outlet(s)
Fuel System
- Fuel priming pump
- Fuel cooler; not included with packages without radiator
- Flexible fuel lines – shipped loose
- Secondary fuel filters
General
- SAE standard rotation
- Paint – Caterpillar yellow except rails and radiators gloss black
- RH service
- Flywheel and Flywheel housing-SAE No. 00
Generators and Attachments
- Matched to the performance and output characteristics of Cat engines
- Random wound
- Busbar connections, right side extension box, bottom cable entry – 60 Hz models: NEMA standard hole pattern
- Permanent magnet excitation (PMG)
- LV
- HV:
- MV:
- 6 Lead
- Winding temperature detectors
- NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime / 150C standby) – 60 Hz models: NEMA standard hole pattern
- Class H insulation, Class F temperature rise at 40C ambient (105C prime / 130C standby)
- 3 Phase brushless, Salient pole
- Anti-condensation space heater
- NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime / 150C standby)
- Form wound
Governing System
- ADEM A3
Lube System
- Gear type lube oil pump
- Oil filter, filler and dipstick
- Oil drain lines and valve
- Integral lube Oil cooler
- Lubricating oil
- Fumes disposal
Mounting System
- Rails – Engine/generator/radiator mounting
- Rubber anti-vibration mounts – shipped loose
- Anti-vibration mounts (shipped loose)
Starting System
- 45 Amp Charging alternator
- 24 Volt electric starting motor
- Battery disconnect switch
- Battery and battery rack w/cables
Optional Equipment
Exhaust
- Exhaust mufflers
Air Inlet System
- Dual element air cleaner
- Standard ambient radiators
- Single element filter
- Standard ambient ATAAC radiators
- Optional radiator arrangements
Generator
- Permanent magnet excitation (PMG)
- Oversize and premium generators
- Internal excitation (IE)
- Anti-condensation heater
Control Panels
- Load share module
- Empty upper box
- Generator main terminal box
- Annunciator – remote
- EMCP 4.4
- Digital I/O module
- Cable Shroud
- Remote monitoring software
- Vandal proof panel cover
- Side extension box
- Generator temperature monitoring & protection
- Annunciator – local
Cooling System
- Water level switch gauges
- Coolant
Mounting
- IBC isolators
- Spring type vibration isolators
Crankcase Systems
- No explosion relief valves
- Explosion relief valves
- Crankcase ventilation systems
- Crankcase protection groups:
Exhaust System
- Tier 4 dosing cabinet
- Y Adapters
- Flanges
- Flange and exhaust expanders
- Elbows>
- Mufflers
- Tier 4 lean emissions moDual
- Clean emission parts
- Flexible fittings
- Tier 4 clean emission MOD kits
- Exhaust offset
Starting/Charging
- Charging alternator
- Battery chargers
- Oversize batteries
- Heavy duty starting system
- Jacket water heater
- Air starting motor with control and silencer
Extended Service Coverage
- Platinum, Silver and Gold coverage
General
- The following options are based on regional and product configuration:
- UL 2200 package
- EEC Declaration of Conformity
- CSA Certification
- Enclosures: Sound attenuated, weather protective
- EU Certificate of Conformance (CE)
- Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
- Integral & sub-base UL listed dual wall fuel tanks
- Automatic transfer switches (ATS)
- Integral & sub-base fuel tanks
Fuel System
- Gas fuel filter
- Primary fuel filter
- Fuel priming pumps (Tier 4)
Generators and Attachments
- 1600 Frame – 380, 400, 415 Volts, 3 Phase 1500 rpm ,FW, PM, No. of leads = 6, Pitch = .6667
- Hi voltage optional attachments
- Differential current transformers
- 1600 Frame – 380, 400, 415 Volts, 3 Phase 1500 rpm, RW, PM, No. of leads = 6, Pitch = .6667
- Generators high voltage
- Space heater kit
- Generator conversions
- 1600 Frame – 380, 400, 415 Volts, 3 Phase 1500 rpm, RW, IE, No. of leads = 6, Pitch = .6667
- 2700 Frame – 6300, 6600, 6900 Volts, 3 Phase 1500 rpm, FW, PM, No. of leads = 6, Pitch = .6667
- 3000 Frame – 10000, 10500, 11000 Volts, 3 Phase 1500 rpm, FW, PM, No. of leads = 6, Pitch = .6667
- 1800 Frame
- Alternator air cleaner
Instrumentation
- Pyrometer and termocouples
Lube System
- Prelube pump groups
- Oil level regulator
- Lube oil in standard sump
Mounting System
- IBC vibration isolators
- Puck style low efficiency isolators
- Spring type vibration isolators
Power Connections
- Cable entry – right side
- Cable entry – rear
- Grounding groups
- left side power connections
- Neutral ground connections
- Center post busbars
- Right side power connections
- Cable entry – left side
- Rear power connections
Power Termination
- Circuit breakers – LV packages
- Circuit breakers, UL listed
- 2000, 2500, 3200 Amp, 3 Pole, IEC rated Circuit breakers
- Circuit breakers, IEC compliant
- 2000, 2500, 3200 Amp, 4 Pole, IEC rated Circuit breakers
- 1600, 2000, 2500, 3000 and 4000 Amp, 3 Pole, UL-100% rated Circuit breakers
Special Tests / Reports
- Standard engine test
- Torsional vibration analysis
- Fuel consumption test
- PGS Test report @ 1.0 power factor
- OSPD Certification
- PGS Test report @ 0.8 power factor
- Generator set report
Starting / Charging
- Engine barring device
- Electric starting motors
- Jacket water heaters
- Starter cover
- Batteries, racks and cables
- Air pressure regulator
- 10, 20, 35 Amp Battery chargers
- 50 Amp NFPA battery charger
- Air starting motors
