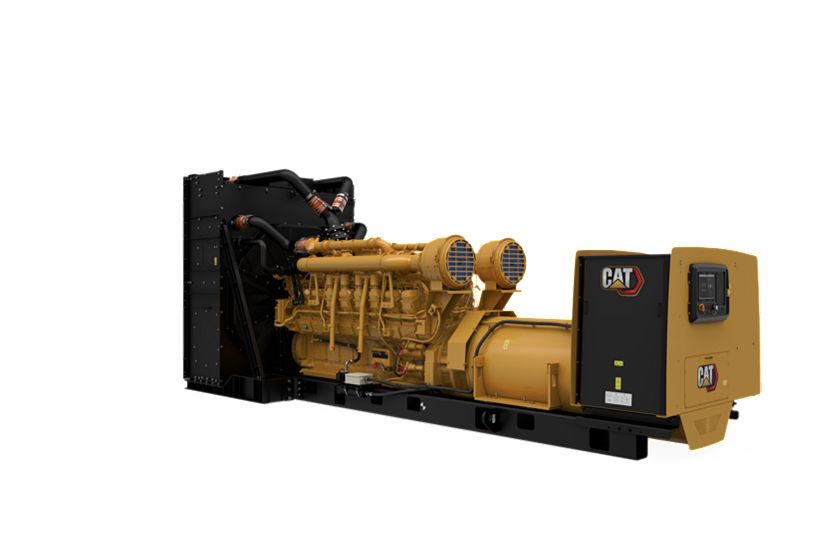

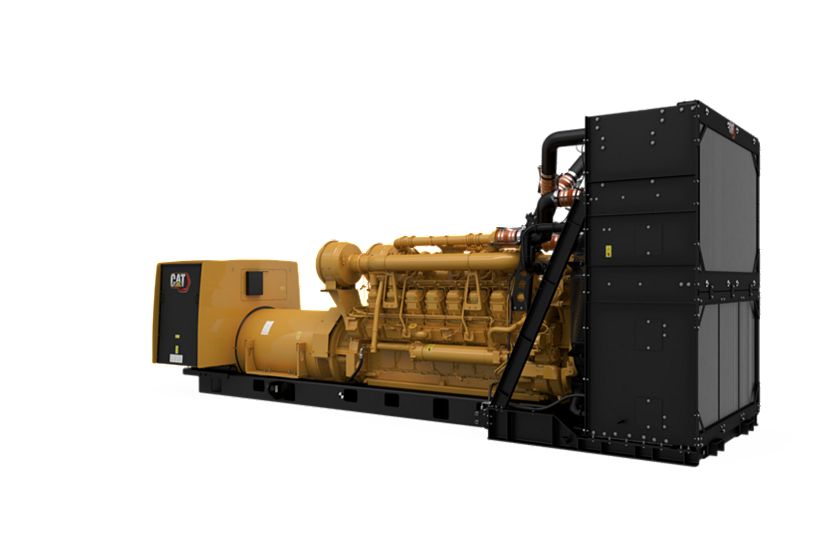

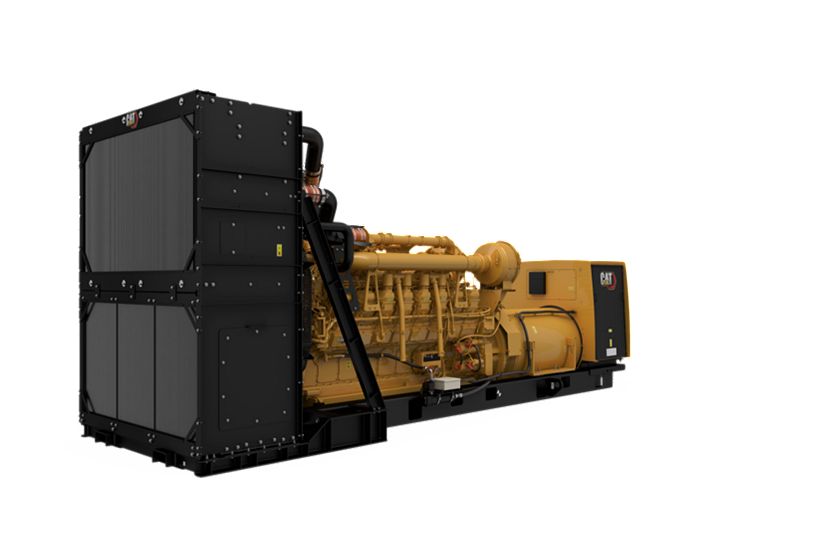

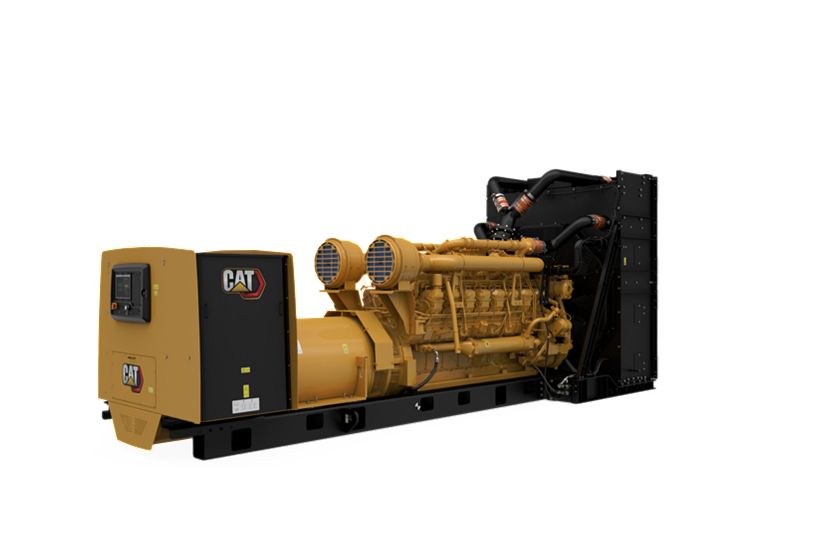

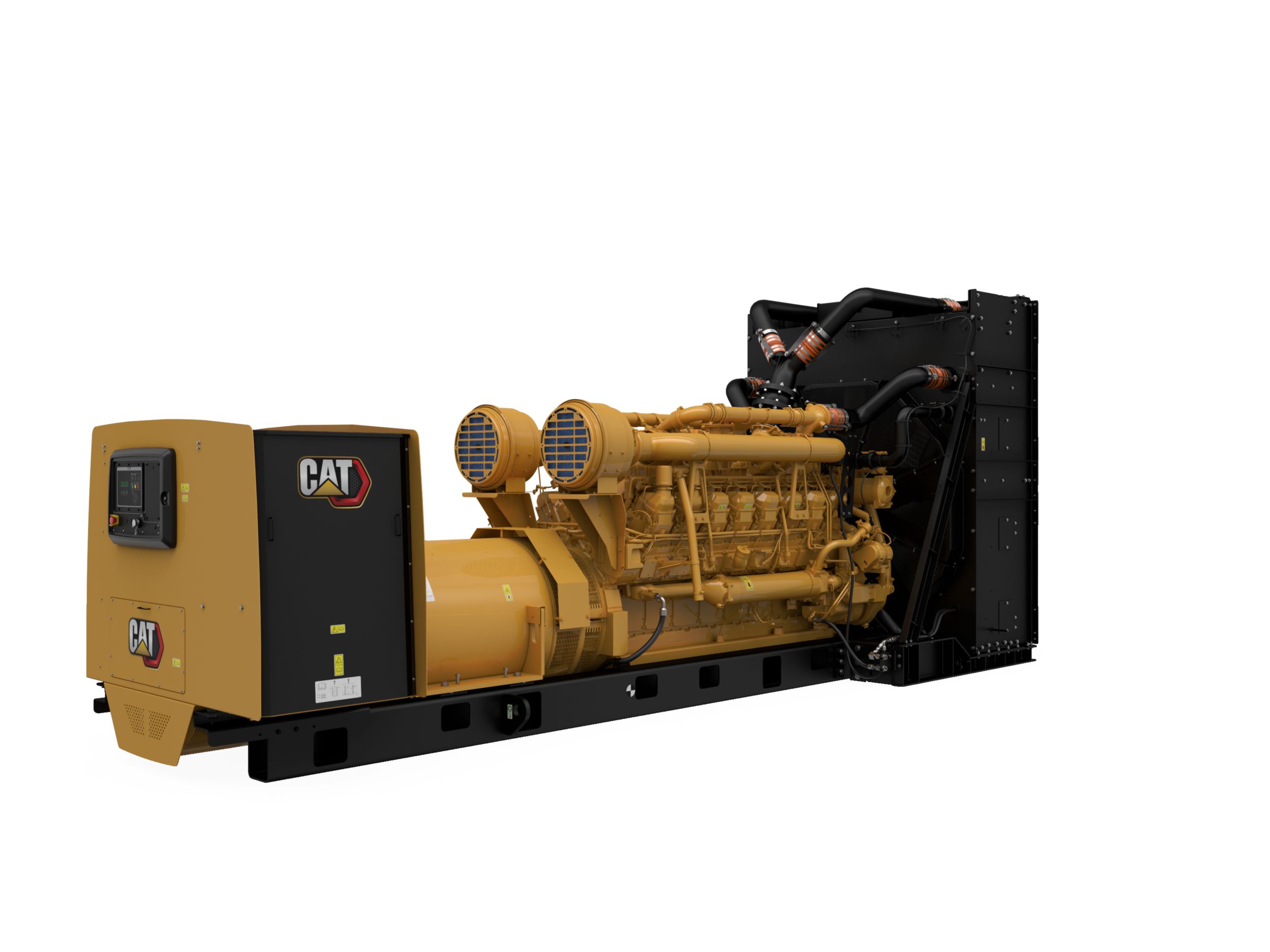

Standard Equipment

Air Inlet System

• Air cleaner
• Single element canister type with service indicator

Control Panel

• RPM
• Engine cycle crank
• Failure to start (overcrank)
• Warning/shutdown with common LED indication of shutdowns for:
• Speed adjust
• True RMS AC metering, 3-phase, +/-2% accuracy
• Accessory module data link
• Overcurrent (50/51)
• DC volts
• Controls:
• Generator phase sequence
• Low oil pressure
• 2 Programmable digital outputs
• Reverse power (kW) (32)
• Low coolant level
• Operating hours
• Frequency (Hz)
• kVAr-hr (total)
• kVA (per phase, average & percent)
• Lamp test
• Over/under frequency (81 o/u)
• 6 programmable digital inputs
• 2 Programmable relay outputs (Form C)
• 24 Volt DC operation
• Customer data link (Modbus RTU)
• EMCP 4 Genset controller
• Volts (L-L & L-N)
• High coolant temperature
• Alarm acknowledge
• Oil pressure (psi, kPa or bar)
• 4 Programmable relay outputs (Form A)
• Overspeed
• EMCP4.2B controller includes:
• Engine cool-down timer
• Panel lights
• kW (per phase, average & percent)
• Low coolant temperature
• Over/under voltage (27/59)
• Serial annunciator module data link
• Generator mounted – rear facing
• Communications:
• kVAr (per phase, average & percent)
• Digital indication for:
• Text alarm/event descriptions
• EMCP 4.2B
• Coolant temperature
• Emergency stop pushbutton
• Programmable protective relaying functions:
• kW-hr (total)
• Reverse reactive power (kVAr) (32RV)
• Amps (per phase & average)
• Environmental sealed front face
• Power factor (per phase & average)

Exhaust

• Exhaust flange outlet

Fuel

• Primary fuel filter with integral water separator

Generator

• IP23 Protection
• Matched to the performance and output characteristics of Cat engines

Power Termination

• Busbar

Starting/Charging

• Heavy duty starting system
• Charging alternator

Cooling System

• Fan and belt guards
• Coolant drain line with valve
• JWAC
• Caterpillar extended life coolant
• Coolant level sensors
• Radiator fan and fan drive

Cooling

• Package mounted radiator

Exhaust System

• Flanged faced outlet(s)
• Dry exhaust manifold

Fuel System

• Flexible fuel lines – shipped loose
• Fuel priming pump
• Fuel cooler; not included with packages without radiator
• Secondary fuel filters

Generators and Attachments

• NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime / 150C standby).
• Busbar connections, top center mounted, top cable entry
• Random wound
• 6 Lead
• Winding temperature detectors
• IEC standard hole pattern
• Internal excitation (IE)
• 3 phase brushless, Salient pole
• Generator set packages include Caterpillar’s digital voltage regulator (CDVR). CDVR includes reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, min/max exciter

Governing System

• ADEM III

Literature

• Parts book
• Operation & Maintenance Manual

Lube System

• Gear type lube oil pump
• Integral lube Oil cooler
• Fumes disposal
• Lubricating oil
• Oil filter, filler and dipstick
• Oil drain lines and valve

Mounting System

• Rails – Engine/generator/radiator mounting
• Rubber anti-vibration mounts – shipped loose

Starting / Charging System

• 24 Volt electric starting motor
• Battery and battery rack w/cables
• Battery disconnect switch

General

• Right hand servicing
• Flywheel and flywheel housing-SAE No. 00
• Paint – Caterpillar yellow with high gloss black rails & radiator
• SAE standard rotation
