C4.4 Generator Set
Maximum Rating
100 ekW
100 ekW
Minimum Rating
36 ekW
36 ekW
Emissions/Fuel Strategy
Non Regulated, EU Stage II
Non Regulated, EU Stage II
Overview
Producing reliable power from 36 to 100 ekW at 60 Hz, our C4.4 diesel generator sets designed to ISO 8528-5 transient response requirements. All C4.4 to meet EPA Stationary Emergency (Tier 3) emissions standards.
Media

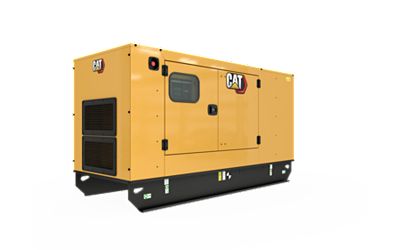

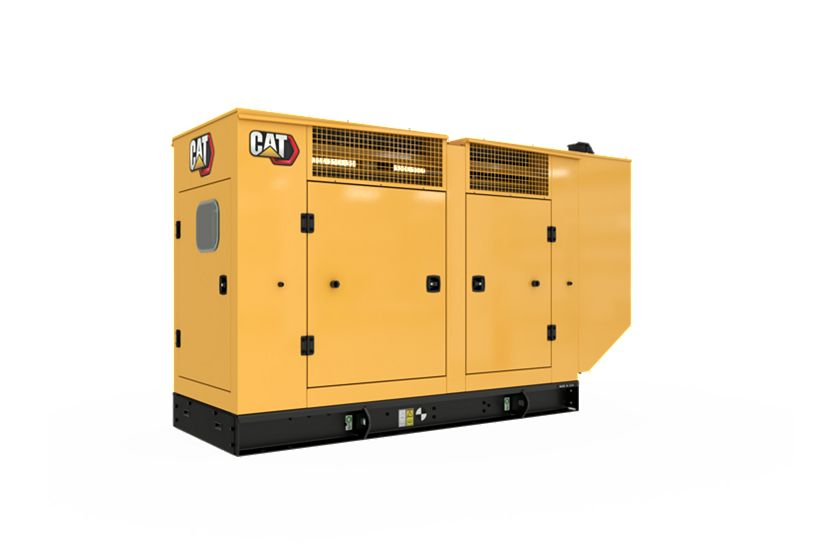

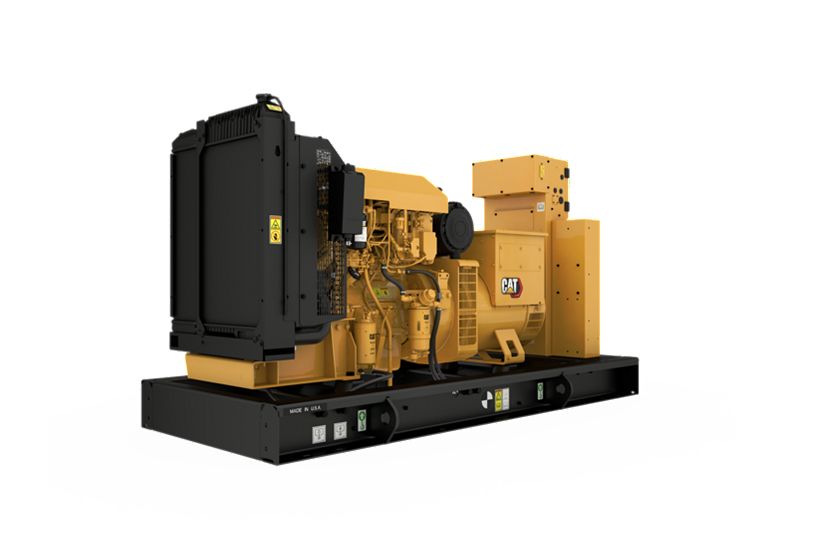

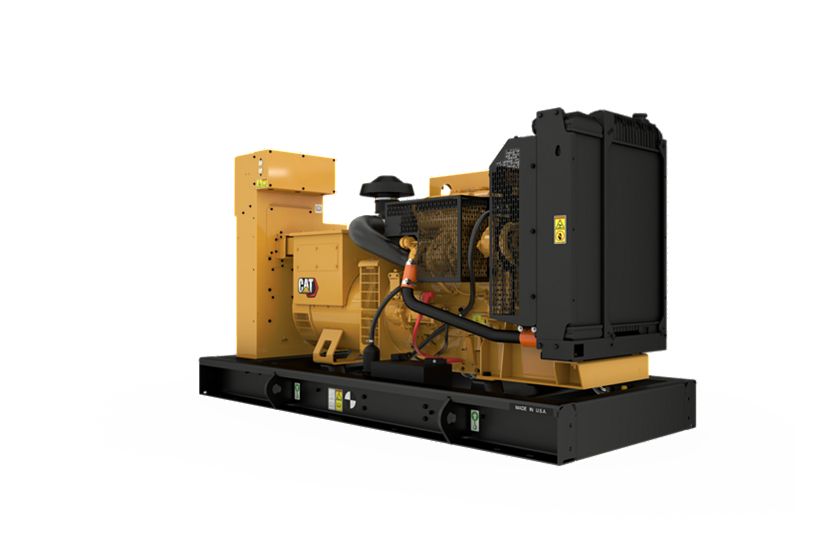

Photos
360° View
Exterior

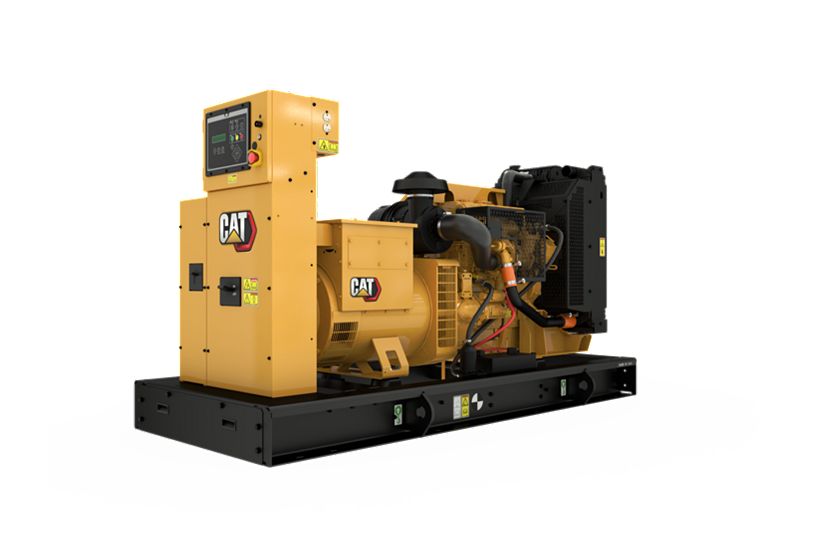

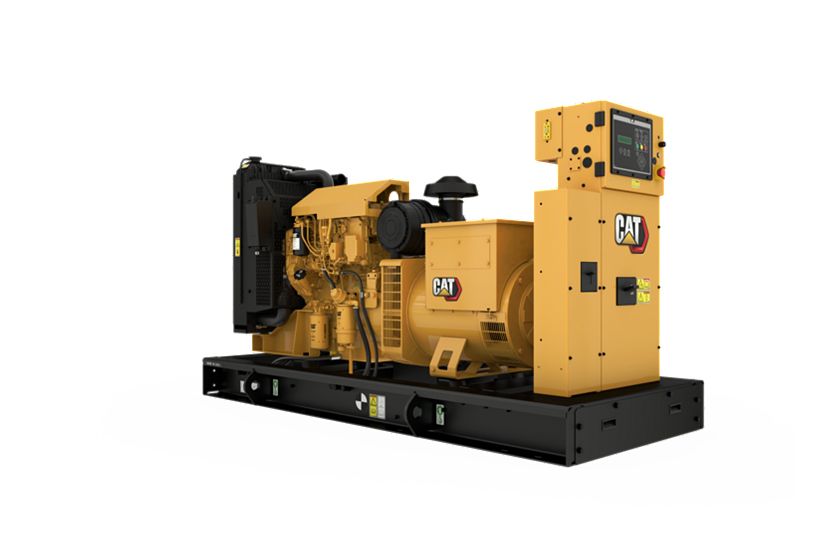

360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
R-Frame Alternator
GCCP 1.3 Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 100 ekW 100 ekW |
| Minimum Rating | 36 ekW 36 ekW |
| Emissions/Fuel Strategy | Non Regulated, EU Stage II Non Regulated, EU Stage II |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby, Prime Standby, Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | C4.4, In-line 4, 4-cycle diesel C4.4, In-line 4, 4-cycle diesel |
| Bore | 4.13 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 268.5 in 4.4 l |
| Compression Ratio | 18.2:1 18.2:1 |
| Aspiration | Turbocharged Turbocharged |
| Fuel System | Electronic (adjustable) Electronic (adjustable) |
| Governor Type | Adem™A4 Adem™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 75.8 in 1925 mm |
| Width – Maximum | 44.1 in 1120 mm |
| Height – Maximum | 53.6 in 1361 mm |
Standard Equipment
Air Inlet System
- Air cleaner; light duty with disposable element
Air Inlet
- Air cleaner
Cooling
- Package mounted radiator
Cooling System
- Fan drive, battery charging alternator drive
- Radiator and cooling fan with guards
- Coolant drain line with valve
- Caterpillar extended life coolant
Exhaust
- Exhaust flange outlet
Control Panel
- GCCP 1.3
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use – shipped loose
Fuel System
- Standard open set fuel tank/base supplied base, formed steel with single wall integral 8-hour fuel tank
Fuel
- Secondary fuel filters
- Primary fuel filter with integral water separator
- Fuel priming pump
Generator
- Segregated low voltage (AC/DC) wiring panel
- Voltage regulator (single phase sensing)
- Matched to the performance and output characteristics of Cat engines
- 12 Leads
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
- Circuit breaker, IEC, 3 pole, mounted in tower panel
- Tower panel, IP22, bottom cable entry
- IP23 Protection
Governing System
- Mechanical and electrical governing system – model dependent
Lube System
- Lubricating oil
- Oil drain line with valve
Power Termination
- Busbar
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provision and drag points
- Termination points for coolant and lube oil drain lines
Mounting
- Rubber vibration isolators
Starting/Charging System
- 24V battery with rack and cables
General
- Paint – Caterpillar yellow except rails and radiators gloss black
- Engine and alternator pre-paint, Caterpillar yellow
Starting/Charging
- 24 volt starting motor
- Batteries
Optional Equipment
Exhaust
- Industrial, residential, critical mufflers
Generator
- Excitation: [ ] Permanent magnet excitation (PMG) Excited (PM) [ ] Internally Excited (IE)
- Oversize and premium generators
- Anti-condensation heater
Alternator System
- 3 phase sensing
- Permanent magnet excitation (PMG)
- R Frame auxilliary winding
- Quadrature droop kit
- LC Frame alternator with coastal insulation protection
Circuit breakers
- Circuit breaker upgrades – 4 Pole circuit reaker to 250A, 400A and 630 A
Power Termination
- Circuit breakers, IEC compliant
- Circuit breakers, UL listed
Control Panels
- GCCP 1.3
- Load share module
- Digital I/O module
- Remote monitoring software
- Local & remote annunciator modules
Cooling System
- Coolant heater
- Low coolant level shutdown
- Low coolant temperature alarm
Control Panel Options
- Earth fault (2 wire only)
- GCCP 1.3
- Volt free contacts
- Emergency stop with key
- Battery charger
- Panel mounted audible alarm
- Control panel heater
- Speed adjust potentiometer
- Voltage adjust potentiometer
- Earth leakage (2 wire only)
- Overload shutdown via breaker
Starting/Charging
- Jacket water heater
- Charging alternator
- Heavy duty starting system
- Battery chargers
- Oversize batteries
Enclosures
- Sound attenuated Level 2 enclosure
- Sound attenuated Level 1 (galv)
- Rental pack – CAE rental option only
European Certifications
- Upgrade to STD set for CE
Fuel System
- Compact skidbase for open set
- Low fuel level alarm
- Low fuel level shutdown
- Bunded fuel tank
- Open set narrow tankbase
- Skidbase for CALG enclosure sets
- High fuel level alarm
General
- Single or dual wall sub-base fuel tanks
- EU Certificate of Conformance (CE)
- CSA Certification
- Single or dual wall integral fuel tanks
- Automatic transfer switches (ATS)
- Narrow, wide or skid base
- UL 2200 package
- Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
- Sound attenuated, weather protective or high ambient weather protective enclosure
- EEC Declaration of Conformity
- Integral & sub-base fuel tanks
Global Certifications
- Certification for CIS
Mounting Options
- Battery removal
- Electronic governor
- Industrial silencer
- Silencer installation kit
- External single point lift – enclosure
Special Packing/Inspectons for Shipment
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8 power factor
General - Accessories / Miscellaneous
- Packing case – compact set
- Stone guards/rad trans flange
- Packing case – canopied set
