Cat

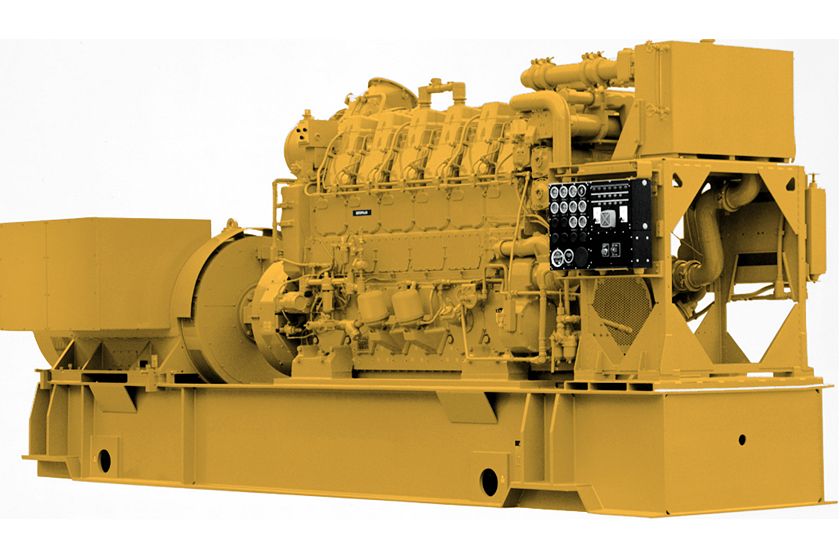

3606 Generator Set (Medium Speed)
Maximum Rating
2688 kVA
2688 kVA
Minimum Rating
1775 kVA
1775 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption
Overview
Producing reliable power from 1963 to 2688 kVA at 50 Hz, our 3606 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is certified for low fuel consumption.
Media
Photos
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 2688 kVA 2688 kVA |
| Minimum Rating | 1775 kVA 1775 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Frequency | 50 Hz 50 Hz |
| Speed | 750 & 1000 rpm 750 & 1000 rpm |
| Duty Cycle | Continuous Continuous |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | 3606 I-6, 4-Stroke Water-Cooled Diesel 3606 I-6, 4-Stroke Water-Cooled Diesel |
| Bore | 11 in 280 mm |
| Stroke | 11.8 in 300 mm |
| Displacement | 6762 in³ 111 l |
| Compression Ratio | 13:01 13:01 |
| Aspiration | TA TA |
| Fuel System | Direct unit injection Direct unit injection |
| Governor Type | Generator Set Monitoring System (GMS) Generator Set Monitoring System (GMS) |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 404 in 10261.7 mm |
| Width – Maximum | 99.62 in 2530.3 mm |
| Height – Maximum | 156.6 in 3977.7 mm |
| Dry Weight – Genset (maximum) | 74970 lb 34070 kg |
Standard Equipment
Air Inlet System
- Breather, crankcase, top-mounted
- Air inlet shutoff
- Turbocharger, watercooled (750 rpm and HFO), engine oil lubricated
- Aftercooler, fresh water, corrosion resistant coated (air side)
Cooling System
- Water temperature regulator
- Engine coolant water drains
- Jacket water thermostats
Exhaust System
- 457 mm (18 in) Cat bolt pattern
- Dry, gas tight, exhaust manifold
- Includes adapter, flexible exhaust fitting
Fuel System
- Simplex or duplex
Generator System
- Custom generator per generator data sheet completed by dealer
Governor System
- UG Actuator
Lube System
- Oil pressure regulating valve
- Wet oil sump. Includes engine-driven main lubrication and oil pumps, oil lines and oil pan
- Oil filler and dipstick
- Crankcase explosion relief valves
- Service side engine mounted on cylinder block inspection covers
- Centrifugal oil filters with single shutoff
Mounting System
- Damper, torsional vibration
- Engine and generator mounting
Starting / Charging System
- One motor, engine mounted at rear, on left side
- Vane type air starter
- Air silencer
- Line group for single point custom connection
General:
- Paint, Caterpillar yellow
- Gear driven pumps: Fuel/oil/jacket water/Aftercooler/Oil cooler water
Optional Equipment
Air Inlet System
- Boost control valve
- Soot filter
- Heavy duty air cleaner
- Air inlet adapter
- Vertical support bracket
- Air cleaner louver assembly
- Air cleaner
Cooling System
- Expansion tank
- Auxiliary water pump
- Cooling system aids
- Heating aids
Exhaust System
- Weld flange and related hardware
- Flexible exhaust fittings
Fuel System
- Fuel system connections
- Duplex primary fuel strainer
- Fuel priming pump
Generator System
- Class F insulation
- 3 Phase, six Leads, WYE
- Anti-condensation space heaters
- Winding temperature detectors
- Busbar connections
Governor System
- Electronic/actuators
- Digital programmers
- 2301 A load share
- EGB actuator
- Battery backup/power supply
- 723 Plus
Lube System
- Oil pan drain valve
- Lube ANSI adapter (Emergency connection)
Mounting System
- Non-vertically restrained
- Spring type vibration isolators
- Vertically restrained
- Isolator
Starting / Charging System
- Compressed air flex hose
- Pressure reducing valve
General:
- Custom paint colors
