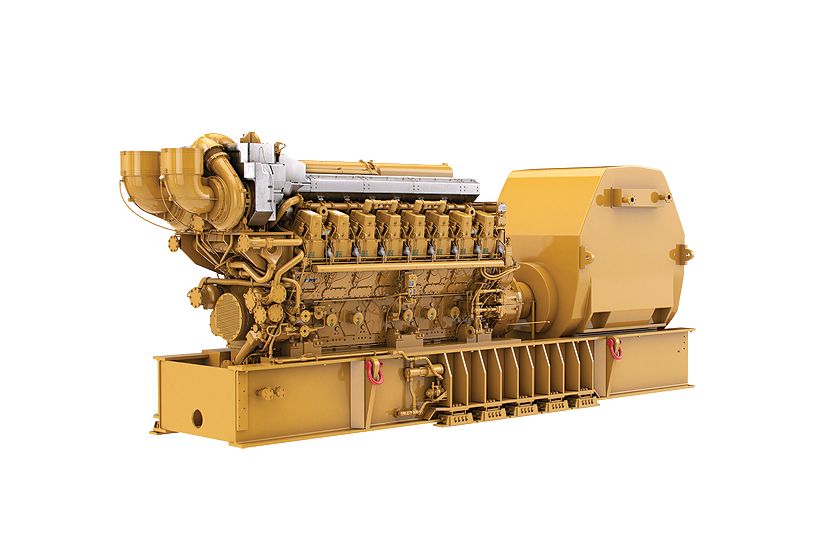

3616 Generator Set (Medium Speed)
Maximum Rating
7520 kVA
7520 kVA
Minimum Rating
4700 kVA
4700 kVA
Emissions/Fuel Strategy
Low Fuel Consumption
Low Fuel Consumption
Overview
Producing reliable power from 4700 to 7520 kVA at 50 Hz , our 3616 diesel generator sets are made to meet your mission critical, continuous, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. The generator set is certified for low fuel consumption.
Media
Photos
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Maximum Rating | 7520 kVA 7520 kVA |
| Minimum Rating | 4700 kVA 4700 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption Low Fuel Consumption |
| Frequency | 50 Hz 50 Hz |
| Speed | 720 & 1000 rpm 720 & 1000 rpm |
| Duty Cycle | Standby, Prime, Continuous Standby, Prime, Continuous |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | 3616 V-16, 4-Stroke Water-Cooled Diesel 3616 V-16, 4-Stroke Water-Cooled Diesel |
| Bore | 11 in 280 mm |
| Stroke | 11.8 in 300 mm |
| Displacement | 18032 in³ 296 l |
| Compression Ratio | 13:01 13:01 |
| Aspiration | TA TA |
| Fuel System | Direct unit injection Direct unit injection |
| Governor Type | Generator Set Monitoring System (GMS) Generator Set Monitoring System (GMS) |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Maximum | 404 in 10261.7 mm |
| Width – Maximum | 99.62 in 2530.3 mm |
| Height – Maximum | 156.6 in 3977.7 mm |
| Dry Weight – Genset (maximum) | 141840 lb 64470 kg |
Standard Equipment
Air Inlet System
- Turbocharger, watercooled, engine oil lubricated
- Air inlet shutoff
- Aftercooler, fresh water, corrosion resistant coated (air side)
- Air cleaner
- Breather, crankcase, top-mounted
Cooling System
- Front mounted turbos
- Three-bundle oil cooler
- Engine coolant water drains
- Water temperature regulator
- Jacket water thermostats
Exhaust System
- 457 mm (18 in) Cat bolt pattern
- Dry, gas tight, exhaust manifold
- Includes adapter, flexible exhaust fitting
Fuel System
- Simplex or duplex
Generator System
- Custom generator per generator data sheet completed by Dealer
Governor System
- UG Actuator
Lube System
- Oil pressure regulating valve
- Wet oil sump. Includes engine-driven main lubrication and oil pumps, oil lines and oil pan
- Crankcase explosion relief valves
- Oil filler and dipstick
- Service side engine mounted on cylinder block inspection covers
- Centrifugal oil filters with single shutoff
Mounting System
- Engine and generator mounting
- Damper, torsional vibration
Starting / Charging System
- Line group for single point custom connection
- Two motors, engine mounted at rear, on left side
- Vane type air starter
- Air silencer
General:
- Gear driven pumps: Fuel/oil/jacket water/aftercooler/Oil cooler water
- Paint, Caterpillar yellow
Optional Equipment
Air Inlet System
- Soot filter
- Air inlet adapter
- Heavy duty air cleaner
- Vertical support bracket
- Air cleaner louver assembly
- Boost control valve
Cooling System
- Expansion tank
- Auxiliary water pump
- Heating aids
- Cooling system aids
- Heat exchanger for single circuit
Exhaust System
- Weld flange and related hardware
- Flexible exhaust fittings
Fuel System
- Duplex primary fuel strainer
- Fuel priming pump
- Fuel system connections
Generator System
- Busbar connections
- Anti-condensation space heaters
- Class F insulation
- 3 Phase, six Leads, WYE
- Winding temperature detectors
Governor System
- 230 UA
- Battery backup/power supply
- Digital programmers
- EGB actuator
- Electronic/actuators
- 723 Plus
Lube System
- Lube ANSI adapter (Emergency connection)
- Oil pan drain valve
Mounting System
- Spring type vibration isolators
- Non-vertically restrained
- Vertically restrained
- Isolator
Starting / Charging System
- Turbine type air starters
- Redundant air starters
- Pressure reducing valve
- Compressed air flex hose
General:
- Custom paint colors
