Cat
3516C Tier 4 Final
Standby Rating
2500/2000 ekW
2500/2000 ekW
Prime Power Rating
1825/2250 ekW
1825/2250 ekW
Emissions/Fuel Strategy
U.S. EPA Certified
U.S. EPA Certified
Overview

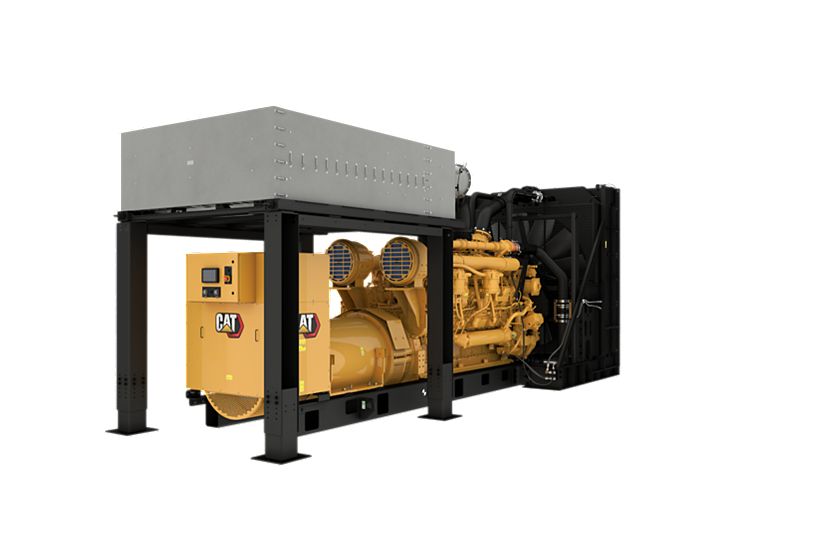

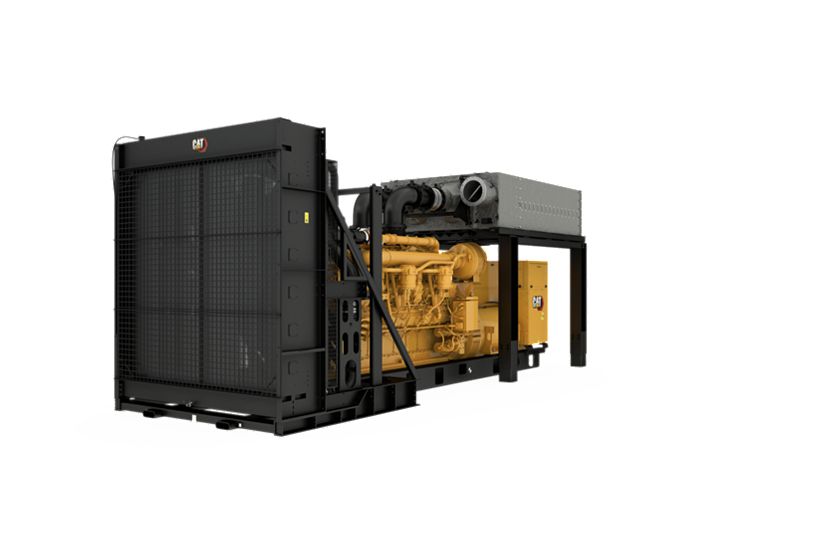

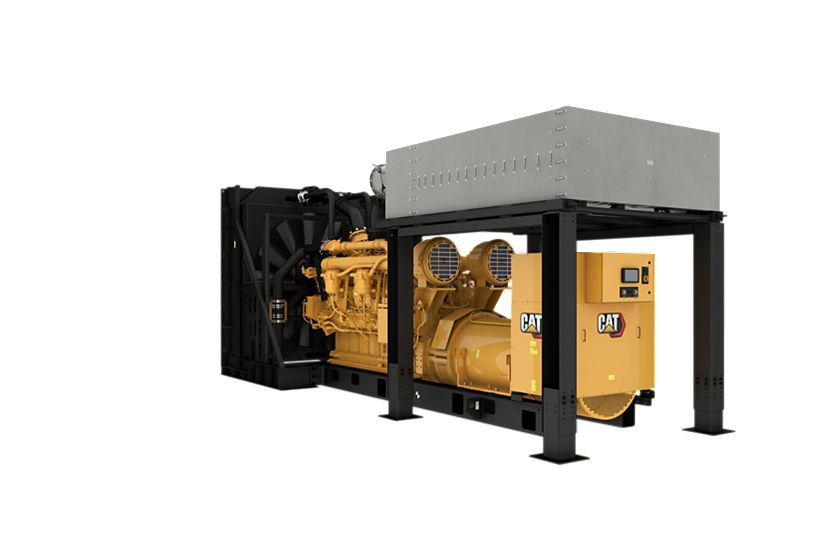

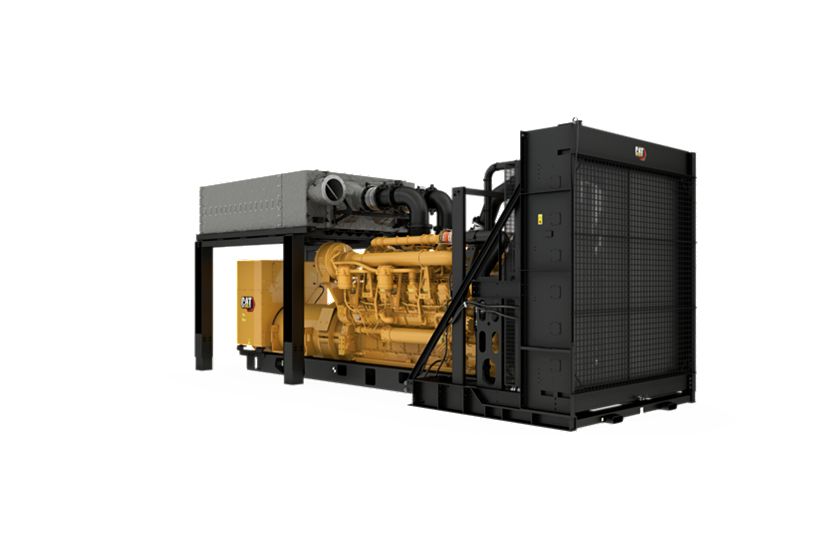

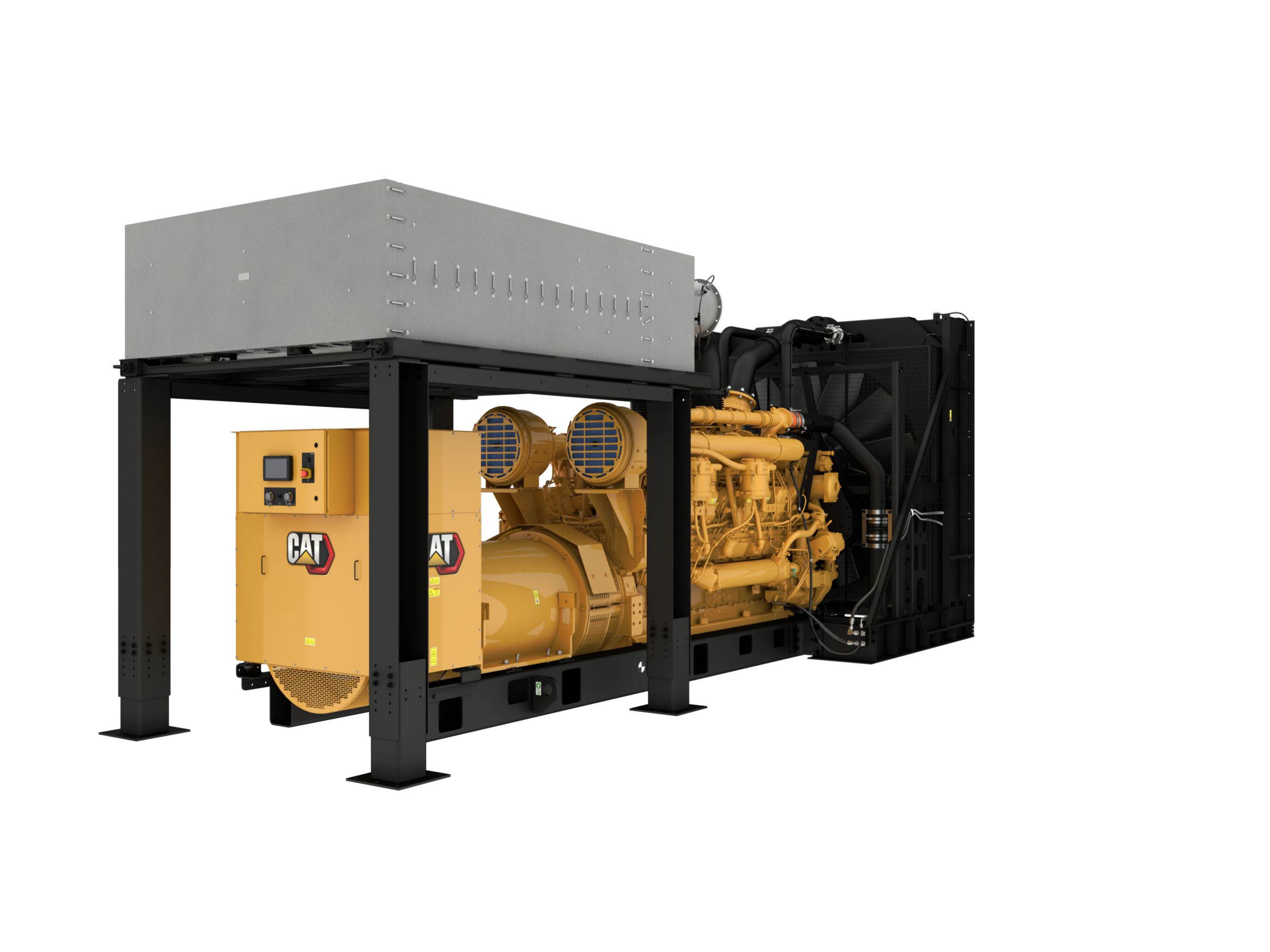

Producing reliable power from 1825 to 2500 ekW at 60 Hz, our 3516C diesel generator sets are made to meet your mission critical, standby and prime applications. We’ve designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. Depending on the model, 3516C generator sets are EPA Stationary Emergency (Tier 2) or Tier 4 Final certified.
Media
Photos
Videos
360° View
Exterior
360� Exterior view. Double click on the image to zoom in on any area of the product.
Features
Cat Diesel Engine
SR5 Alternator
Cat ECS Control Panel
Cooling System
Certifications
One Safe Source
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Standby Rating | 2500/2000 ekW 2500/2000 ekW |
| Prime Power Rating | 1825/2250 ekW 1825/2250 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified U.S. EPA Certified |
| Voltage | 480 to 13800 Volts 480 to 13800 Volts |
| Frequency | 60 Hz 60 Hz |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby, Mission Critical, Prime Standby, Mission Critical, Prime |
| Maximum Rating | 2500 ekW 2500 ekW |
| Minimum Rating | 1825 ekW 1825 ekW |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | 3516C HD, ATAAC, V-16, 4-Stroke Water-Cooled Diesel 3516C HD, ATAAC, V-16, 4-Stroke Water-Cooled Diesel |
| Bore | 6.69 in 170 mm |
| Stroke | 8.46 in 215 mm |
| Displacement | 78 in 4764.73 l |
| Compression Ratio | 14.7:1 14.7:1 |
| Aspiration | TA TA |
| Fuel System | Electronic unit injection Electronic unit injection |
| Governor Type | ADEM™A4 ADEM™A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length – Minimum | 267.6 in 6796.6 mm |
| Length – Maximum | 277 in 7037.5 mm |
| Width – Minimum | 93.7 in 2378.7 mm |
| Width – Maximum | 101.2 in 2569 mm |
| Height – Minimum | 116.7 in 2964.8 mm |
| Height – Maximum | 118.9 in 3019 mm |
| Dry Weight – Genset (minimum) | 37200 lb 16874 kg |
| Dry Weight – Genset (maximum) | 40280 lb 18270 kg |
Standard Equipment
Air Inlet System
- Air cleaner; single element canister type
Cooling
- Package mounted radiator
Exhaust
- Exhaust flange outlet
Control Panels
- Generator phase sequence
- 1 Programmable digital outputs
- KAR / PF modes
- Low coolant temperature
- PLC functionality
- Generator mounted – Rear facing
- Environmental sealed front face
- Generator set packages include:
- Auto/start/stop control
- Customer data link (Modbus RTU)
- High coolant temperature
- Warning/shutdown with common LED indication of shutdowns for:
- 0 True RMS AC metering, 3-phase, +/-2% accuracy
- Low coolant level
- Operating hours
- kVAr (per phase, average & percent)
- RFI suppression
- Emergency stop
- Digital indication for:
- Amps (per phase & average)
- Min / max exciter
- Number of I/O varies on options selected
- Load histogram feature
- Frequency (Hz)
- Overcurrent (50/51)
- Oil pressure (psi, kPa or bar)
- Lamp test
- Engine cool-down timer
- Cat connect
- kW-hr (total) – kVAr-hr (total)
- Limiter and exciter diode monitor
- Communications:
- Over/under frequency (81 o/u)
- 6 Customer programmable digital inputs
- Controls:
- Overspeed
- IVR includes reactive droop capability
- Low oil pressure
- RPM
- 24 Volt DC operation
- Volts (L-L & L-N)
- Text alarm/event descriptions
- 1 Programmable relay outputs (Form C)
- Controls: Speed adjust
- Reverse reactive power (kVAr) (32RV)
- Power factor (per phase & average)
- High coolant temperature
- Accessory module data link
- Customizable screens
- 4 programmable relay outputs (Form A)
- Caterpillar’s voltage regulator
- Programmable protective relaying functions
- Alarm acknowledge
- Over/under voltage (27/59)
- DC volts
- kVA (per phase, average & percent)
- Failure to start (overcrank)
- Engine cycle crank
- 3 Phase voltage sensing
- Coolant temperature
- Serial annunciator module data link
- Emergency stop pushbutton
- Reverse power (kW) (32)
- kW (per phase, average & percent)
- 3 Analog inputs
Fuel
- Primary fuel filter with integral water separator
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
Power Termination
- Busbar
Control Panel
- Cat ECS Genset controller
Cooling System
- Certified standard PGS provided
Exhaust System
- Flanged faced outlet(s)
- Dry exhaust manifold
Fuel System
- Fuel cooler; not included with packages without radiator
- Secondary fuel filters
- Fuel priming pump
- Flexible fuel lines – shipped loose
General
- Right hand servicing
- Caterpillar yellow with high gloss black rails and radiator
- Paint – Caterpillar yellow except rails and radiators gloss black
- Flywheel and flywheel housing – SAE No. 00
- SAE standard rotation
Generator and Attachments
- Form wound
- High voltage:
- NEMA standard hole pattern
- Class H insulation, Class F temperature rise at 40C ambient (105C prime/130C standby)
- Low voltage: Random wound – Internal excitation (IE) – Winding temperature detectors – NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby) – Busbar connections, top center mounted, top cable entry – NEMA standard hole pattern
- Permanent magnet excitation (PMG)
- Medium voltage:
- 6 Lead
- 3 Phase brushless, Salient pole
- Busbar connections, right side extension box, bottom cable entry
- NEMA Class H insulation system, Class H temperature rise at 40C ambient (125C prime/150C standby)
- Permanent magnet excitation (PMG)
- Anti-condensation space heater
- Winding temperature detectors
Governing System
- ADEM A3
Literature
- Parts book
Lubrication System
- Integral lube oil cool
- Oil drain lines and valve
- Gear type lube oil pump
- Fumes disposal
- Lubricating oil
- Oil filter, filler and dipstick
Mounting System
- Rails – engine/generator/radiator mounting
- Anti-vibration mounts (shipped loose)
- Rubber anti-vibration mounts – shipped loose
Starting System
- Battery and battery rack w/cables
- 45 Amp Charging alternator
- 24 Volt electric starting motor
- Battery disconnect switch
Optional Equipment
Control System
- EMCP 4.4
Air Inlet System
- Single element filter
- Dual element air cleaner
Exhaust
- Exhaust mufflers
Generator
- Internal excitation (IE)
- Anti-condensation heater
- Oversize and premium generators
- Permanent magnet excitation (PMG)
Cooling System
- Coolant
- Water level switch gauges
- Standard ambient radiators
- Optional installed ATAAC radiators
- Optional installed radiators
- Standard ambient ATAAC radiators
Power Termination
- Circuit breakers, UL listed
- Circuit breakers, IEC compliant
Crankcase System
- No explosion relief valves
- Explosion relief valves
- Ventilation system
Control Panels
- Remote monitoring software
- Digital I/O module
- Generator temperature monitoring & protection
- Load share module
Exhaust System
- Tier 4 clean emissions module
- Flexible fittings
- Flanges
- Tier 4 clean emission MOD Kits
- Mufflers
- Tier 4 dosing cabinet
- Flange and exhaust expanders
- Clean emission parts
- Exhaust offset
- Y Adapters
- Elbows
Mounting
- IBC isolators
Starting/Charging
- Battery chargers
- Heavy duty starting system
- Charging alternator
- Air starting motor with control and silencer
- Oversize batteries
Fuel System
- Primary fuel filter
- Fuel priming pumps (Tier 4) – Manual or electric
General
- Automatic transfer switches (ATS)
- The following options are based on regional and product configuration:
- EEC Declaration of Conformity
- Enclosures: Sound attenuated, weather protective
- UL 2200 package
- US aid emblem
- Seismic Certification per applicable building codes: IBC 2000, IBC 2003, IBC 2006, IBC 2009, CBC 2007
- EU Certificate of Conformance (CE)
- Integral & sub-base UL listed dual wall fuel tanks
- CSA Certification
- Special paint (Colors other than Caterpillar yellow or high performance paints)
- Integral & sub-base fuel tanks
Generators and Attachments
- Low / Medium voltage: 380, 416, 440, 480, 600, 2400, 4160 Volts, 3 Phase 1800 RPM, FW, PM, No. of Leads = 6, Pitch = .6667: 1600, 1800 Frame
- Generator conversion
- Thermostat for space heater
- Alternator air cleaner
- Differential current transformers (DCT) 8.7 kV and 15 kV classes
- Space heater kit
- High voltage: 6300, 6600, 6900 volts, 3 phase 1800 rpm, FW, PM, No. of Leads = 6, Pitch = .6667: 2700, 3000 Frame
- High voltage: 12470, 13200, 13800 volts, 3 phase 1800 rpm,FW, PM, No. of Leads = 6, Pitch = .6667: 2700, 3000 Frame
- Low / Medium voltage: 380, 440, 480, 600 volts, 3 phase 1800 rpm. RW, IE, No. of Leads = 6, Pitch = .6667: 1600 Frame
Instrumentation
- Pyrometer and thermocouples
Lubrication System
- Lube oil in standard sump
- Prelube pumps
- Oil level regulator
Mounting System
- IBC vibration isolators
- Spring type vibration isolators
- Puck style low efficiency isolators
Power Connections
- Ground cables between generator and terminal box
- Right side power connections
- 2700 Frame, four lead, four terminal
- Neutral ground connections
- Center post busbars
- Rear power connections
- Left side power connections
- Low voltage Circuit breakers
Special Tests / Reports
- PGS Test report @ 1.0 power factor
- IBC Certification
- Canadian Standards Association certification
- PGS Test report @ 0.8 power factor
- Generator set fuel consumption test
- Generator test report
- Torsional vibration analysis reports
- Standard engine test charge
- OSHPD Certification
- Fuel consumption test
Starting and Charging
- Jacket water heaters
- Electric starting motors
- Air starting motors
- 10, 20, 35 and 50 Amp Battery chargers
- Air pressure regulator
- 24 Volt battery set – Dry
- Engine barring device
- Starter cover
Extended Service Coverage
- Platinum, Gold and Silver coverage
