Caterpillar

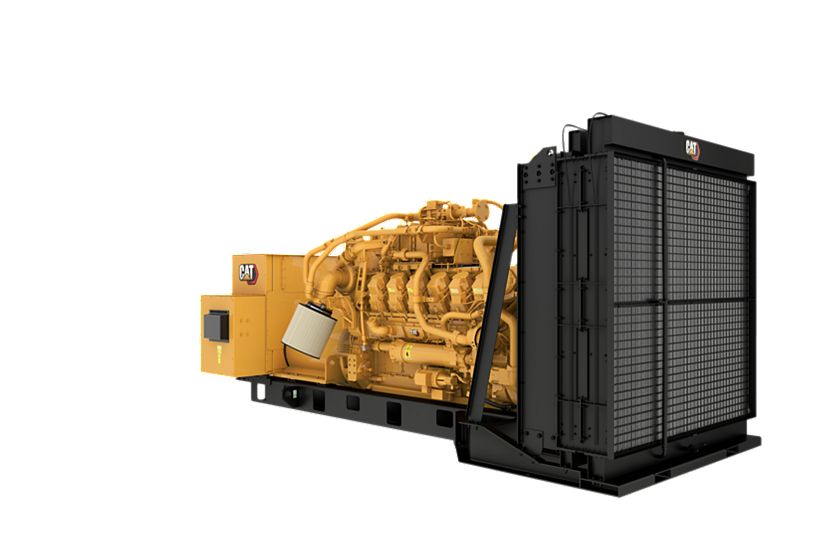

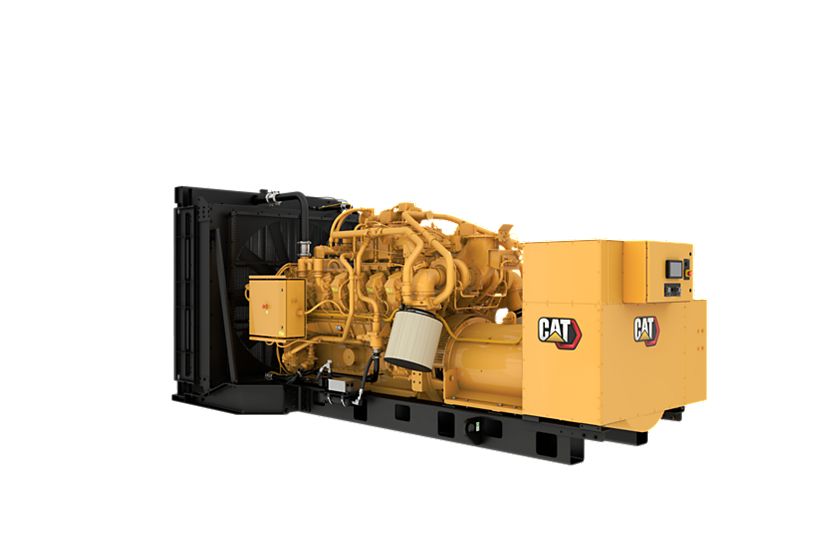

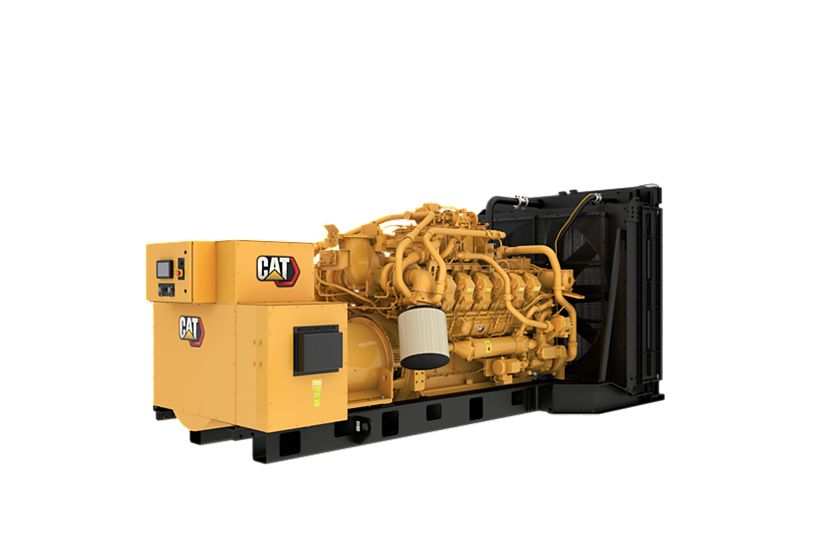

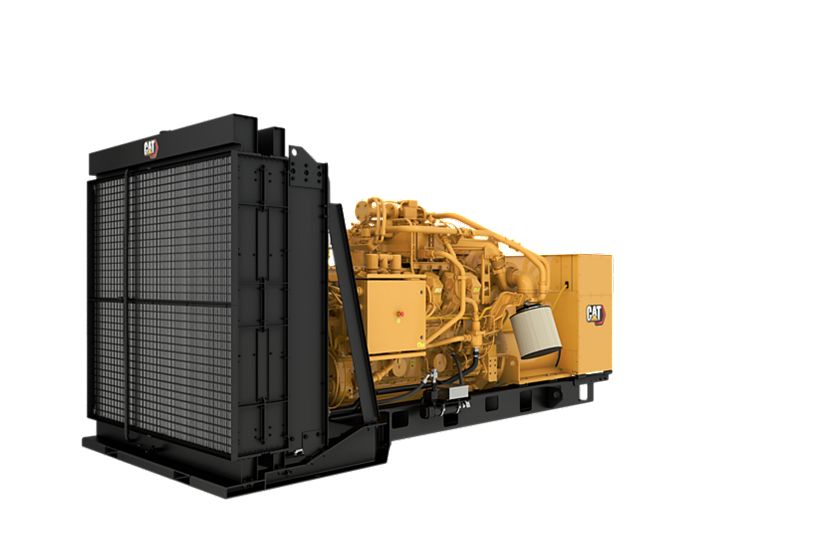

G3512 1000kW Gas Generator Set
Gas Standby Rating
1000 ekW @ 0.8pf
1000 ekW @ 0.8pf
Fuel Type
Natural Gas, Hydrogen Blend (up to 5%)
Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy
U.S. EPA Certified for Non-Emergency Stationary Genset
U.S. EPA Certified for Non-Emergency Stationary Genset
Overview
Caterpillar is leading the power generation marketplace with Fast Response generator sets engineered to deliver unmatched performance, reliability, and cost-effectiveness.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
SR5 Generator
Cooling System
Emissions
Proven System
Full Range of Attachments
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Gas Standby Rating | 1000 ekW @ 0.8pf 1000 ekW @ 0.8pf |
| Fuel Type | Natural Gas, Hydrogen Blend (up to 5%) Natural Gas, Hydrogen Blend (up to 5%) |
| Emissions/Fuel Strategy | U.S. EPA Certified for Non-Emergency Stationary Genset U.S. EPA Certified for Non-Emergency Stationary Genset |
| RPM | 1800 rpm 1800 rpm |
| Frequency | 60 Hz 60 Hz |
| Displacement | 3173 in³ 52 l |
| Compression Ratio | 9.7 9.7 |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | G3512 G3512 |
| Displacement | 3173 in³ 52 l |
| Aspiration | TA TA |
| Bore | 6.7 in 170 mm |
| Stroke | 7.5 in 190 mm |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 205.7 in 5224 mm |
| Width | 90 in 2286 mm |
| Height | 99.4 in 2525 mm |
| Weight | 27500 lb 12500 kg |
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
- Dual air cleaners, 1 per side, with service indicator
Control Panel
- Cat ECS 100
Cooling System
- Engine driven pumps for jacket water and separate circuit aftercooler
Cooling
- Package mounted radiator
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
- LH or RG connections when radiator is not selected
Exhaust
- Dry exhaust manifolds, insulated and shielded
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Cat-flanged face outlet on turbocharger
Fuel
- NOx sensor based air-fuel-ratio control
- Pipeline Natural Gas: 800-1000 BTU/scf and 70-100 Methane Number
- Gas Train: NFPA37 and CSA B149.3
- 0.5 to 5 psi engine fuel inlet pressure
Fuel System
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Engine-installed electronic control valve
- Throttle plate, 24V DC actuator, controlled by GECM
- 24V DC energized-to-run (ETR) gas shutoff valve
- Gas pressure regulator
General
- Operation and maintenance manuals
- Paint- Caterpillar Yellow except rails and radiators gloss black
- Parts book
- “Stationary Use Only” Label in Correspondence with EPA Nonroad Mobile SI rule
- RH Service
- Crankshaft vibration damper and guard
Lubrication
- Cartridge style oil filter
- Gear type lube oil pump
Starting/Charging
- Jacket water heater
- Battery with cables and rack (shipped loose)
- Electric Starter
- Batteries with rack and cables
- 24V DC starting motors
Generator
- NEMA Class H insulation
- Permanent Magnet Excitiation
- SR5
- Anti-condensation space heater
- Caterpillar’s Digital Voltage Regulator (CDVR) including reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, and a min/max exciter
- Winding temperature detectors
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Governing
- ADEM A4 speed governor with 4 to 20ma (0V to 5V) speed input
Optional Equipment
Air Inlet
- Mounting brackets and piping
- Air cleaner with precleaner
Control Panel
- Local PC monitoring
- Engine failure relay
- Remote PC monitoring
- Local alarm module
- Remote annunciator
Cooling
- Remote radiator for JW and SCAC circuits, level switch included but not wired
- Inlet/Outlet connections
- Coolant level drain line with valves, fan with guard
Circuit Breakers
- 2000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers
- Frame mounting
- S LSI, G LSIG, P LSIG-P, 4th Digit Type
- Right, left, rear mounted
- 1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
- 100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
- 3-pole (IEC 947-2 rated)
- 1200A, 3 Pole, UL-100% Rated P-Frame Circuit Breakers
Exhaust
- 305 mm (12 in.) flange
- Flexible fittings
- 18, 25 dBA Attenuation
- 305 mm (12 in.) muffler
- 305mm (12 in) spark arresting muffler
- 305 mm (12in.) elbow
Fuel System
- 3, 0-100 kPag, 4-20mA gas train pressure sensors
General
- US AID emblem
- Special paint order
- Digital diagnostic tool
- Tool set
Generator
- Generator air filter
- European bus bars
- Low voltage extension box
- Cable access box
- Bearing temperature detectors
Starting/Charging
- 20A, 24VDC battery charger
- 24V starting motors
- 45A, 24V charging alternator (requires engine driven pumps)
Grid Code Compliance
- 60 Hz: USA
