Caterpillar

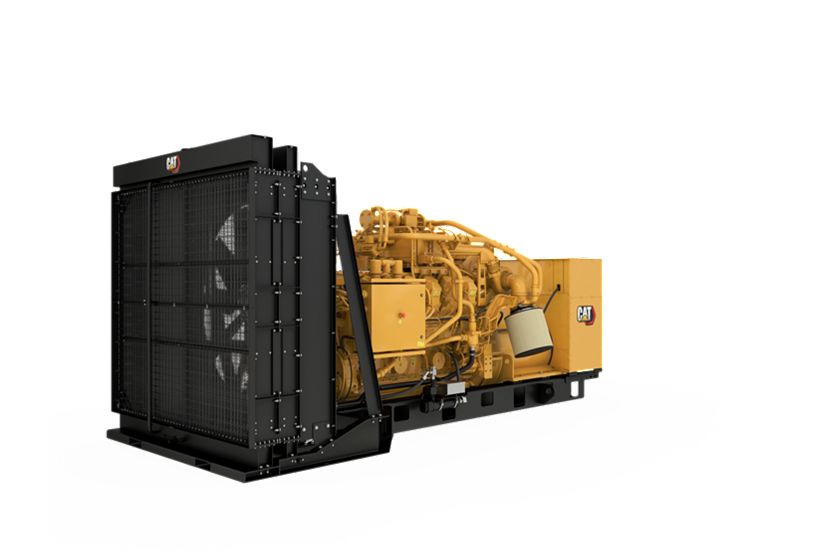

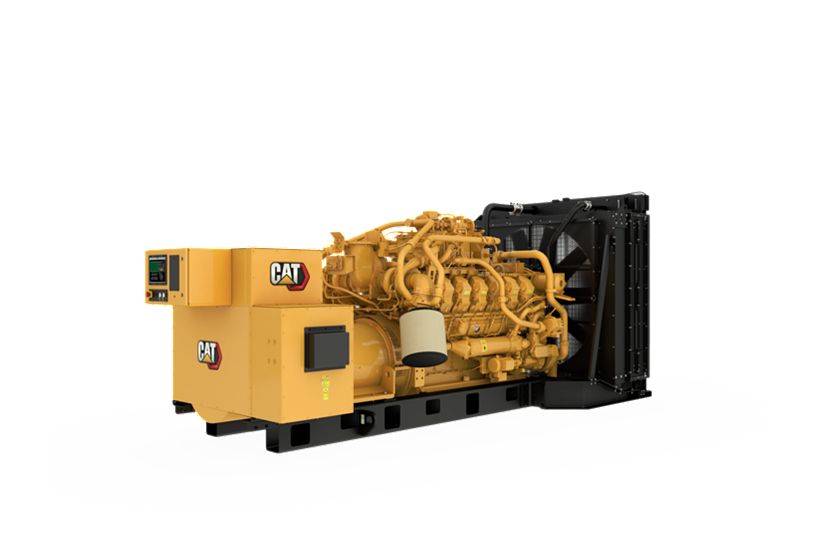

G3512 750kW Gas Generator Set
Gas Standby Rating
750 ekW @ 0.8pf
750 ekW @ 0.8pf
Fuel Type
Natural Gas, Hydrogen Blend (up to 5%)
Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy
U.S. EPA Certified for Non-Emergency Stationary Genset
U.S. EPA Certified for Non-Emergency Stationary Genset
Overview
Caterpillar is leading the power generation marketplace with Fast Response generator sets engineered to deliver unmatched performance, reliability, and cost-effectiveness.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
SR5 Generator
Cooling System
Emissions
Proven System
Full Range of Attachments
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Gas Standby Rating | 750 ekW @ 0.8pf 750 ekW @ 0.8pf |
| Fuel Type | Natural Gas, Hydrogen Blend (up to 5%) Natural Gas, Hydrogen Blend (up to 5%) |
| Emissions/Fuel Strategy | U.S. EPA Certified for Non-Emergency Stationary Genset U.S. EPA Certified for Non-Emergency Stationary Genset |
| RPM | 1800 rpm 1800 rpm |
| Frequency | 60 Hz 60 Hz |
| Displacement | 3173 in³ 52 l |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | G3512 G3512 |
| Displacement | 3173 in³ 52 l |
| Aspiration | TA TA |
| Bore | 6.7 in 170 mm |
| Stroke | 7.5 in 190 mm |
| Governor Type | ADEM A4 ADEM A4 |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 205.7 in 5224 mm |
| Width | 90 in 2286 mm |
| Height | 99.4 in 2525 mm |
| Weight | 27500 lb 12500 kg |
Standard Equipment
Air Inlet
- Dual air cleaners, 1 per side, with service indicator
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panel
- Cat ECS 100
Cooling
- Engine driven pumps for jacket water and separate circuit aftercooler
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
- LH or RG connections when radiator is not selected
- Package mounted radiator
Fuel
- NOx sensor based air-fuel-ratio control
- 0.5 to 5 psi engine fuel inlet pressure
- Pipeline Natural Gas: 800-1000 BTU/scf and 70-100 Methane Number
- Gas Train: NFPA37 and CSA B149.3
Exhaust
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Dry exhaust manifolds, insulated and shielded
- Cat-flanged face outlet on turbocharger
Fuel System
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Throttle plate, 24V DC actuator, controlled by GECM
- Engine-installed electronic control valve
- Gas pressure regulator
- 24V DC energized-to-run (ETR) gas shutoff valve
General
- Crankshaft vibration damper and guard
- Operation and maintenance manuals
- Parts book
- Paint- Caterpillar Yellow except rails and radiators gloss black
- RH Service
Lubrication
- Gear type lube oil pump
- Cartridge style oil filter
Generator
- Anti-condensation space heater
- Winding temperature detectors
- NEMA Class H insulation
- SR5
- Permanent Magnet Excitiation
- Caterpillar’s Digital Voltage Regulator (CDVR) including reactive droop capability, 3-phase voltage sensing, KVAR/PF modes, RFI suppression, and a min/max exciter
Governing System
- ADEM A4
Ignition System
- Individual Cylinder Detonation Sensitive Timing (DST)
- Electronic Ignition System (controlled by ADEM A4)
Governing
- ADEM A4 speed governor with 4 to 20ma (0V to 5V) speed input
Starting/Charging
- 24V DC starting motors
- Batteries with rack and cables
- Electric Starter
Optional Equipment
Air Inlet
- Mounting brackets and piping
- Air cleaner with precleaner
Circuit Breakers
- S LSI, G LSIG, P LSIG-P, 4th Digit Type
- Right, left, rear mounted
- 1200A, 3 Pole, UL-100% Rated P-Frame Circuit Breakers
- 1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
- 2000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers
- 100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
- 3-pole (IEC 947-2 rated)
- Frame mounting
Control Panel
- Remote annunciator
- Local alarm module
- Local PC monitoring
- Engine failure relay
- Remote PC monitoring
Cooling
- Coolant level drain line with valves, fan with guard
- Remote radiator for JW and SCAC circuits, level switch included but not wired
- Inlet/Outlet connections
Exhaust
- 305 mm (12in.) elbow
- 18, 25 dBA Attenuation
- Flexible fittings
- 305 mm (12 in.) muffler
- 305mm (12 in) spark arresting muffler
- 305 mm (12 in.) flange
Fuel System
- 3, 0-100 kPag, 4-20mA gas train pressure sensors
General
- Special paint order
- US AID emblem
- Tool set
- Digital diagnostic tool
Generator
- Cable access box
- Generator air filter
- European bus bars
- Low voltage extension box
- Bearing temperature detectors
Starting/Charging
- 20A, 24VDC battery charger
- Battery with cables and rack
- Jacket water heater
- 45A, 24V charging alternator (requires engine driven pumps)
Grid Code Compliance
- 60 Hz: USA
