Cat

DG100 (60 Hz)

Frequency

60 Hz

60 Hz

Gas Standby Rating

100 ekW

100 ekW

Emissions/Fuel Strategy

U.S. EPA Certified for Stationary Emergency Application

U.S. EPA Certified for Stationary Emergency Application

Overview

The Cat® DG100 gas generator set provides 100 ekW of standby power for commercial and industrial buildings and light industrial applications. Certified by the U.S. EPA for stationary emergency use, it is ready to supply power when service is interrupted.

Media

Photos

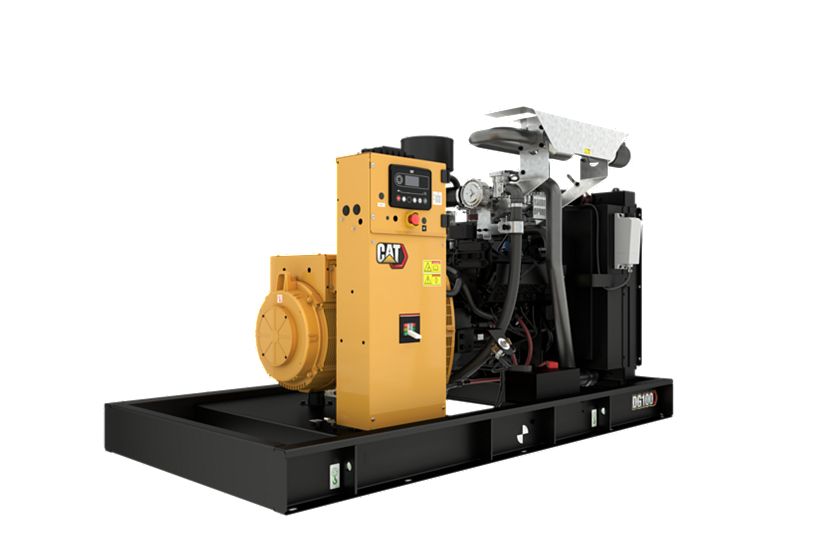

DG100 Front Right View
DG100 Front Right View

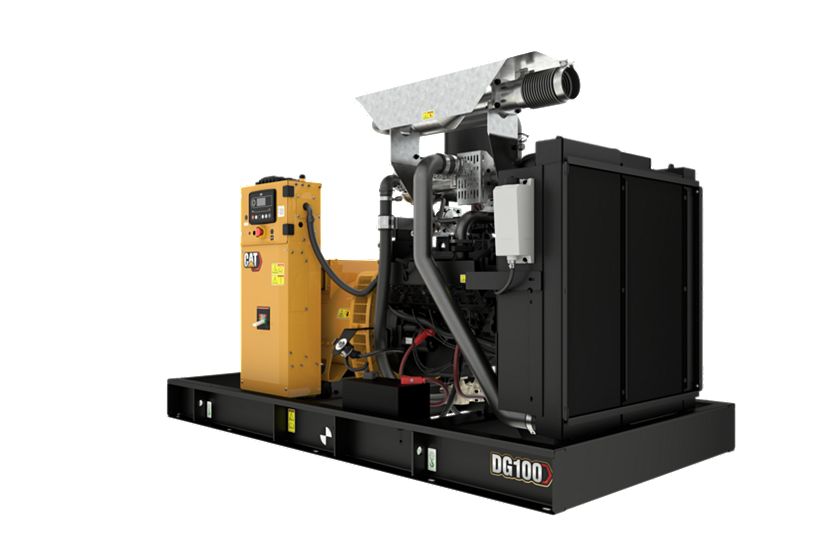

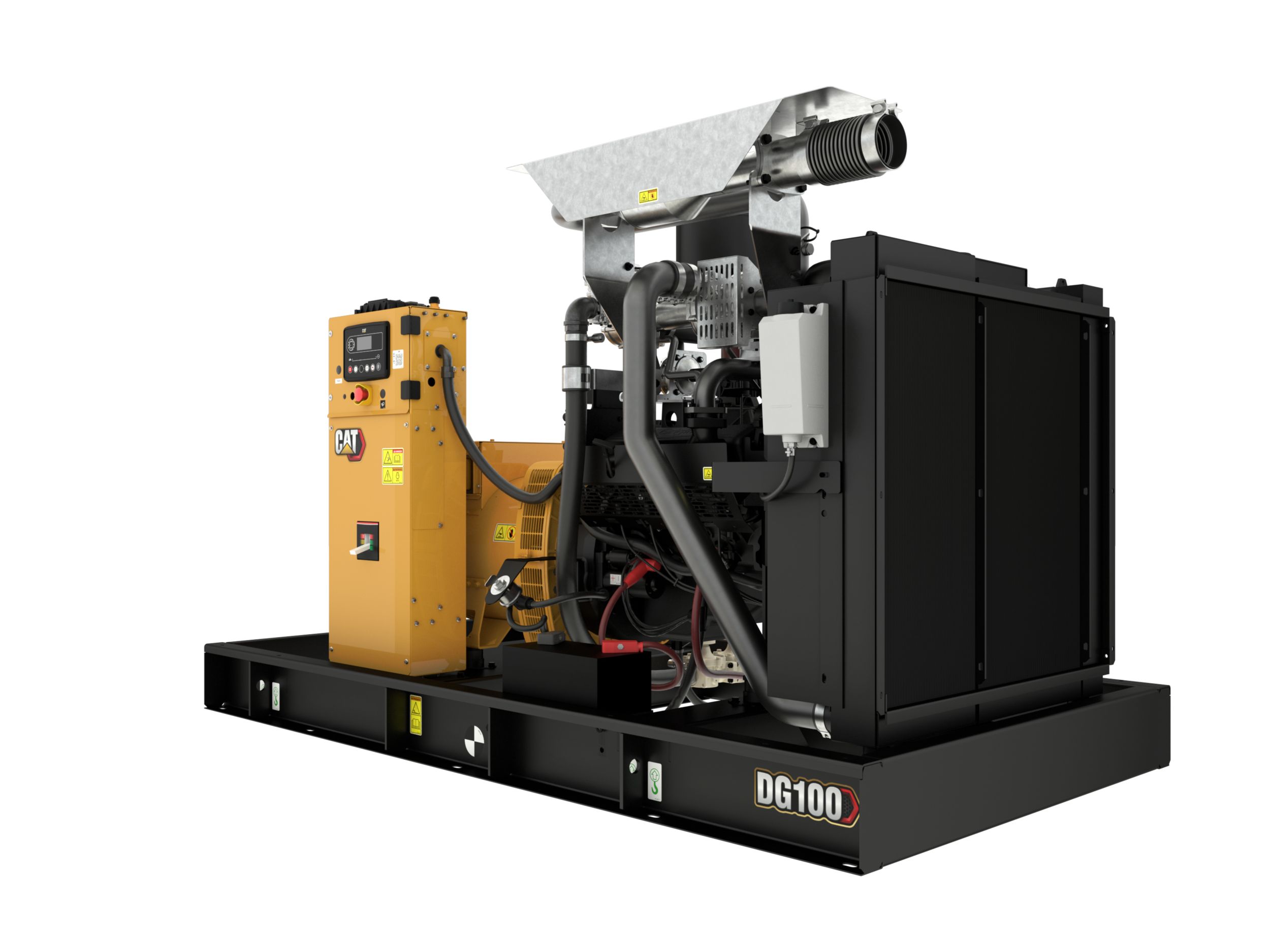

DG100 Front Left View
DG100 Front Left View

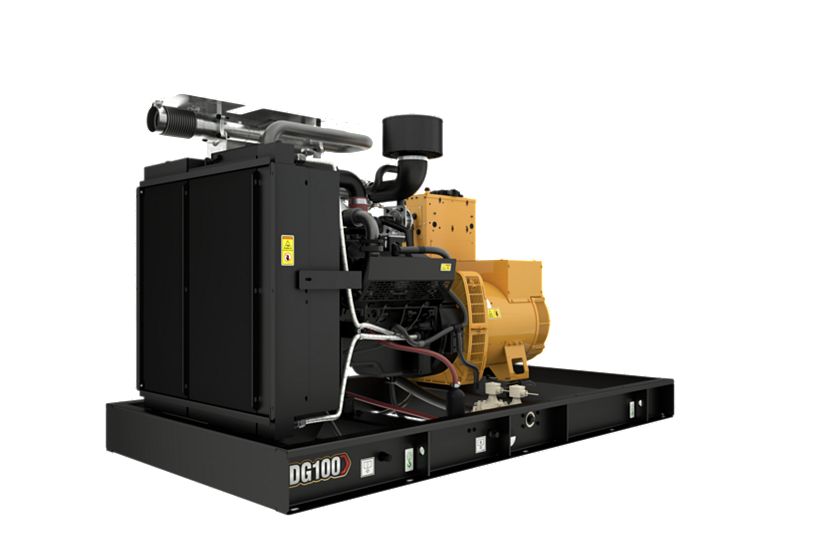

DG100 Rear Right View
DG100 Rear Right View

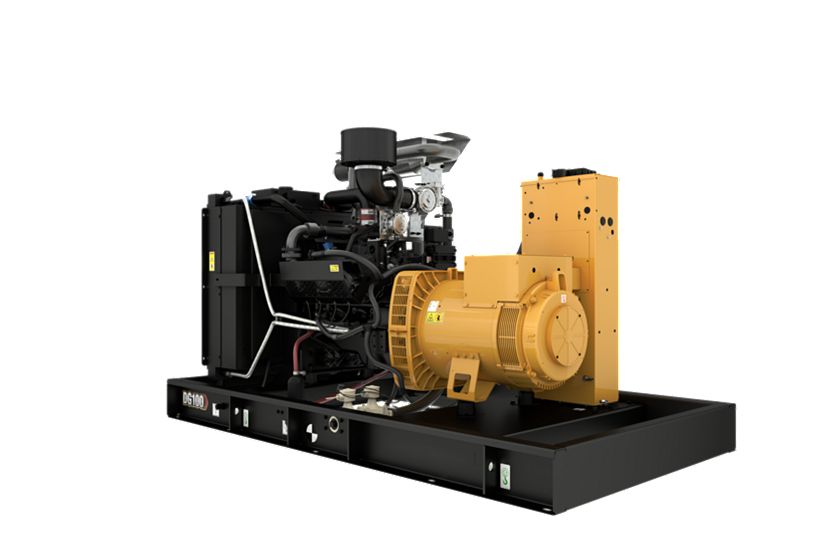

DG100 Rear Left View
DG100 Rear Left View

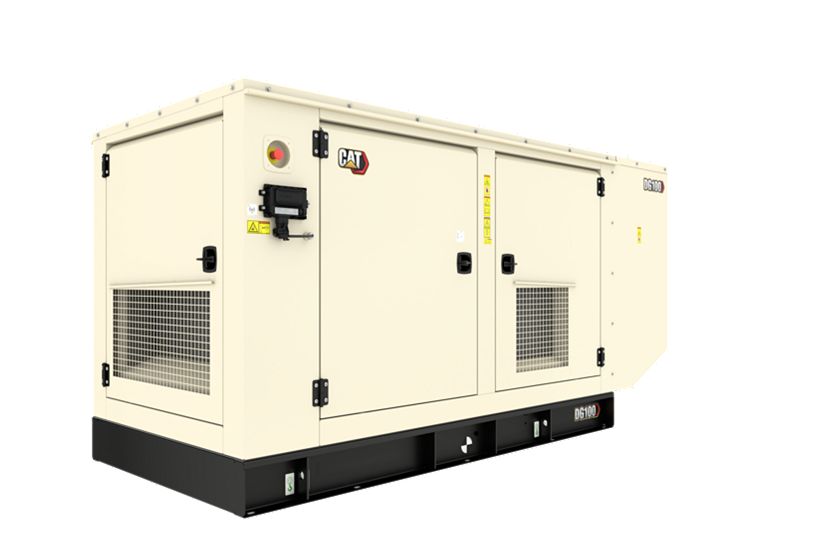

DG100 Enclosure Rear Left View
DG100 Enclosure Rear Left View

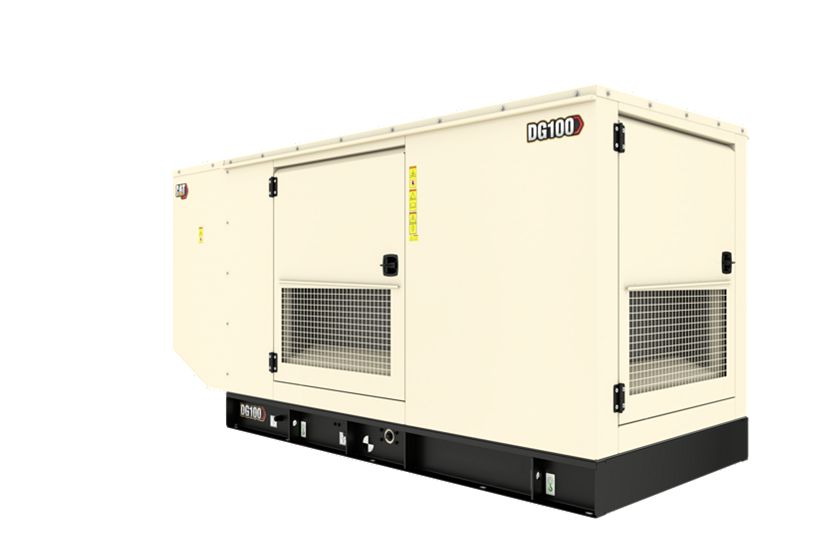

DG100 Enclosure Rear Right View
DG100 Enclosure Rear Right View

Documents

Features

6.2L spark-ignited engine

Automatic fuel changeover

Lifetime product support

Generator monitoring controls

Self-regulated alternator

VisionLink™ telematics

Details

Specifications

Spec Value
Frequency 60 Hz 60 Hz
Gas Standby Rating 100 ekW 100 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency Application U.S. EPA Certified for Stationary Emergency Application
Speed 1800 rpm 1800 rpm
Voltage 208-600 208-600
Spec Value
Engine Model V8, 6.2L TCAC V8, 6.2L TCAC
Stroke 3.75 in 95.3 mm
Displacement 378.3 in³ 6.2 l
Compression Ratio 9.8:1 9.8:1
Fuel System Electronic Electronic
Aspiration TCAC TCAC
Bore 4 in 101.6 mm
Spec Value
Length 96 in 2438 mm
Width 51 in 1295 mm
Height 57 in 1448 mm
Dry Weight – Genset 3007 lb 1364 kg

Standard Equipment

Control Panel

  • GCCP1.2
  • Remote monitoring software

Optional Equipment

Starting/Charging

  • Jacket water heater

Fuel System

  • Gas Regulator

General

  • Single element or dual element air cleaner
  • Circuit breaker panel, based on regional and product configuration
