Caterpillar

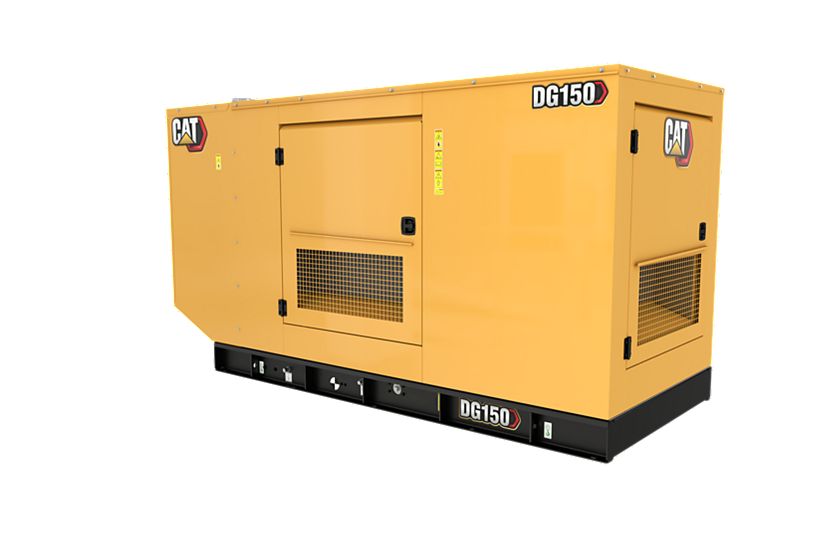

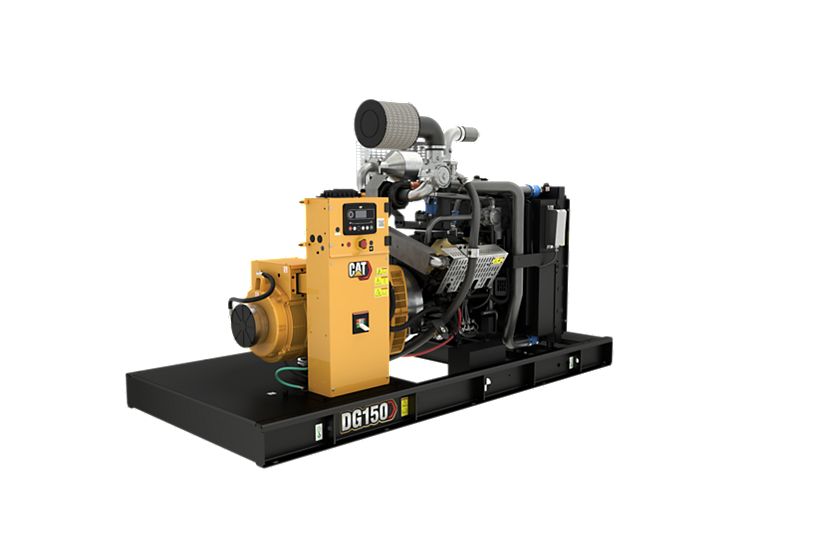

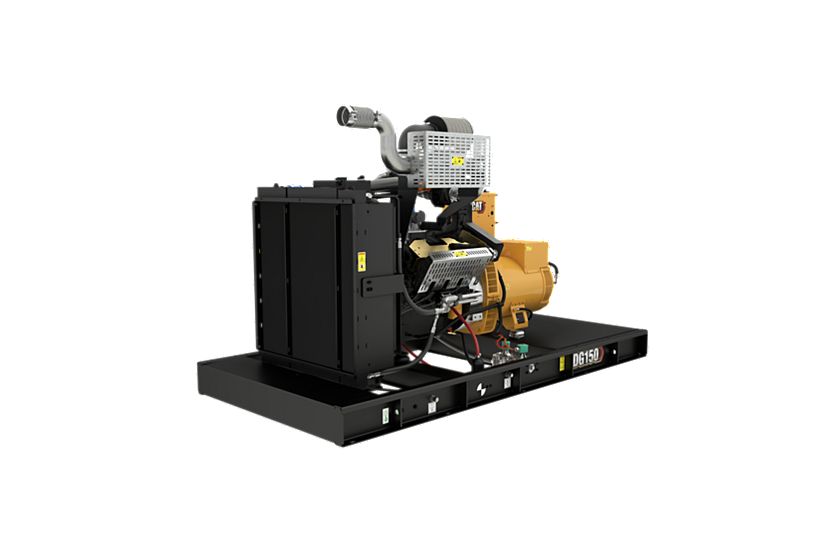

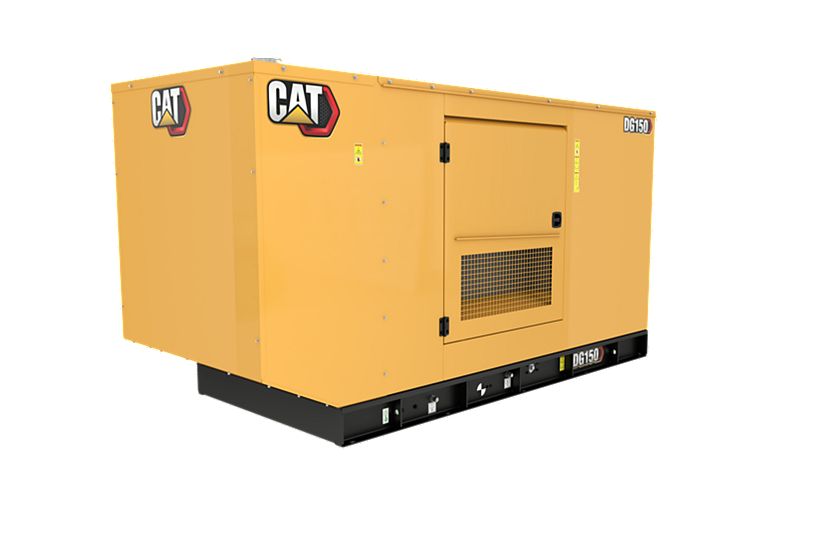

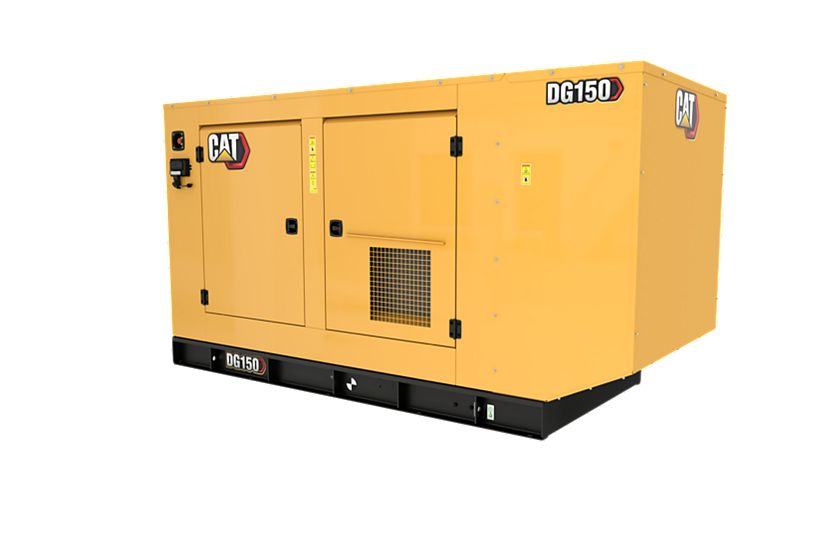

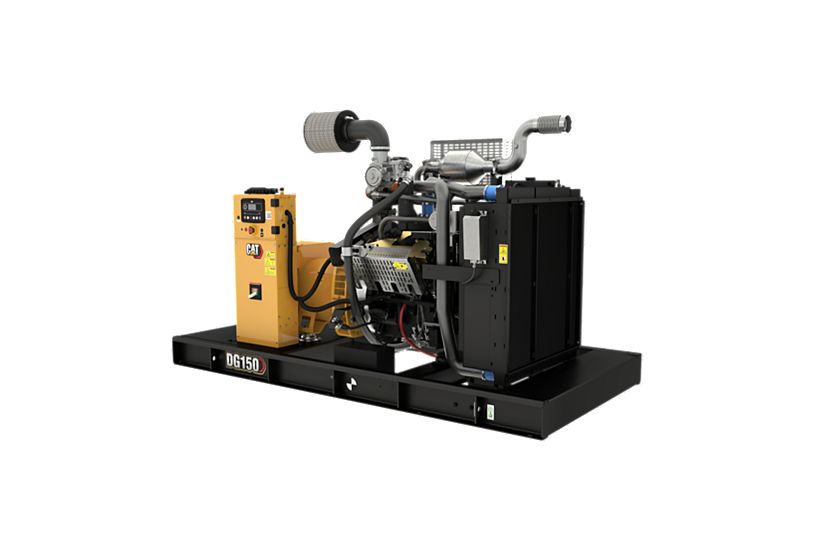

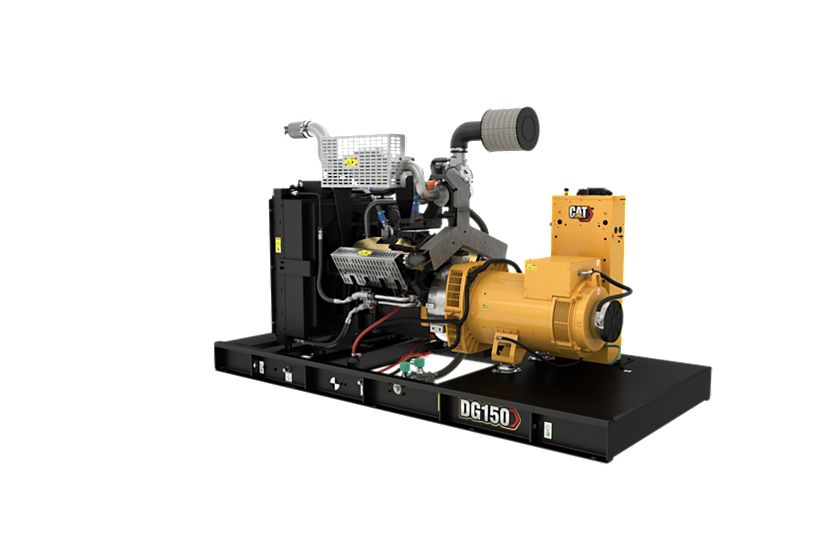

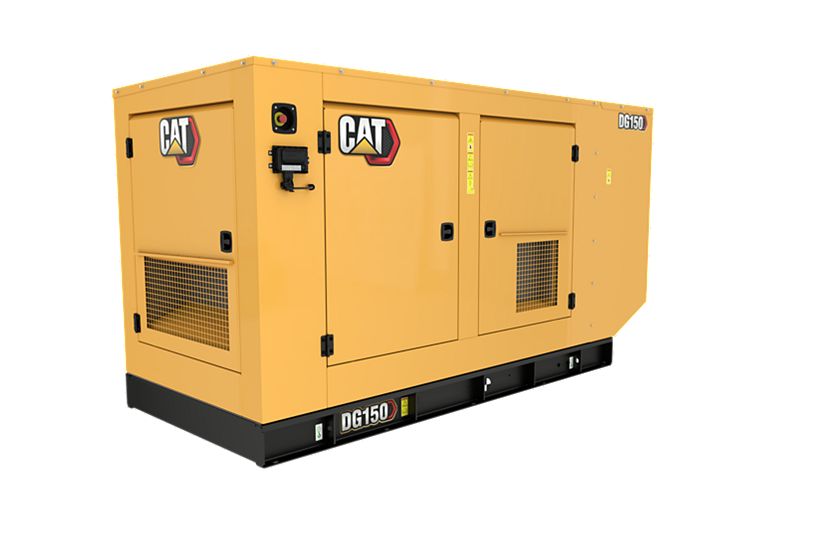

DG150 (3 phase) (60 Hz)
Frequency
60 Hz
60 Hz
Natural Gas Rating
150 ekW
150 ekW
Emissions/Fuel Strategy
U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
Overview
The Cat® spark-ignited generator sets for stationary emergency and non-emergency (demand response) applications provide a much cleaner and sustainable solution for your power needs. The ability to run on various types of gaseous fuels, adapting automatic fuel change-over and microgrid compatibility, make these products capable to power a wide range of applications.
Media
Photos
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Frequency | 60 Hz 60 Hz |
| Natural Gas Rating | 150 ekW 150 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency and Non-Emergency Application U.S. EPA Certified for Stationary Emergency and Non-Emergency Application |
| Voltage | 208-600 208-600 |
| Speed | 1800 rpm 1800 rpm |
| Gas Standby Rating | Standby, Demand Response and Prime Standby, Demand Response and Prime |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | V8, 9.1L TCAC V8, 9.1L TCAC |
| Bore | 4.3 in 109.2 mm |
| Stroke | 4.75 in 120.7 mm |
| Displacement | 555.3 in³ 9.1 l |
| Compression Ratio | 9.5:1 9.5:1 |
| Aspiration | TCAC TCAC |
| Fuel System | Electronic Electronic |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 114 in 2896 mm |
| Width | 55 in 1397 mm |
| Height | 68 in 1727 mm |
| Dry Weight – Genset | 4500 lb 1464 kg |
Standard Equipment
Control Panel
- GCCP1.2
Optional Equipment
Starting/Charging
- Jacket water heater
Fuel System
- Gas Regulator
General
- Single element or dual element air cleaner
- Circuit breaker panel, based on regional and product configuration
