Caterpillar

CG132B-8 Gas Generator Set

Continuous Rating

400 ekW @1.0pf

400 ekW @1.0pf

Fuel Type

Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)

Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)

Maximum Electrical Efficiency

43.1% / 42.1%

43.1% / 42.1%

Overview

The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.

Media

Photos

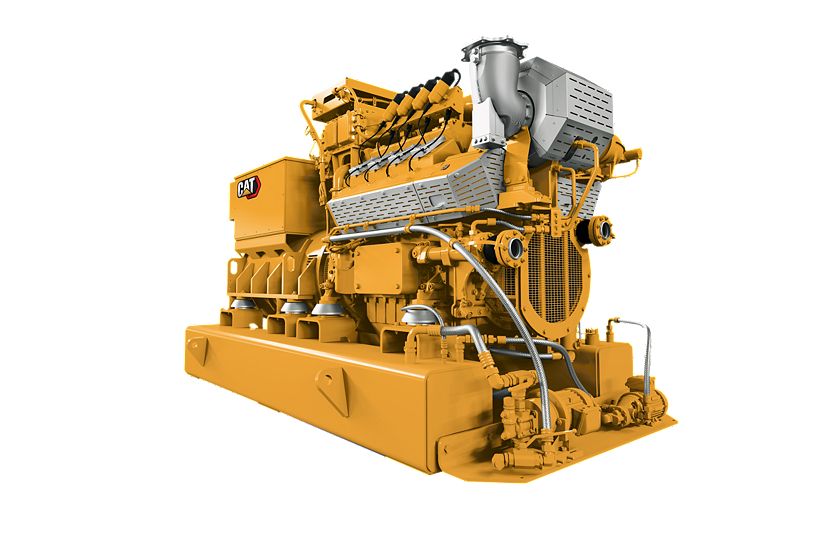

CG132B-8
CG132B-8

Videos

Documents

Details

Specifications

Spec Value
Continuous Rating 400 ekW @1.0pf 400 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%) Natural Gas, Biogas, Coal Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency 43.1% / 42.1% 43.1% / 42.1%
Frequency 50 / 60 Hz 50 / 60 Hz
RPM 1500 or 1800 rpm 1500 or 1800 rpm
Spec Value
Engine Model CG132-8 CG132-8
Displacement 1067.9 in³ 17.5 l
Aspiration TA TA
Bore 5.2 in 132 mm
Stroke 6.3 in 160 mm
Spec Value
Length 122 in 3100 mm
Width 70 in 1780 mm
Height 85 in 2150 mm
Dry Weight – Genset 12610 lb 5720 kg

Standard Equipment

Air Inlet

  • One-element single-stage air cleaner with enclosure and sevice indicator
  • Turbocharger with a water-cooled bearing case for all cylinder

Control Panels

  • TPEM (Total Plant & Energy Management System)

Cooling

  • flange connections for JW inlet and outlet
  • Electrical jacket water and aftercooler coolant pump
  • Jacket water and SCAC thermostats
  • ANSI/DN customer flange connections for JW inlet and outlet

Exhaust

  • Exhaust waste gate for the CG132B-16
  • Closed crankcase ventilation system
  • PEARL/Low resistence exhaust system

Fuel system

  • Independently controlled cylinder monitoring and ignition system
  • Electronic fuel metering valve
  • Pre-chamber spark plugs

Generator

  • Anti-condensation space heater
  • Reactive droop
  • closed-coupled generator result in no torque transmission to the base frame
  • Winding temperature detectors
  • Busbar connections
  • 3-phase sensing and KVAR/PF control
  • grid code generator

Starting/Charging

  • 24V starting motors
  • Battery disconnect switch

General

  • Crankshaft vibration damper and guard

Optional Equipment

Cooling

  • CHP skid

Grid Code Compliance

  • 50Hz: Germany, Belgium, Great Britain, Italy, Poland, and Netherlands
