Caterpillar

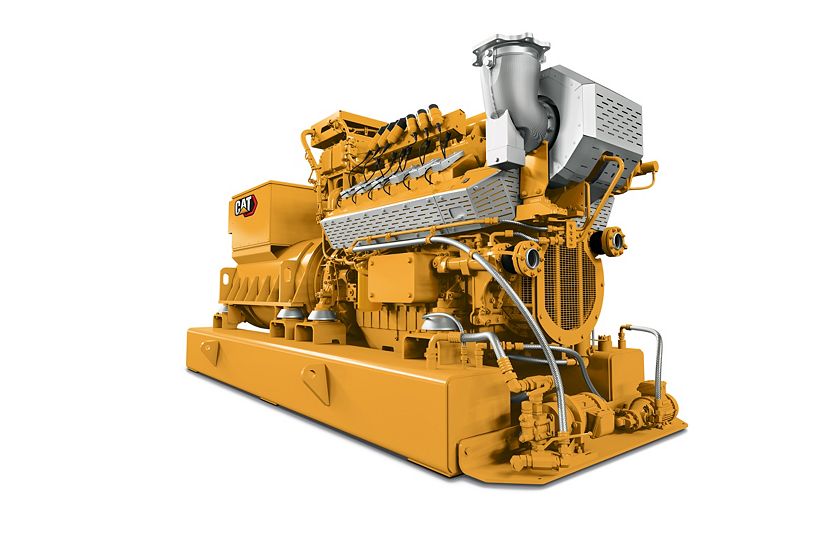

CG132B-12 Gas Generator Set
Continuous Rating
600 kW @1.0pf
600 kW @1.0pf
Fuel Type
Natural Gas, Biogas, Hydrogen Blend (up to 25%)
Natural Gas, Biogas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency
43.3% / 42.4%
43.3% / 42.4%
Overview
The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.
Media
Photos
Videos
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Continuous Rating | 600 kW @1.0pf 600 kW @1.0pf |
| Fuel Type | Natural Gas, Biogas, Hydrogen Blend (up to 25%) Natural Gas, Biogas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 43.3% / 42.4% 43.3% / 42.4% |
| Maximum Standby Rating | 600 kW 600 kW |
| Frequency | 50 / 60 Hz 50 / 60 Hz |
| RPM | 1500 / 1800 rpm 1500 / 1800 rpm |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | CG132 CG132 |
| Displacement | 1604.9 in³ 26.3 l |
| Aspiration | TA TA |
| Bore | 5.2 in 132 mm |
| Stroke | 6.3 in 160 mm |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 151 in 3830 mm |
| Width | 70 in 1780 mm |
| Height | 85 in 2150 mm |
| Dry Weight – Genset | 15432 lb 7000 kg |
Standard Equipment
Air Inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
Control Panels
- TPEM (Total Plant & Energy Management System)
Cooling
- ANSI/DN customer flange connections for JW inlet and outlet
- flange connections for JW inlet and outlet
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
Exhaust
- Exhaust waste gate for the CG132B-16
- Closed crankcase ventilation system
- PEARL/Low resistence exhaust system
Fuel system
- Independently controlled cylinder monitoring and ignition system
- Electronic fuel metering valve
- Pre-chamber spark plugs
Generator
- Reactive droop
- grid code generator
- closed-coupled generator result in no torque transmission to the base frame
- Busbar connections
- Winding temperature detectors
- Anti-condensation space heater
- 3-phase sensing and KVAR/PF control
Starting/Charging
- 24V starting motors
- Battery disconnect switch
General
- Crankshaft vibration damper and guard
Optional Equipment
Air Inlet
- Mounting stand
- Air cleaner with precleaner
Cooling
- CHP skid
Grid Code Compliance
- 50Hz: Germany, Belgium, Great Britain, Italy, Poland, and Netherlands
