Caterpillar

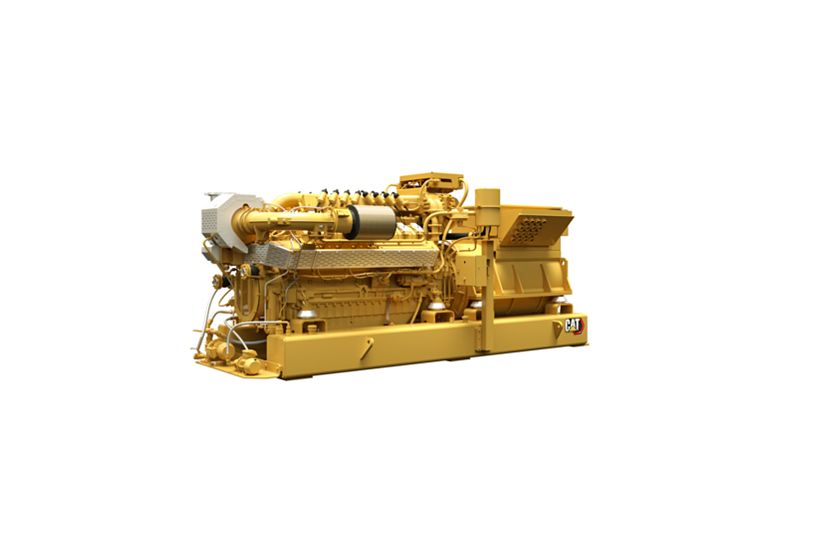

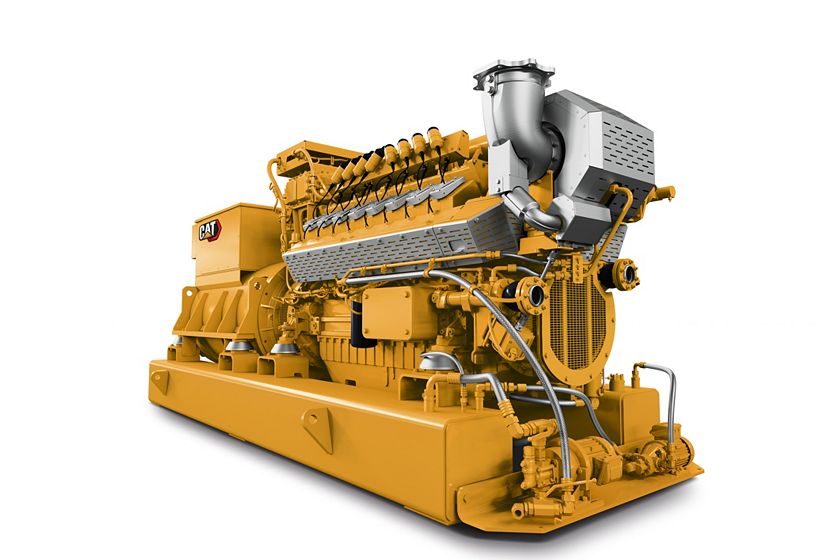

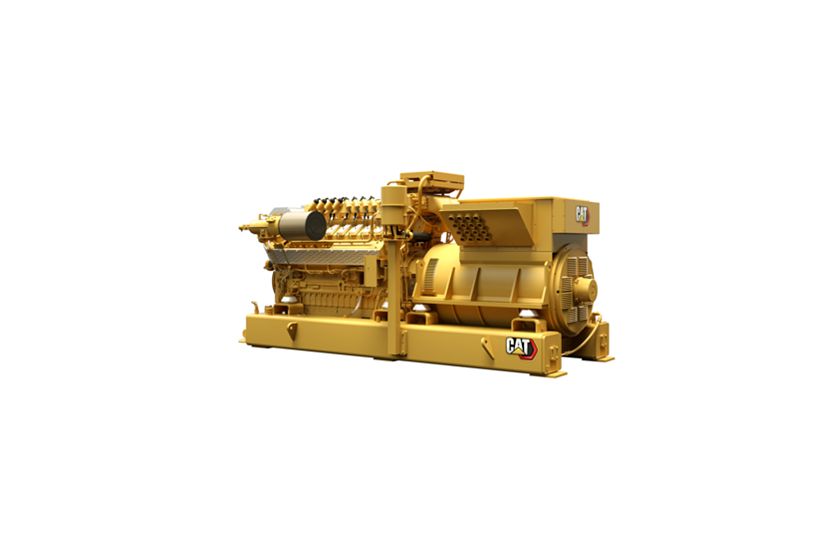

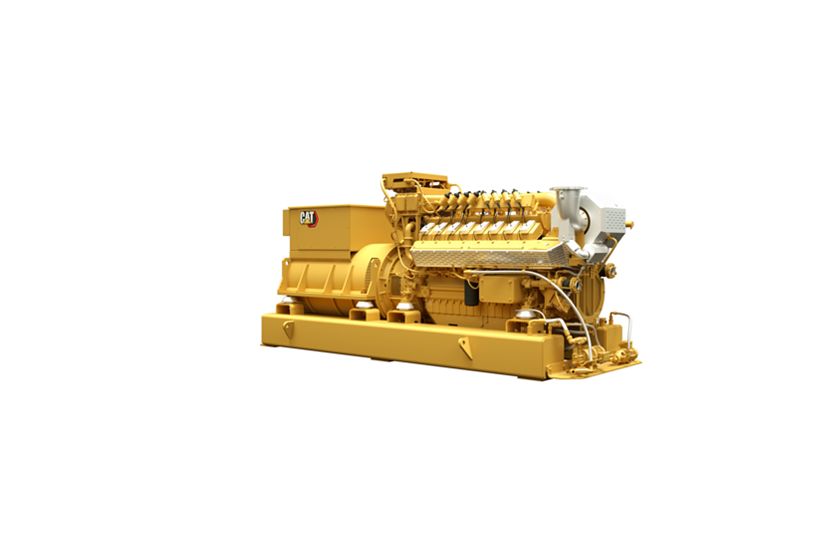

Gas Generator CG132B-16
Continuous Rating
1000 ekW @1.0pf
1000 ekW @1.0pf
Fuel Type
Natural Gas, Hydrogen Blend (up to 25%)
Natural Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency
41.50%
41.50%
Overview
The Cat CG132B family of gas engines are perfectly tailored to the challenges of the power plant in an age of global value chains.
Media
Photos
Videos
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Continuous Rating | 1000 ekW @1.0pf 1000 ekW @1.0pf |
| Fuel Type | Natural Gas, Hydrogen Blend (up to 25%) Natural Gas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 41.50% 41.50% |
| Frequency | 50 Hz 50 Hz |
| RPM | 1500 rpm 1500 rpm |
| Natural Gas Rating | 1000 1000 |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | CG132B CG132B |
| Displacement | 2135.8 in³ 35 l |
| Aspiration | TA TA |
| Bore | 5.2 in 132 mm |
| Stroke | 6.3 in 160 mm |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 165 in 4200 mm |
| Width | 70 in 1780 mm |
| Height | 85 in 2150 mm |
| Dry Weight – Genset | 17791 lb 8070 kg |
Standard Equipment
Air Inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
Control Panels
- TPEM (Total Plant & Energy Management System)
Cooling
- Flange connections for JW inlet and outlet
- Electrical jacket water and aftercooler coolant pump
- Jacket water and SCAC thermostats
- flange connections for JW inlet and outlet
- Cat flanges on SCAC circuit
- ANSI/DN customer flange connections for JW inlet and outlet
Exhaust
- Exhaust waste gate for the CG132B-16
- Closed crankcase ventilation system
- PEARL/Low resistence exhaust system
Fuel system
- Pre-chamber spark plugs
- Independently controlled cylinder monitoring and ignition system
- Electronic fuel metering valve
Generator
- Anti-condensation space heater
- Reactive droop
- 3-phase sensing and KVAR/PF control
- Busbar connections
- grid code generator
- closed-coupled generator result in no torque transmission to the base frame
- Reactive droop
- Winding temperature detectors
Starting/Charging
- 24V starting motors
- Battery disconnect switch
General
- Crankshaft vibration damper and guard
Optional Equipment
Air Inlet
- Air cleaner with precleaner
- Mounting stand
Cooling
- CHP skid
Grid Code Compliance
- 50Hz: Germany, Belgium, Great Britain, Italy, Poland, and Netherlands
