Cat G3516C Gas Engine
Main content
Caterpillar
G3516C Gas Generator Set
Continuous Rating
1660 ekW
1660 ekW
Fuel Type
Natural Gas
Natural Gas
Maximum Electrical Efficiency
37.70%
37.70%
Overview
From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
Media
Photos
360° View

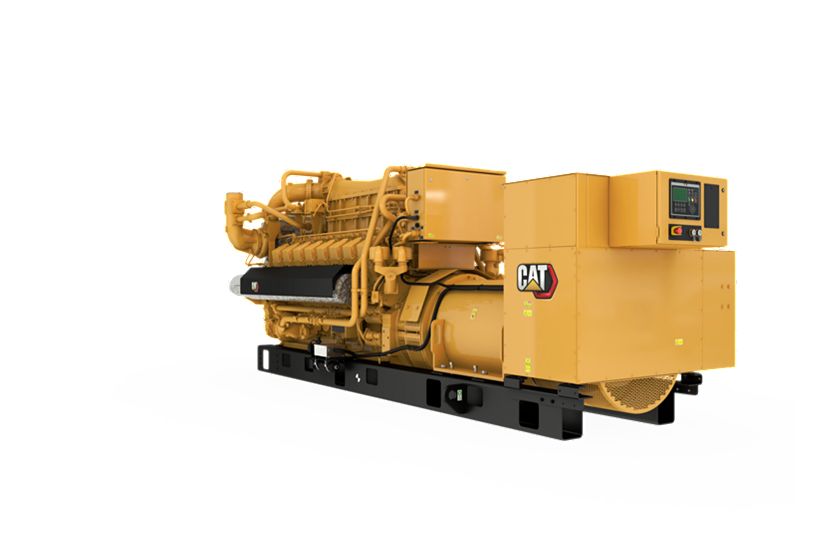

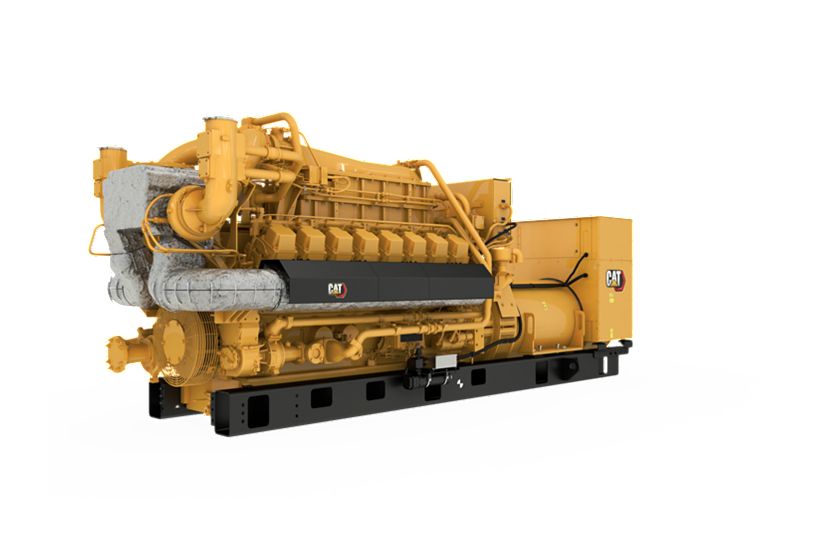

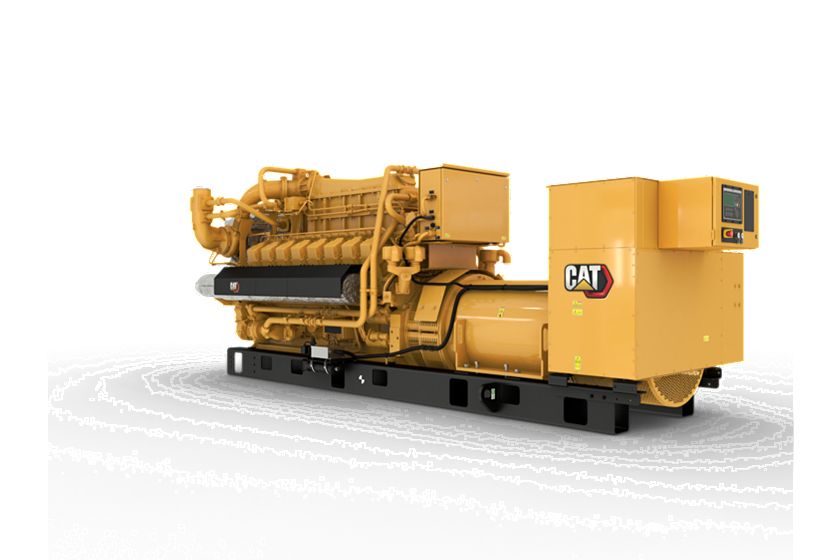

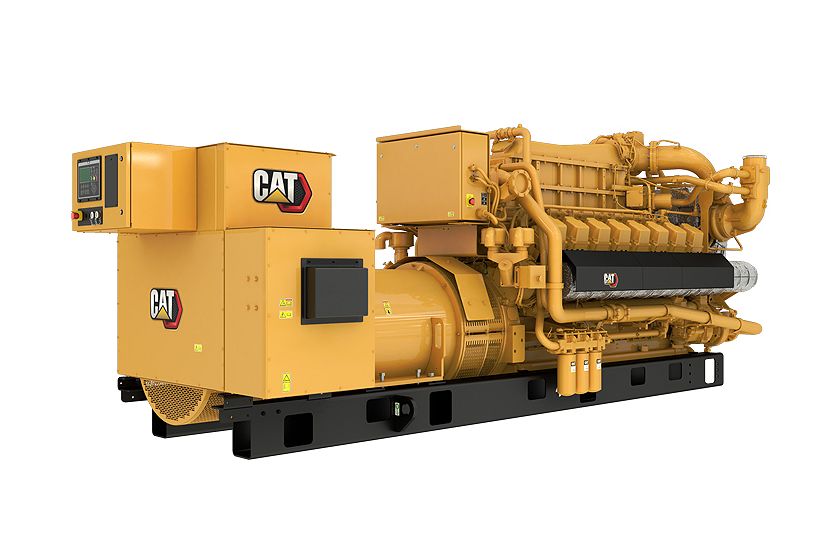

Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
SR4B Generator
EMCP 4.3 Control Panel
Emissions
Proven System
Full Range of Attachments
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Continuous Rating | 1660 ekW 1660 ekW |
| Fuel Type | Natural Gas Natural Gas |
| Maximum Electrical Efficiency | 37.70% 37.70% |
| Maximum Standby Rating | 1500 1500 |
| Frequency | 50 / 60 Hz 50 / 60 Hz |
| RPM | 1500/1800 1500/1800 |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | G3516C G3516C |
| Displacement | 4210 in³ 69 l |
| Aspiration | TA TA |
| Bore | 6.7 in 170 mm |
| Stroke | 7.5 in 190 mm |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 219 in 5553 mm |
| Width | 72 in 1828 mm |
| Height | 92 in 2340 mm |
| Dry Weight – Genset | 31226 lb 14161 kg |
Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panels
- EMCP 4.3
Cooling
- Jacket water and SCAC driven pumps and bypass lines
- 2nd Stage SCAC-Cat Flange
- Engine driven water pumps for jacket water and aftercooler
- Jacket water and SCAC thermostats
- ANSI/DN customer flange connections for JW inlet and outlet
- Cat flanges on SCAC circuit
Exhaust
- Integrated Sensing Module (ISM)
- Cat-flanged face outlet on turbocharger
- Provides exhaust port temperatures and stack temperature to customer supplied screen via CCM
- Dry exhaust manifolds, insulated and shielded
Fuel System
- 24V ETR Gas Shutoff Valve
- Engine installed, fuel metering valve
- Throttle plate, 24V DC actuator, controlled by ECM
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- Fuel Filter
Ignition System
- Individual Cylinder Detonation Sensitive Timing (DST)
- Electronic Ignition System (controlled by ECM)
Fuel system
- Electronic fuel metering valve
Generator
- Anti-condensation space heater
- Busbar connections
- Class H Insulation & Class F temperature rise
- Reactive Droop
- Permanent Magnet Excitation
- 3-phase brushless, salient pole
- Caterpillar’s Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
- SR4B
- Winding temperature detectors
General
- RH Service
- Operation and maintenance manuals
- Crankshaft Vibration Damper and Guard
- Parts Book
Starting/Charging
- 24V starting motors
Optional Equipment
Air Inlet
- Vertical, horizontal dual element air cleaner
- Enclosure mounting brackets and piping
- Air cleaner with precleaner
Control Panel
- Local NFPA99-110 Alarm Module w/LEDs
- Synchronizing Module
- Remote 24V 8/16 Light Annunciator
- Engine Failure Relay
- PL1000E/PL1000T Communications Module
- Custom 8-Light Alarm Module
Cooling
- Inlet/Outlet connections
- Jacket water coolant heater
- Aftercooler air lines, aftercooler core replacement
Exhaust
- Flexible Fittings
- 14″ Flange Kit
- 406 mm Elbow Kits
- 406 mm flange kits
- Mufflers (15/18/25 dBA Attenuation) and spark-arresting muffler with ANSI companion flanges
- 16″ Spark Arresting Muffler
- 356-406mm Flange and Exhaust Expander
- 15/18/25 dBA Muffler Attenuation
Fuel System
- 207-276kPa, 30-40 psi gas knockdown regulator
- 14-69 kPa (2-10 psi) gas pressure regulator
- 24VDC Gas Shutoff Valve, Gas Knockdown Regulator
- Fuel Filter, Gas Filter
Generator
- Cable access box
- 8.7/15 kV Cross, Differential, Current Transformers (CCCT, DCT, CT)
- Medium and high voltage generators and attachment
- 480/4160/13200 Volt Generator Options (60 Hz)
- Generator air filter
- Bearing temperature detectors
- European Bus Bars
- 415/400/380, 3300/6600/11000 Volt Generator Options (50 Hz)
- Annunciator Modules
- Generator Removal
- Low voltage extension box
Governing System
- Load share module
General
- Special paint order
- Tool set
- US AID Emblem
- Barring group
- Digital diagnostic tool
Starting/Charging
- 60A, 24V charging alternator (requires engine driven pumps)
- Battery removal
- 20A battery charger
- Battery disconnect switch
- Battery with cables and rack (shipped loose)
