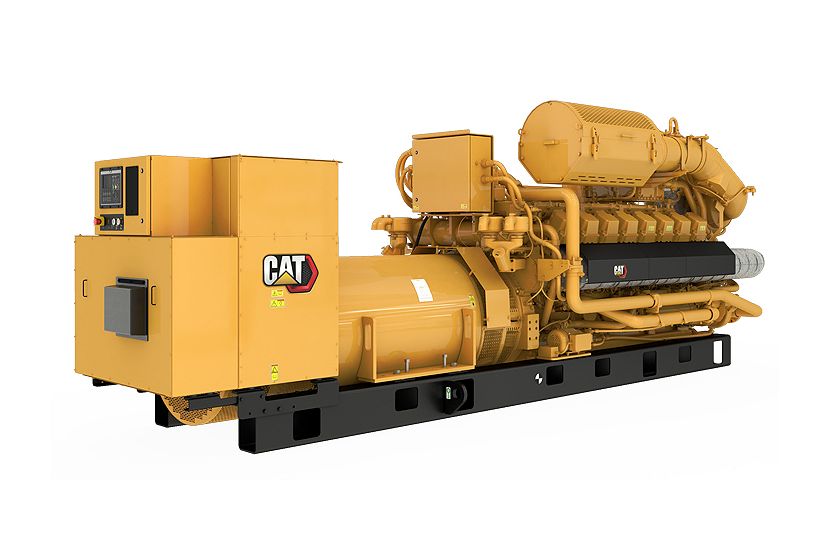

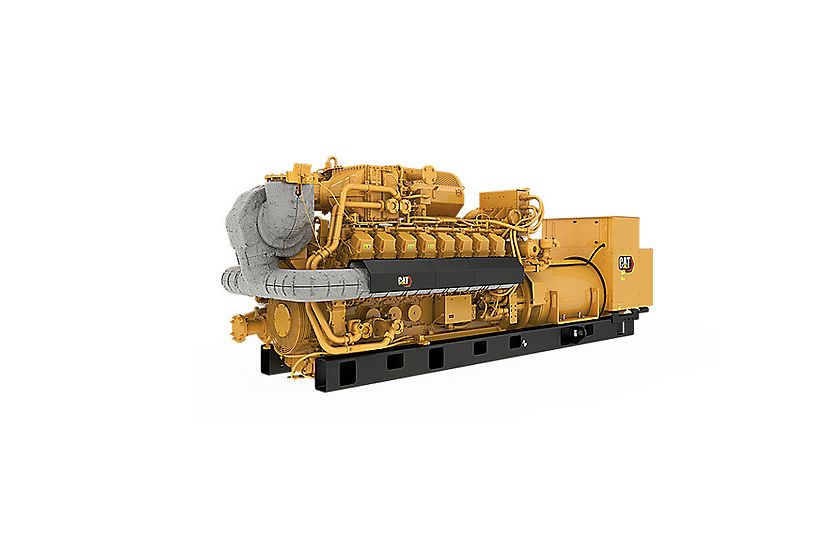

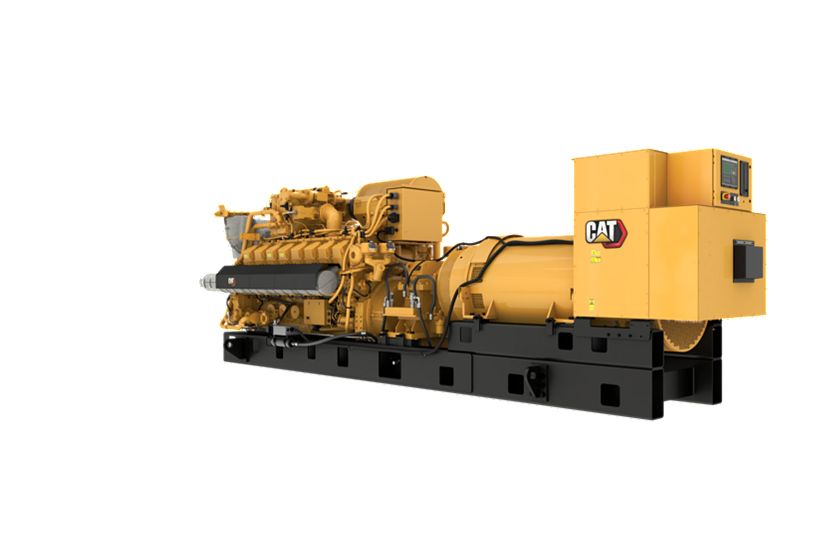

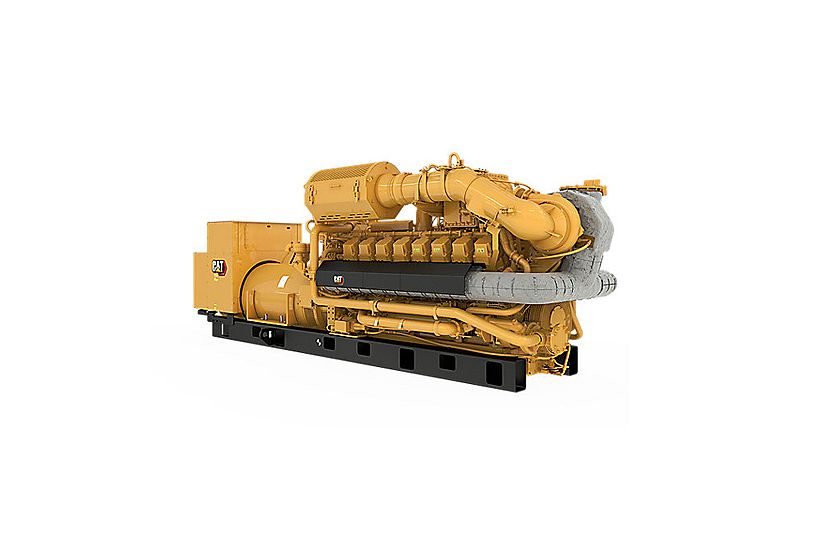

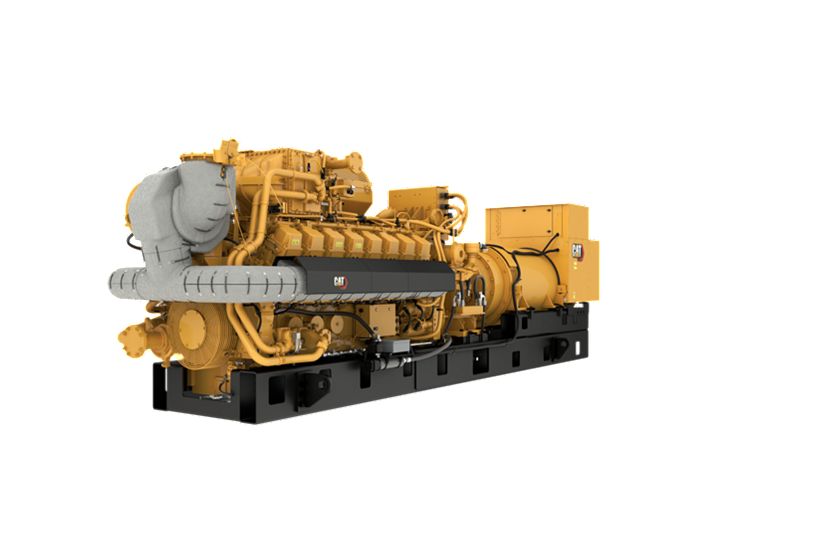

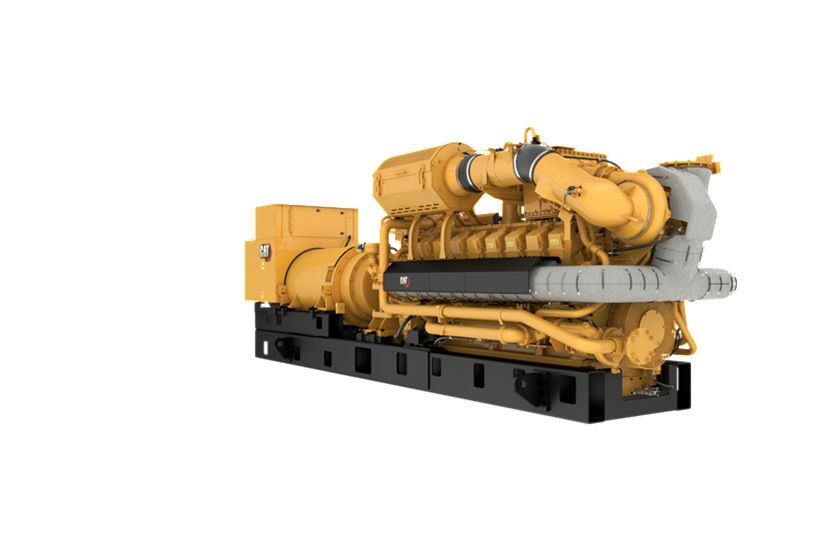

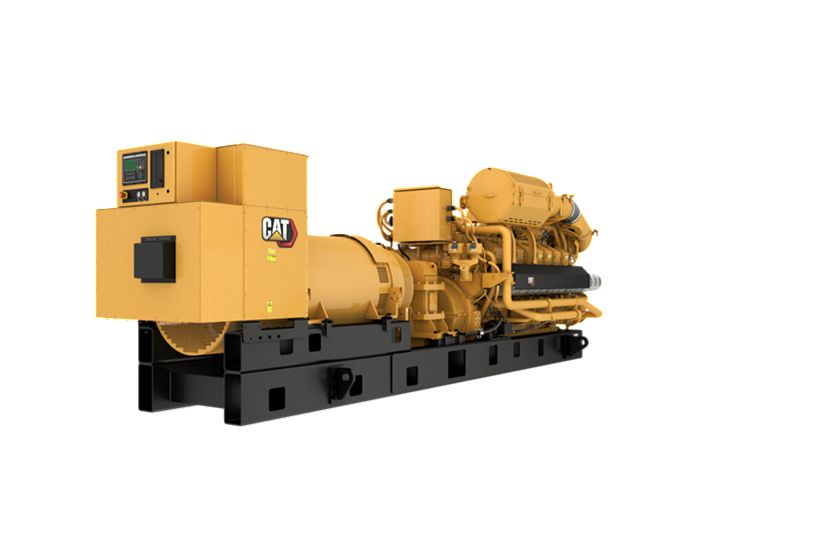

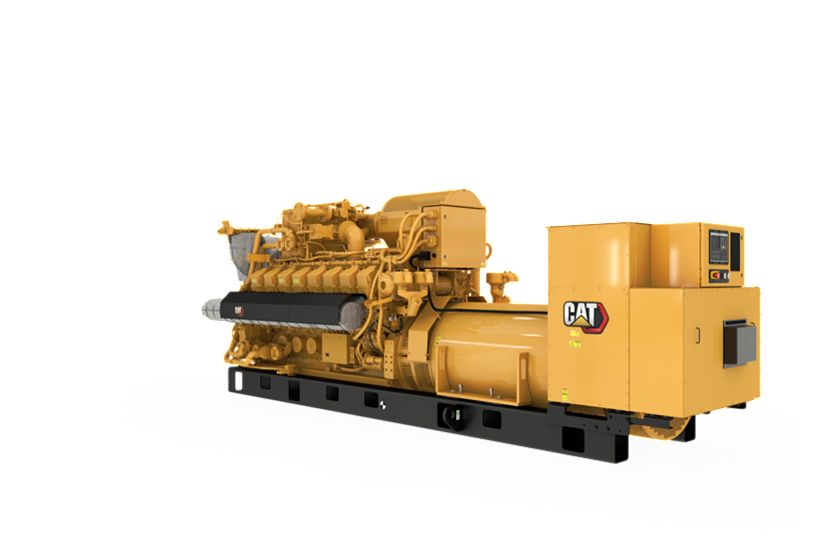

Cat G3516H Gas Engine
Main content
Caterpillar
Gas Generator G3516H
Continuous Rating
2027 / 2007 ekW @ 1.0pf
2027 / 2007 ekW @ 1.0pf
Fuel Type
Natural Gas, Hydrogen Blend (up to 25%)
Natural Gas, Hydrogen Blend (up to 25%)
Maximum Electrical Efficiency
45.30%
45.30%
Overview
From natural gas to biogas, coal mine gases, or hydrogen fuel blends to support combined heat and power (CHP), emergency power, and local grid support applications, Caterpillar has a wide range of reliable gas power solutions.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
SR5 Generator
EMCP 4.3 Control Panel
Emissions
Proven System
Full Range of Attachments
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Continuous Rating | 2027 / 2007 ekW @ 1.0pf 2027 / 2007 ekW @ 1.0pf |
| Fuel Type | Natural Gas, Hydrogen Blend (up to 25%) Natural Gas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 45.30% 45.30% |
| Frequency | 50 / 60 Hz 50 / 60 Hz |
| RPM | 1500 rpm 1500 rpm |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | G3516H G3516H |
| Displacement | 4765 in³ 78 l |
| Aspiration | TA TA |
| Bore | 6.7 in 170 mm |
| Stroke | 8.5 in 215 mm |
| Compression Ratio | 12.1 12.1 |
| Fuel System | Natural Gas Natural Gas |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 291 in 7395 mm |
| Width | 84 in 2139 mm |
| Height | 95 in 2402 mm |
| Dry Weight – Genset | 40384 lb 18315 kg |
Standard Equipment
Control Panels
- EMCP4.3
Air Inlet
- Package Mounted Air Cleaner with service indicator
- Two-element single-stage air cleaner with enclosure and service indicator
Cooling
- Jacket water and SCAC driven thermostats
- ANSI Class 150/DN custom flange connections for JW inlet and outlet
- Engine driven water pumps for jacket water and after cooler
- 2nd stage SCAC-Cat Flange
Exhaust
- Center section cooled turbocharger with Cat flanged outlet
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Dry exhaust manifolds, insulated and shielded
- Cat-flanged face outlet on turbocharger
Fuel System
- Throttle plate, 24V DC actuator, controlled by GECM
- Electronic fuel metering valve
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
Generator
- Permanent Magnet Excitiation
- Anti-condensation space heater
- Winding temperature detectors
- SR5
- Reactive Droop
- Caterpillar’s Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
General
- Crankshaft vibration damper and guard
- Paint – Caterpillar Yellow except rails and radiators gloss black
- RH Service
- Parts book
- Operation and maintenance manuals
Governing System
- ADEM A4 4-20mA (0-5V) Speed Input
Starting/Charging
- 24V starting motors
Optional Equipment
Air Inlet
- Mounting brackets and piping
- Air cleaner with precleaner
- Heavy Duty air cleaner with precleaner
Circuit Breakers
- No UV trip or package mounted CB Wiring
- Frame Mounting
- MP-Frame 3 Pole Bottom Cable Entry or MP- Frame 6 Pole Bottom Cable Entry
- 4000A, 3-Pole IEC Rated
- 2500/3000/3200A or 4000/5000A Neutral Current Transformer Automatic Selection
- Lower & Upper Covers, Extension Box Roof Cover
- Busbar Mounting
- 4000A, 3-Pole UL Rated
Control Panels
- Remote monitoring software
- Discrete I/O Module, 12 Digital Inputs, 8 ‘Form C’ Relay
- Remote RS485, 32-light Annunciator
- Cat Connect: Ehternet, Satellite, Cell Telematics
- Cross-Current Compensation Current Transformer– 8.7/15 kV Classes
- RTD Module
- Local/Remote PC Monitorring
- 16 Point/32 Light Annunciator with NFPA99-110/CSA282 Configuration
- Remote Monitoring & Control
- Synchronizing module
- Local alarm module
Cooling
- Jacket water coolant heater
- Inlet/Outlet connections
Exhaust
- Flange
- Muffler and spark-arresting muffler with ANSI companion flanges
- Elbow
Generator
- Manual voltage control
- Generator air filter
- Low voltage extension box
- Medium and high voltage generators and attachment
- Cable access box
- Bearing temperature detectors
Starting/Charging
- 24V Battery Charger
- 60A, 24V charging alternator (requires engine driven pumps)
General
- US AID emblem
- Special paint order
- Battery diconnect switch
- Digital diagnostic tool
- Tool set
- Battery with cables and rack (shipped loose)
Grid Code Compliance
- 60 Hz: USA
- 50 Hz: Germany, Great Britain, Belgium, Romania, Italy, Ireland, Poland, Netherlands, Spain, France, and European Standard
