Cat G3516A Gas Engine
Main content
Cat

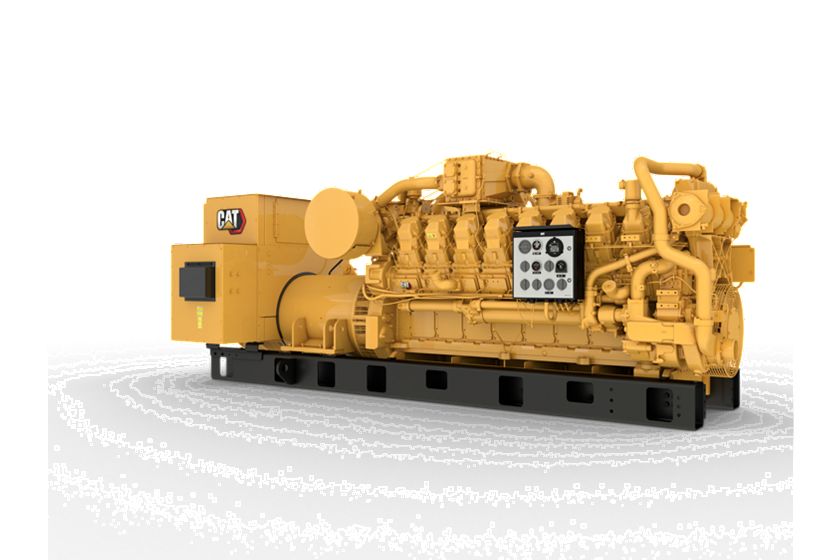

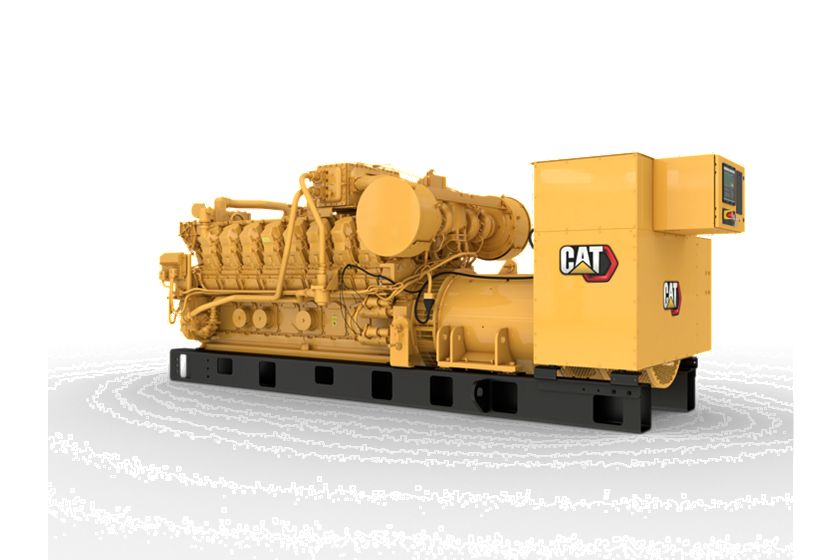

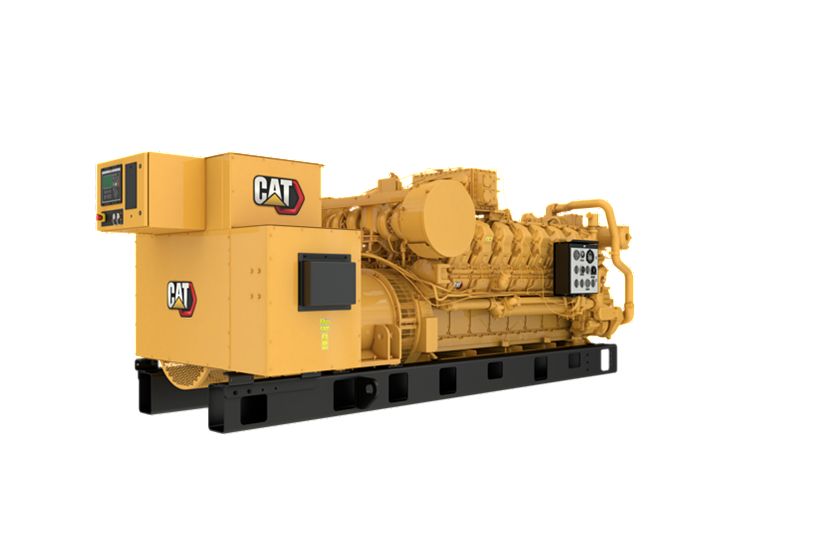

Gas Generator G3516A
Continuous Rating
1085 ekW
1085 ekW
Fuel Type
Natural Gas, Biogas, Coal Gas
Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency
36.50%
36.50%
Overview
From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
Media
Photos
360° View
Exterior
360� Exterior view. Double click on the image to zoom in on any area of the product.
Features
SR5 Generator
EMCP 4.3 Control Panel
Emissions
Proven System
Full Range of Attachments
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Continuous Rating | 1085 ekW 1085 ekW |
| Fuel Type | Natural Gas, Biogas, Coal Gas Natural Gas, Biogas, Coal Gas |
| Maximum Electrical Efficiency | 36.50% 36.50% |
| Maximum Standby Rating | 1000 kw 1000 kw |
| Frequency | 50 / 60 Hz 50 / 60 Hz |
| RPM | 1200 / 1500 rpm 1200 / 1500 rpm |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | G3516A G3516A |
| Displacement | 4210 in³ 69 l |
| Aspiration | TA TA |
| Bore | 6.7 in 170 mm |
| Stroke | 7.5 in 190 mm |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 193 in 4913 mm |
| Width | 68 in 1736 mm |
| Height | 76 in 1940 mm |
| Dry Weight – Genset | 27670 lb 12549 kg |
Standard Equipment
Exhaust
- Dry exhaust manifolds, insulated and shielded
Generator
- Anti-condensation space heater
- Permanent magnet excitation
- SR4B
- Caterpillar’s Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
Starting/Charging
- 24V starting motors
General
- Crankshaft vibration damper and guard
- Paint – Caterpillar Yellow except rails are gloss black
- Operation and maintenance manuals
- Parts book
Optional Equipment
Air Inlet
- Air inlet adapters
Cooling
- Inlet/Outlet connections
Exhaust
- Flexible fitting
- Elbow
- Flange
- Muffler and spark-arresting muffler with companion flanges
- Exhaust expander
Generator
- Low voltage extension box
- Generator air filter
- European bus bar
- Cable access box
Start/Charging
- Jacket water heater
- Charging alternator
- Battery with cable and rack (shipped loose)
- Battery charger
- Oversized battery
General
- Engine barring group
- EEC D.O.I and other certifications
- Crankcase explosion relief valve
