Caterpillar

CG170-12 Gas Generator Set

Continuous Rating

1200 ekW @1.0pf

1200 ekW @1.0pf

Fuel Type

Natural Gas, Biogas, Coal Gas

Natural Gas, Biogas, Coal Gas

Maximum Electrical Efficiency

43.40%

43.40%

Overview

From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

Media

Photos

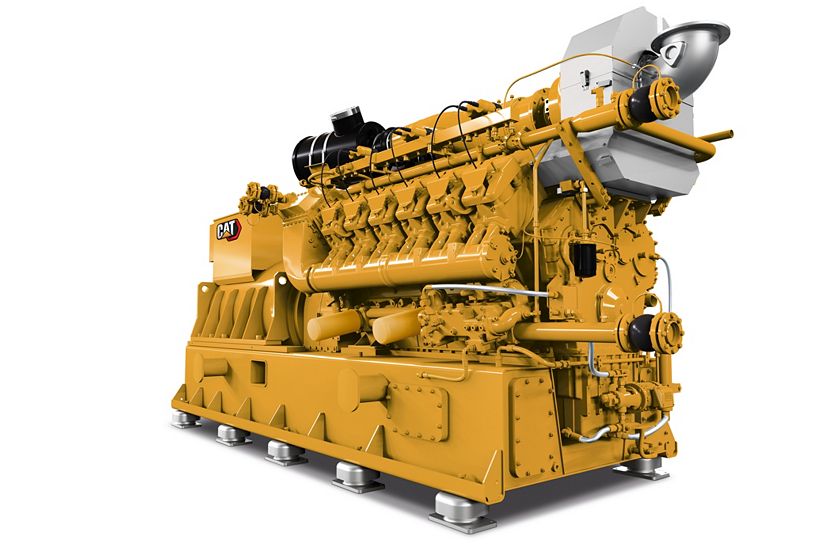

CG170-12
CG170-12

Documents

Features

High Efficiency, Lower Operating Costs

Low installation, Building and Operating Costs

Optimized Lubrication Consumption

Details

Specifications

Spec Value
Continuous Rating 1200 ekW @1.0pf 1200 ekW @1.0pf
Fuel Type Natural Gas, Biogas, Coal Gas Natural Gas, Biogas, Coal Gas
Maximum Electrical Efficiency 43.40% 43.40%
Frequency 50 or 60 Hz 50 or 60 Hz
RPM 1500 rpm 1500 rpm
Spec Value
Engine Model CG170-12 CG170-12
Displacement 3240 in³ 53.1 l
Aspiration TA TA
Bore 6.7 in 170 mm
Stroke 7.7 in 195 mm
Spec Value
Length 235 in 5970 mm
Width 70 in 1778 mm
Height 87 in 2210 mm
Dry Weight – Genset 28659.8 lb 13000 kg

Standard Equipment

Air Inlet

  • Turbocharger with a water-cooled bearing case for all cylinder
  • One-element single-stage air cleaner with enclosure and sevice indicator

Control Panels

  • TEM (Total Electronic Management)

Cooling

  • Electrical jacket water and aftercooler coolant pump
  • Jacket water and SCAC thermostats
  • flange connections for JW inlet and outlet

Exhaust

  • PEARL/Low resistence exhaust system
  • Closed crankcase ventilation system
  • Exhaust waste gate for the CG170-12

Fuel system

  • Electronic fuel metering valve
  • Independently controlled cylinder monitoring and ignition system
  • Pre-chamber spark plugs

Generator

  • Winding temperature detectors
  • Reactive droop
  • 3-phase sensing and KVAR/PF control
  • Anti-condensation space heater
  • closed-coupled generator result in no torque transmission to the base frame
  • Busbar connections
  • grid code generator

Starting/Charging

  • 24V starting motors
  • Battery disconnect switch

General

  • Crankshaft vibration damper and guard

Optional Equipment

Cooling

  • CHP skid

Grid Code Compliance

  • 50Hz: Germany, Belgium, Great Britain, Italy, Poland, and Netherlands
