G3412 Natrual Gas Engine
Main content
Caterpillar
G3412 Gas Generator Set
Continuous Rating
423 ekW @0.8pf
423 ekW @0.8pf
Fuel Type
Natural Gas, Biogas, Field Gas, Propane
Natural Gas, Biogas, Field Gas, Propane
Maximum Electrical Efficiency
37.30%
37.30%
Overview
Using natural gas for combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
Media

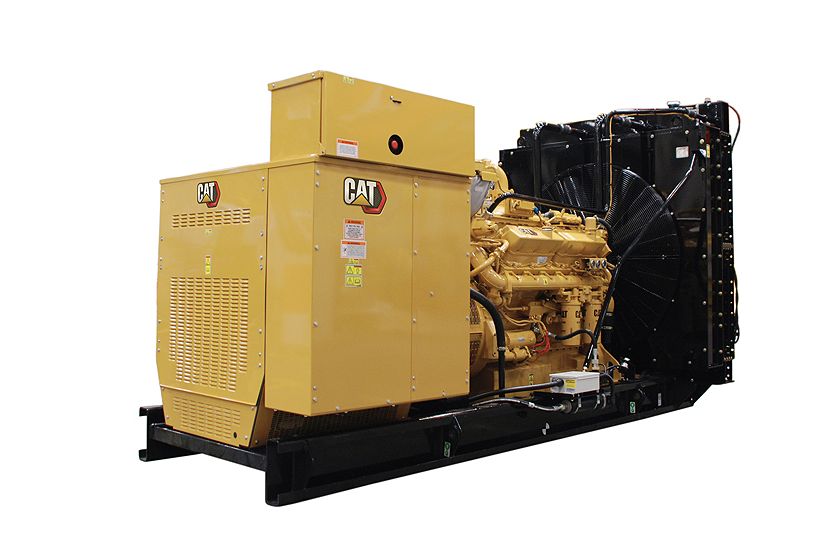

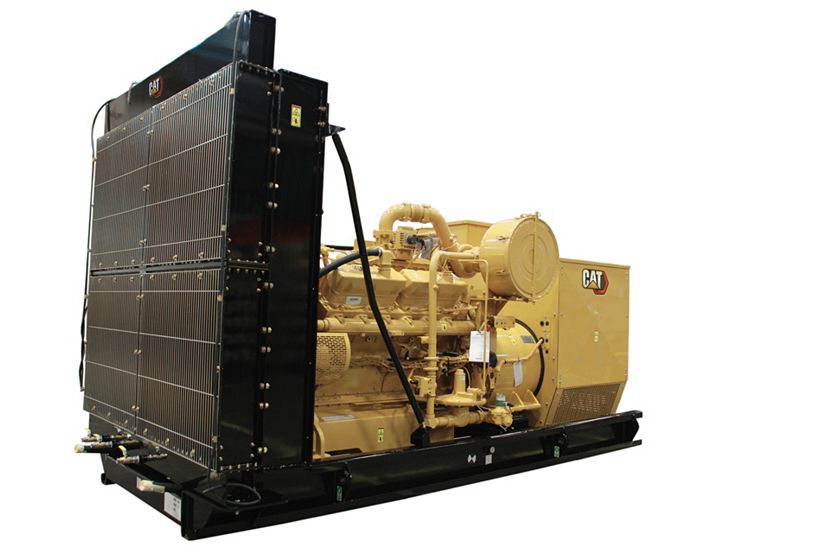

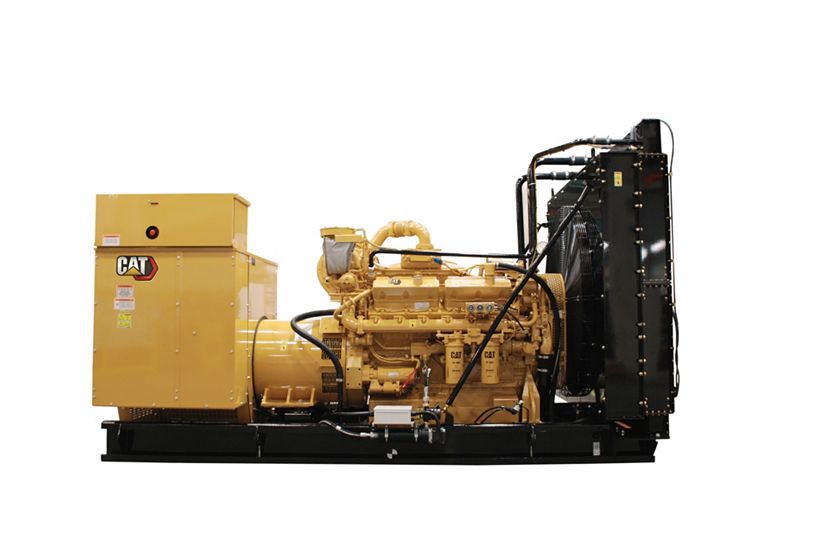

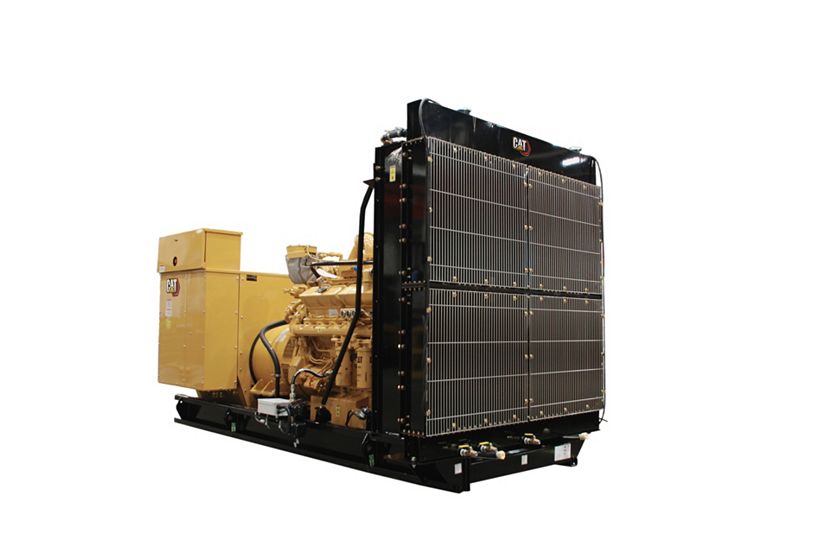

Photos
Features
SR4B Generator
EMCP4.2 Control Panel
Cooling System
Emissions
Full Range of Attachments
Proven System
Worldwide Product Support
Details
Specifications
Generator Set Specifications
| Spec | Value |
|---|---|
| Continuous Rating | 423 ekW @0.8pf 423 ekW @0.8pf |
| Fuel Type | Natural Gas, Biogas, Field Gas, Propane Natural Gas, Biogas, Field Gas, Propane |
| Maximum Electrical Efficiency | 37.30% 37.30% |
| Maximum Standby Rating | 500 ekW @ 0.8pf 500 ekW @ 0.8pf |
| Frequency | 50 or 60 Hz 50 or 60 Hz |
| RPM | 1500 or 1800 rpm 1500 or 1800 rpm |
Engine Specifications
| Spec | Value |
|---|---|
| Engine Model | G3412 G3412 |
| Displacement | 1649 in³ 27 l |
| Aspiration | NA NA |
| Bore | 5.4 in 137 mm |
| Stroke | 6 in 152 mm |
Generator Set Dimensions
| Spec | Value |
|---|---|
| Length | 179 in 4542 mm |
| Width | 88 in 2238 mm |
| Height | 86 in 2189 mm |
| Dry Weight – Genset | 9664 lb 4384 kg |
