Caterpillar

XQ425

Rating Prime

340 ekW (425 kVA)

340 ekW (425 kVA)

Frequency

50/60 Hz

50/60 Hz

Voltage

120 - 600 V

120 - 600 V

Overview

The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 Tier 4 Final engine compliant equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Media

Photos

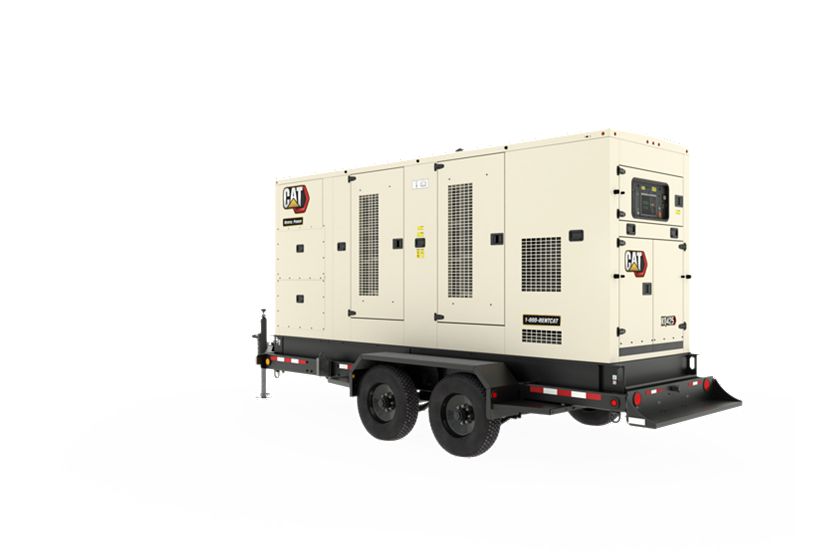

XQ425 Tier 4 Final

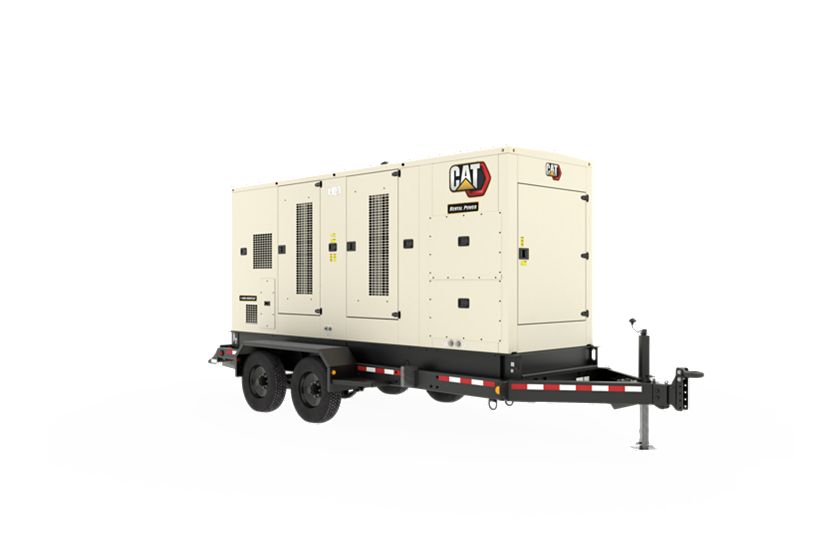

XQ425 Tier 4 Final

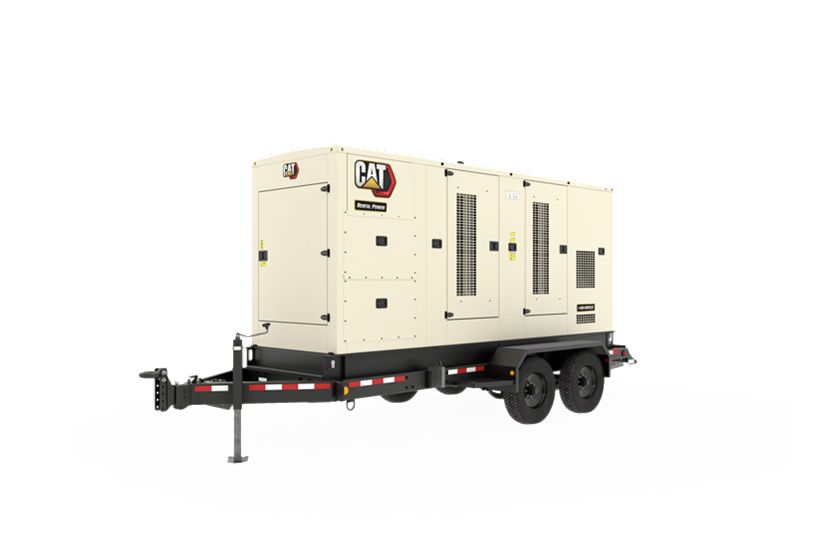

XQ425 Tier 4 Final

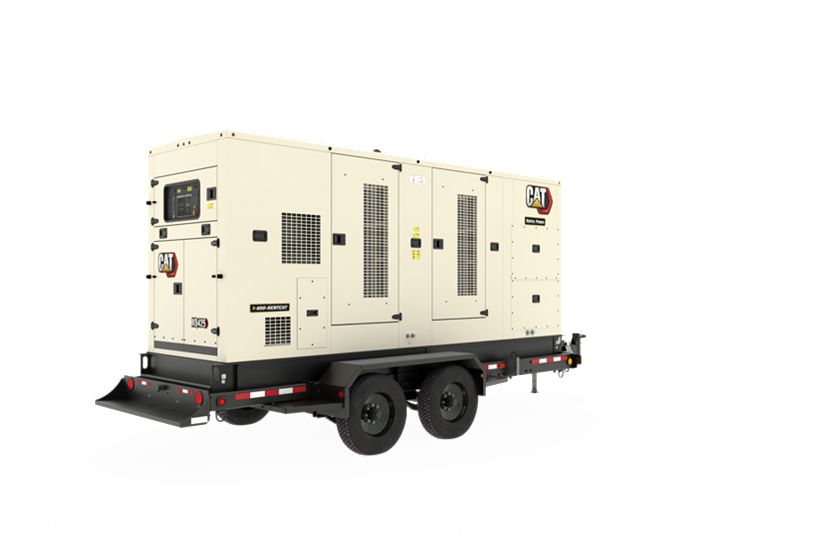

XQ425 Tier 4 Final

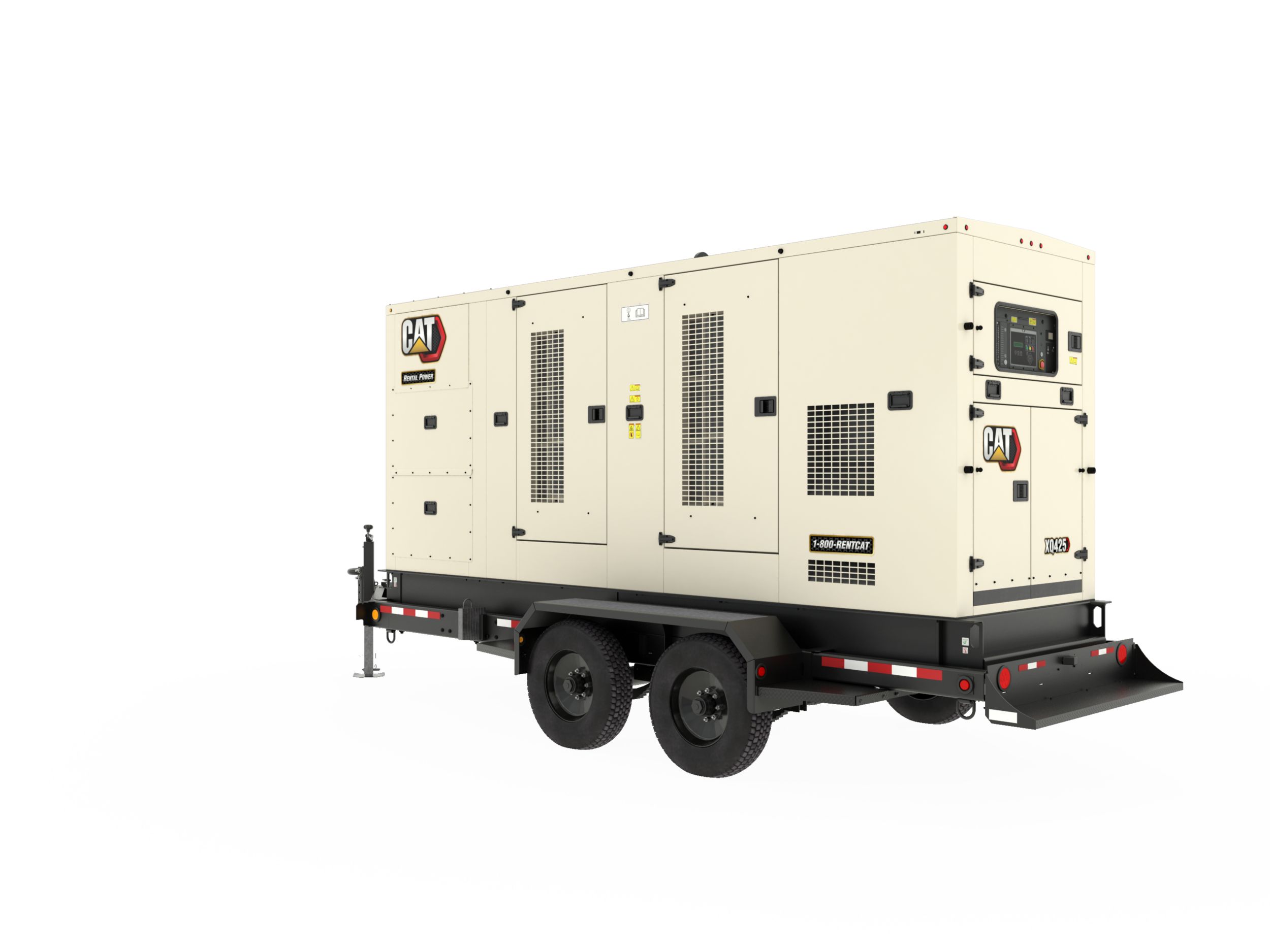

XQ425 Tier 4 Final
XQ425 Tier 4 Final
XQ425 Tier 4 Final
XQ425 Tier 4 Final

Videos

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C13 Diesel Engine

CAT EMCP 4.2 digital controls

Cat SR4B Series Generator

Sound Isolated Operator panel

Cat Connect

Factory designed, built and tested

Worldwide Product Support

500 hr oil change intervals

Improved transportability

Power Distribution

Additional options

Details

Specifications

Spec Value
Rating Prime 340 ekW (425 kVA) 340 ekW (425 kVA)
Frequency 50/60 Hz 50/60 Hz
Voltage 120 - 600 V 120 - 600 V
Rating Standby 375 ekW (469 kVA) 375 ekW (469 kVA)
Spec Value
Engine C13 C13
Fuel Diesel Diesel
Spec Value
Height – Without Trailer 60 in 1524 mm
Length – Without Trailer 208.7 in 5080 mm
Width – Without Trailer 104 in 2642 mm
Weight with Lube Oil and Coolant, Without Trailer 14700 lb 6667 kg
Spec Value
100% Load 60Hz 23.1 gal/hr 88 l/hr
75% Load 60Hz 17.7 gal/hr 67.9 l/hr
50% Load 60Hz 12.7 gal/hr 48.6 l/hr
100% Load 60Hz 25.1 gal/hr 95.7 l/hr
75% Load 60Hz 19.2 gal/hr 73.4 l/hr
50% Load 60Hz 13.6 gal/hr 52.3 l/hr
Spec Value
Sound Power @ 7 meters (23 feet) @ All Ratings 74 dB(A) 74 dB(A)

Standard Equipment

CAT C13 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • SR4B – 450 Frame

Control Panel

  • Digital EMCP4.2 set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
