Caterpillar

XQC1200

Rating

1150kW (1438 kVA) Continuous

1150kW (1438 kVA) Continuous

Frequency

50/60 Hz

50/60 Hz

Voltage

230 - 480 V

230 - 480 V

Overview

This rental generator set extends the Caterpillar line of rental power options improving efficiency and reduced owning and operating costs. The XQC1200 is equipped with an enhanced control system, designed to reduce installation and startup time. It is configured to switch between 50 and 60Hz ratings at the press of a button. The control system features plant control programming and simulation, allowing complete system testing prior to generator set startup. Advanced product autonomy and monitoring capabilities reduce on-site manpower support requirements, minimize operator exposure to hazards, and permit site performance and maintenance data to be viewed, archived, and analyzed conveniently. Ideal in a stand-alone environment, combined with dozens of units in a power plant solution, or supporting utility systems worldwide.

Media

Photos

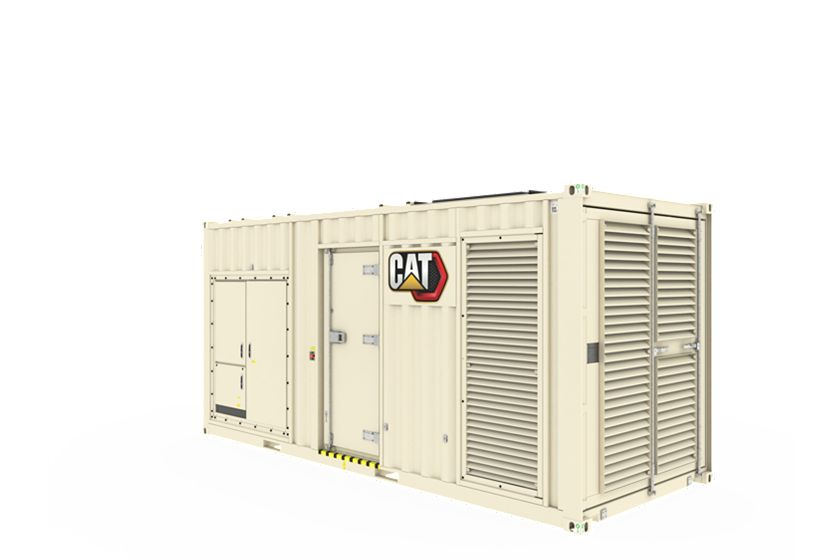

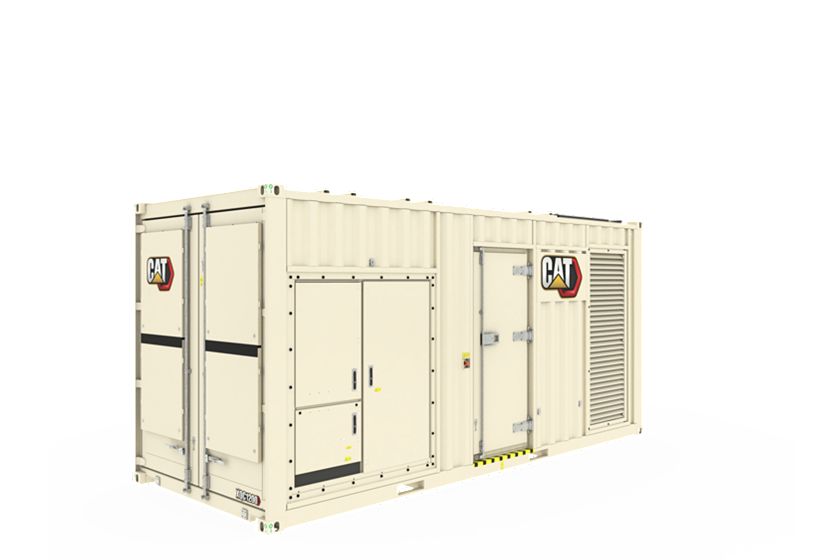

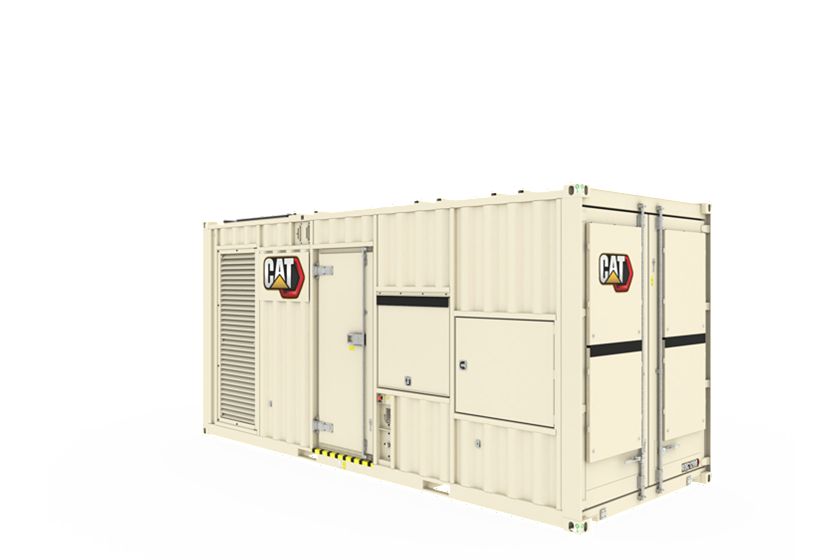

XQC1200
XQC1200
XQC1200
XQC1200
XQC1200
XQC1200
XQC1200
XQC1200

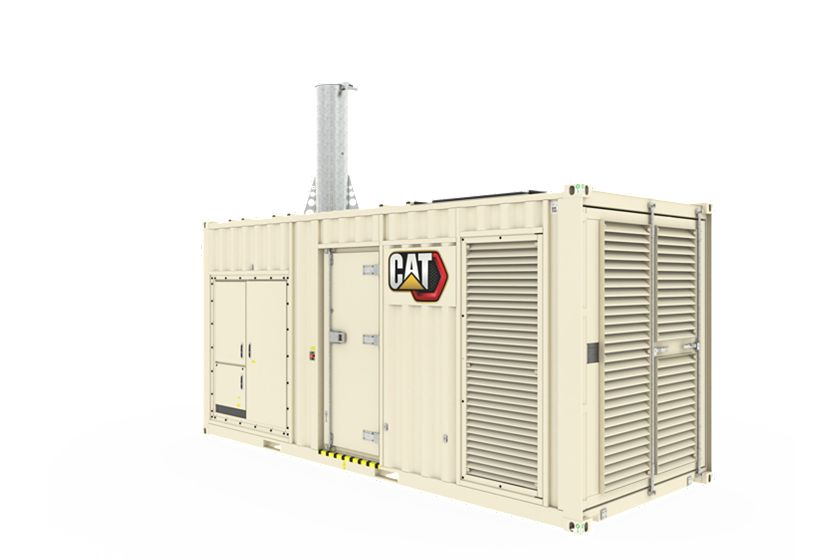

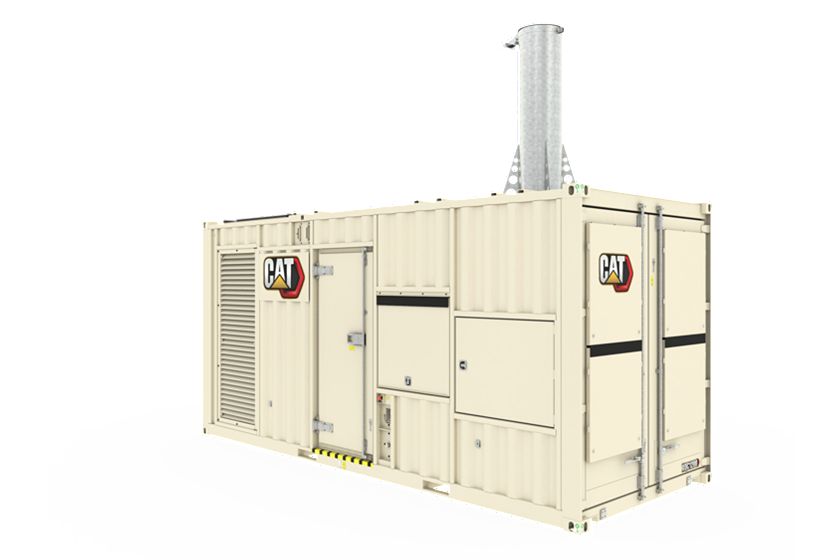

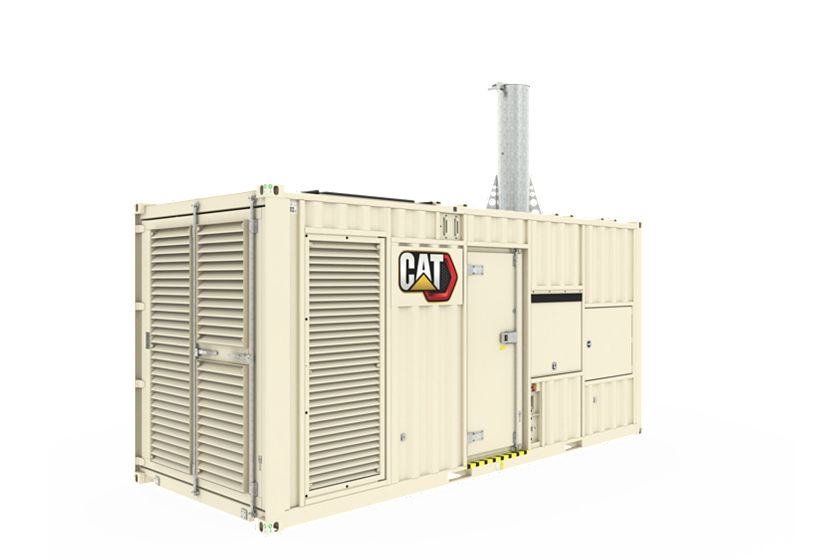

XQC1200 with Exhaust
XQC1200 with Exhaust
XQC1200 with Exhaust
XQC1200 with Exhaust
XQC1200 with Exhaust
XQC1200 with Exhaust
XQC1200 with Exhaust
XQC1200 with Exhaust

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental Ready

Fuel/Emissions Strategy

Reliable, Fuel Efficient Cat Diesel Engine

Cat EMCP Control Panel

Cat Generator

Cooling System

Sound Attenuated Container

Cat Connect

Reduced Environmental Impact

Single-Source Supplier

Worldwide Product Support

Details

Specifications

Spec Value
Rating 1150kW (1438 kVA) Continuous 1150kW (1438 kVA) Continuous
Frequency 50/60 Hz 50/60 Hz
Voltage 230 - 480 V 230 - 480 V
IPP Overload 50Hz 1205 ekW (1506 kVA) 1205 ekW (1506 kVA)
IPP Rated 60Hz 1260 ekW (1575 kVA) 1260 ekW (1575 kVA)
IPP Overload 60Hz 1330kW; (1662KVA) 1330kW; (1662KVA)
Spec Value
Engine Cat 3512C Cat 3512C
Fuel Diesel Diesel
Spec Value
Weight – Without Chassis, With Fuel, Lube Oil and Coolant 47440 lb 21518 kg
Width – Without Chassis 97.5 in 2438 mm
Height – Without Chassis 114 in 2896 mm
Length – Without Chassis 240 in 6100 mm

Standard Equipment

Cat 3512C heavy duty diesel engine

  • Heavy duty, dual element, PowerCore air cleaners with service indicators
  • Secondary fuel filters
  • Full flow oil filters with water-cooled oil cooler. Requires API CI-4 or higher lube oil
  • Lubricating oil system includes make-up system (113-L tank), oil drain lines routed to the engine rail, and quick evacuation system for faster, cleaner oil changes
  • Jacket water heater (9 kW, 3-phase 480VAC) with electric pump
  • Fuel cooler and electric priming pump
  • Electronic differential pressure monitoring of all filters
  • Electronic ADEM™ A4 engine controls
  • 24V electric starting motor

SR5 Generator

  • Double-bearing, SR-5 generator with anti-condensation space heaters (1.2 kW, 480VAC)
  • Brushless, random-wound, permanent magnet excited, thouree-phase, 4-lead design
  • Class H insulation operating at Class F temperature for extended life
  • Cat Integrated Voltage Regulator (Cat IVR)
  • Stator winding and bearing temperature sensors and RTD module
  • Metallic mesh generator air inlet filters (washable) with differential pressure monitoring
  • Coastal Insulation Protection

20' ISO high-cube container, 9-High stackable, CSC certified

  • Hinged, radiator air intake louvers
  • Sound-attenuated engine room air intake louvers with foldable awnings that double as shipping covers
  • Two (2) lockable personnel doors with panic releases
  • Interior walls and ceilings insulated with 50 mm of acoustic paneling
  • Side bus bar access door with external access load cable connections
  • Shore power via distribution block connections for jacket water heater, battery charger, and generator Anti-condensation Heaters
  • Four (4) DC lights with 60-min timer
  • Single-wall, 378-L (100gal) fuel tank; certified to BS799-5
  • Solenoid fuel-fill control valve for automated tank filling
  • Triple, primary fuel filters with integral water separators and service valves for on-the-fly changes
  • Sound attenuated to 83 dBA (50 Hz) / 85 dBA (60 Hz) at 7m (23 ft)
  • Two (2) 1400-CCA, Group 4D, maintenance-free batteries and 50-Amp battery charger
  • Insulated exhaust silencer with 1.8m (6ft) stainless steel exhaust stack for increased site power density
  • Engine vibration isolators
  • Easy drain access to standard fluids
  • Standard Cat decals and painted Cat Power Module White

Cooling

  • Cooling package provides 40°C (104F) ambient capability at 50 Hz, or 42°C (108F) capability at 60 Hz at the IPP Rating at 750m (2,460 ft) above sea level
  • Vertical, non-stacked radiator cores with dimpled fins and vertical air discharge
  • Variable frequency fan drive with smart fan control
  • Cat Extended Life Coolant (ELC)

Generator Controls and Protection

  • EMCP 4.3 generator set mounted controller
  • Automatic start/stop with cool down timer
  • Generator Protection features: 25, 32, 40, 50/51, 27/59, 81 O/U
  • AGC-4 provides voltage and frequency adjust, base load / PF / load sharing / synchouronizer, auto start / stop control & generator CB control, SCADA Interface (Ethernet), fuel level Indications & alarms, and fuel tank fuel transfer control
  • Reverse compatibility for interface to legacy power modules
  • 100 kAIC, 4000A-Frame generator circuit breaker with LSIG trip unit
  • Multi-mode operation: Island (kW/kVAR sharing), Base load power, Power management with multiple units
  • Manual and automatic paralleling capability
  • Metering display: voltage, current, frequency, power factor, kW, WHM, kVAR, and synchouroscope

Quality

  • Factory testing of complete power module
  • CE Certified, NEMA, ISO and IEEE standards
  • O&M manuals
