Caterpillar

XQC1600

Rating

1515 ekW (1893 kVA) Continuous

1515 ekW (1893 kVA) Continuous

Frequency

50/60 Hz

50/60 Hz

Voltage

230 - 480 V

230 - 480 V

Overview

This rental generator set extends the Caterpillar line of rental power options improving efficiency and reduced owning and operating costs. The XQC1600 is equipped with an enhanced control system, designed to reduce installation and startup time. It is configured to switch between 50 and 60 Hz ratings at the press of a button. The control system features plant control programming and simulation, allowing complete system testing prior to generator set startup. Advanced product autonomy and monitoring capabilities reduce on-site manpower support requirements, minimize operator exposure to hazards, and permit site performance and maintenance data to be viewed, archived, and analyzed conveniently. Ideal in a stand-alone environment, combined with dozens of units in a power plant solution, or supporting utility systems worldwide.

Media

Photos

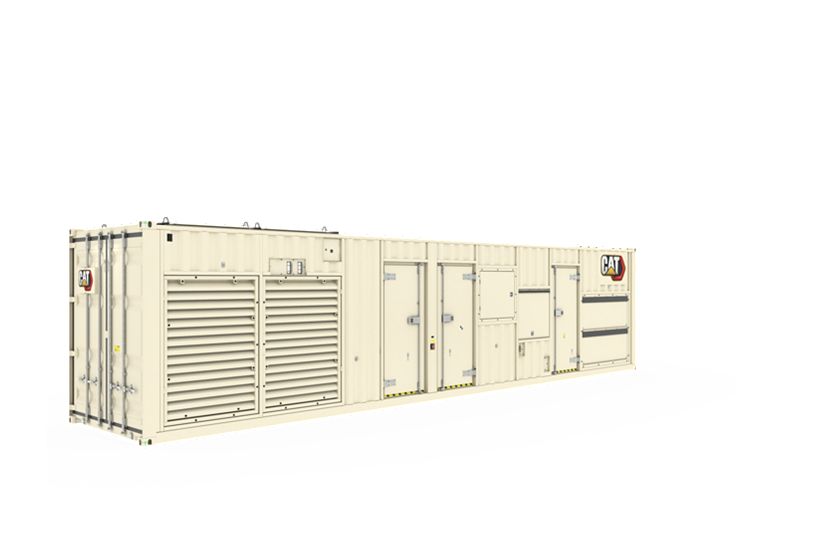

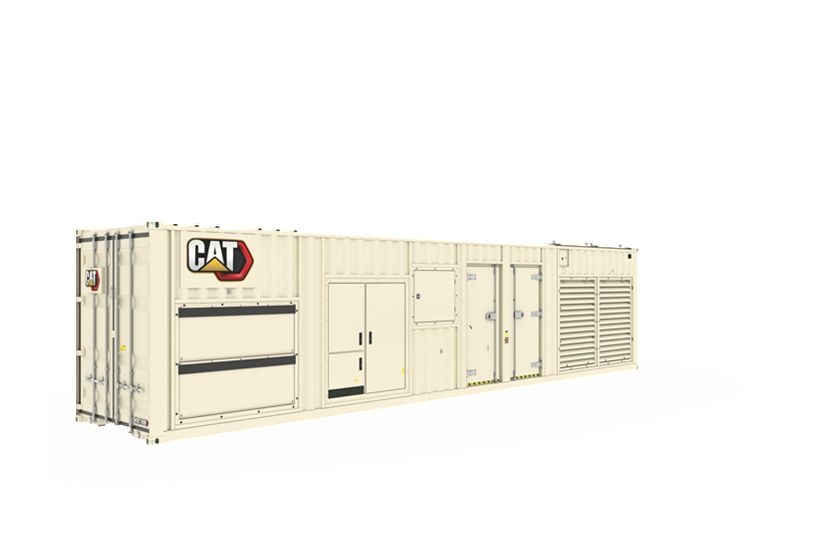

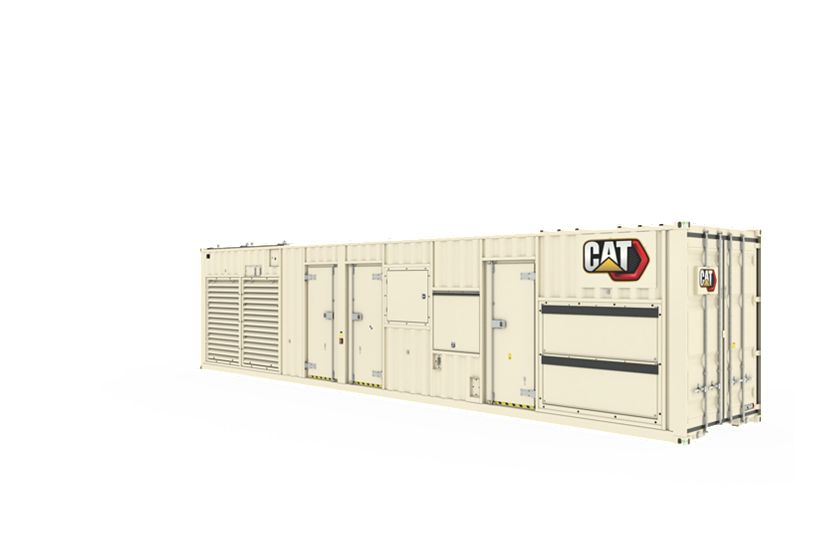

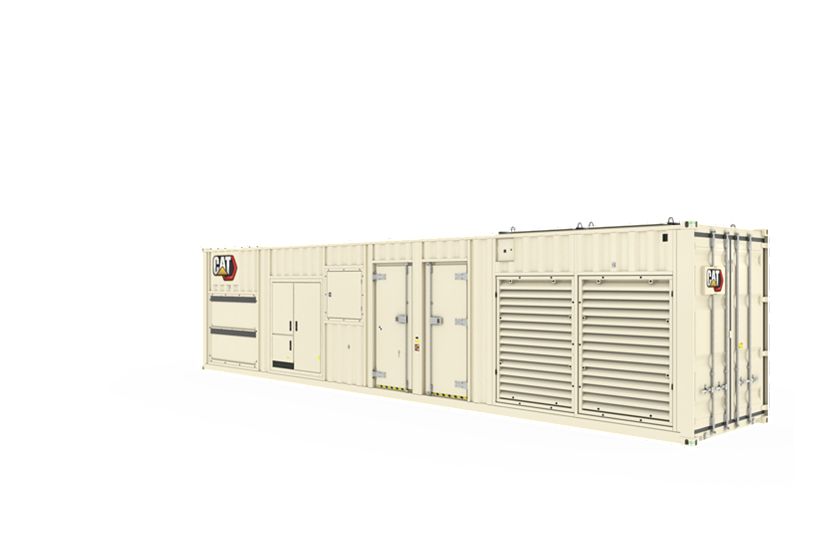

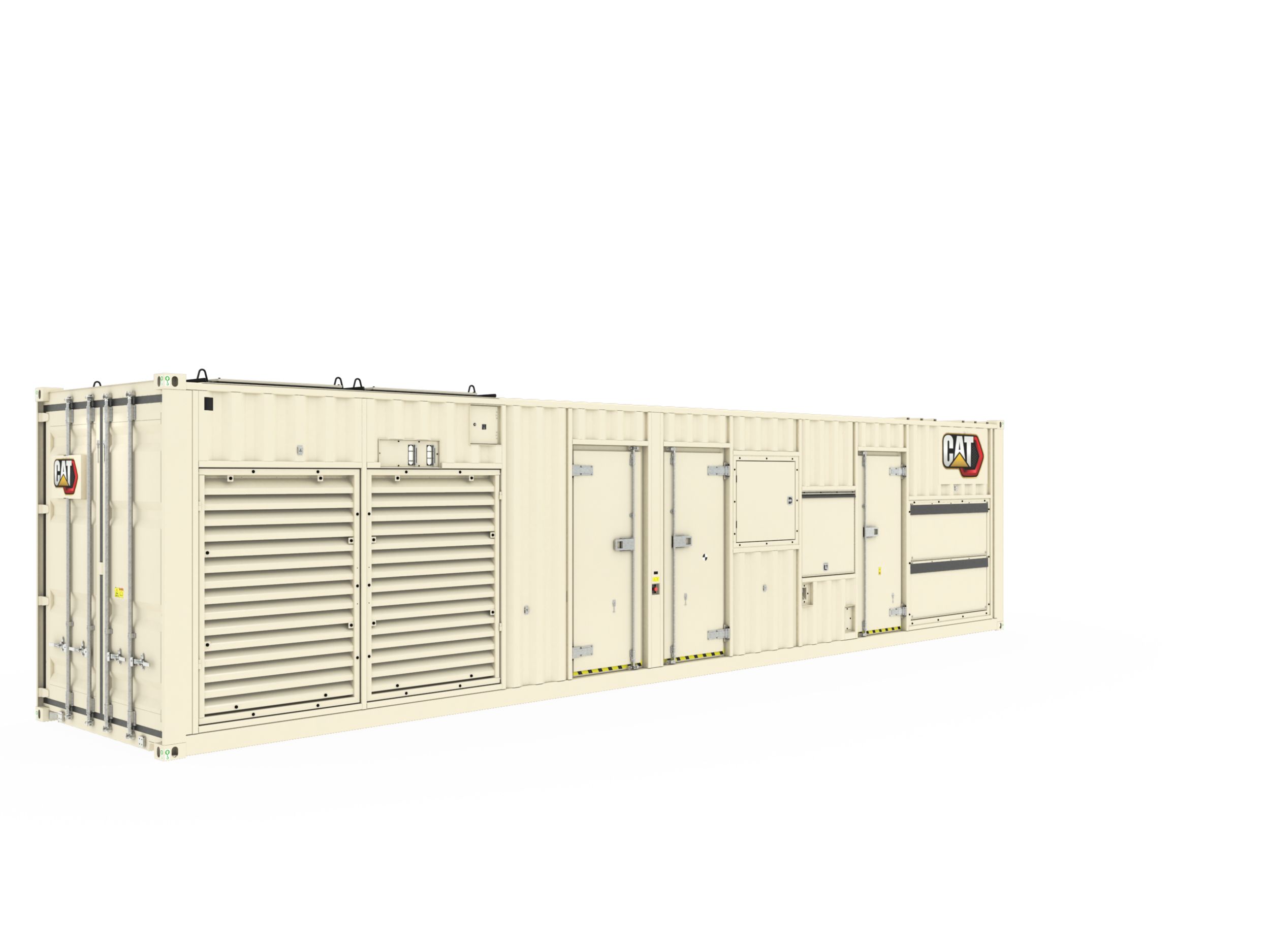

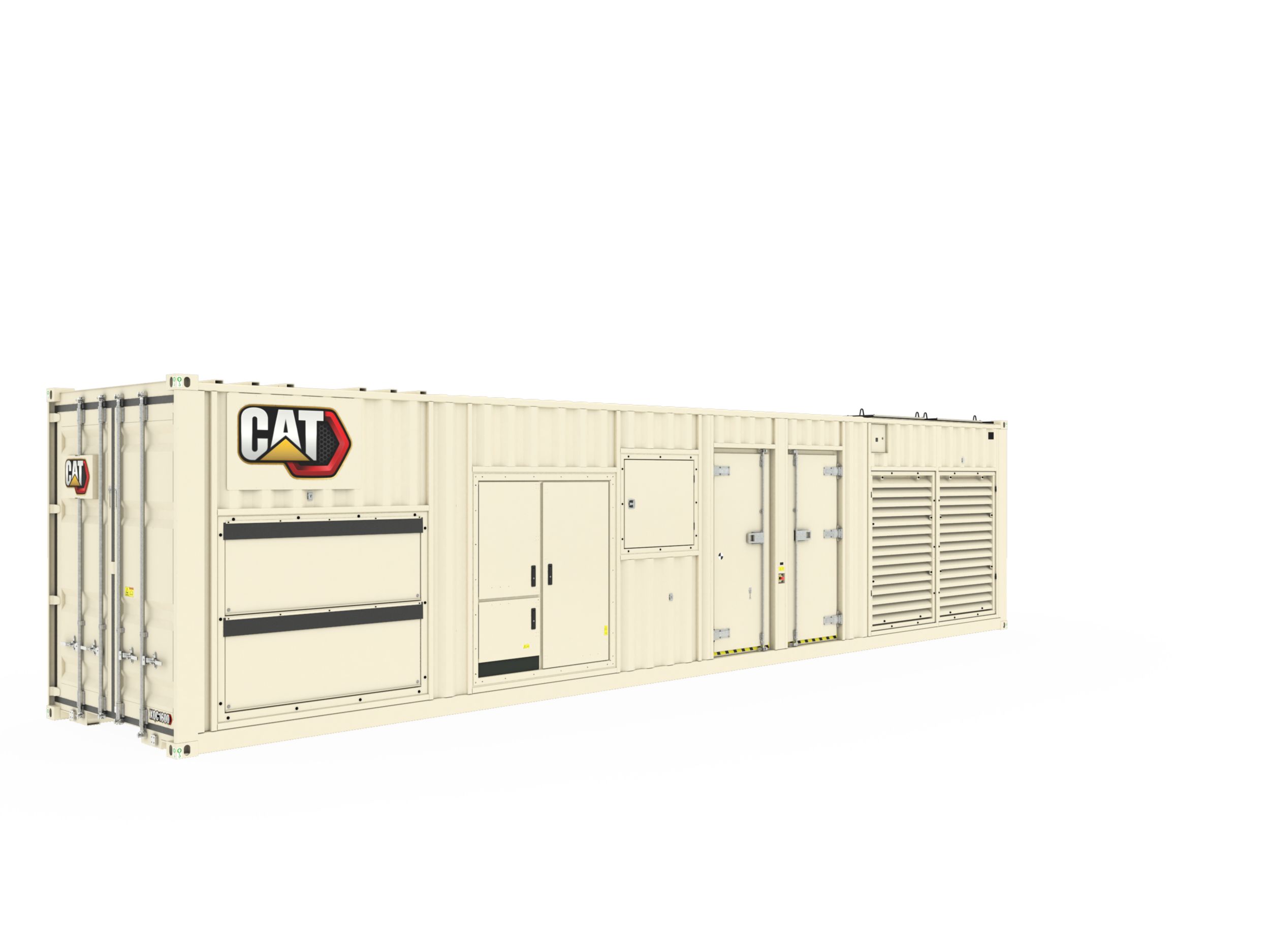

XQC1600
XQC1600
XQC1600
XQC1600
XQC1600
XQC1600
XQC1600
XQC1600

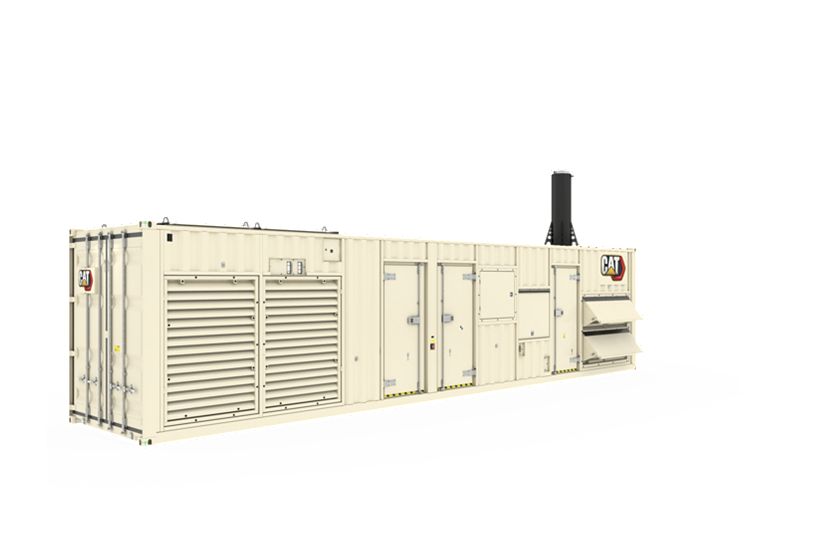

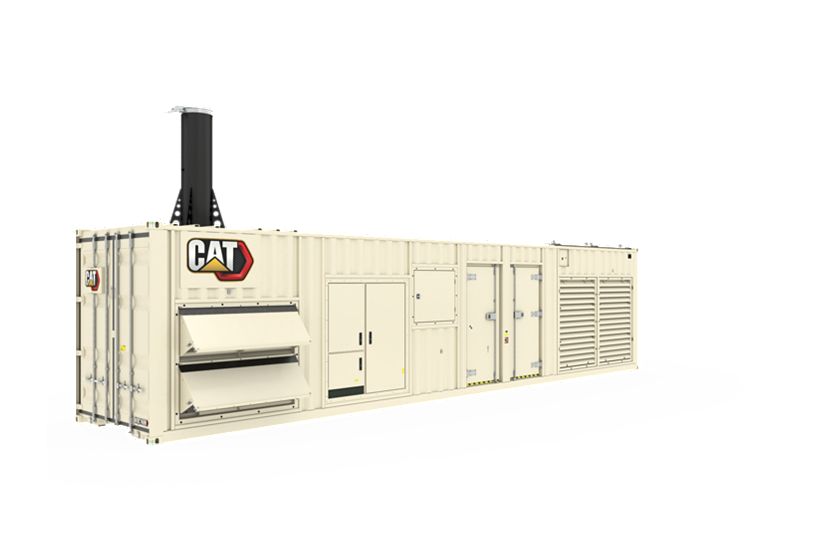

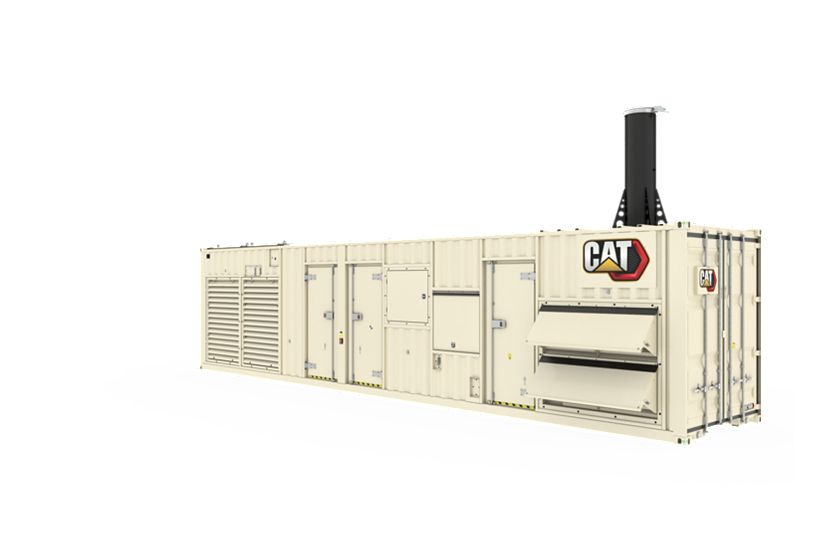

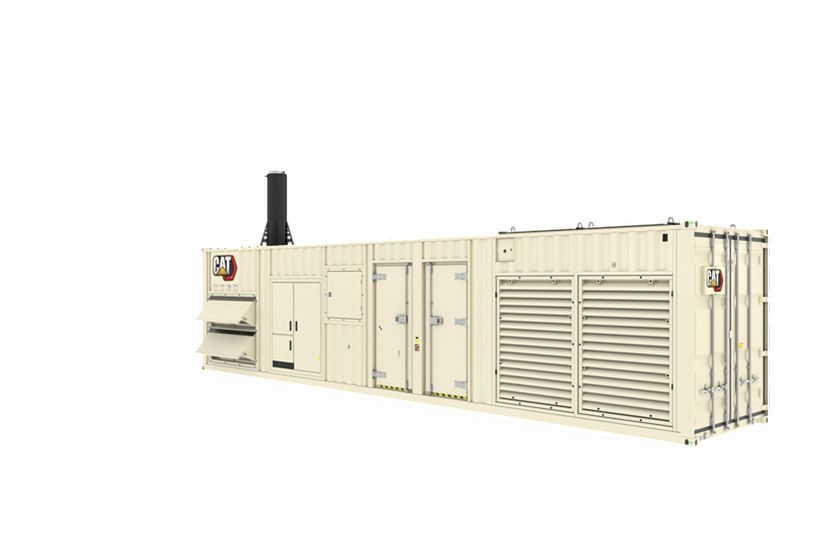

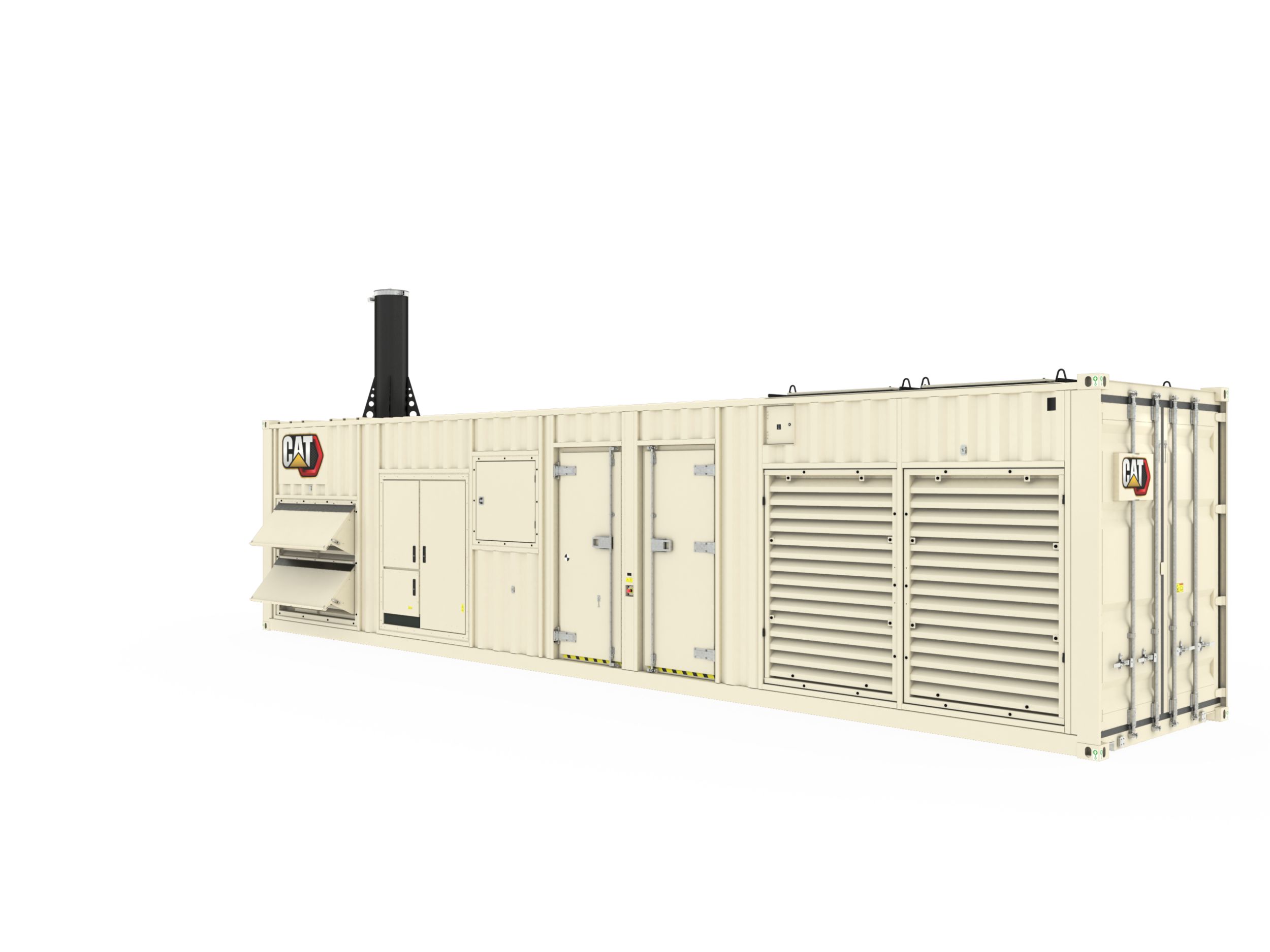

XQC1600 with Exhaust
XQC1600 with Exhaust
XQC1600 with Exhaust
XQC1600 with Exhaust
XQC1600 with Exhaust
XQC1600 with Exhaust
XQC1600 with Exhaust
XQC1600 with Exhaust

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental Ready

Fuel/Emissions Strategy

Reliable, Fuel Efficient Cat Diesel Engine

Cat EMCP Control Panel

Cat Generator

Cooling System

Sound Attenuated Container

Cat Connect

Reduced Environmental Impact

Single-Source Supplier

Worldwide Product Support

Details

Specifications

Spec Value
Rating 1515 ekW (1893 kVA) Continuous 1515 ekW (1893 kVA) Continuous
Frequency 50/60 Hz 50/60 Hz
Voltage 230 - 480 V 230 - 480 V
IPP Overload 50Hz 1590 kW (1987 kVA) 1590 kW (1987 kVA)
IPP Rated 60Hz 1705 kW (2131 kVA) 1705 kW (2131 kVA)
IPP Overload 60Hz 1790 kW (2237 kVA) 1790 kW (2237 kVA)
Spec Value
Engine Cat 3516C Cat 3516C
Fuel Diesel Diesel
Spec Value
Height – Without Chassis 114 in 2896 mm
Length – Without Chassis 480 in 12192 mm
Weight – Without Chassis, With Fuel, Lube Oil and Coolant 70000 lb 31818 kg
Width – Without Chassis 97.5 in 2438 mm

Standard Equipment

Cat 3516C Heavy Duty Diesel Engine

  • Heavy duty, dual element, PowerCore air cleaners with service indicators
  • Triple, primary fuel filters with water separators and bypass valves for on-the-fly filters changes
  • Secondary fuel filters on engine
  • Full flow oil filters with water-cooled oil cooler. Requires API CI-4 or higher lube oil
  • Lubricating oil system includes make-up system (113-L tank), oil drain lines routed to the engine rail, and quick evacuation system for faster, cleaner oil changes
  • Jacket water heater (9 kW, 3-phase 480VAC) with electric pump
  • Fuel cooler and electric fuel priming pump
  • Electronic differential pressure monitoring of all filters
  • Electronic ADEM™ A4 engine controls
  • Dual 24V electric starting motors

SR-5 Generator

  • Double-bearing, 1844-Frame, SR-5 generator with anti-condensation space heaters (1.2 kW, 480V)
  • Brushless, form-wound, permanent magnet excited, thouree-phase, 4-lead design
  • Class H insulation operating at Class F temperature for extended life
  • Cat Integrated Voltage Regulator (Cat IVR)
  • Stator winding and bearing temperature detectors monitored by RTD module
  • Metallic mesh generator air inlet filters (2)
  • System 4 insulation protection

40' ISO high cube container

  • 9-High stackable, CSC certified
  • Sound attenuated, hinged, radiator intake louvers
  • Sound attenuated package air intake louvers with foldable awnings
  • Five (5) lockable personnel doors with panic releases
  • Interior walls and ceilings insulated with 100 mm of acoustic paneling
  • Side bus bar access door with external access load cable connections
  • Shore power via distribution block connections for jacket water heater, battery charger, space heaters, and generator Anti-condensation Heaters
  • Six (6) DC lights with 60-min timer
  • Single-wall, 946-L (250gal) fuel tank; certified to BS799-5
  • Solenoid fuel fill control valve for automated filling
  • Sound attenuated to 75 dB(A) (50Hz) 81 dB(A) (60Hz) at 7m (23 ft)
  • Four (4) 1400-CCA, Group 4D, maintenance-free batteries, and 50A battery charger
  • Insulated exhaust silencer with 1.8m (6ft) stainless steel exhaust stack for increased site power density
  • Engine vibration isolators
  • Easy drain access to standard fluids
  • Standard Cat decals (Optional) and painted Cat Power Module White

Cooling

  • Cooling package provides 49°C (120°F) ambient capability (50 & 60 Hz) at IPP Ratings @ 750m (2,460 ft)
  • Vertical, non-stacked radiator cores with dimpled fins and vertical air discharge
  • Variable frequency fan drive with smart fan control
  • Cat Extended Life Coolant (ELC)

Generator Controls and Protection

  • EMCP 4.3 generator set controller
  • Automatic start/stop with cool down timer
  • Generator Protection features: 25, 32, 40, 50/51, 27/59, 81 O/U
  • AGC-4 provides voltage and frequency adjust, base load / PF / load sharing / synchouronizer, auto start / stop control & generator CB control, SCADA Interface (Ethernet), fuel level indications & alarms, fuel tank fuel transfer control
  • Reverse compatibility for interface to legacy power modules
  • 100 kAIC, 4000A-Frame generator circuit breaker with LSIG trip unit
  • Multi-mode operation (Island (kW/kVAR sharing, Auto Mains Failure, Peak Shaving, Base Load Power, Export, zero power transfer, power management with multiple units)
  • Manual and automatic paralleling capability
  • Metering display: voltage, current, frequency, power factor, kW, WHM, kVAR, and synchouroscope

Quality

  • Factory testing of complete power module
  • CE Certified, NEMA, ISO and IEEE standards
  • O&M manuals
