Caterpillar

XQ570 Tier 4 Final – 455 ekW (568 kVA)

Rating Prime

455 ekW (568 kVA)

455 ekW (568 kVA)

Frequency

60 Hz

60 Hz

Voltage

120 - 600 V

120 - 600 V

Overview

The Cat® XQ570 Rental Power Generator Setprovides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C18 Tier 4 Final compliantengine equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ570 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.

Media

Photos

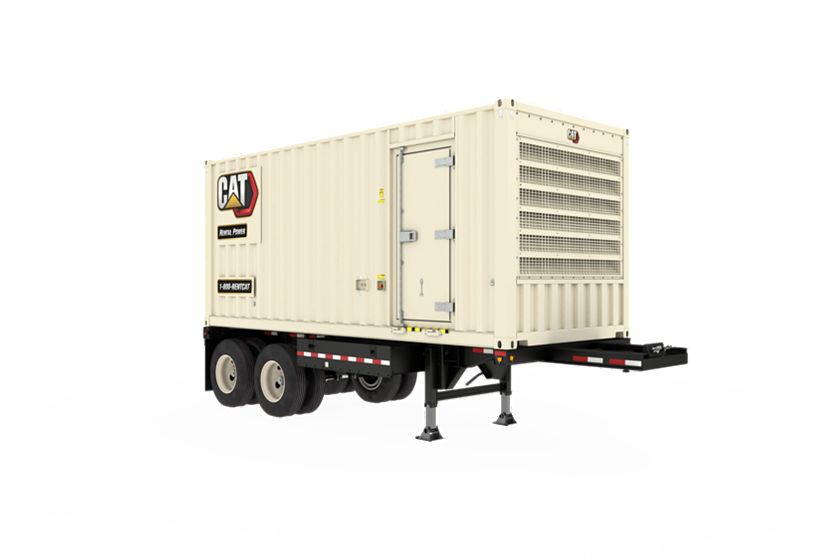

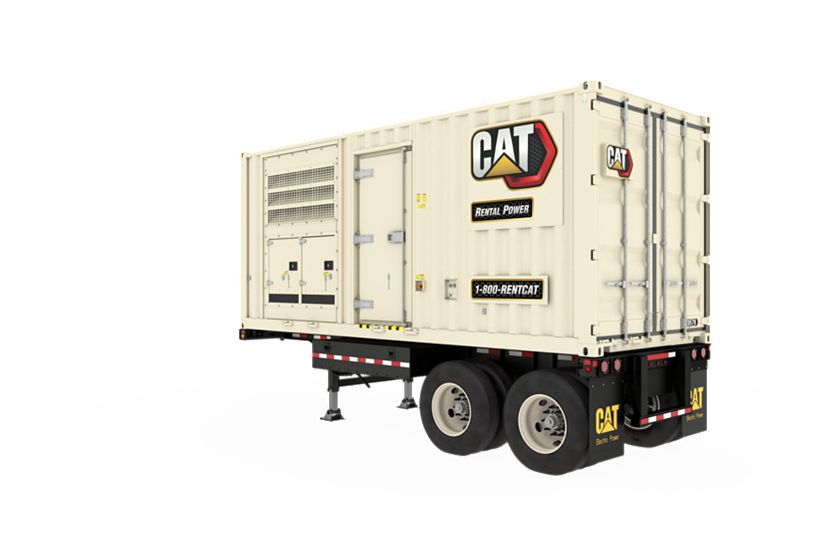

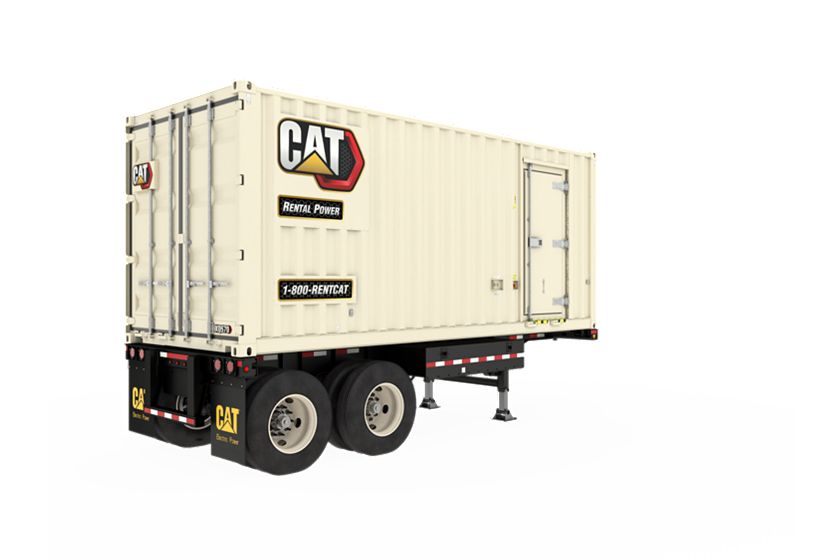

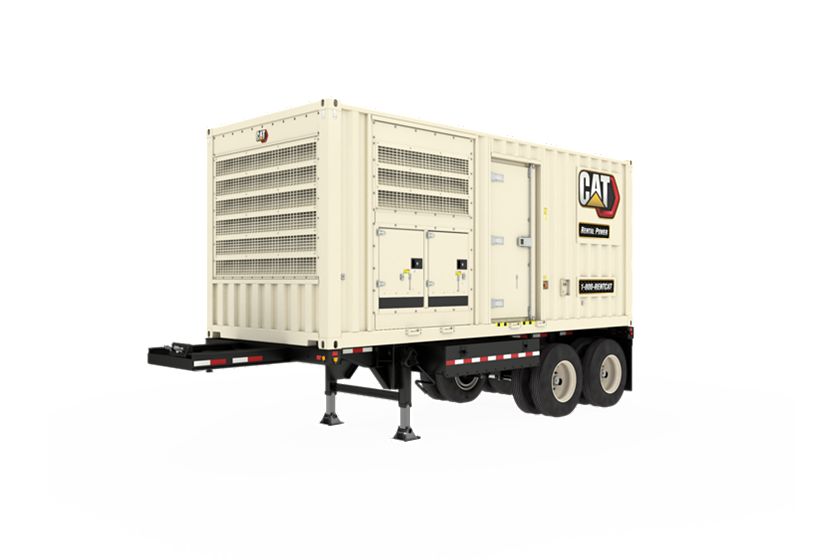

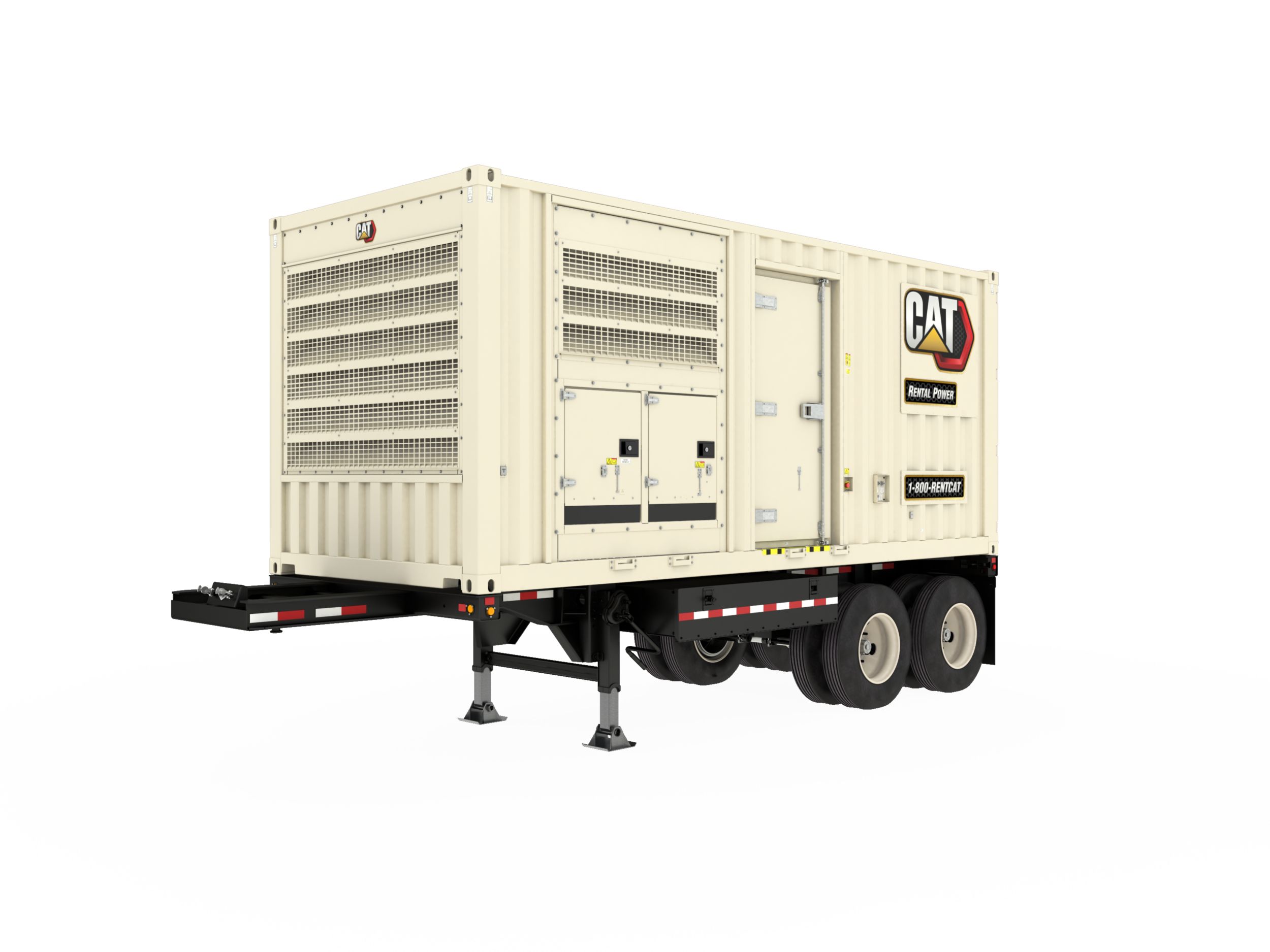

XQ570
XQ570
XQ570
XQ570
XQ570
XQ570
XQ570
XQ570

Videos

360° View

Exterior

360° Exterior view. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C18 Diesel Engine

CAT EMCP4.4 digital controls

Cat LC Series Generator

Sound Isolated Operator panel

Cat Connect

Factory designed, built and tested

Worldwide Product Support

500 hr oil change intervals

Improved transportability

Power Distribution

Additional options

Details

Specifications

Spec Value
Rating Prime 455 ekW (568 kVA) 455 ekW (568 kVA)
Frequency 60 Hz 60 Hz
Voltage 120 - 600 V 120 - 600 V
Rating Standby 500 ekW (625 kVA) 500 ekW (625 kVA)
Spec Value
Engine Cat C18 Cat C18
Fuel Diesel Diesel
Spec Value
Height – Without Trailer 102 in 2591 mm
Length – Without Trailer 240 in 6096 mm
Width – Without Trailer 96 in 2438 mm
Weight with Lube Oil and Coolant, Without Trailer 24125 lb 11396 kg
Spec Value
100% Load 60Hz 33.2 gal/hr 126 l/hr
75% Load 60Hz 26.2 gal/hr 99 l/hr
50% Load 60Hz 19 gal/hr 72 l/hr
100% Load 60Hz 35.9 gal/hr 136 l/hr
75% Load 60Hz 28.3 gal/hr 107 l/hr
50% Load 60Hz 20.5 gal/hr 78 l/hr
Spec Value
Sound Power @ 7 meters (23 feet) @ All Ratings 74 dB(A) 74 dB(A)

Standard Equipment

CAT C18 Diesel Engine

  • Heavy-duty.
    Turbocharged.
    After treatment

Generator

  • LC6134G Frame

Control Panel

  • Digital EMCP4.4 set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
