Cat

XQ35

Rating Prime

27 ekW (35 kVA)

27 ekW (35 kVA)

Frequency

60 Hz

60 Hz

Voltage

120 - 600 V

120 - 600 V

Overview

With a robust, rental-ready construction, the XQ35 is designed to be easily transported around project sites safely and efficiently. A smaller footprint saves space and provides installation versatility on worksites, while a galvanized enclosure is resilient to potentially harsh environments.

Media

Photos

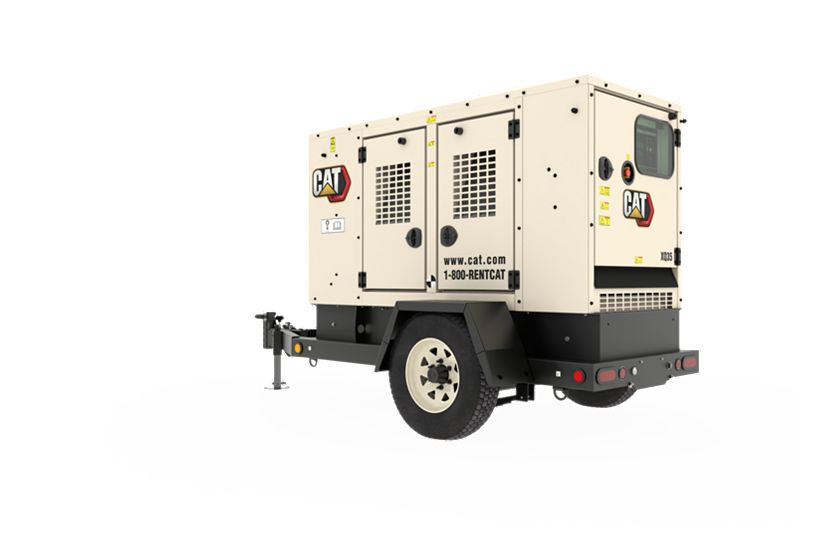

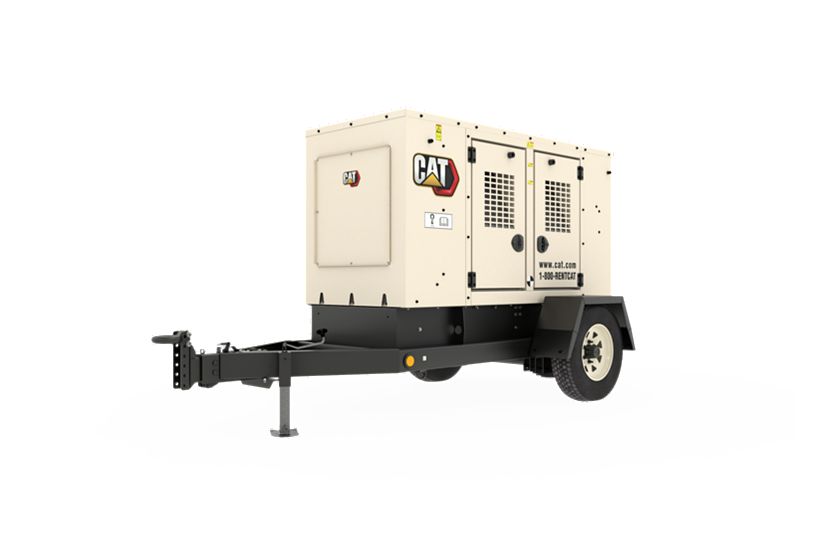

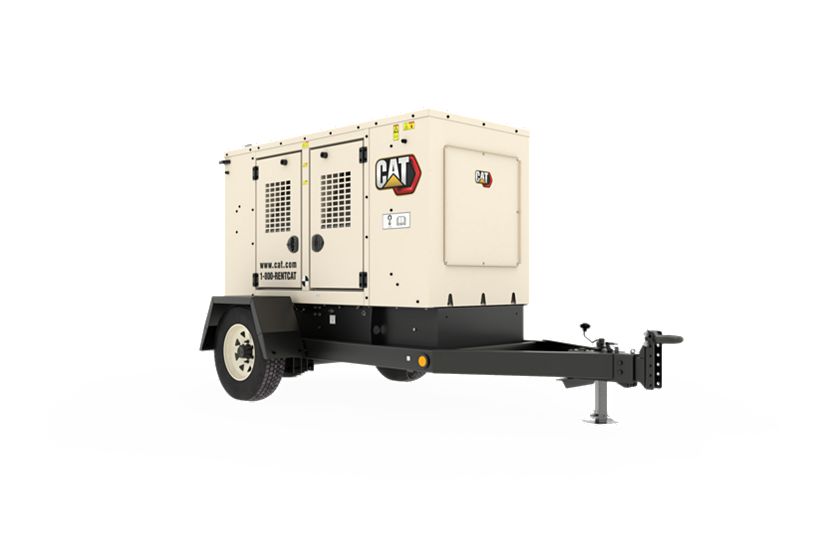

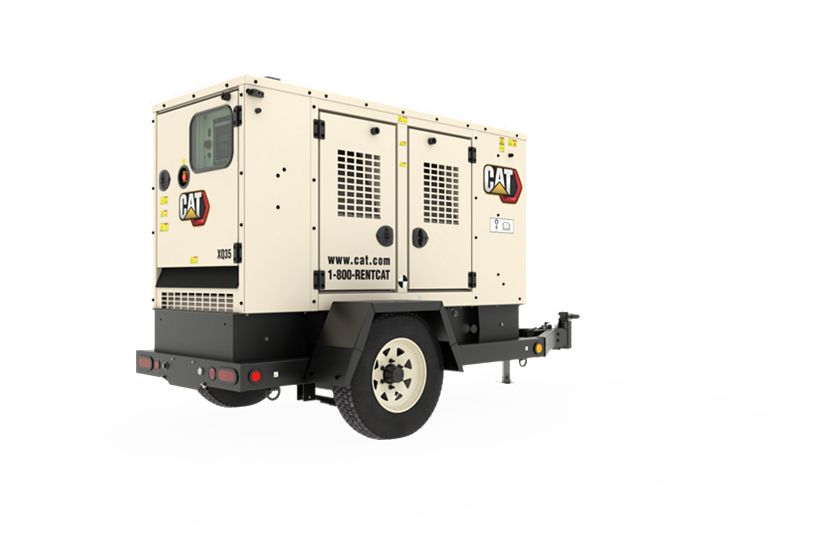

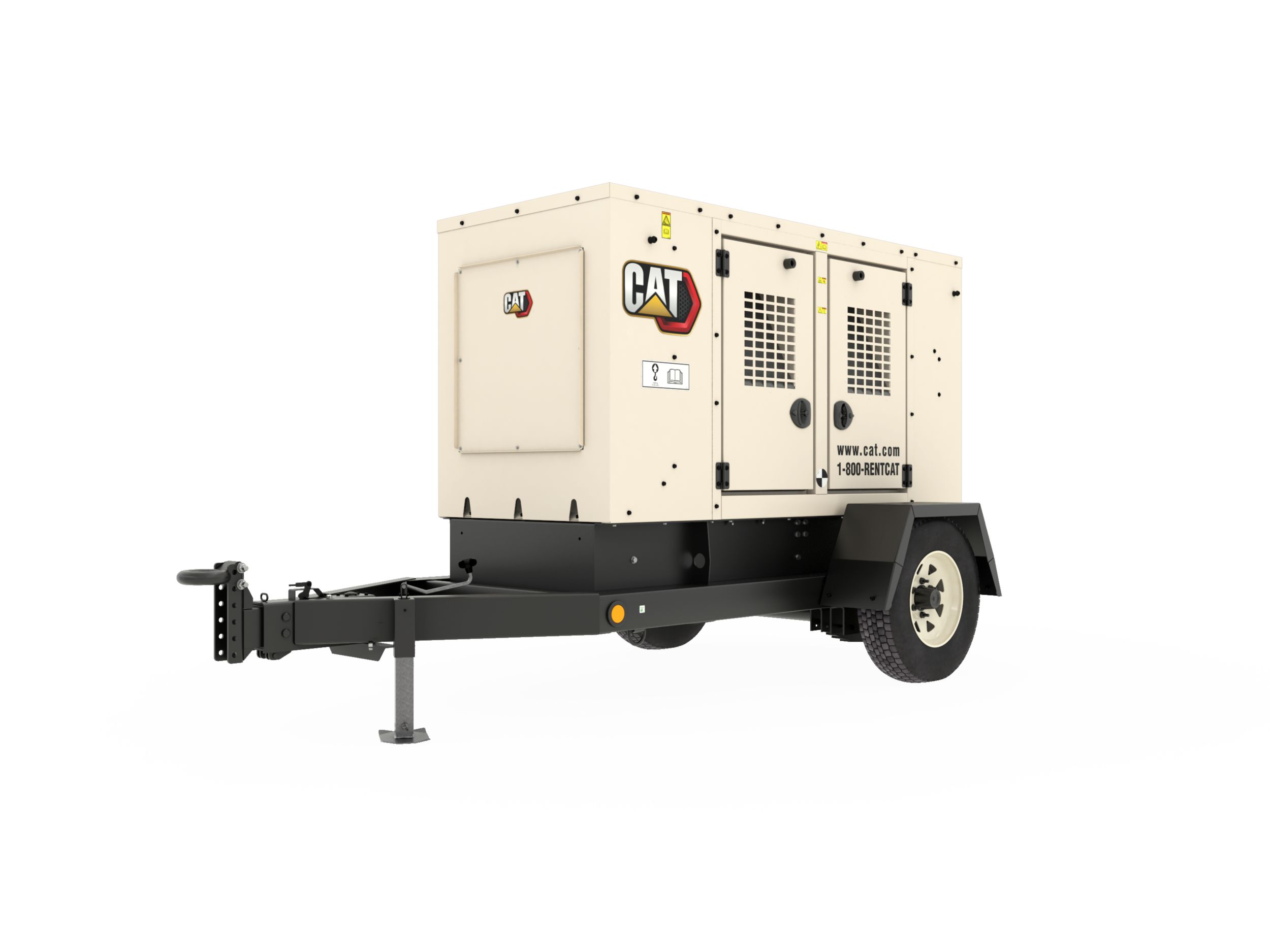

XQ35 Tier 4 Final
XQ35 Tier 4 Final
XQ35 Tier 4 Final
XQ35 Tier 4 Final
XQ35 Tier 4 Final
XQ35 Tier 4 Final
XQ35 Tier 4 Final
XQ35 Tier 4 Final

Videos

360° View

Exterior

360° Exterior View. Double click on the image to zoom in on any area of the product.

Documents

Features

Rental ready

Fuel/Emissions Strategy

Cat C2.2T Diesel Engine

XQCP digital controls

Cat LC Series Generator

Sound Isolated Operator panel

Cat Connect

Factory designed, built and tested

Worldwide Product Support

500 hr oil change intervals

Improved transportability

Power Distribution

Additional options

Details

Specifications

Spec Value
Rating Prime 27 ekW (35 kVA) 27 ekW (35 kVA)
Frequency 60 Hz 60 Hz
Voltage 120 - 600 V 120 - 600 V
Rating Standby 30 ekW (38 kVA) 30 ekW (38 kVA)
Spec Value
Engine Cat C2.2 Cat C2.2
Fuel Diesel Diesel
Spec Value
Height – Without Trailer 63.7 in 1617 mm
Length – Without Trailer 91.3 in 2318 mm
Width – Without Trailer 41.4 in 1050 mm
Weight with Lube Oil and Coolant, Without Trailer 2215 lb 1003 kg
Spec Value
100% Load 60Hz 2.3 gal/hr 8.8 l/hr
75% Load 60Hz 1.8 gal/hr 6.7 l/hr
50% Load 60Hz 1.2 gal/hr 4.4 l/hr
100% Load 60Hz 2.6 gal/hr 9.8 l/hr
75% Load 60Hz 2 gal/hr 7.4 l/hr
50% Load 60Hz 1.3 gal/hr 4.9 l/hr
Spec Value
Sound Power @ 7 meters (23 feet) @ All Ratings 63 dB(A) 63 dB(A)

Standard Equipment

CAT C2.2T Diesel Engine

  • Heavy-duty.
    After treatment

Generator

  • 1514J Frame

Control Panel

  • XQCP dgital set mounted controller

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge.
    Filled from factory

Charging / Starting System

  • 12V heavy duty starting motor and charging alternator c/w battery isolator

Fuel System

  • 24 hour dual wall fuel tank with 3 way directional valve for external supply

Air Filter

  • Cyclonic/paper with dust cup and service indicator

Distribution

  • Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off

Structure

  • Heavy Duty steel base frame with integral fuel tank.
    Lifting frame and 4 point lift.
    base frame is wider than enclosure to protect generator set during transportation

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance

Exhaust

  • Integrated spark arresting silencer

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
