Caterpillar

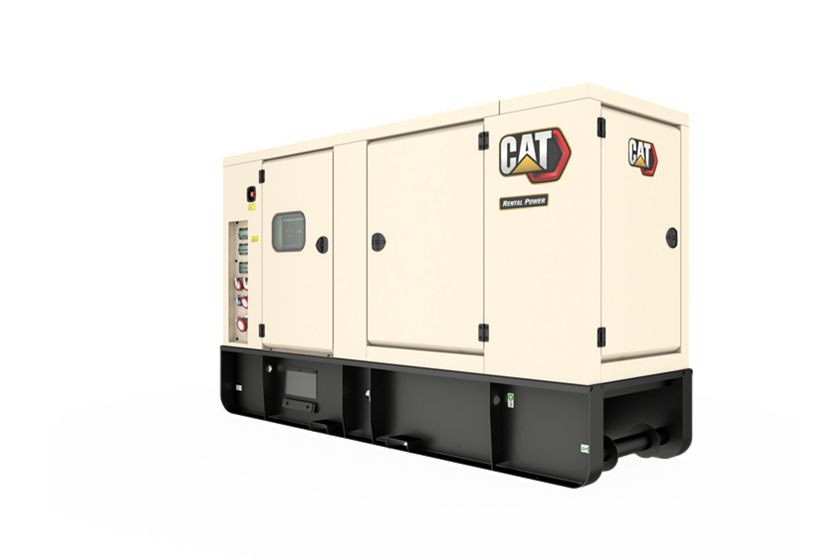

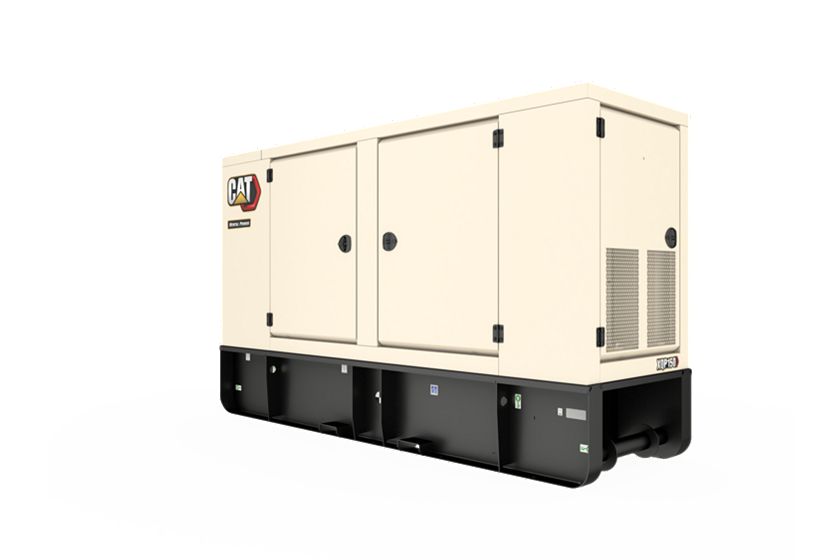

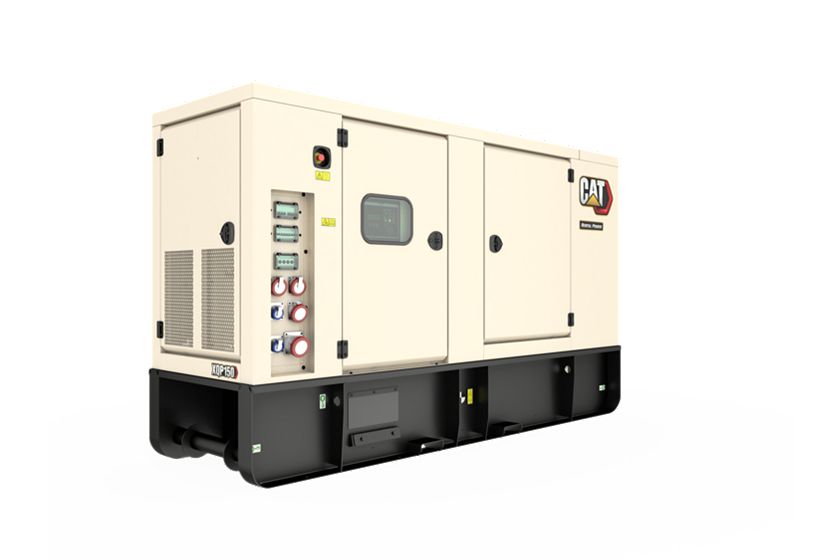

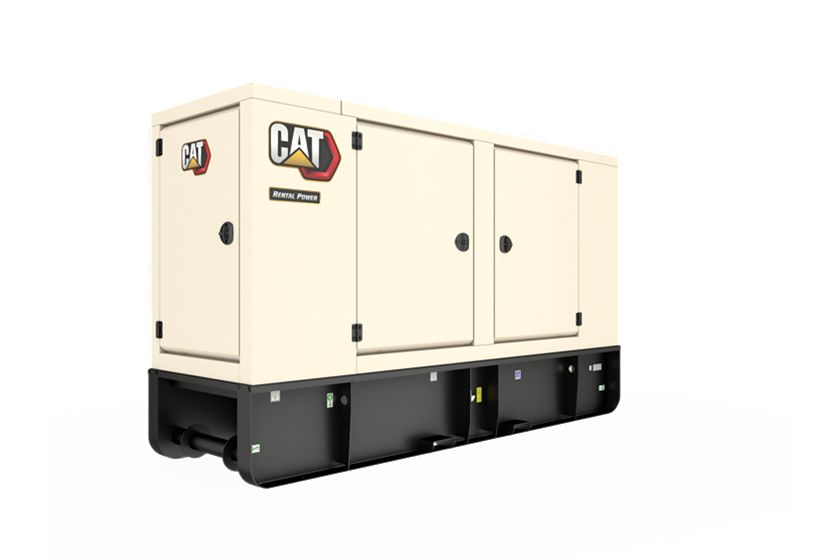

XQP150
Rating Prime
150 kVA
150 kVA
Frequency
50/60 Hz
50/60 Hz
Voltage
127 - 480 V
127 - 480 V
Overview
This XQP150 generator set is fuel consumption optimized . Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Fuel/Emissions Strategy
Cat C7.1 Diesel Engine
XQCP Control Panel
Cat LC3114J Generator
Robust Galvanised Enclosure
Sound Isolated Operator Panel
Cat Connect
Factory Designed, Built and Tested
Worldwide Product Support
500 hr Oil Change Intervals
Improved Transportability
Additional Options Available
Details
Specifications
Generator Set
| Spec | Value |
|---|---|
| Rating Prime | 150 kVA 150 kVA |
| Frequency | 50/60 Hz 50/60 Hz |
| Voltage | 127 - 480 V 127 - 480 V |
Engine
| Spec | Value |
|---|---|
| Engine | Cat C7.1 Cat C7.1 |
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Width | 44.1 in 1120 mm |
| Height | 87.6 in 2226 mm |
| Length | 138.6 in 3520 mm |
| Weight – With Lube Oil and Coolant | 5615 lb 2547 kg |
Fuel Consumption EU Stage IIIA
| Spec | Value |
|---|---|
| 100% Load 50Hz | 9.9 gal/hr 37.5 l/hr |
| 100% Load 60Hz | 11.2 gal/hr 42.3 l/hr |
| 75% Load 50Hz | 7.8 gal/hr 29.6 l/hr |
| 75% Load 60Hz | 9.2 gal/hr 34.7 l/hr |
| 50% Load 50Hz | 5.4 gal/hr 20.3 l/hr |
| 50% Load 60Hz | 6.3 gal/hr 23.8 l/hr |
Fuel consumption Best Fuel Efficiency
| Spec | Value |
|---|---|
| 100% Load 50Hz | 8.8 gal/hr 33.3 l/hr |
| 100% Load 60Hz | 10.5 gal/hr 38.2 l/hr |
| 75% Load 50Hz | 6.5 gal/hr 24.7 l/hr |
| 75% Load 60Hz | 7.7 gal/hr 29.1 l/hr |
| 50% Load 50Hz | 4.3 gal/hr 16.4 l/hr |
| 50% Load 60Hz | 5 gal/hr 19.1 l/hr |
Noise rating (with enclosure) EU Stage IIIA
| Spec | Value |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 73.1 dB(A) 73.1 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 76.4 dB(A) 76.4 dB(A) |
Noise rating (with enclosure) Best Fuel Efficiency
| Spec | Value |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 74.7 dB(A) 74.7 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 78.3 dB(A) 78.3 dB(A) |
Standard Equipment
CAT C7.1 Diesel Engine
- Turbocharged
Generator
- LC3114J Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital XQCP set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
