Caterpillar
XQP500
Rating Prime
500 kVA
500 kVA
Frequency
50/60 Hz
50/60 Hz
Voltage
127 - 480 V
127 - 480 V
Overview

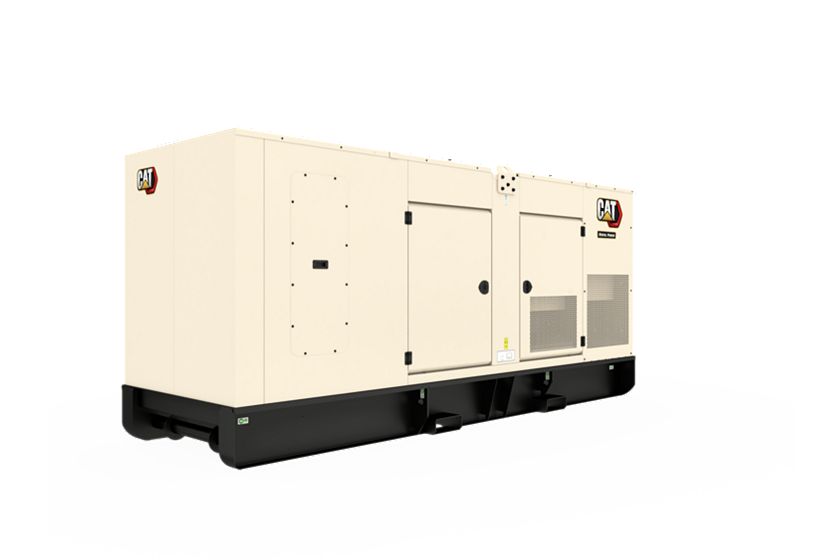

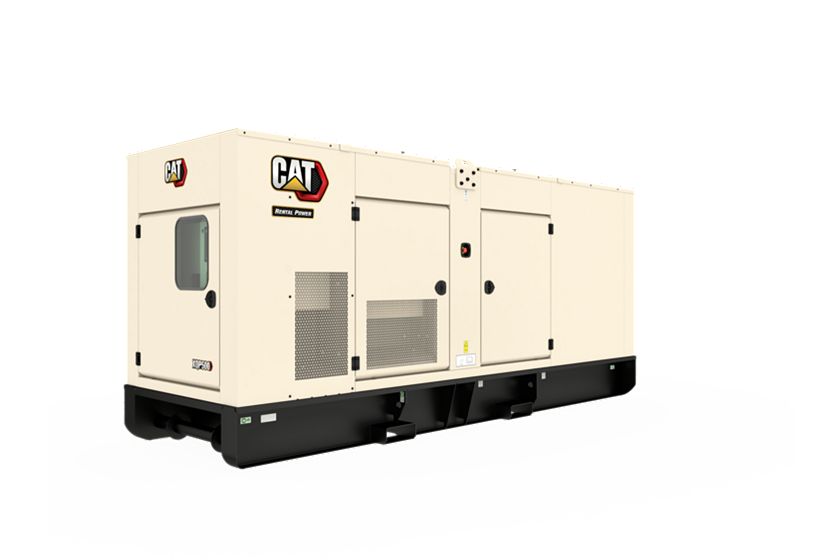

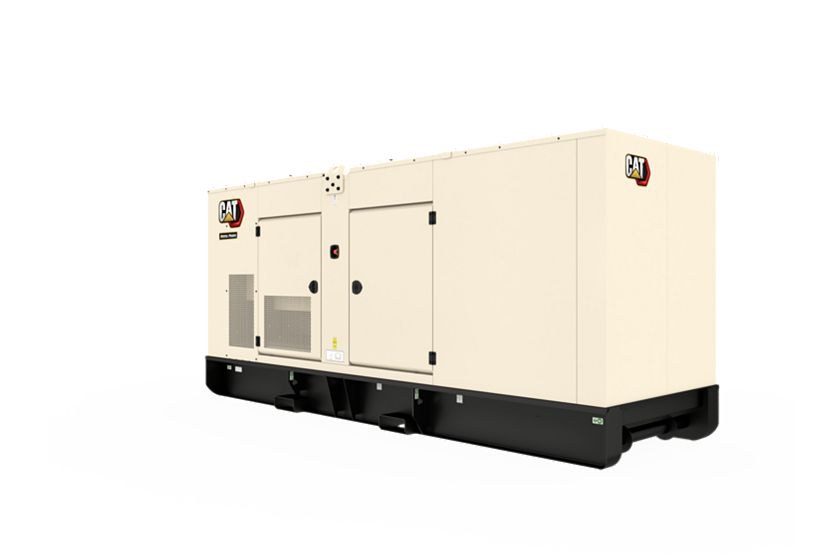

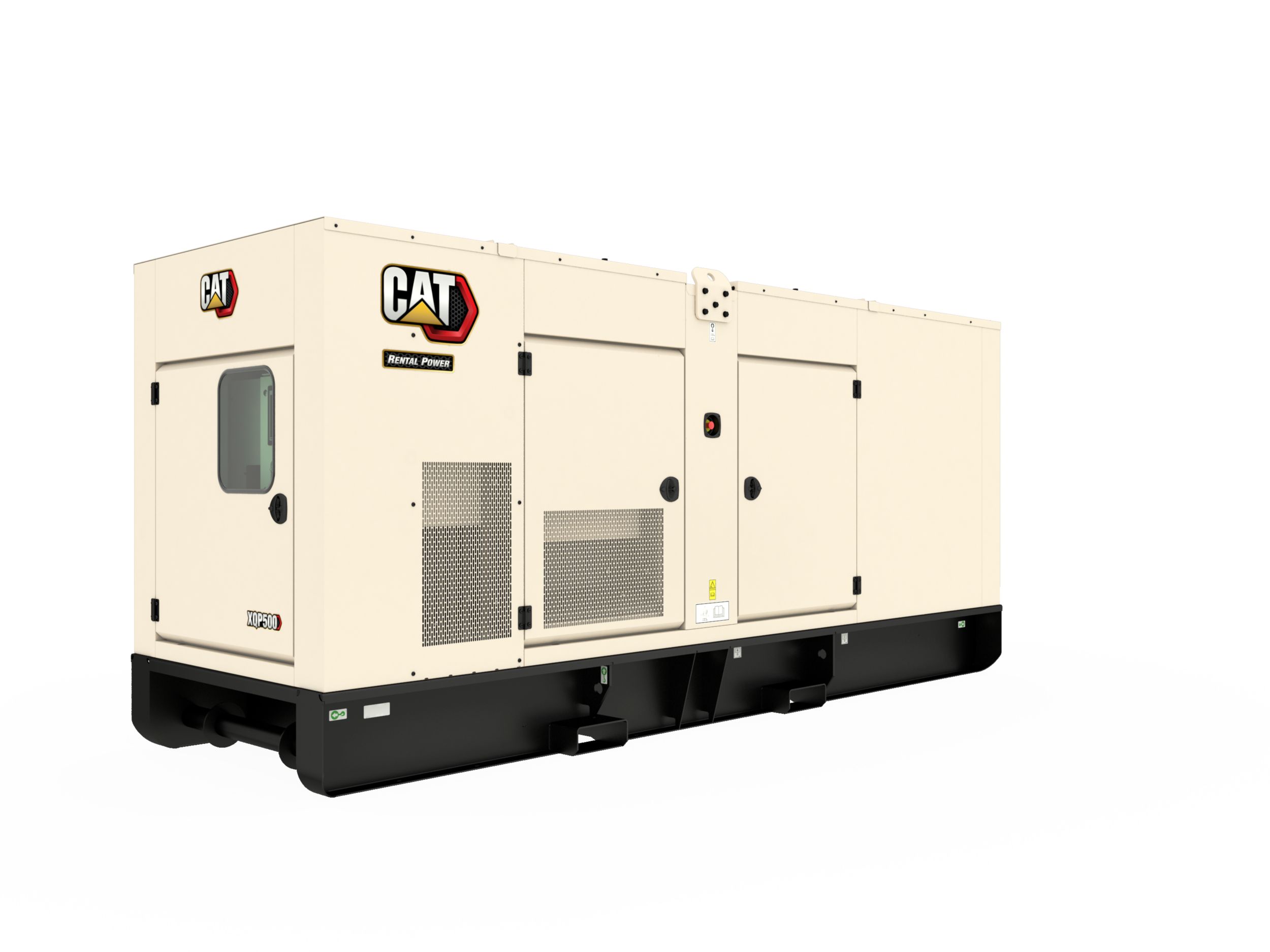

This XQP500 generator set is fuel consumption optimized. A unique feature is the introduction of clutch fan drive technology, where the fan no longer needs to runs continuously at full speed and power. This saves additional fuel, while also lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures, or most importantly, in evenings when noise levels are most noticeable.
Media
Photos
Videos
360° View
Exterior
360° Exterior view. Double click on the image to zoom in on any area of the product.
Features
Fuel/Emissions Strategy
Cat C15 Diesel Engine
Cat EMCP 4.2B Control Panel
Cat LC6100 Generator
Robust Galvanised Enclosure
Sound Isolated Operator Panel
Cat Connect
Factory Designed, Built and Tested
Worldwide Product Support
500 hr Oil Change Intervals
Improved Transportability
Additional Options Available
Details
Specifications
Generator Set
| Spec | Value |
|---|---|
| Rating Prime | 500 kVA 500 kVA |
| Frequency | 50/60 Hz 50/60 Hz |
| Voltage | 127 - 480 V 127 - 480 V |
Engine
| Spec | Value |
|---|---|
| Engine | Cat C15 Cat C15 |
| Fuel | Diesel Diesel |
Dimensions
| Spec | Value |
|---|---|
| Width | 77 in 1954 mm |
| Height | 90 in 2292 mm |
| Length | 200.9 in 5103 mm |
| Weight – With Lube Oil and Coolant | 13176 lb 5977 kg |
Fuel Consumption EU Stage IIIA
| Spec | Value |
|---|---|
| 100% Load 50Hz | 29.1 gal/hr 110.2 l/hr |
| 100% Load 60Hz | 32 gal/hr 121 l/hr |
| 75% Load 50Hz | 23 gal/hr 86.8 l/hr |
| 75% Load 60Hz | 26.3 gal/hr 99.7 l/hr |
| 50% Load 50Hz | 16.4 gal/hr 62 l/hr |
| 50% Load 60Hz | 18.3 gal/hr 69.2 l/hr |
Fuel consumption Best Fuel Efficiency
| Spec | Value |
|---|---|
| 100% Load 50Hz | 29 gal/hr 102 l/hr |
| 100% Load 60Hz | 28.3 gal/hr 107 l/hr |
| 75% Load 50Hz | 20.1 gal/hr 76.2 l/hr |
| 75% Load 60Hz | 22 gal/hr 83 l/hr |
| 50% Load 50Hz | 14.3 gal/hr 54 l/hr |
| 50% Load 60Hz | 15.7 gal/hr 59.3 l/hr |
Noise rating (with enclosure) EU Stage IIIA
| Spec | Value |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 77.5 dB(A) 77.5 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 79.8 dB(A) 79.8 dB(A) |
Noise rating (with enclosure) Best Fuel Efficiency
| Spec | Value |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 80.1 dB(A) 80.1 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 80 dB(A) 80 dB(A) |
Standard Equipment
CAT C15 Diesel Engine
- Turbocharged
Generator
- LC6114F Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- Dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital EMCP4.2B set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
